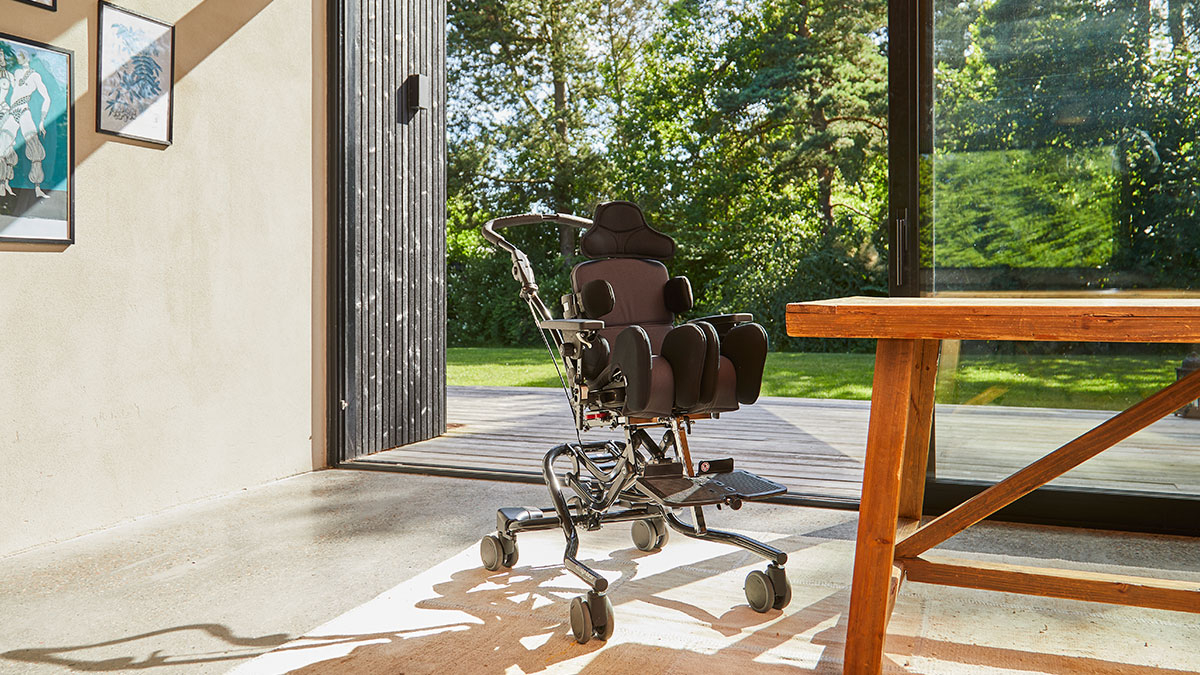

R82 x:panda shape

This multi-adjustable seating system offers tailored comfort and adaptability. It facilitates independence and participation in daily life, from early intervention to advanced needs, ensuring a stable and supportive base for interaction and exploration.


R82 x:panda shape

Designed to change shape as your child develops

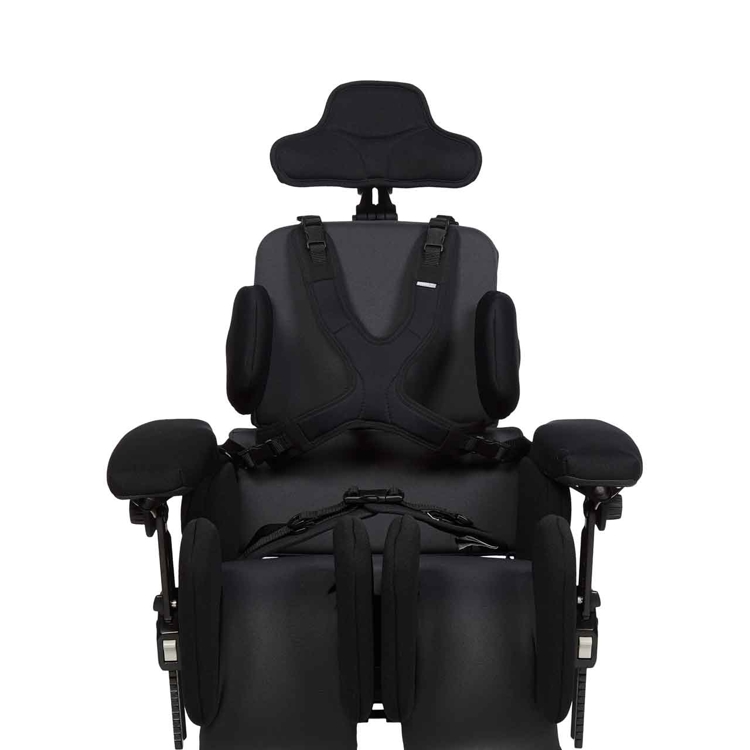

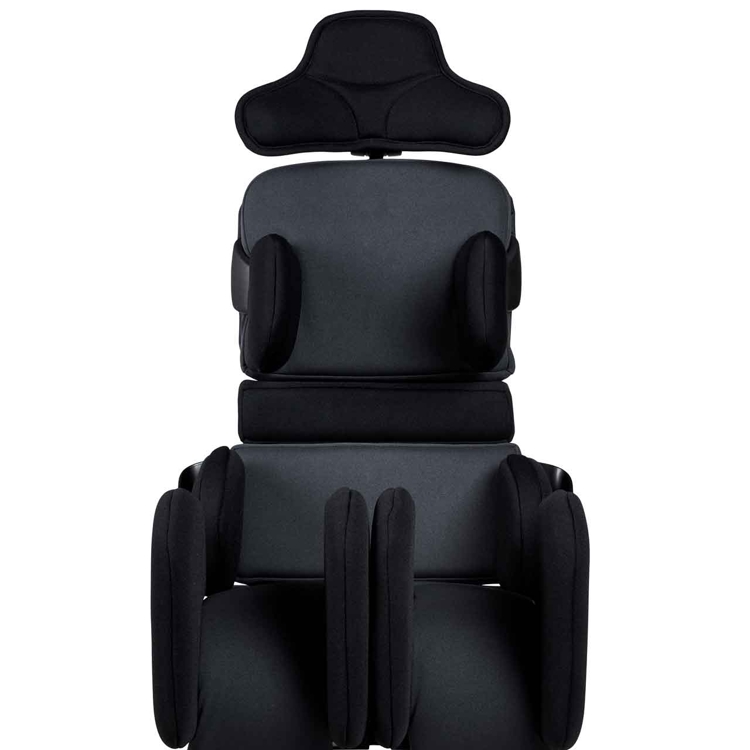

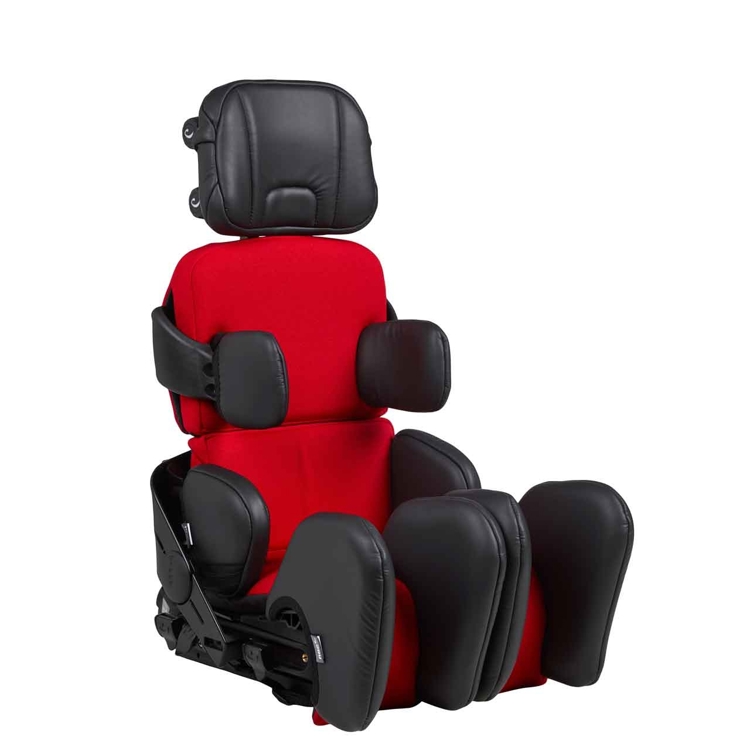

The x:panda shape provides responsive postural support for complex seating needs with it's adjustable dynamic back and advanced, adaptable supports. The seating solution is thoughtfully designed to grow and adapt with the child. As the child develops, the shape of the seat can be adjusted to provide continuous, personalised support that promotes both comfort and stability. This adaptability ensures a secure foundation for the child, where they can explore from, engage with their environment and participate more fully in daily activities.

Features

  • R82 x:panda shape

    Features

    Advanced dynamic back

    The x:panda shape with adjustable dynamic back gives you the unique opportunity to adjust the dynamic resistance, which ensures the right resistance for each individual child. The dynamic back’s design ensures that resistance remains the same as the back reclines, and that the point of rotation is close to the axis of the hips.

  • True growth

    Features

    True growth

    The x:panda shape is designed to grow with your child as it develops. The seat width and depth can be adjusted, and the back width and height can also be adjusted to assure a tailored fit with a high level of comfort. That way, your child always has a stable seat from which it can interact and participate in life as independently as possible.

  • Tailored support and highly adaptable

    Features

    Tailored support and highly adaptable

    The x:panda shape is highly adaptable and provides tailored support to fit the individual needs of your child. The large selection of adjustable accessories can be mixed and matched to create precise support, when and where you need it. The curved and adjustable side supports, as well as the continuously adjustable seat wedges, help to create a snug and secure fit for the child.

  • The first seating system

    Features

    Early intervention

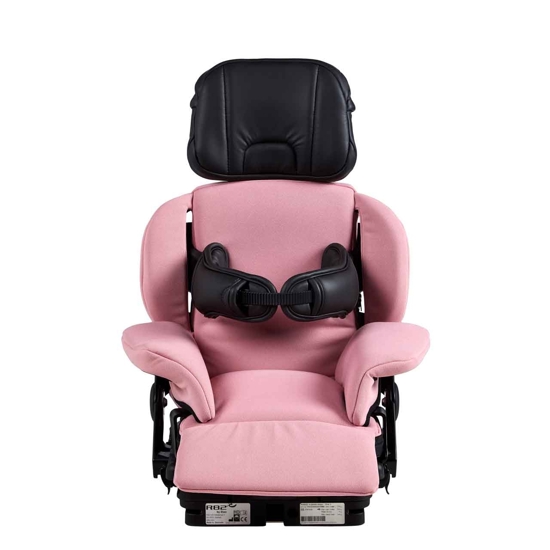

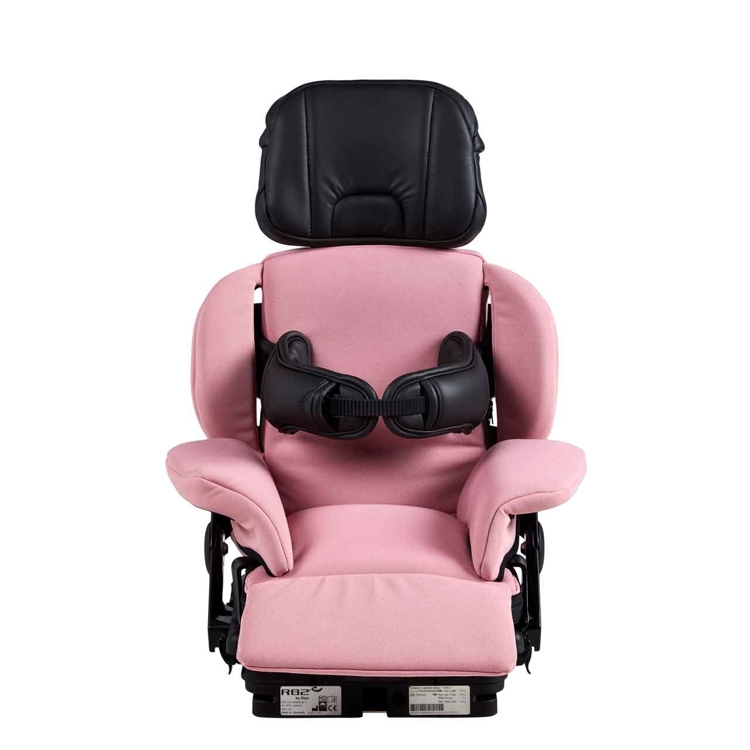

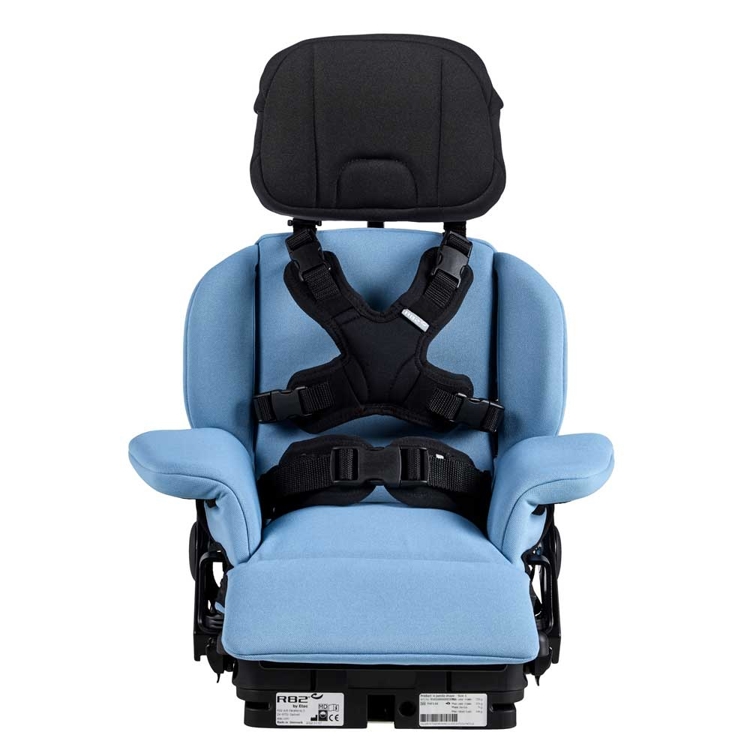

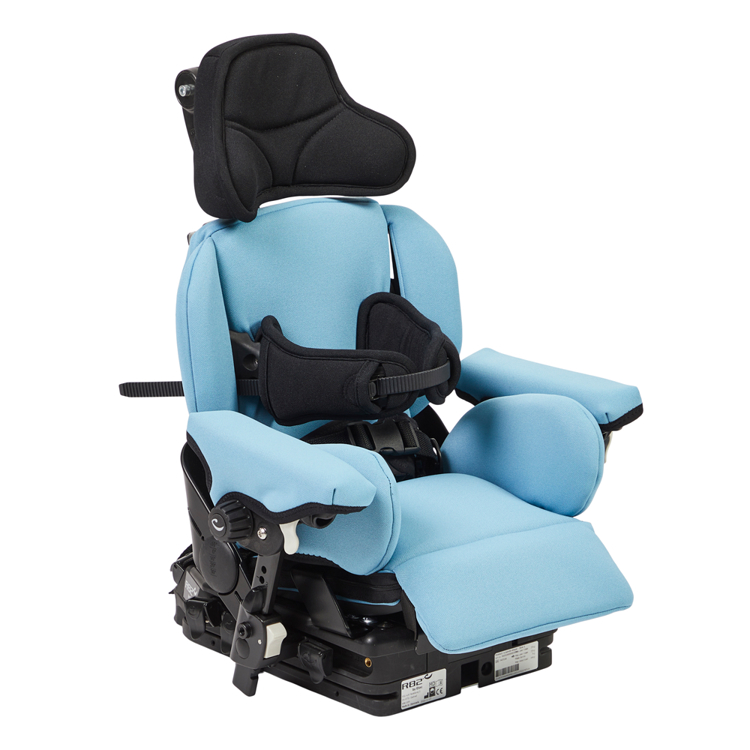

    The infant seating system gives infants the opportunity to participate in daily life from a seated position, with the possibility to be in long leg sitting . The seat provides a soft and stable base from which to explore their world, interact with parents, carers, and siblings at eyelevel, and be a part of family meals and other daily activities.

Features

  • R82 x:panda shape

    Advanced dynamic back

    The x:panda shape with adjustable dynamic back gives you the unique opportunity to adjust the dynamic resistance, which ensures the right resistance for each individual child. The dynamic back’s design ensures that resistance remains the same as the back reclines, and that the point of rotation is close to the axis of the hips.

  • True growth

    True growth

    The x:panda shape is designed to grow with your child as it develops. The seat width and depth can be adjusted, and the back width and height can also be adjusted to assure a tailored fit with a high level of comfort. That way, your child always has a stable seat from which it can interact and participate in life as independently as possible.

  • Tailored support and highly adaptable

    Tailored support and highly adaptable

    The x:panda shape is highly adaptable and provides tailored support to fit the individual needs of your child. The large selection of adjustable accessories can be mixed and matched to create precise support, when and where you need it. The curved and adjustable side supports, as well as the continuously adjustable seat wedges, help to create a snug and secure fit for the child.

  • The first seating system

    Early intervention

    The infant seating system gives infants the opportunity to participate in daily life from a seated position, with the possibility to be in long leg sitting . The seat provides a soft and stable base from which to explore their world, interact with parents, carers, and siblings at eyelevel, and be a part of family meals and other daily activities.

Variants

Size 1, infant seating
Size 1, infant large
Size 1
Size 2
Size 3
Abduction angle, each leg (°) - - 10°/20-30° 15°/30° 25°/30°
Adduction angle, each leg (°) 10°/20°-30° - 10°/20°-30° 15°/30° 25°/30°
Armrest to seat distance (mm) 70-100 70-100 90-155 100-165/100-220 130-280
Back width, top of backrest (mm) 190 230 180/220/260/300/340 180/220/260/300/340/380 220/260/300/340/380/420
Backrest height (mm) 270-360 310-400 280-370/320-420/360-470 340-440/380-490/430-560 420-530/470-600/540-690
Backrest recline angle (°) (-10°)-(30°) (-10°)-(30°) (-10°)-(30°) (-10°)-(30°) (-10°)-(30°)
Effective seat depth (mm) 120-160 170-220 160-320 240-420 350-550
Effective seat width (without hip support) (mm) 220 260 220/260/300 280/320/360/400 380/420/460/500
Front location of arm rest structure (mm) 160-180 220 230 290 360-420
Mass device (kg) 6 6 6.5 11 14
Maximum rated load (kg) 43 43 43.5 78 106
Maximum user mass (kg) 35 35 35 65 90
Maximum user mass in transportation (kg) 35 35 35 65 90
Overall width, both legs in maximum abduction (mm) 240 280 300/400/500 350/460/560/660 600/700/740/780
Seat width, minimum/maximum (with hip supports) (mm) 120-220 160-260 120-180/160-220/200-260 180-240/220-280/260-320/300-360 280-340/320-380/360-420/400-460
Width thighs (mm) - - 70/92/115 85/108/130/152 100/122/145/168/190

Mass device: The seat weight only (without accessories).

All seat measurements for size 1,2 & 3 are for the Advanced seats. Seat measurements for the Simple seats, can be found in the user manual.

Options

Options


Accessories

Accessories

Documents

  • Technical manual

    Frame and seat combinations

  • User manual

    M1195 x:panda shape

  • Technical manual

    Transportation in motor vehicles - M1470

  • Pre purchase guide

    Pre purchase guide - Modular seating systems

  • EC Declaration of conformity

    EU Declaration of Conformity for Accessories

  • EC Declaration of conformity

    EU Declaration of Conformity x:panda shape

  • Spare parts list

    Head supports

  • Spare parts list

    x:panda shape

  • Assembly instruction

    Adapter for x:panda shape seat size 3 - 9996098145

  • Assembly instruction

    Arm support size 4 - 9996097067

  • Assembly instruction

    Basic spacer block - 9996098143

  • Assembly instruction

    Bracket for communication aid on arm support - 9996097077

  • Assembly instruction

    Bracket for i2i headrest - 9996098195

  • Assembly instruction

    Brackets for strap guidance, wide - 9996097092

  • Assembly instruction

    Cover for side support belt, infant - 9996098142

  • Assembly instruction

    Cushion for infant seating - 9996097072

  • Assembly instruction

    Cushion for spacer block, back - 9996097059

  • Assembly instruction

    Daily adjustment kit for head support - 9996097078

  • Assembly instruction

    Daily adjustment kit, back - 9996097089

  • Assembly instruction

    Daily adjustment kit, height adjustment for head support - 9996098141

  • Assembly instruction

    Dynamic back recline - 9996097069

  • Assembly instruction

    Floor Frame - 9996098200

  • Assembly instruction

    Head band system - 9996098245

  • Assembly instruction

    Head supports - 9996097080

  • Assembly instruction

    Hinge caps - 9996098243

  • Assembly instruction

    Hip support mounted on the back - 9996097087

  • Assembly instruction

    Hip supports mounted from the sides - 9996097086

  • Assembly instruction

    Holder for central brake lever - 9996098275

  • Assembly instruction

    Holder for remote control on the arm support - 9996097074

  • Assembly instruction

    Holder for remote control on the back - 9996097075

  • Assembly instruction

    Holders for canopy - 9996098279

  • Assembly instruction

    Infant arm sup. kit incl cover - 9996098212

  • Assembly instruction

    Infant hip-arm support included cover - 9996098216

  • Assembly instruction

    Infant seat cushion - 9996098217

  • Assembly instruction

    Inner & outer knee support - 9996098278

  • Assembly instruction

    Inner knee support - 9996097061

  • Assembly instruction

    Kit for rebuilding from simple and advanced to infant - 9996097083

  • Assembly instruction

    Mount canopy and push bracket - 9996097084

  • Assembly instruction

    Mount of canopy, excl. push brace - 9996097085

  • Assembly instruction

    Mount pommel - 9996097062

  • Assembly instruction

    Mounting of customized cushion - 9996098290

  • Assembly instruction

    Mounting of tray - 9996097739

  • Assembly instruction

    Mounting the arm rests - 9996097751

  • Assembly instruction

    Mounting the fixlock fittings - 9996097702

  • Assembly instruction

    Mounting the tray, arm rests for tray and toybar - 9996097706

  • Assembly instruction

    Outer knee support, advanced - 9996097064

  • Assembly instruction

    Outer knee support, advanced flip down - 9996097065

  • Assembly instruction

    Outer knee support, simple - 9996097063

  • Assembly instruction

    Push handle for upper back - 9996097079

  • Assembly instruction

    Seat and back cushions - 9996097071

  • Assembly instruction

    Seat plates kit advanced seat - 9996097081

  • Assembly instruction

    Seat wedges - 9996097094

  • Assembly instruction

    Side support belt with cover, Infant - 9996097073

  • Assembly instruction

    Side supports - 9996097056

  • Assembly instruction

    side supports swing-away - 9996098137

  • Assembly instruction

    Side supports, swing away, adjustable - 9996098138

  • Assembly instruction

    Simple seat plate kit - 9996097055

  • Assembly instruction

    Simple seat top plate - 9996097082

  • Assembly instruction

    Soft tray for infant seating - 9996097090

  • Assembly instruction

    Therapy tubes for spacer, kit - 9996097057

  • Assembly instruction

    Tray, two rod - 9996098136

  • Assembly instruction

    Upper arm support_adjustable with cover_9996097068

  • Assembly instruction

    Upper arm support, fixed, with cover - 9996097060

  • Assembly instruction

    Upper back - 9996097088
