R82 x:panda shape
This multi-adjustable seating system offers tailored comfort and adaptability. It facilitates independence and participation in daily life, from early intervention to advanced needs, ensuring a stable and supportive base for interaction and exploration.
R82 x:panda shape
Designed to change shape as your child develops
The x:panda shape provides responsive postural support for complex seating needs with it's adjustable dynamic back and advanced, adaptable supports. The seating solution is thoughtfully designed to grow and adapt with the child. As the child develops, the shape of the seat can be adjusted to provide continuous, personalised support that promotes both comfort and stability. This adaptability ensures a secure foundation for the child, where they can explore from, engage with their environment and participate more fully in daily activities.
-
Early intervention - infant seating
Read more about early interventionOpportunity for early intervention and facilitation of the child's participation and social interaction with parents, carers, and the environment.
-
Empowering Alma's independence
Read the case storyRead about how the x:panda shape Advanced enables Alma to participate fully, both at home and at school.
-
Playful floor-level independence
Read the case storyBy being fully supported by the infant seat Aksels hands and arms are now free for play and exploration.
-
Supporting mealtimes
Read moreA fundamental part of early or "on-time" intervention is involving and empowering the parents and supporting a positive relationship between them and their children. Mealtime is a time were parents and children engage socially several times a day – exploring different food textures, smells and tastes.
Features
-
Features
Advanced dynamic back
The x:panda shape with adjustable dynamic back gives you the unique opportunity to adjust the dynamic resistance, which ensures the right resistance for each individual child. The dynamic back’s design ensures that resistance remains the same as the back reclines, and that the point of rotation is close to the axis of the hips.
-
Features
True growth
The x:panda shape is designed to grow with your child as it develops. The seat width and depth can be adjusted, and the back width and height can also be adjusted to assure a tailored fit with a high level of comfort. That way, your child always has a stable seat from which it can interact and participate in life as independently as possible.
-
Features
Tailored support and highly adaptable
The x:panda shape is highly adaptable and provides tailored support to fit the individual needs of your child. The large selection of adjustable accessories can be mixed and matched to create precise support, when and where you need it. The curved and adjustable side supports, as well as the continuously adjustable seat wedges, help to create a snug and secure fit for the child.
-
Features
Early intervention
The infant seating system gives infants the opportunity to participate in daily life from a seated position, with the possibility to be in long leg sitting . The seat provides a soft and stable base from which to explore their world, interact with parents, carers, and siblings at eyelevel, and be a part of family meals and other daily activities.
Variants
| Size 1, infant seating | Size 1, infant large | Size 1 | Size 2 | Size 3 | |
|---|---|---|---|---|---|
| Abduction angle, each leg (°) | - | - | 10°/20-30° | 15°/30° | 25°/30° |
| Adduction angle, each leg (°) | 10°/20°-30° | - | 10°/20°-30° | 15°/30° | 25°/30° |
| Armrest to seat distance (mm) | 70-100 | 70-100 | 90-155 | 100-165/100-220 | 130-280 |
| Back width, top of backrest (mm) | 190 | 230 | 180/220/260/300/340 | 180/220/260/300/340/380 | 220/260/300/340/380/420 |
| Backrest height (mm) | 270-360 | 310-400 | 280-370/320-420/360-470 | 340-440/380-490/430-560 | 420-530/470-600/540-690 |
| Backrest recline angle (°) | (-10°)-(30°) | (-10°)-(30°) | (-10°)-(30°) | (-10°)-(30°) | (-10°)-(30°) |
| Effective seat depth (mm) | 120-160 | 170-220 | 160-320 | 240-420 | 350-550 |
| Effective seat width (without hip support) (mm) | 220 | 260 | 220/260/300 | 280/320/360/400 | 380/420/460/500 |
| Front location of arm rest structure (mm) | 160-180 | 220 | 230 | 290 | 360-420 |
| Mass device (kg) | 6 | 6 | 6.5 | 11 | 14 |
| Maximum rated load (kg) | 43 | 43 | 43.5 | 78 | 106 |
| Maximum user mass (kg) | 35 | 35 | 35 | 65 | 90 |
| Maximum user mass in transportation (kg) | 35 | 35 | 35 | 65 | 90 |
| Overall width, both legs in maximum abduction (mm) | 240 | 280 | 300/400/500 | 350/460/560/660 | 600/700/740/780 |
| Seat width, minimum/maximum (with hip supports) (mm) | 120-220 | 160-260 | 120-180/160-220/200-260 | 180-240/220-280/260-320/300-360 | 280-340/320-380/360-420/400-460 |
| Width thighs (mm) | - | - | 70/92/115 | 85/108/130/152 | 100/122/145/168/190 |
Mass device: The seat weight only (without accessories).
All seat measurements for size 1,2 & 3 are for the Advanced seats. Seat measurements for the Simple seats, can be found in the user manual.
Options
-
-
Go to pageSeat plate
Seat plate for simple seating
The seat plate can be adjusted in length to accommodate the individual needs and ensure the best fit as the user develops and grows.
-
Go to pageSeat plate
Seat plates for advanced seating
Multi adjustable seat plates which can be adjusted in length and width to always ensure the best fit as the user develops and grows. They can also accommodate complex and asymmetrical positions of the lower limbs, such as: unequal leg length, hip abduction, and wind-sweeping. Furthermore, the seat plates are used for attachment of wedges and inner knee supports.
-
Seat plate
Excluding seat plates
-
Go to pageHip supports
Width adjustable hip supports, mounted from the sides.
Helps maintain the position of the pelvis for a more stable base of support. Provides lateral support to the pelvis and hips and is mounted on the seat.
When you choose hip or pelvis supports, the seat width is reduced with min. 40 mm. Choose covers under accessory. Width adjustable pelvis supports, mounted from the back, are available as accessories.
-
Hip supports
Without hip supports
Choose this option for infant seating, as the infant kit includes hip supports.
When you choose hip or pelvis supports, the seat width is reduced with min. 40 mm. Choose covers under accessory. Width adjustable pelvis supports, mounted from the back, are available as accessories.
-
Go to pageHip supports
Width adjustable pelvis supports, mounted from the back.
Available as an accessory.
When you choose hip or pelvis supports, the seat width is reduced with min. 40 mm. Choose covers under accessory. Width adjustable pelvis supports, mounted from the back, are available as accessories.
-
Back recline
Stepless recline without dynamic
-
Back recline
Stepless recline with adjustable dynamic
-
Back recline
Recline in steps, 5° per step
-
Back recline
Lock of dynamic
Only approved for transportation with lock of dynamic option
-
Upper back mounting
No quick release
Enables quick and easy removal of the upper back. Removal of the upper back allows the opportunity to challenge the postural control and balance of the upper body (head, arms, and trunk) and thereby facilitates the activation of the trunk and back muscles. Can be used with therapy kit tubes for 60 mm extra back height (accessory).
-
Upper back mounting
With quick release, detachment of upper back
Enables quick and easy removal of the upper back. Removal of the upper back allows the opportunity to challenge the postural control and balance of the upper body (head, arms, and trunk) and thereby facilitates the activation of the trunk and back muscles. Can be used with therapy kit tubes for 60 mm extra back height (accessory).
-
Upper back
Without upper back
Provides support for the upper back when the user is seated. The upper back grows in width and adjusts in height to accommodate the individual needs and secure the best fit as the user develops and grows.. Choose cushions under accessories. A kit for frequent and toolless height adjustment of the upper back is available as an accessory.
-
Upper back
With upper back
Provides support for the upper back when the user is seated. The upper back grows in width and adjusts in height to accommodate the individual needs and secure the best fit as the user develops and grows.. Choose cushions under accessories. A kit for frequent and toolless height adjustment of the upper back is available as an accessory.
Accessories
-
Go to pageAssistive frames
Floor frame
Floor Frame is a frame supporting early intervention through the option of supported floor sitting. Sitting at floor level can support playful activities with family, siblings and friends and facilitate meaningful tasks with arms and hands such as reaching and grasping for toys. The frame has 5 options of leg positions when the short legs are mounted – both for the front legs and the back legs. The 5 different positions enables 4 different seat to floor heights, when the seat is level, and a variety of tilt angles to accommodate different leg lengths and playful activities. A set of four long legs are also available with the floor frame.
Item number: 821111
-
Assembly instruction Go to pageWheels
Castors
A set of four castors for Floor frame gives the opportunity of easily moving the frame around. The castors can be locket for secure placing.
Item number: 821111-4C
-
Go to pageSeating
Seat plate for simple seating
The seat plate can be adjusted in length to accommodate the individual needs and ensure the best fit as the user develops and grows.
Multiple item numbers, see accessory page
-
Assembly instruction Go to pageSeating
Seat plates for advanced seating
Multi adjustable seat plates which can be adjusted in length and width to always ensure the best fit as the user develops and grows. They can also accommodate complex and asymmetrical positions of the lower limbs, such as: unequal leg length, hip abduction, and wind-sweeping. Furthermore, the seat plates are used for attachment of wedges and inner knee supports.
Multiple item numbers, see accessory page
-
Assembly instruction Go to pagePostural supports
Wedges for seat pit, set
Seat wedges create a gentle contour in the seat and enhance function and pressure distribution by accommodating the ischial tuberosities. The wedges increase the contact area between the user and the cushion, providing pelvis stability and control through optimal positioning, and preventing the pelvis from rolling backwards. The wedges are adjustable in length to accommodate the needs of a growing child. Only for advanced seating.
Multiple item numbers, see accessory page
-
Assembly instruction Go to pageMounting kits
Kit for rebuilding to infant seating
Kit for rebuilding simple or advanced seat size 1 to infant size 1. Requires upper back H:140 mm. Infant seating cushion and side support belt are not included.
Item number: 905038
-
Assembly instruction Go to pageBack supports
Dynamic back recline module
not approved for transportation ** Note it is not allowed to rebuild approved for transportation, into a product with a back recline not approved for transportation, due to product labeling.
Multiple item numbers, see accessory page
-
Assembly instruction Go to pageBack supports
Upper back
Cushions are chosen separately.
Multiple item numbers, see accessory page
-
Go to pageCushions & covers
Cushions
Cushions for Infant seating, Simple seating and Advanced seating. Infant seating cushion including seat, back, seat pit and upper arm cushions. Order covers for side support belt for the infant seating separately. The infant seating cushion is available in pink, light blue and black, wipeable. The seat and back cushions for size 1-3 Simple seating and Advanced seating are available in red, grey and black, wipeable. They are divided into upper back cushion for simple and advanced seating, lower back cushion for simple ad advanced cushion, seat cushion for simple seating and seat cushion (split cushion) for advanced cushion. Seat and back cushions for size 1-3 Simple seating and Advanced seating are configurable products.
Multiple item numbers, see accessory page
-
Assembly instruction Go to pagePostural supports
Therapy kit tubes
Therapy kit tubes, in combination with the spacer block, can be used when the upper back is demounted. Removal of the upper back and use of therapy kit tubes allow for the opportunity to challenge the user’s postural control and balance of the upper body (head, arms, and trunk), thereby facilitating the activation of the trunk and back muscles. For mounting one spacer block.
Item number: 905059
Knowledge
-
x:panda shape introduction video
The x:panda shape is highly configurable and provides tailored support to fit the individual needs. It can accommodate very complex seating positions.
Documents
-
Technical manual
Frame and seat combinations
-
User manual
M1195 x:panda shape
-
Technical manual
Transportation in motor vehicles - M1470
-
Quick guide

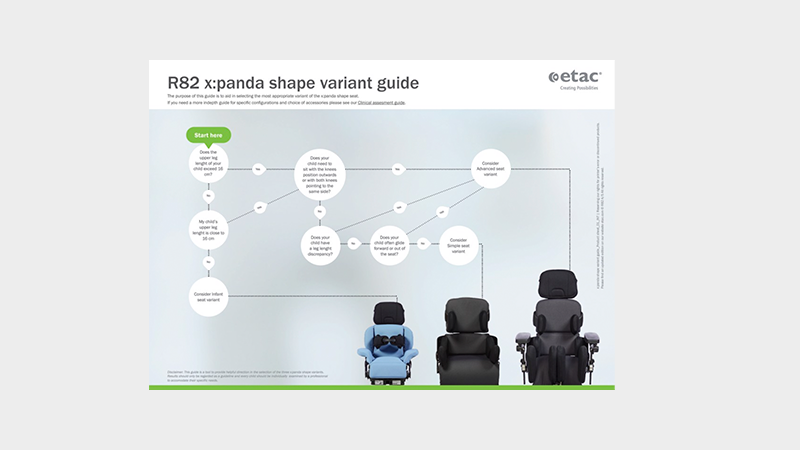

x:panda shape variant guide
-
Pre purchase guide
Pre purchase guide - Modular seating systems
-
EC Declaration of conformity
EU Declaration of Conformity for Accessories
-
EC Declaration of conformity
EU Declaration of Conformity x:panda shape
-
Spare parts list
Head supports
-
Spare parts list
x:panda shape
-
Assembly instruction
Adapter for x:panda shape seat size 3 - 9996098145
-
Assembly instruction
Arm support size 4 - 9996097067
-
Assembly instruction
Basic spacer block - 9996098143
-
Assembly instruction
Bracket for communication aid on arm support - 9996097077
-
Assembly instruction
Bracket for i2i headrest - 9996098195
-
Assembly instruction
Brackets for strap guidance, wide - 9996097092
-
Assembly instruction
Cover for side support belt, infant - 9996098142
-
Assembly instruction
Cushion for infant seating - 9996097072
-
Assembly instruction
Cushion for spacer block, back - 9996097059
-
Assembly instruction
Daily adjustment kit for head support - 9996097078
-
Assembly instruction
Daily adjustment kit, back - 9996097089
-
Assembly instruction
Daily adjustment kit, height adjustment for head support - 9996098141
-
Assembly instruction
Dynamic back recline - 9996097069
-
Assembly instruction
Floor Frame - 9996098200
-
Assembly instruction
Head band system - 9996098245
-
Assembly instruction
Head supports - 9996097080
-
Assembly instruction
Hinge caps - 9996098243
-
Assembly instruction
Hip support mounted on the back - 9996097087
-
Assembly instruction
Hip supports mounted from the sides - 9996097086
-
Assembly instruction

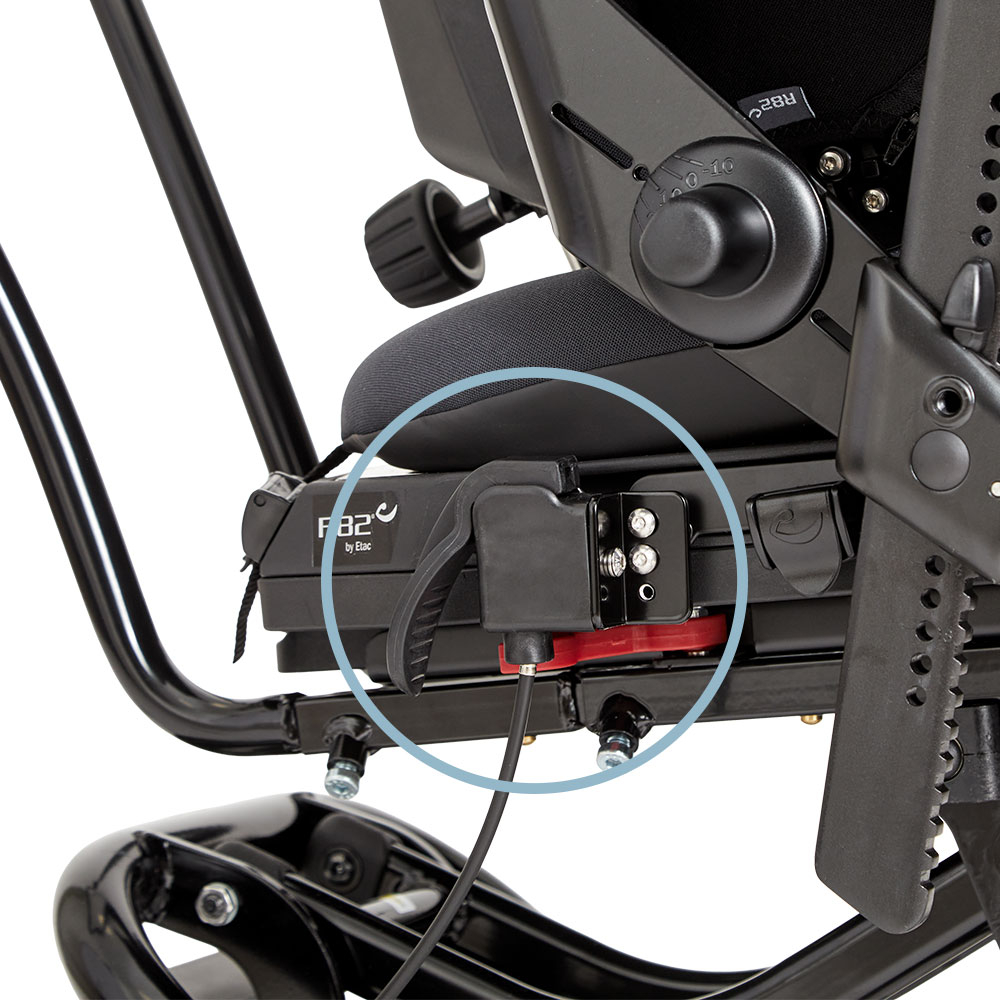

Holder for central brake lever - 9996098275
-
Assembly instruction
Holder for remote control on the arm support - 9996097074
-
Assembly instruction
Holder for remote control on the back - 9996097075
-
Assembly instruction
Holders for canopy - 9996098279
-
Assembly instruction
Infant arm sup. kit incl cover - 9996098212
-
Assembly instruction
Infant hip-arm support included cover - 9996098216
-
Assembly instruction
Infant seat cushion - 9996098217
-
Assembly instruction
Inner & outer knee support - 9996098278
-
Assembly instruction
Inner knee support - 9996097061
-
Assembly instruction
Kit for rebuilding from simple and advanced to infant - 9996097083
-
Assembly instruction
Mount canopy and push bracket - 9996097084
-
Assembly instruction
Mount of canopy, excl. push brace - 9996097085
-
Assembly instruction
Mount pommel - 9996097062
-
Assembly instruction
Mounting of customized cushion - 9996098290
-
Assembly instruction
Mounting of tray - 9996097739
-
Assembly instruction
Mounting the arm rests - 9996097751
-
Assembly instruction
Mounting the fixlock fittings - 9996097702
-
Assembly instruction
Mounting the tray, arm rests for tray and toybar - 9996097706
-
Assembly instruction
Outer knee support, advanced - 9996097064
-
Assembly instruction
Outer knee support, advanced flip down - 9996097065
-
Assembly instruction
Outer knee support, simple - 9996097063
-
Assembly instruction
Push handle for upper back - 9996097079
-
Assembly instruction
Seat and back cushions - 9996097071
-
Assembly instruction
Seat plates kit advanced seat - 9996097081
-
Assembly instruction
Seat wedges - 9996097094
-
Assembly instruction
Side support belt with cover, Infant - 9996097073
-
Assembly instruction
Side supports - 9996097056
-
Assembly instruction
side supports swing-away - 9996098137
-
Assembly instruction
Side supports, swing away, adjustable - 9996098138
-
Assembly instruction
Simple seat plate kit - 9996097055
-
Assembly instruction
Simple seat top plate - 9996097082
-
Assembly instruction
Soft tray for infant seating - 9996097090
-
Assembly instruction
Therapy tubes for spacer, kit - 9996097057
-
Assembly instruction
Tray, two rod - 9996098136
-
Assembly instruction
Upper arm support_adjustable with cover_9996097068
-
Assembly instruction
Upper arm support, fixed, with cover - 9996097060
-
Assembly instruction
Upper back - 9996097088
Use the checkboxes to download multiple documents
Videos
How to adjust the dynamic back on the x:panda shape
How to adjust seat width for simple seating on the x:panda shape
How to adjust seat width for advanced seating on the x:panda shape
How to mount brackets for strap guidance on the x:panda shape
