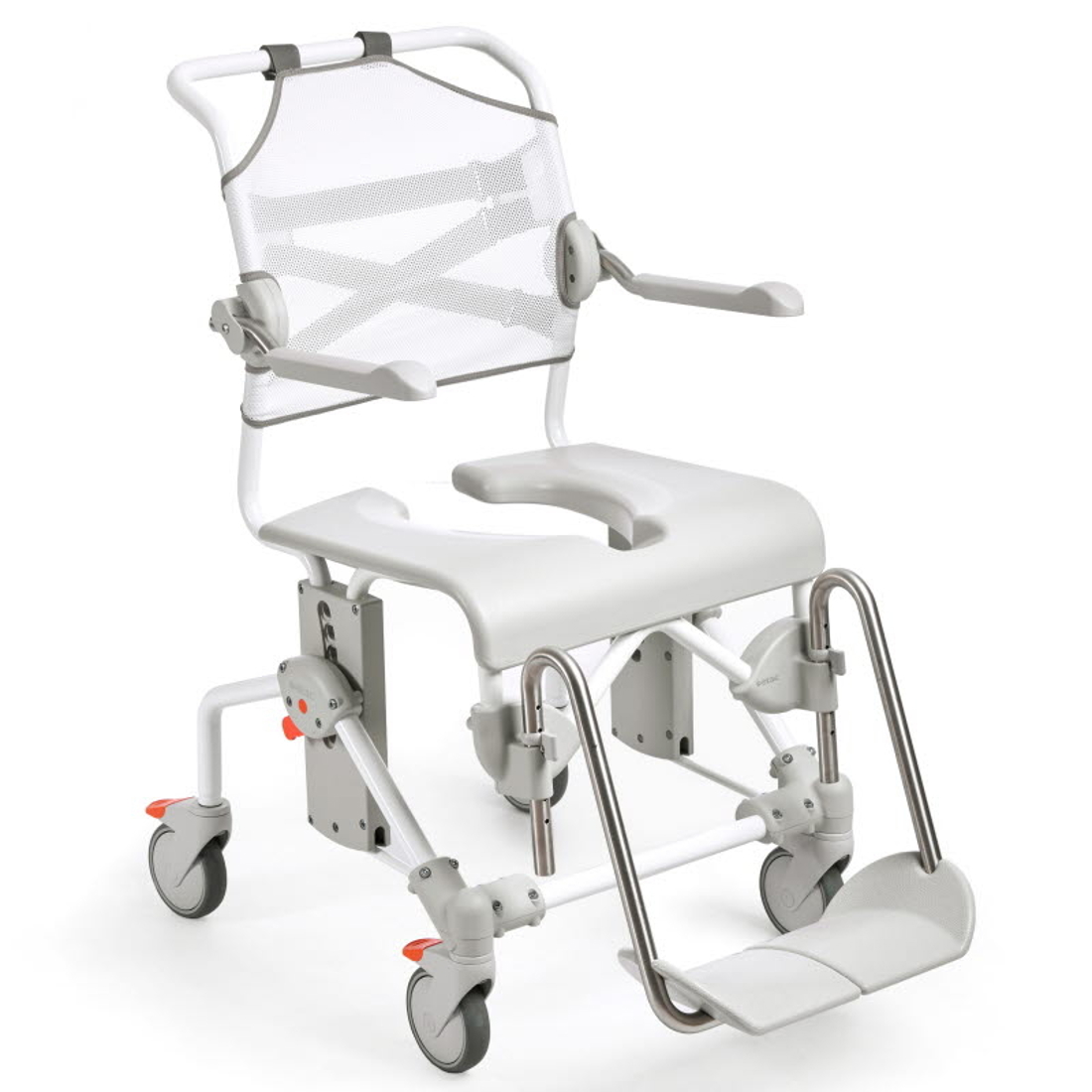

Etac Swift Mobil-2

A flexible attendant-propelled shower commode chair that gives carers the best possible access for personal care tasks. It is easy to manoeuvre and can be customised to various needs.

Unique seat
The seat has a rear opening, giving the carer easy access when assisting the user with personal care tasks. Additionally, the “Etac Easy Clean” friction pattern on the seat surface is unique for Etac and provides the perfect balance between friction and cleanliness.

Comfortable relief
For sensitive users, extra-soft seat cushions are available, providing both support and comfortable relief. The soft and quick-drying backrest and the curved footrests of the Swift Mobil-2, increase user comfort further.

Highly Adaptable
The Swift Mobil-2 has a generous maximum user weight of 160 kg as standard and is height adjustable between 45-60 cm. The armrests are height and width adjustable, 6 cm in each direction. The swing away footrests are height adjustable and are also offered in a shorter version, f.ex. when higher soft seats are used.

Etac Swift Mobil-2 XL for larger users
A model with a wider back frame and widening adapters for legrests is available, providing an extra 6 cm between armrests and 12 cm additional legroom. Both back frame and adapters are also available as accessories.

Discover

SWM-2 - card item video SWM (1)

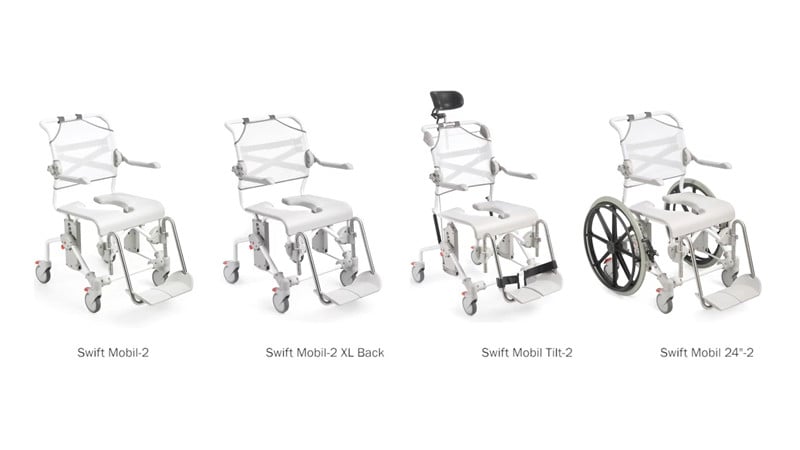

An introduction to Swift Mobil-2

Discover the benefits of Swift Mobil-2 shower commode chairs and how they make life easier for users and carers.
SWM-2 - card item text/image XL (4)

XL series for larger users

The range includes models with extra wide backs and additional space between armrests and legrests.
SWM-2 - card item video SEAT (2)

Seats and soft seats

Learn about the smart features of the non-slip and hygienic seat, as well as  available soft seats for extra comfort.
SWM-2 - card item video ACC (3)

Comfort and Positioning

See some of the available accessories that increase comfort and safety even further.

Features

Seat with rear opening test

Seat with rear opening

Providing ease of access for the carer and comfort for the user. The unique surface, especially developed for Etac, has the perfect balance between friction and cleanliness, non-slip and hygienic!
Adjustable armrests as standard

Adjustable armrests as standard

Easily adapted to various user needs. Adjustable both in height and width, +/- 6 cm in each direction.

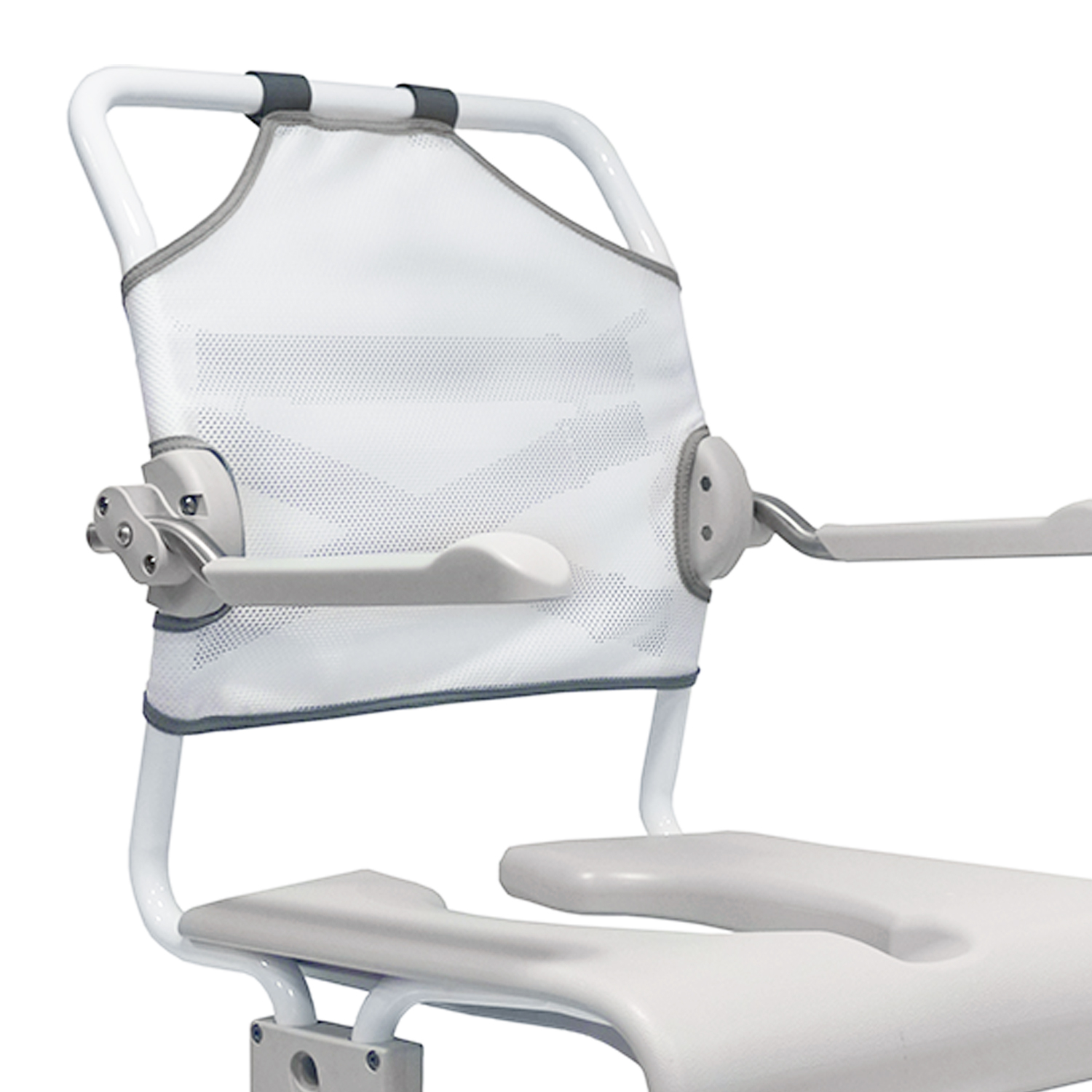

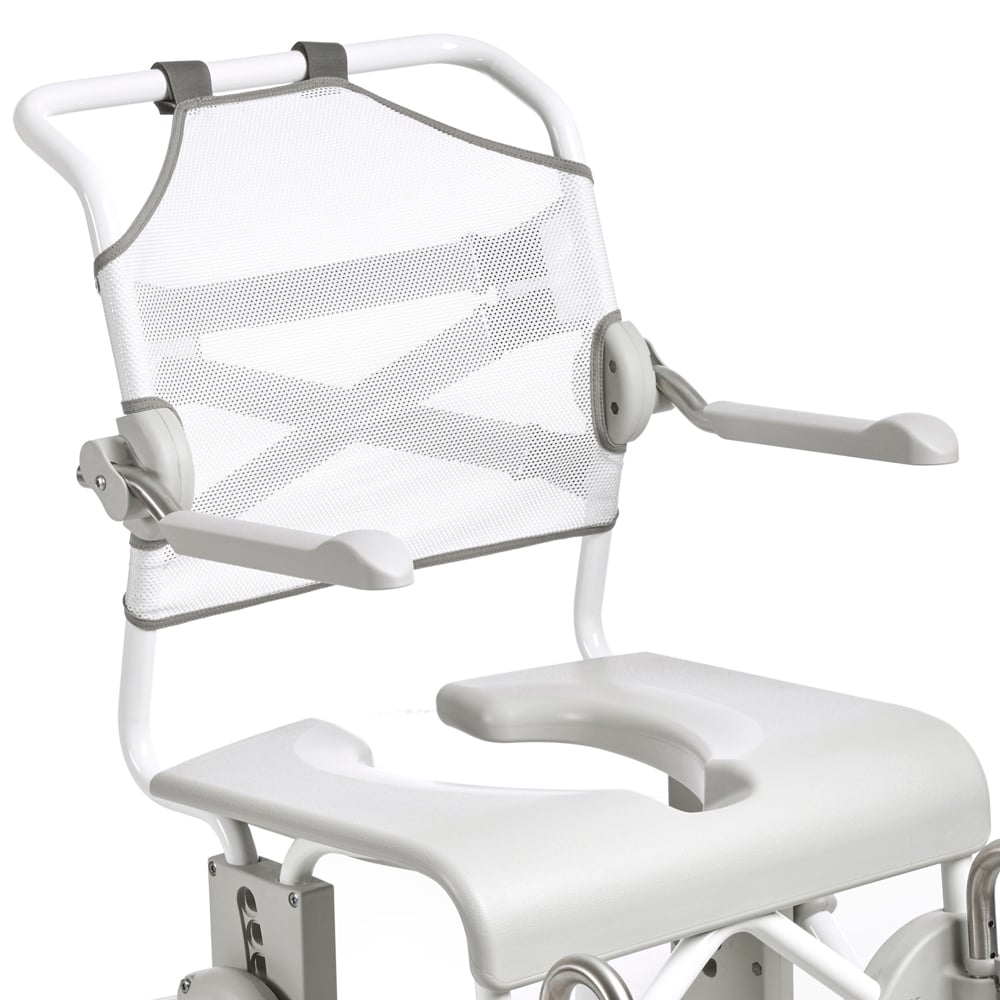

Adjustable backrest

Adjustable backrest

Easily adjusted for posture, body shape and maximum comfort. Fitted with two fasteners around the pushbars. Soft and quick-drying material.
Ergonomic footrest

Ergonomic footrest

Curved footplates provide instep and arch support, ensuring comfort, stability and relaxation.

Variants

Item number
Length (mm)
Material
Maximum user weight (kg)
Opening: depth x width (mm)
Seat depth (mm)
Seat height (mm)
Seat width (mm)
Weight (kg)
Width (mm)
Width between arm supports (mm)
Swift Mobil-2 partly assembled 80229400 930 Chassis: powder painted steel. Seat/Arm supports: polypropylene. Back support: polyester/velcro. Foot support: polypropylene. Castors: polyamide/TPE. 160 300x210 465 450-600 500 16.6 570/580/640 420/480/540
Swift Mobil-2 assembled 80229401 930 Chassis: powder painted steel. Seat/Arm supports: polypropylene. Back support: polyester/velcro. Foot support: polypropylene. Castors: polyamide/TPE. 160 300x210 465 450-600 500 16.6 570/580/640 420/480/540
Swift Mobil-2 partly assembled with bucket holder 80229404 930 Chassis: powder painted steel. Seat/Arm supports: polypropylene. Back support: polyester/velcro. Foot support: polypropylene. Castors: polyamide/TPE. 160 300x210 465 450-600 500 16.6 570/580/640 420/480/540
Swift Mobil-2, with pan holder 80229406 930 Chassis: powder painted steel. Seat/Arm supports: polypropylene. Back support: polyester/velcro. Foot support: polypropylene. Castors: polyamide/TPE. 160 300x210 465 450-600 500 16.6 570/580/640 420/480/540
Swift Mobil-2, partly assembled with XL back 80229467 930 Chassis: powder painted steel. Seat/Arm supports: polypropylene. Back support: polyester/velcro. Foot support: polypropylene. Castors: polyamide/TPE. 160 300 x 210 465 450 - 600 500 17,3 610/640/700 480/540/600
Swift Mobil-2, partly assembled with pan holder and XL back 80229483 930 Chassis: powder painted steel. Seat/Arm supports: polypropylene. Back support: polyester/velcro. Foot support: polypropylene. Castors: polyamide/TPE. 160 300x210 465 450-600 500 17,3 610/640/700 480/540/600
Swift Mobil-2, partly assembled with pan holder and upright back 80229490 930 Chassis: powder painted steel. Seat/Arm supports: polypropylene. Back support: polyester/velcro. Foot support: polypropylene. Castors: polyamide/TPE. 160 300x210 465 450-600 500 16.6 570/580/640 420/480/540

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.

Assembly instruction
Amputee Legrest Swift Mobil (pdf)
Assembly instruction
Anti tip front (pdf)
Assembly instruction
Anti-tip stabilisers rear excluding bracket Swift Mobil (pdf)
Assembly instruction
Anti-tip stabilisers rear including bracket Swift Mobil (pdf)
Assembly instruction
Arm support (pdf)
Assembly instruction
Arm support plate (pdf)
Assembly instruction
Armrest lock, Swift Mobil (pdf)
Assembly instruction
Armrestpad Swift Mobil (pdf)
Assembly instruction
Attachments for low pan-holder mounting (pdf)
Assembly instruction
Back support upholstery (pdf)
Assembly instruction
Back support XL (pdf)
Assembly instruction
Bucket holder Clean/Swift Mobil (pdf)
Assembly instruction
Castor 125 mm lockable (pdf)
Assembly instruction
Castor Swift Mobil front (pdf)
Assembly instruction
Chest belt Swift Mobil/Clean (pdf)
Assembly instruction
Comfort Cover Swift Mobil (pdf)
Assembly instruction
Comfort seat soft Swift Mobil (pdf)
Assembly instruction
Comfort seat soft Swift Mobil – narrow gap (pdf)
Assembly instruction
Comfort seat Swift Mobil (pdf)
Assembly instruction
Commode pan holders Etac Clean/Swift Mobil (pdf)
Assembly instruction
Crossbar (pdf)
Assembly instruction
Foot rest leg and calf support, Swift Mobil (pdf)
Assembly instruction
Footplate Swift Mobil (pdf)
Assembly instruction
Footrest Swift Mobil (pdf)
Assembly instruction
Head support and bracket Swift Mobil (pdf)
Assembly instruction
Heel straps Etac Swift Mobil (pdf)
Assembly instruction
Hemiplegia armrest (pdf)
Assembly instruction
Hip/Chest belt, upholstered (pdf)
Assembly instruction
Leg and calf support Swift Mobil (pdf)
Assembly instruction
Leg support short r/l (pdf)
Assembly instruction
Pan and lid Etac Clean/Swift Mobil (pdf)
Assembly instruction
Pan locker (pdf)
Assembly instruction
Pan-holder attachments Swift Mobil (pdf)
Assembly instruction
Positioning belt Swift mobil/Clean (pdf)
Assembly instruction
Rear wheel 24” Swift Mobil (pdf)
Assembly instruction
Rear wheel kit Swift Mobile (pdf)
Assembly instruction
Seat (pdf)
Assembly instruction
Seat cover Swift Mobil (pdf)
Assembly instruction
Soft Comfort seat, 2 cm/4 cm open back (pdf)
Assembly instruction
Soft detail armrest Swift Mobil (pdf)
Assembly instruction
Splashguard Etac Clean/Swift Mobil (pdf)
Assembly instruction
Tilter Swift Mobil (pdf)
Assembly instruction
Trunk support Etac Swift Mobil/Clean (pdf)
Assembly instruction
Widening kit for legrests Swift Mobil (pdf)
EC Declaration of conformity
DoC Swift Mobil (pdf)
Pre purchase guide
Pre Purchase guide (pdf)
Product folder
Etac Swift Mobil-2 Product folder (pdf)
Recondition instruction
Etac Swift Mobil series (pdf)
Service life
Service life hygiene products (pdf)
Sparepart list
Etac Swift Mobil-2 (pdf)
User manual
Etac Swift Mobil-2 (pdf)

Videos

Introduction

Etac Swift Mobil-2 Shower commode chairs

Introduction
The seat and soft seats

Etac Swift Mobil-2

The seat and soft seats
Accessories

Etac Swift Mobil-2

Accessories

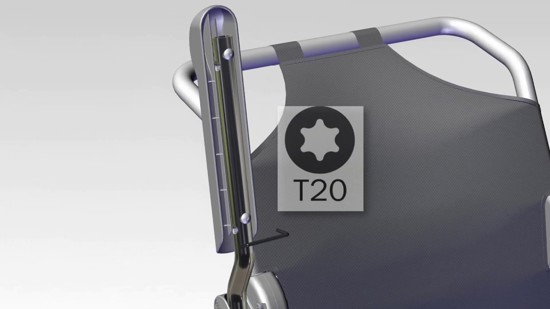

How to: Adjust armrests in width/height

Etac Swift Mobil-2

How to: Adjust armrests in width/height
