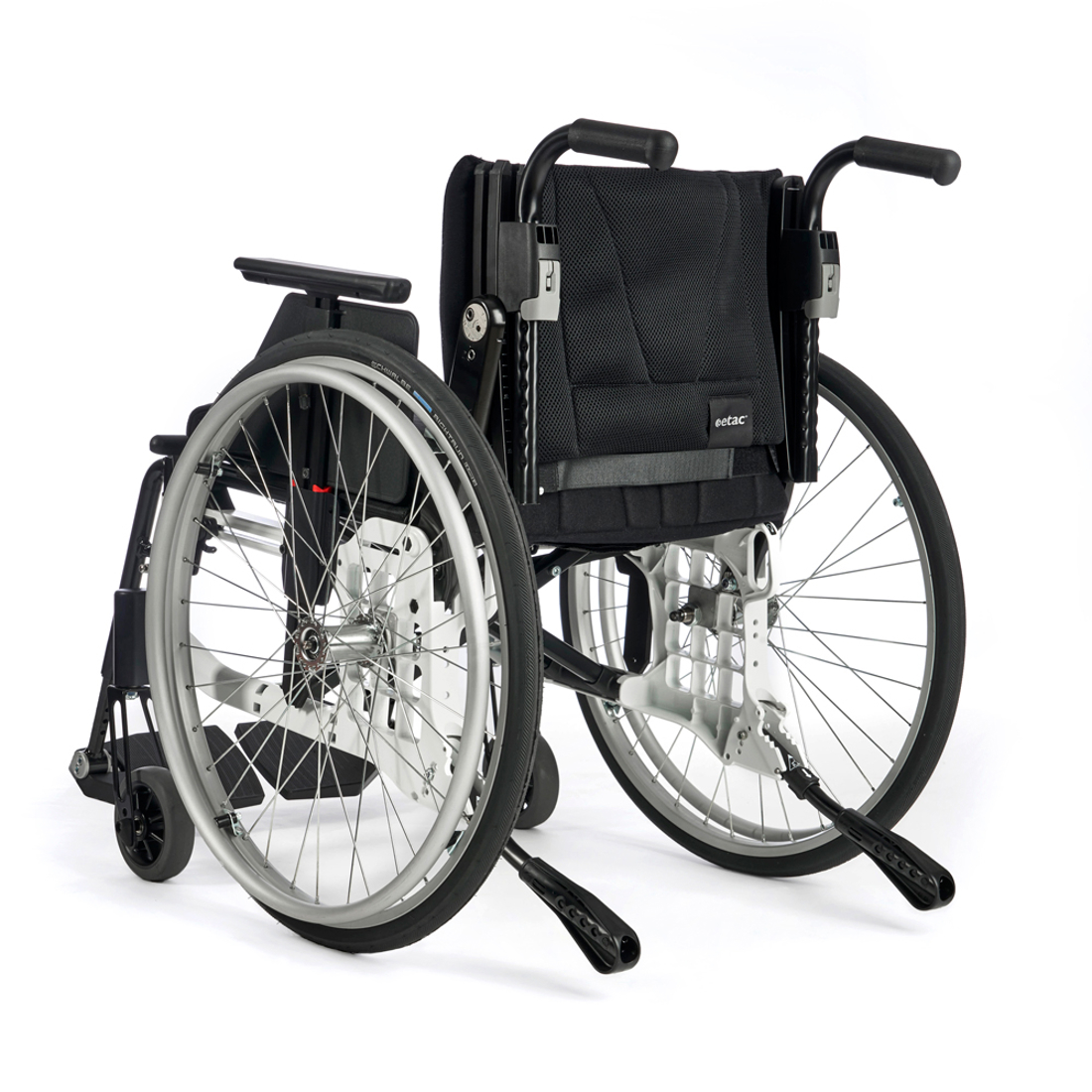

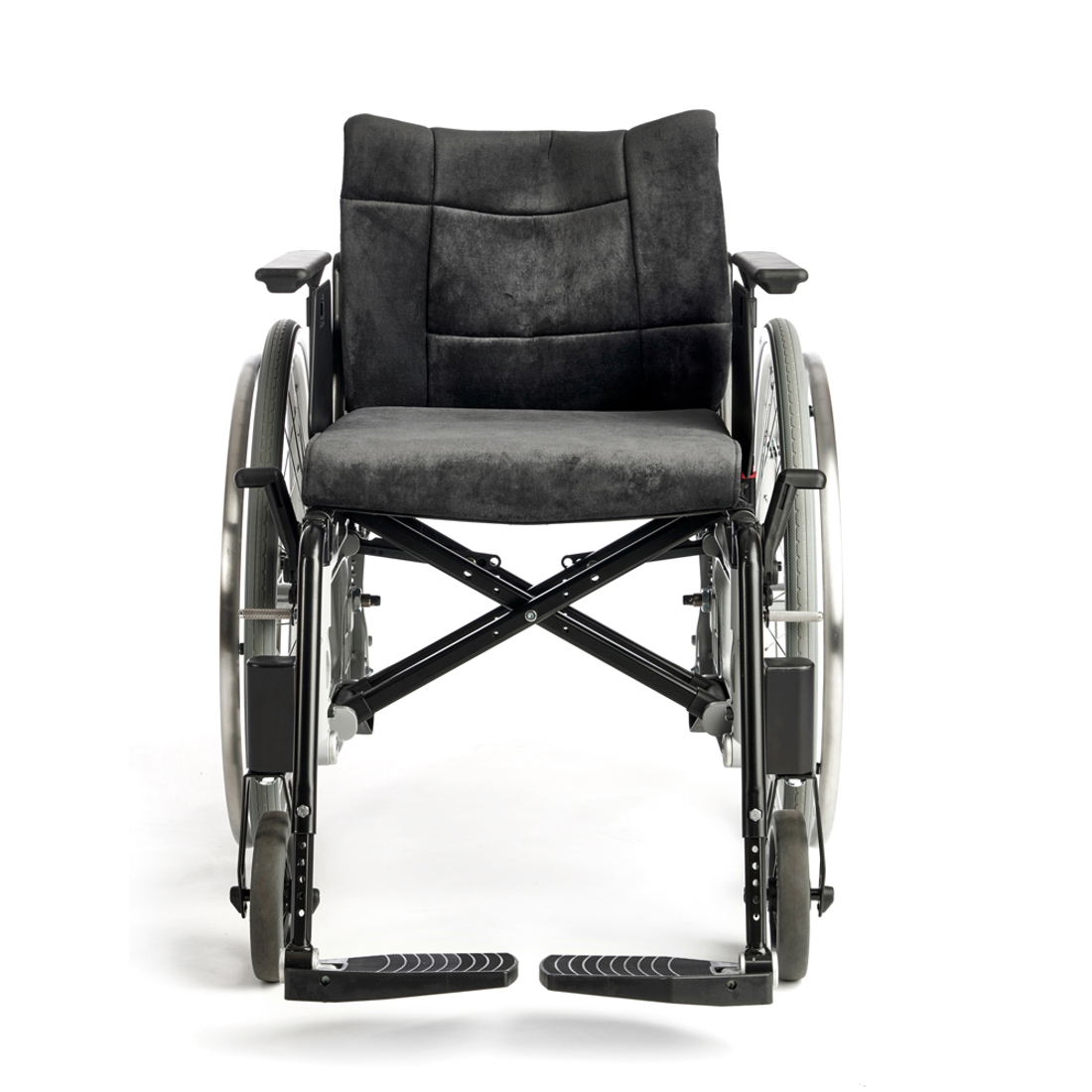

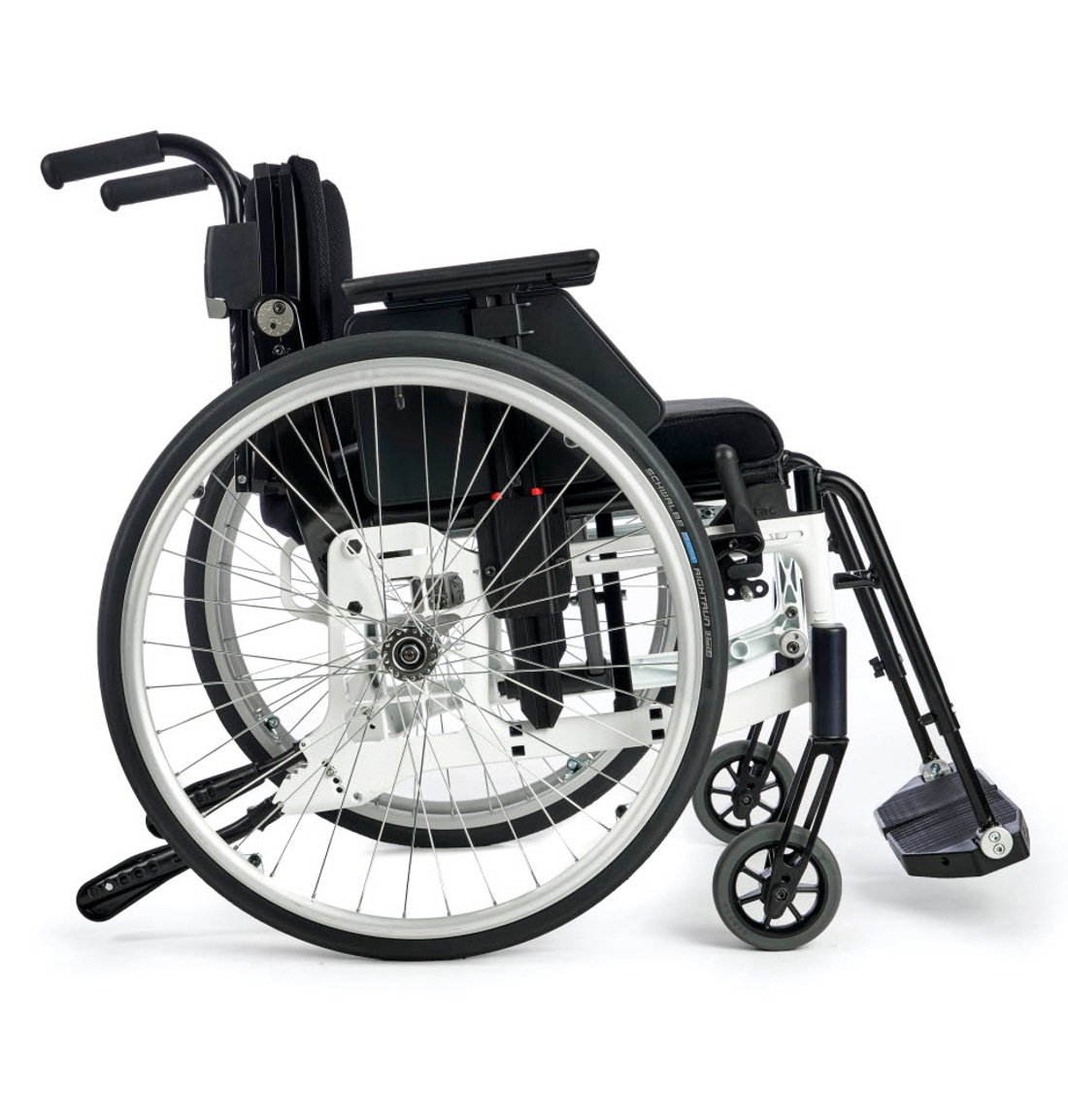

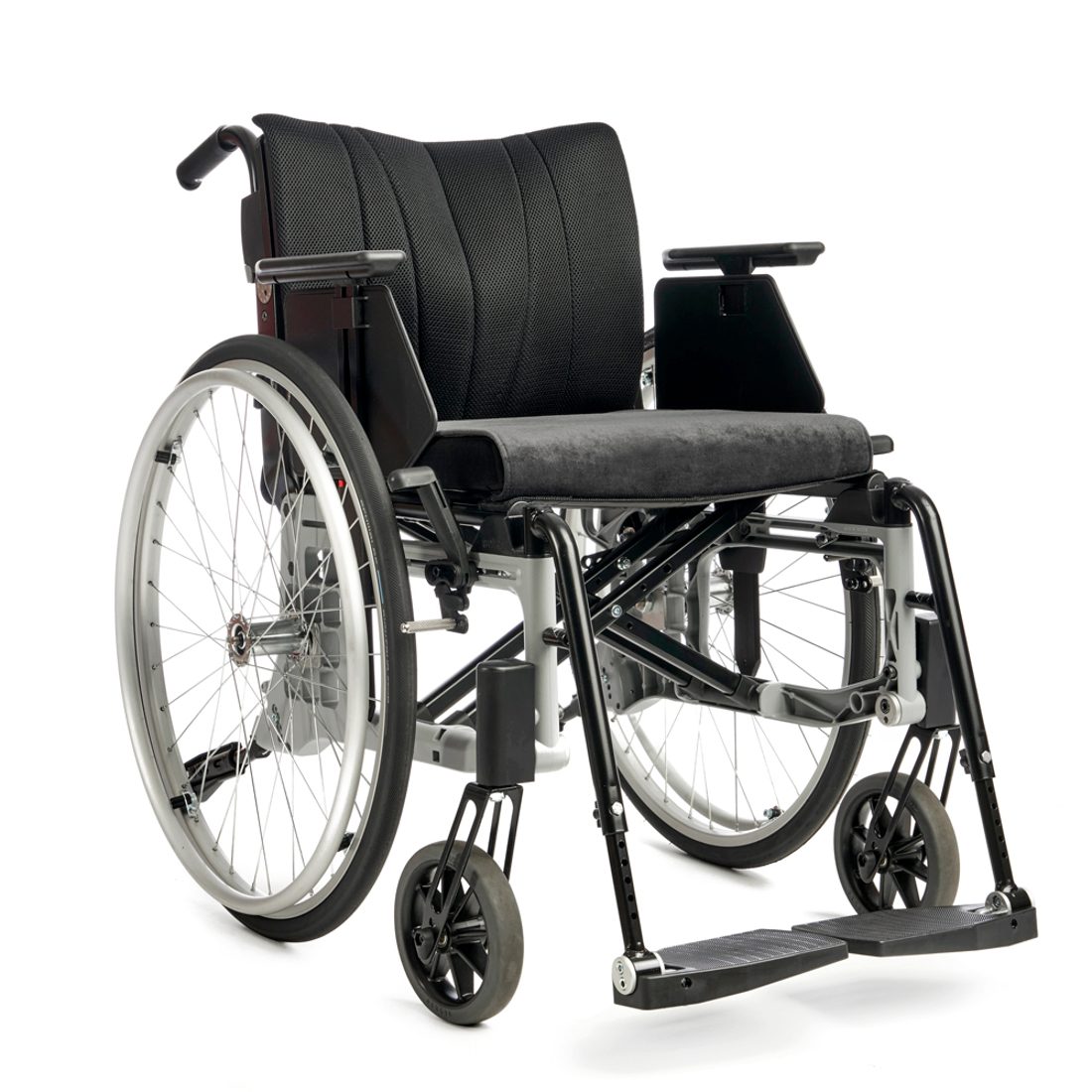

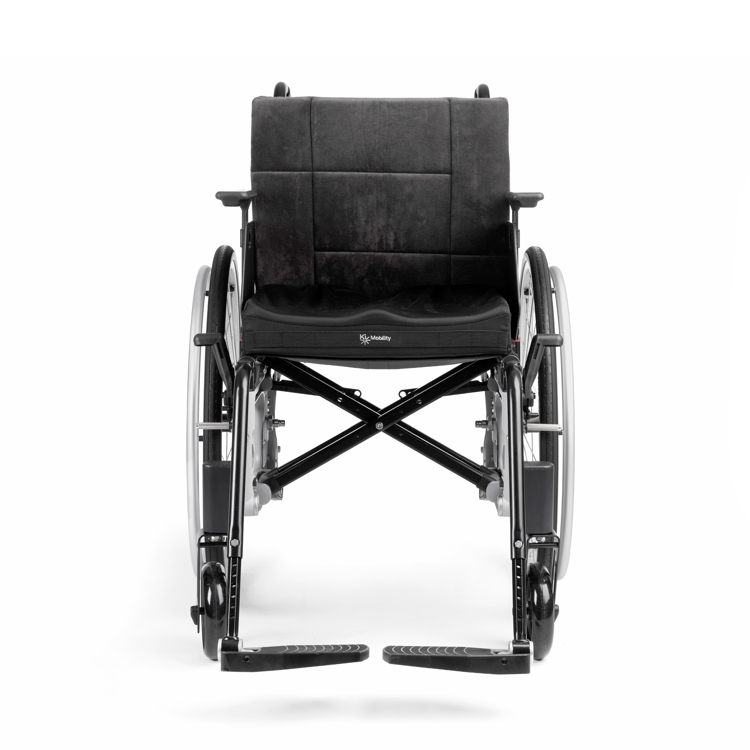

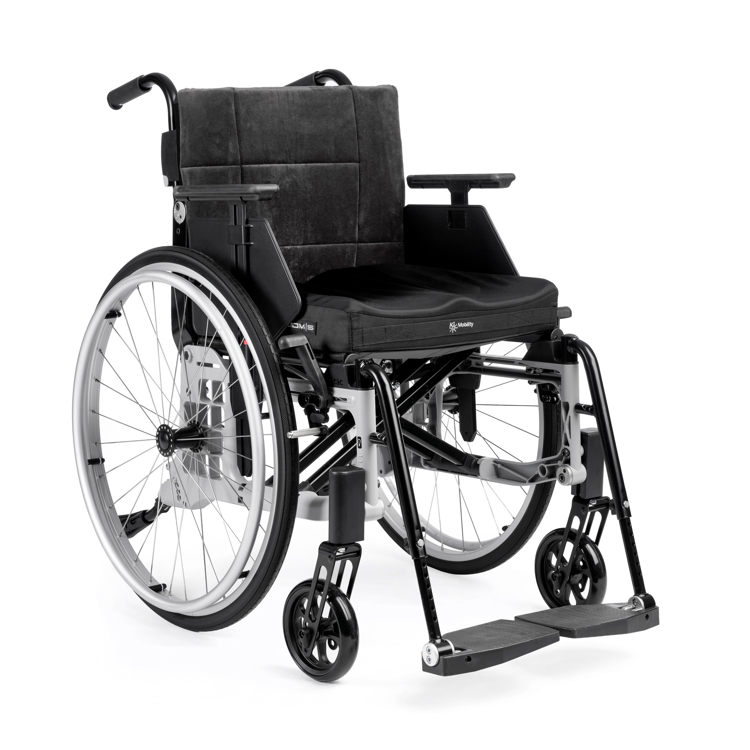

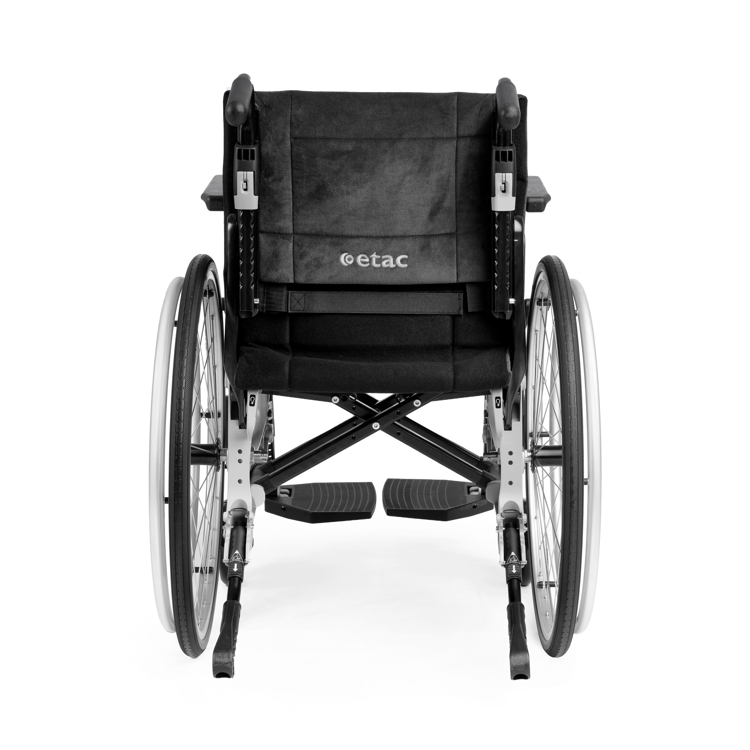

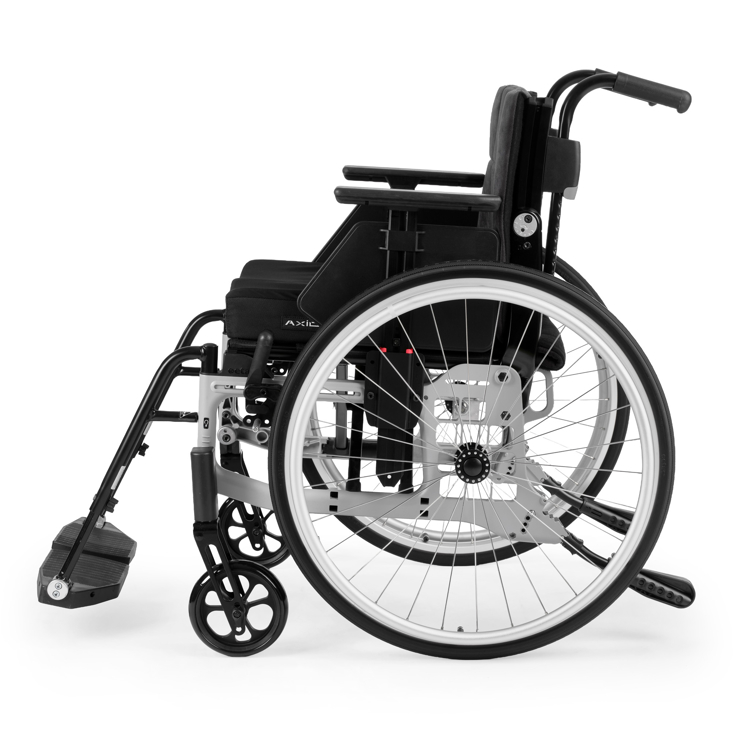

Etac Cross 6
The most adjustable folding wheelchair
Never waste time on lengthy assessments and measurements, just take the one accurate seat width and everything else is available to set up on the day.
Cross 6 is built for and by the most demanding welfare system in the world, the Scandinavian. Where every adjustment is worth the time and “every body” matters.
Cross 6 can always be readjusted for better sitting and changing needs. Durable and adjustable for the first user and the users after. Cross 6 is sustainable and future proof. The right wheelchair. Tomorrow too!
Time saving
Now, new Cross 6 is even more adjustable, and we have time saving news. Clinicians interviewed confirms Cross 6 is quick and easy to adjust.
Cross 6 – designed by Scandinavia, built in Sweden. Because everybody and every body deserves the right wheelchair. Right now!
Features
-
Features
Shape up for any body shape
Quick and easy to adjust height and lumbar angle for individual posture needs.
-
Features

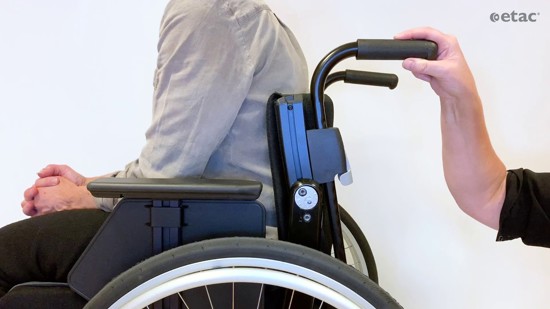

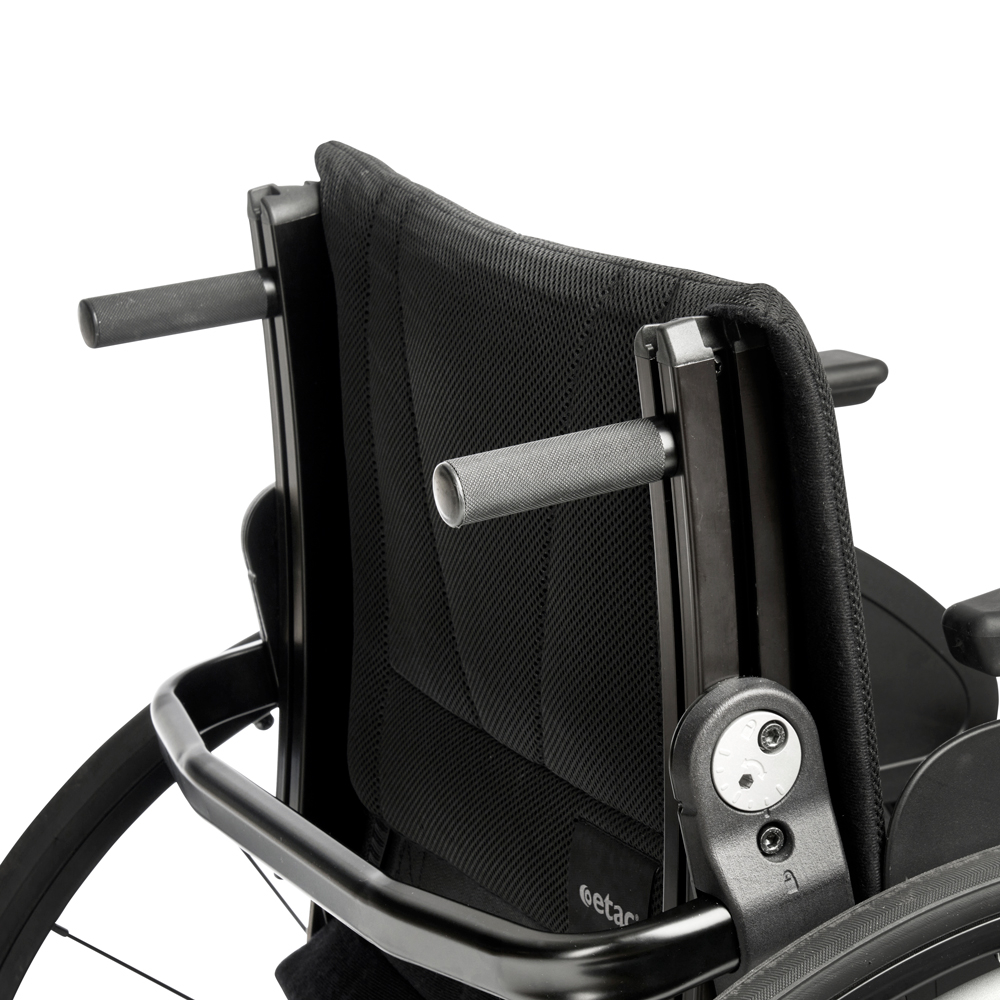

Push handles – Quick and Easy
So quick and easy that every attendant will use them ergonomically.
-
Features
One seat depth fits all
Use the standard seat depth for majority of your user. Saves you time when ordering.
-
Features

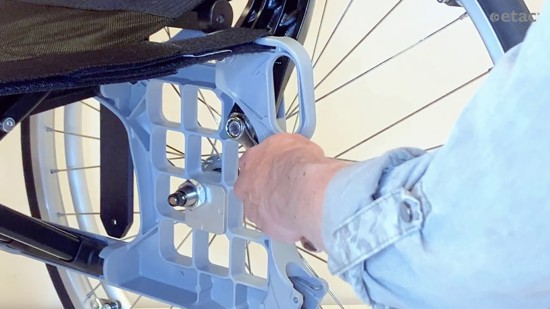

Easy to find the right hip angle
Varying the hip angle is now so simple and gives audible feedback (click sound) when adjusting.
-
Features
Rigidity now. And tomorrow
The frame retains its rigidity and this never falters over time.
-
Features

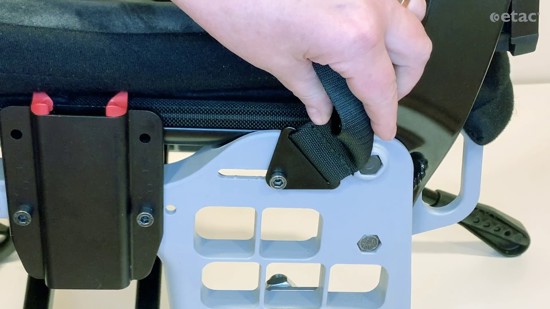

Positioning belt where you want it
On the Etac wheelchair Cross 6 there are two locations for fixate a 2 or 4 point belt. Once in place you can easily adjust to optimum position.
-
Features

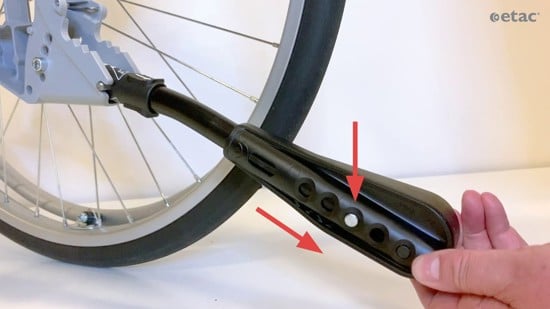

Etac Cross 6 anti-tipper
The anti-tippers covers a 24 cm seat height variation.
Variants
| Item number | Seat depth (mm) | Seat width (mm) | Total width (mm) | Transport weight (kg) | Weight (kg) | Width with attendant brakes (mm) | |
|---|---|---|---|---|---|---|---|
| 35 cm, standard | 13240101 | 360-490 | 350 | 555 | 10.4 | 14.6 | 565 |
| 35 cm, long | 13240102 | 420-550 | 350 | 555 | 10.7 | 14,8 | 565 |
| 37,5 cm, standard | 13240103 | 360-490 | 375 | 580 | 10.5 | 14,7 | 590 |
| 37,5 cm, long | 13240104 | 420-550 | 375 | 580 | 10.8 | 14,9 | 590 |
| 40 cm, standard | 13240105 | 360-490 | 400 | 605 | 10.6 | 14,8 | 615 |
| 40 cm, long | 13240106 | 420-550 | 400 | 605 | 10.9 | 15 | 615 |
| 42,5 cm, standard | 13240107 | 360-490 | 425 | 630 | 10.7 | 14,9 | 640 |
| 42,5 cm, long | 13240108 | 420-550 | 425 | 630 | 11 | 15,1 | 640 |
| 45 cm, standard | 13240109 | 360-490 | 450 | 655 | 10.9 | 15,1 | 665 |
| 45 cm, long | 13240110 | 420-550 | 450 | 655 | 11.2 | 15,3 | 665 |
| 47,5 cm, standard | 13240111 | 360-490 | 475 | 680 | 11 | 15,2 | 690 |
| 47,5 cm, long | 13240112 | 420-550 | 475 | 680 | 11.3 | 15,4 | 690 |
| 50 cm, standard | 13240113 | 360-490 | 500 | 705 | 11.1 | 15,3 | 715 |
| 50 cm, long | 13240114 | 420-550 | 500 | 705 | 11.4 | 15,5 | 715 |
| 52,5 cm, standard | 13240115 | 360-490 | 525 | 730 | 11.2 | 15,4 | 740 |
| 52,5 cm, long | 13240116 | 420-550 | 525 | 730 | 11.5 | 15,6 | 740 |
| 37,5 cm, standard, attendant brake | - | 360-490 | 375 | 580 | 10.4 | 17.6 | - |
| 40 cm, long, attendant brake | - | 420-550 | 400 | 605 | 10.7 | 17.9 | - |
| 37,5 cm, standard, attendant brake | - | 360-490 | 375 | 590 | 11.4 | 19.6 | 590 |
| 40 cm, long, attendant brake | - | 420-550 | 400 | 615 | 11.7 | 19.9 | 615 |
Front seat height: 32–56.5 cm (12½"-22¼")
Rear seat height: 32–53 cm (12½"-20¾")
Back support height: 32–45 cm (12½"-17¾") with standard back support 3A. Back support 3A high: 38—51 cm (15"-20")
Transport width: 32 cm (12½")
Seat depth: *Measured with 3A triangular back
Max user weight Cross 6: 135 kg.
Weights and dimensions given are for a chair with 24" rear wheels with quick-release hubs, high-pressure tire, aluminium handrims, leg supports, foot supports, brakes, arm supports, 6½" castors with medium forks. The measurements given may vary by +- 2%.
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
How to adjust anti-tip
How to adjust hip angle on Cross 6
How to adjust lumbar angle on Cross 6
