Star StarLock

Pressure redistribution, stability and individualised postural support in one wheelchair cushion. StarLock's cell-locking technology makes it possible to shape, offload and stabilise without compromise. A complete air cell cushion with personalised pressure care.

Find your distributor

Star StarLock

Lockable air cells for right support and protection.

In air cell cushions, the combination of pressure redistributing qualities and stability has always been a difficult compromise – With StarLock, you can have both.

Vertical Air Cells
Star cushions feature vertical air cell technology designed specifically for individuals at high risk of pressure injuries. Star’s interconnected vertical air cell design ensures internal cell pressures equalise as the user sits in the cushion. The vertical air cell construction also effectively reduces surface tension and enables excellent envelopment.

Pressure Care with Pressure Redistribution and Postural Support
StarLock is the complete cushion solution for pressure care with pressure redistribution, stability and postural support. And it is available in 5, 7.5, 10 and 13 cm cell heights. Whatever the cell height, the sitting height will always be the same. However, the higher the cell, the greater the pressure redistribution.

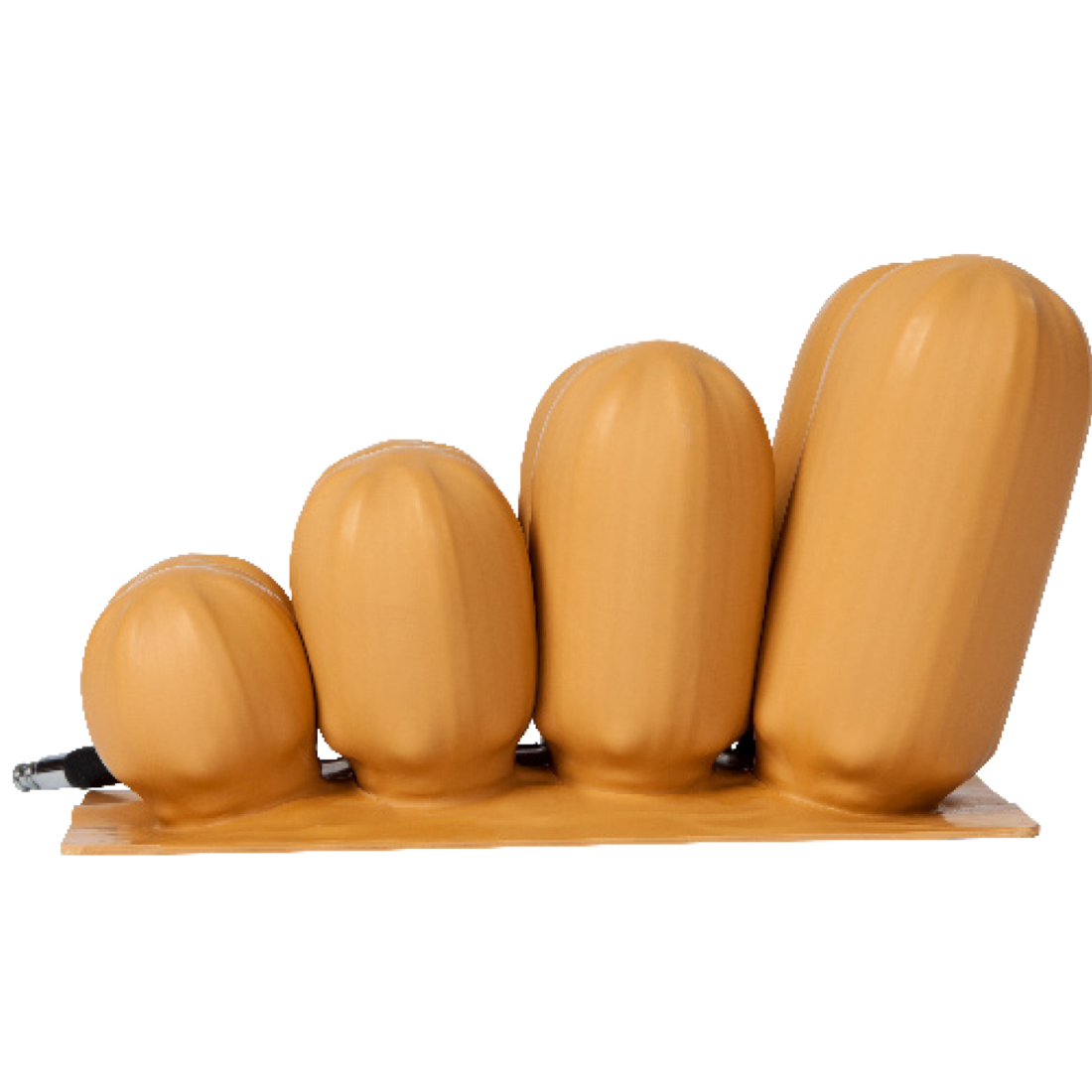

The 13 cm cell height is unique to StarLock and offers greater immersion and envelopment.

Shaping, Offloading and Stability
The StarLock cushion, with its StarLock Technology, provides the possibility to lock air into each vertical air cell which makes it possible to create a desired shape, offload localised pressure and increase stability, allowing for individualised postural support.

It can be adjusted and reset again and again, making it very flexible over time.

StarLock can also work as a single air chamber cushion allowing individual setup for optimal pressure redistribution.

User manual

Declaration of conformity

Brochure

Features

Pressure Redistribution

StarLock is the only air cell cushion with a 13 cm cell height - that redistributes pressure over a larger surface, provides greater immersion into the cushion, and continually readjusts to the user’s shape as they move in their seat.

Features

Pressure Redistribution

StarLock is the only air cell cushion with a 13 cm cell height - that redistributes pressure over a larger surface, provides greater immersion into the cushion, and continually readjusts to the user’s shape as they move in their seat.
Features

Shape for the Individual

StarLock technology conforms to the user’s body shape or desired position, which can help by locking the air into each cell. StarLock can meet the individual user´s changing needs for support and shape.
Features

Stability

The individual cell locking technology aids stability and allows individualised postural support.
Features

Offloading

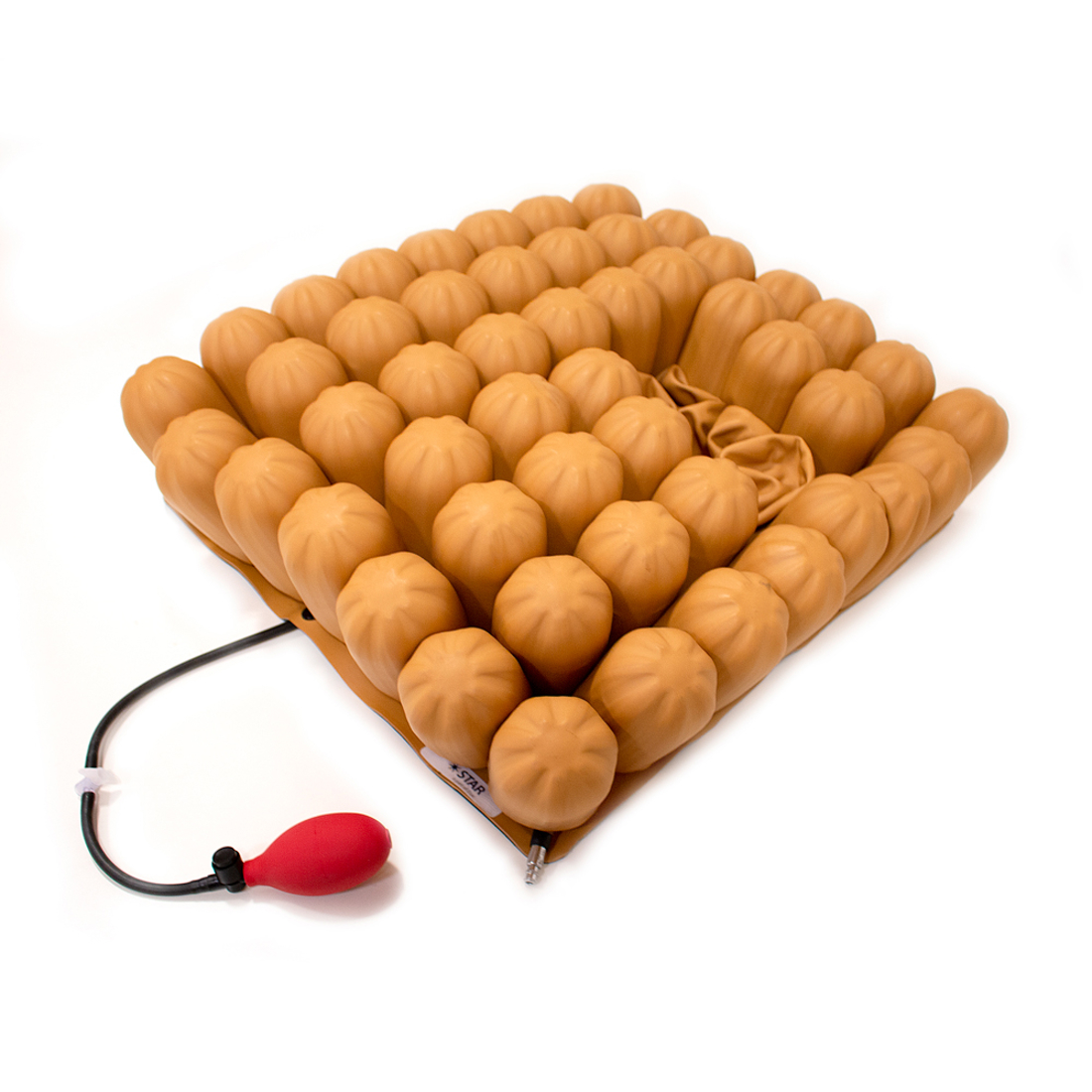

Locking down cells in a selected area of the cushion can relieve pressure on particularly vulnerable areas.
Features

Adjustability

StarLock can be adjusted and reset again and again, making it very flexible over time. The user can remain seated throughout the assessment.
Features

Recondition and Reuse

StarLock can always be washed and repaired and adjusted and disinfected as often as you want. Without locking the Lock Pockets, StarLock can also be used as a classic single-chamber cushion.

Variants

	Item number	A x B: Cell amount (W x D)	Cell height (mm)	Cell width (mm)	Maximum user weight	Suits wheelchair seat depth (mm)	Suits wheelchair seat width (mm)	Weight (kg)
26 x 26 cm	ESSL20909-1	5x5	50	50	Unlimited	240-270	220-250	1.340
26 x 30 cm	ESSL20911-1	5x6	50	50	Unlimited	280-310	220-250	1.090
26 x 34 cm	ESSL20913-1	5x7	50	50	Unlimited	320-350	220-250	1.090
30 x 26 cm	ESSL21109-1	6x5	50	50	Unlimited	240-270	260-300	1.400
30 x 30 cm	ESSL21111-1	6x6	50	50	Unlimited	280-310	260-300	1.090
30 x 34 cm	ESSL21113-1	6x7	50	50	Unlimited	320-350	260-300	1.580
30 x 39 cm	ESSL21115-1	6x8	50	50	Unlimited	360-400	260-300	1.090
34 x 26 cm	ESSL21309-1	7x5	50	50	Unlimited	240-270	310-350	1.460
34 x 30 cm	ESSL21311-1	7x6	50	50	Unlimited	280-310	310-350	1.580
34 x 34 cm	ESSL21313-1	7x7	50	50	Unlimited	320-350	310-350	1.700
34 x 39 cm	ESSL21315-1	7x8	50	50	Unlimited	360-400	310-350	1.780
34 x 44 cm	ESSL21317-1	7x9	50	50	Unlimited	410-450	310-350	1.920
39 x 30 cm	ESSL21511-1	8x6	50	50	Unlimited	280-310	360-400	1.680
39 x 34 cm	ESSL21513-1	8x7	50	50	Unlimited	320-350	360-400	1.760
39 x 39 cm	ESSL21515-1	8x8	50	50	Unlimited	360-400	360-400	1.820
39 x 44 cm	ESSL21517-1	8x9	50	50	Unlimited	410-450	360-400	2.020
39 x 49 cm	ESSL21519-1	8x10	50	50	Unlimited	460-500	360-400	2.160
39 x 53 cm	ESSL21521-1	8x11	50	50	Unlimited	510-550	360-400	2.520
44 x 34 cm	ESSL21713-1	9x7	50	50	Unlimited	320-350	410-450	1.090
44 x 39 cm	ESSL21715-1	9x8	50	50	Unlimited	360-400	410-450	1.090
44 x 44 cm	ESSL21717-1	9x9	50	50	Unlimited	410-450	410-450	1.090
44 x 49 cm	ESSL21719-1	9x10	50	50	Unlimited	460-500	410-450	2.560
44 x 53 cm	ESSL21721-1	9x11	50	50	Unlimited	510-550	410-450	1.090
49 x 39 cm	ESSL21915-1	10x8	50	50	Unlimited	360-400	460-500	2.140
49 x 49 cm	ESSL21919-1	10x10	50	50	Unlimited	460-500	460-500	2.740
49 x 53 cm	ESSL21921-1	10x11	50	50	Unlimited	510-550	460-500	2.840
53 x 39 cm	ESSL22115-1	11x8	50	50	Unlimited	360-400	510-550	1.090
53 x 44 cm	ESSL22117-1	11x9	50	50	Unlimited	410-450	510-550	2.450
53 x 49 cm	ESSL22119-1	11x10	50	50	Unlimited	460-500	510-550	2.600
53 x 53 cm	ESSL22121-1	11x11	50	50	Unlimited	510-550	510-550	2.960
26 x 26 cm	ESSL30909-1	5x5	75	50	Unlimited	240-270	220-250	1.480
26 x 30 cm	ESSL30911-1	5x6	75	50	Unlimited	280-310	220-250	1.520
26 x 34 cm	ESSL30913-1	5x7	75	50	Unlimited	320-350	220-250	1.620
30 x 26 cm	ESSL31109-1	6x5	75	50	Unlimited	240-270	260-300	1.520
30 x 30 cm	ESSL31111-1	6x6	75	50	Unlimited	280-310	260-300	1.340
30 x 34 cm	ESSL31113-1	6x7	75	50	Unlimited	320-350	260-300	1.780
30 x 39 cm	ESSL31115-1	6x8	75	50	Unlimited	360-400	260-300	1.840
34 x 26 cm	ESSL31309-1	7x5	75	50	Unlimited	240-270	310-350	1.340
34 x 30 cm	ESSL31311-1	7x6	75	50	Unlimited	280-310	310-350	1.340
34 x 34 cm	ESSL31313-1	7x7	75	50	Unlimited	320-350	310-350	1.340
34 x 39 cm	ESSL31315-1	7x8	75	50	Unlimited	360-400	310-350	1.340
34 x 44 cm	ESSL31317-1	7 x9	75	50	Unlimited	410-450	310-350	1.340
39 x 30 cm	ESSL31511-1	8x6	75	50	Unlimited	280-310	360-400	1.900
39 x 34 cm	ESSL31513-1	8x7	75	50	Unlimited	320-350	360-400	2.000
39 x 49 cm	ESSL31519-1	8x10	75	50	Unlimited	460-500	360-400	1.540
39 x 53 cm	ESSL31521-1	8x11	75	50	Unlimited	510-550	360-400	2.800
44 x 34 cm	ESSL31713-1	9x7	75	50	Unlimited	320-350	410-450	1.540
44 x 39 cm	ESSL31715-1	9x8	75	50	Unlimited	360-400	410-450	2.300
44 x 49 cm	ESSL31719-1	9x10	75	50	Unlimited	460-500	410-450	2.740
44 x 53 cm	ESSL31721-1	9x11	75	50	Unlimited	510-550	410-450	3.060
49 x 39 cm	ESSL31915-1	10x8	75	50	Unlimited	360-400	460-500	2.500
49 x 44 cm	ESSL31917-1	10x9	75	50	Unlimited	410-450	460-500	1.540
49 x 49 cm	ESSL31919-1	10x10	75	50	Unlimited	460-500	460-500	1.540
49 x 53 cm	ESSL31921-1	10x11	75	50	Unlimited	510-550	460-500	1.540
53 x 39 cm	ESSL32115-1	11x8	75	50	Unlimited	360-400	510-550	1.540
53 x 44 cm	ESSL32117-1	11x9	75	50	Unlimited	410-450	510-550	3.100
53 x 49 cm	ESSL32119-1	11x10	75	50	Unlimited	460-500	510-550	1.540
53 x 53 cm	ESSL32121-1	11x11	75	50	Unlimited	510-550	510-550	1.540
26 x 26 cm	ESSL40909-1	5x5	100	50	Unlimited	240-270	220-250	1.580
26 x 30 cm	ESSL40911-1	5x6	100	50	Unlimited	280-310	220-250	1.520
26 x 34 cm	ESSL40913-1	5x7	100	50	Unlimited	320-350	220-250	1.520
30 x 26 cm	ESSL41109-1	6x5	100	50	Unlimited	240-270	260-300	1.640
30 x 30 cm	ESSL41111-1	6x6	100	50	Unlimited	280-310	260-300	1.520
30 x 34 cm	ESSL41113-1	6x7	100	50	Unlimited	320-350	260-300	1.520
34 x 26 cm	ESSL41309-1	7x5	100	50	Unlimited	240-270	310-350	1.520
34 x 30 cm	ESSL41311-1	7x6	100	50	Unlimited	280-310	310-350	1.900
34 x 34 cm	ESSL41313-1	7x7	100	50	Unlimited	320-350	310-350	1.520
34 x 39 cm	ESSL41315-1	7x8	100	50	Unlimited	360-400	310-350	1.520
34 x 44 cm	ESSL41317-1	7x9	100	50	Unlimited	410-450	310-350	1.520
39 x 30 cm	ESSL41511-1	8x6	100	50	Unlimited	280-310	360-400	2.060
39 x 34 cm	ESSL41513-1	8x7	100	50	Unlimited	320-350	360-400	2.220
39 x 53 cm	ESSL41521-1	8x11	100	50	Unlimited	510-550	360-400	3.240
44 x 34 cm	ESSL41713-1	9x7	100	50	Unlimited	320-350	410-450	2.480
44 x 39 cm	ESSL41715-1	9x8	100	50	Unlimited	360-400	410-450	1.520
44 x 53 cm	ESSL41721-1	9x11	100	50	Unlimited	510-550	410-450	3.500
49 x 39 cm	ESSL41915-1	10x8	100	50	Unlimited	360-400	460-500	3.040
53 x 39 cm	ESSL42115-1	11x8	100	50	Unlimited	360-400	510-550	3.140
53 x 44 cm	ESSL42117-1	11x9	100	50	Unlimited	410-450	510-550	3.520
53 x 49 cm	ESSL42119-1	11x10	100	50	Unlimited	460-500	510-550	3.700
53 x 53 cm	ESSL42121-1	11x11	100	50	Unlimited	510-550	510-550	4.040
26 x 26 cm	ESSL51010-1	4x4	130	60	Unlimited	240-270	220-260	-
26 x 30 cm	ESSL51012-1	4x5	130	60	Unlimited	280-320	220-260	2.000
26 x 36 cm	ESSL51014-1	4x6	130	60	Unlimited	330-380	220-260	2.000
30 x 26 cm	ESSL51210-1	5x4	130	60	Unlimited	240-270	270-320	2.000
30 x 30 cm	ESSL51212-1	5x5	130	60	Unlimited	280-320	270-320	2.000
30 x 36 cm	ESSL51214-1	5x6	130	60	Unlimited	330-380	270-320	2.000
30 x 41 cm	ESSL51216-1	5x7	130	60	Unlimited	390-430	270-320	2.000
36 x 26 cm	ESSL51410-1	6x4	130	60	Unlimited	240-270	330-370	2.000
36 x 30 cm	ESSL51412-1	6x5	130	60	Unlimited	280-320	330-370	2.000
36 x 36 cm	ESSL51414-1	6x6	130	60	Unlimited	330-380	330-370	2.200
36 x 41 cm	ESSL51416-1	6x7	130	60	Unlimited	390-430	330-370	2.440
36 x 46 cm	ESSL51418-1	6x8	130	60	Unlimited	440-480	330-370	2.800
41 x 30 cm	ESSL51612-1	7x5	130	60	Unlimited	280-320	380-430	2.460
41 x 36 cm	ESSL51614-1	7x6	130	60	Unlimited	330-380	380-430	2.640
41 x 41 cm	ESSL51616-1	7x7	130	60	Unlimited	390-430	380-430	2.860
41 x 46 cm	ESSL51618-1	7x8	130	60	Unlimited	440-480	380-430	3.140
41 x 51 cm	ESSL51620-1	7x9	130	60	Unlimited	490-530	380-430	3.360
41 x 56 cm	ESSL51622-1	7x10	130	60	Unlimited	540-580	380-430	2.000
46 x 36 cm	ESSL51814-1	8x6	130	60	Unlimited	330-380	430-480	2.000
46 x 41 cm	ESSL51816-1	8x7	130	60	Unlimited	390-430	430-480	2.000
46 x 46 cm	ESSL51818-1	8x8	130	60	Unlimited	440-480	430-480	2.000
46 x 51 cm	ESSL51820-1	8x9	130	60	Unlimited	490-530	430-480	2.000
46 x 56 cm	ESSL51822-1	8x10	130	60	Unlimited	540-580	430-480	2.000
51 x 41 cm	ESSL52016-1	9x7	130	60	Unlimited	390-430	480-530	2.000
51 x 46 cm	ESSL52018-1	9x8	130	60	Unlimited	440-480	480-530	2.000
51 x 51 cm	ESSL52020-1	9x9	130	60	Unlimited	490-530	480-530	2.000
51 x 56 cm	ESSL52022-1	9x10	130	60	Unlimited	540-580	480-530	2.000
56 x 41 cm	ESSL52216-1	10x7	130	60	Unlimited	390-430	530-590	2.000
56 x 46 cm	ESSL52218-1	10x8	130	60	Unlimited	440-480	530-590	2.000
56 x 51 cm	ESSL52220-1	10x9	130	60	Unlimited	490-530	530-590	2.000
56 x 56 cm	ESSL52222-1	10x10	130	60	Unlimited	540-580	530-590	2.000

FACTS User weight No limits as long as the correct sized cushion is used for the user.

Material cushion High quality latex free gold coloured Neoprene. Adaptable and flame resistant.

Material cover Top & sides: 83% Rip Stop Nylon (Non absorbent fabric that aids in evaporating moisture) 17% Lycra. Bottom: Woven polyester fabric coated with polyvinyl compound. (Antimicrobial treated to inhibit growth of odor causing bacteria, mold and mildew.) Flame resistant.

Material incontinence cover Top & sides: 78% Nylon 22% Spandex covered with a Polyurethane film. Bottom: Woven polyester fabric coated with polyvinyl compound (see standard cover).

Cleaning - Cushion Hand wash with soap, baking soda or vinegar. For disinfection, use 70% disinfectant solution.
Cleaning - Covers: Machine wash 60°C, no bleach.

Accessories

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
