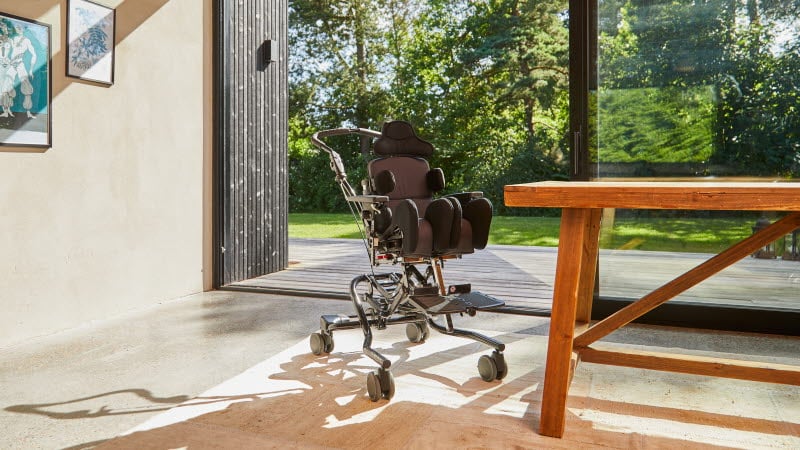

R82 x:panda shape TS
A therapy chair specifically designed to provide support and comfort during fun and inclusive activities.
The x:panda TS activity chair provides a stable, adaptable foundation supporting participation, enabling individuals to join peers at eye level or sit comfortably at the table. This meaningful inclusion fosters social connection and belonging. There is a possibility of creating a therapy chair by removing the upper back to improve trunk control. It transforms seating into a vital tool for engagement, creating valuable opportunities to interact with the environment and participate fully in everyday activities.
Features
Variants
| Infant | Size 1 | Size 2 | Size 3 | |
|---|---|---|---|---|
| Item number | 98x1000003001 | 98x1200003001 | 98x1400003001 | 98x3600003001 |
| Abduction angle, each leg (°) | - | 10/20-30 | 15/30 | 25/30 |
| Adduction angle, each leg (°) | - | 10/20-30 | 15/30 | 25/30 |
| Armrest to seat distance (mm) | 70-100 | 90-155 | 100-165/100-220 | 130-280 |
| Back width, top of backrest (mm) | 190 | 180/220/260/300/340 | 180/220/260/300/340/380 | 220/260/300/340/380/420 |
| Backrest height (mm) | 270-360 | 280-370/320-420/360-470 | 340-440/380-490/430-560 | 420-530/470-600/540-690 |
| Backrest recline angle (°) | (-10)-(30) | (-10)-(30) | (-10)-(30) | (-10)-(30) |
| Castor size (mm) | 75/100/125 | 75/100/125 | 75/100/125 | 75/100/125 |
| Effective back width (with fixed side support) (mm) | 140-190 | 130-180/170-220/210-260/250-300/290-340 | 130-180/170-220/210-260/250-300/290-340/330-380 | 130-180/170-220/210-260/250-300/290-340/330-380/370-420 |
| Effective back width (with swing away side support) (mm) | - | 80-280/120-320/160-360/200-400/240-440 | 80-280/120-320/160-360/200-400/240-440/280-480 | 80-280/120-320/160-360/200-400/240-440/280-480/320-520 |
| Effective seat depth (mm) | 120-160 | 160-320 | 240-420 | 350-550 |
| Effective seat width (without hip support) (mm) | - | 220/260/300 | 280/320/360/400 | 380/420/460/500 |
| Foot support to seat distance (mm) | 0-550 | 170-550 | 170-550 | 170-550 |
| Front location of arm rest structure (mm) | 220 | 240-280 | 320-360 | 320-430 |
| Head support height adjustment (mm) | 0-150 | 0-190 | 0-230 | 0-230 |
| Length (mm) | 680 | 680 | 800 | 800 |
| Mass device (kg) | 17.5 | 16 | 19 | 24.5 |
| Maximum rated load (kg) | 54.5 | 53.5 | 82.5 | 109 |
| Maximum user mass (kg) | 35 | 35 | 60 | 80 |
| Minimum turning radius (mm) | 400 | 400 | 475 | 475 |
| Overall height to pushbrace (mm) | 720-1100 | 720-1100 | 670-1100 | 850-1100 |
| Overall height, to top of upper back (mm) | 505-1020 | 515-1030/555-1080/595-1130 | 640-1120/680-1170/730-1240 | 770-1130/820-1200/890-1290 |
| Overall length (mm) | 680-1000 | 680-1000 | 800-1050 | 800-1250 |
| Overall width (mm) | 560 | 560 | 620 | 620 |
| Overall width, both legs in maximum abduction (mm) | - | 300/400/500 | 350/460/560/660 | 600/700/740/780 |
| Recommended user height (mm) | 850 | 700-1250 | 1000-1500 | 1300-2050 |
| Seat plane angle (°) | (-10)-(30) | (-10)-(30) | (-10)-(30) | (-5)-(25) |
| Seat surface height at front edge, 100 mm castors (mm) | 265-690 | 265-690 | 330-710 | 380-630 |
| Seat surface height at front edge, 125 mm castors (mm) | 305-730 | 305-730 | 370-750 | 420-670 |
| Seat surface height at front edge, 75 mm castors (mm) | 235-660 | 235-660 | 300-680 | 350-600 |
| Seat width, minimum/maximum (with hip supports) (mm) | - | 120-180/160-220/200-260 | 180-240/220-280/260-320/300-360 | 280-340/320-380/360-420/400-460 |
| Static stability downhill (°) | 10 | 10 | 10 | 10 |
| Static stability sideways (°) | 10 | 10 | 10 | 10 |
| Static stability uphill (°) | 10 | 10 | 10 | 10 |
| Width thighs (mm) | - | 70/92/115 | 85/108/130/152 | 100/122/145/168/190 |
All measurements for size 1, 2 & 3 are width the Advanced seat plate.
Seat measurements for the Simple seats with accessories, can be found in the user manual.
Overall height, to push brace: measure above are with 75 mm castors.
Overall width: measure above are without accessories.
Length: measure above are with 75 mm castors.
Mass device: measure above are without accessories.
Effective seat depth: for the Infant, the measure above, is to the wedge.
