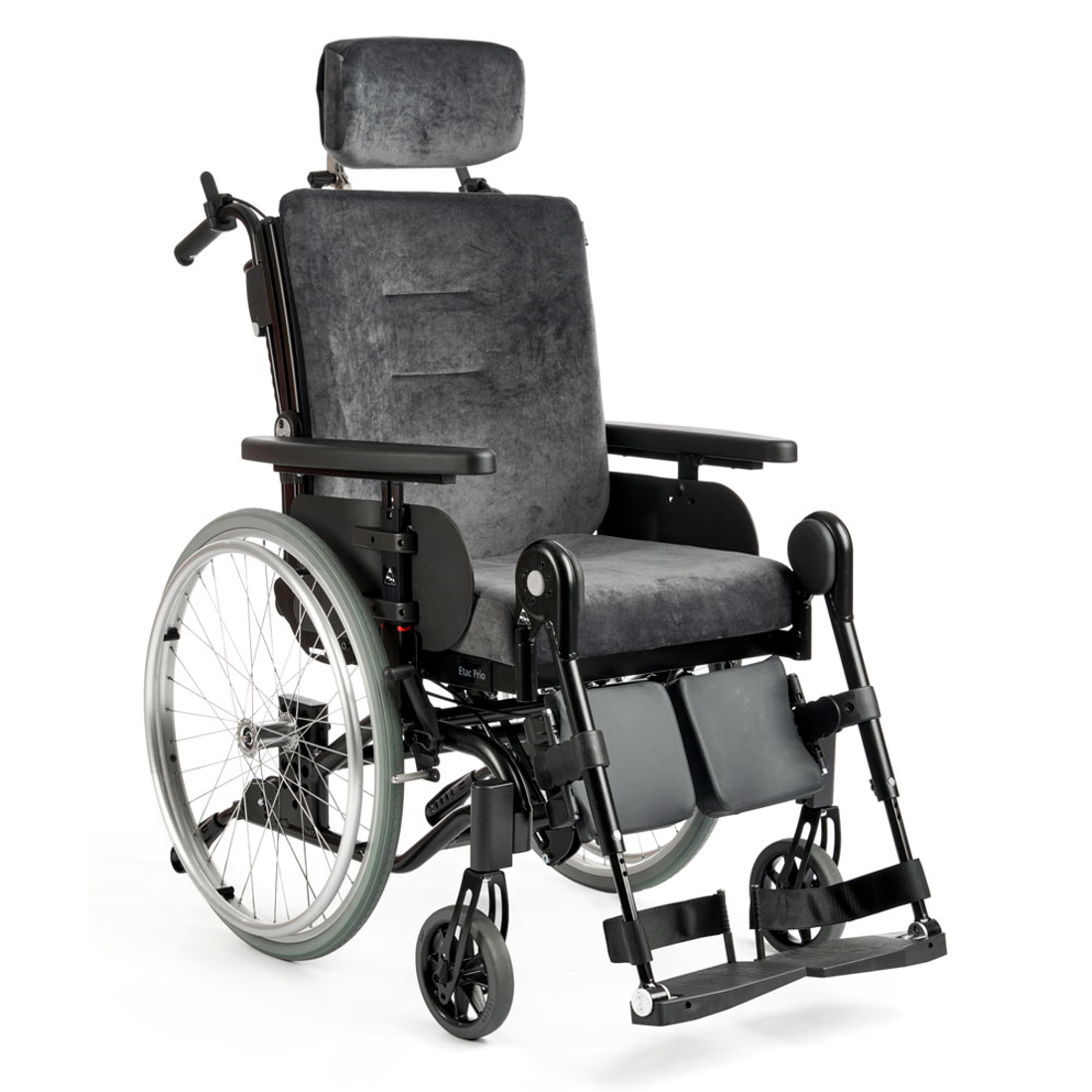

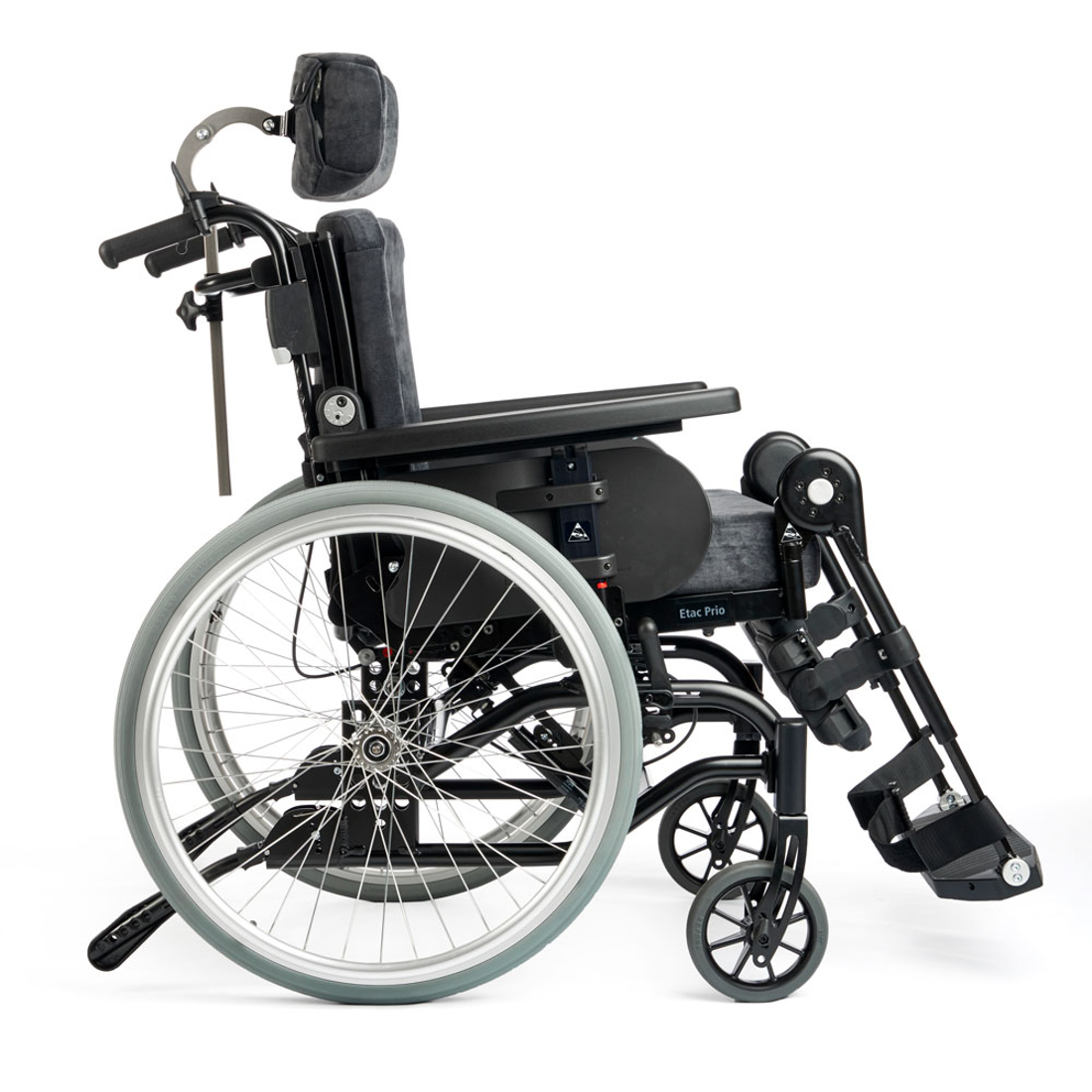

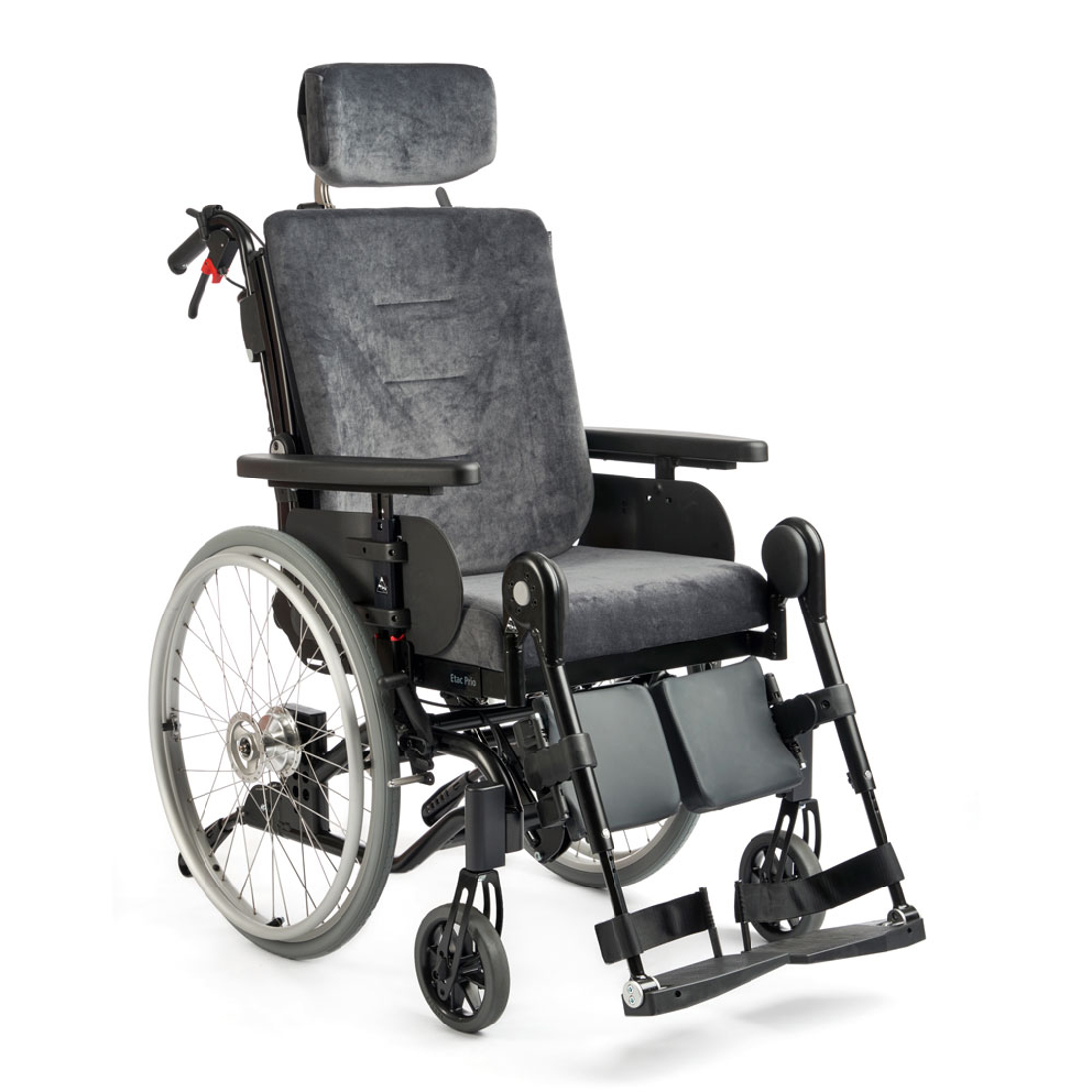

Etac Prio
Prio is a tilt and recline wheelchair with a 3A back system for postural support.
When individuals can no longer sit upright in a standard wheelchair, a tilt and recline wheelchair is often used to provide additional support to improve comfort and sitting tolerance. However, this can also result in an unnecessary increase in dependency on others.
Unlike other tilt and recline wheelchairs, the Prio is designed to optimise activity based on individual ability providing the support and comfort needed every step of the way. Right now and tomorrow too as needs change.
All you need to know is the hip width
All you need to know is the hip width to define the correct wheelchair size. The rest can be adjusted to fit the individual user´s needs.
Prio give more opportunities to create shape and support for the user to sit active/upright and for comfort and relief while resting. Work with adjustments and simple accessories to shape the wheelchair completely according to the user’s needs. Right now. And also tomorrow.
Facilitate ability, do not give up on it - With Prio you can reach your positioning and activity goals.
Features
-
Features
Adjustable lumbar angle
Adjust the lumbar angle for individual posture needs. Adjustable -12º to +10º .
-
Features
Adjustable back support height
You only need one back support chassi. The back support height is adjustable between 46 - 62 cm (18 – 24½”) and by adding the back extension accessory you can get as high as 52 - 68 cm (20½ – 26¾”).
-
Features
Adjustable front and rear seat depht
Seat depth is adjustable from 39 - 51 cm (15½” – 20”). Using both rear and front adjustment facilitates finding an optimized balance point. Front adjustment 7 cm (2¾”). Rear adjust: 5 cm (2”).
-
Features
Optimum balance
Optimise the wheel position in relation to the selected seat depth to find the optimum balance position.
-
Features

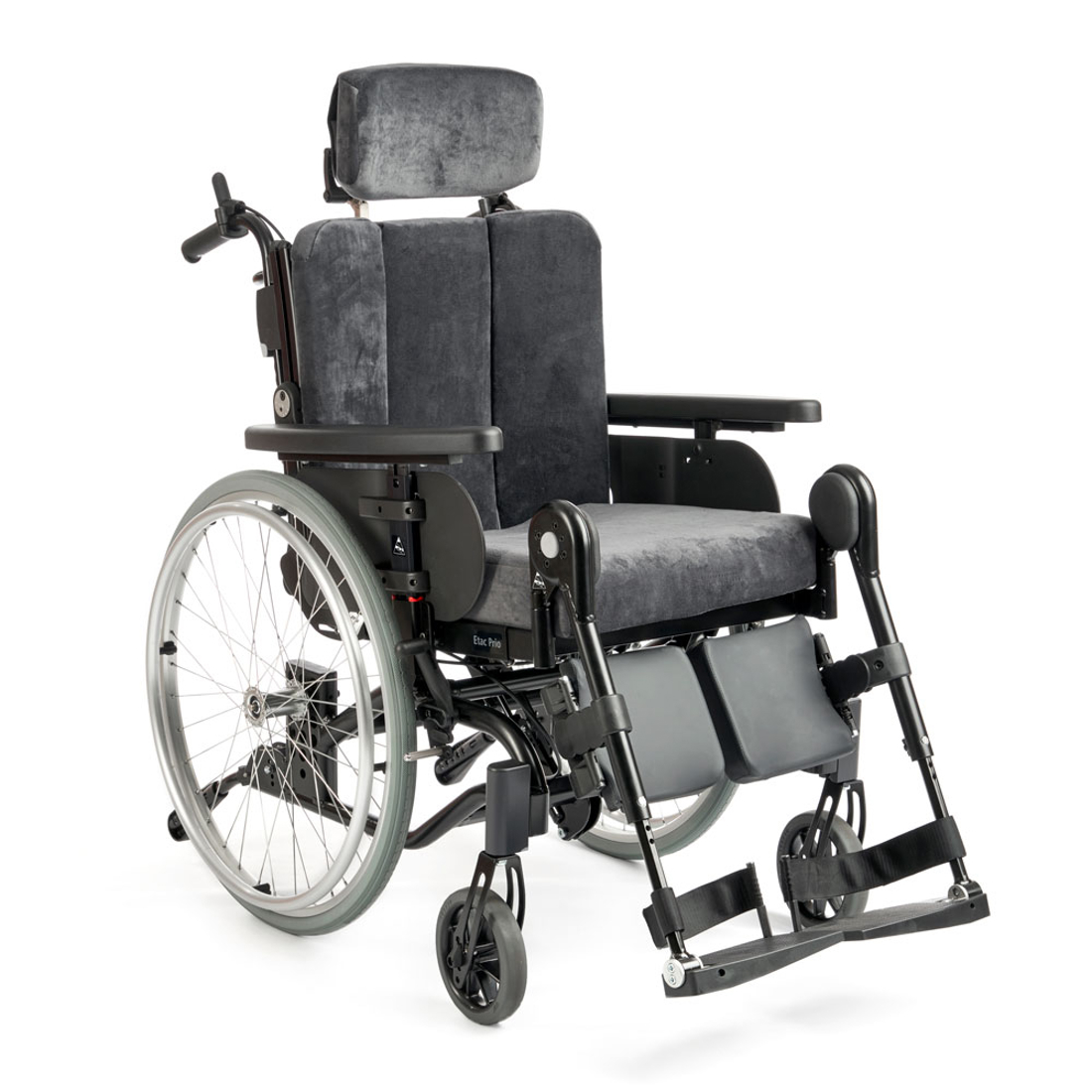

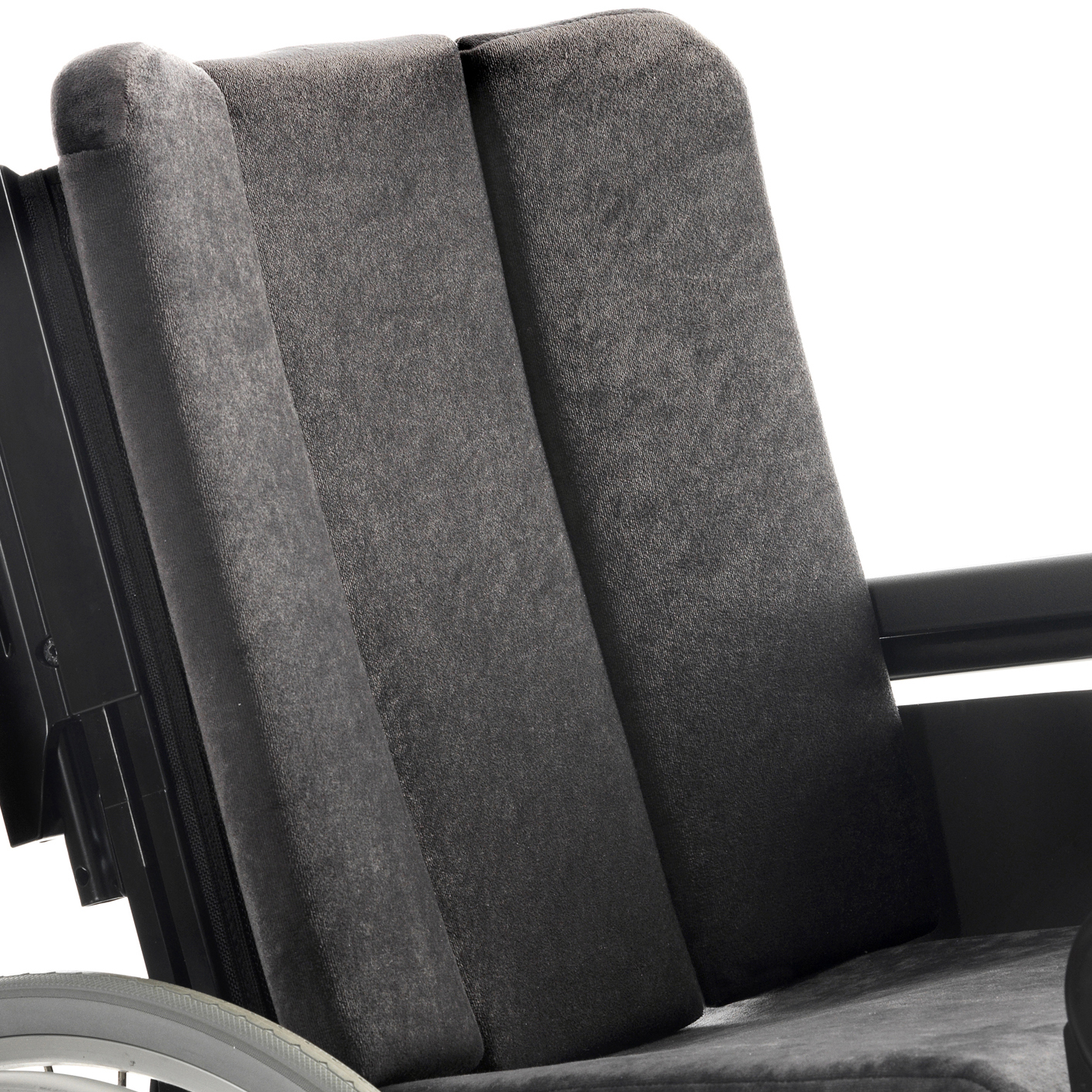

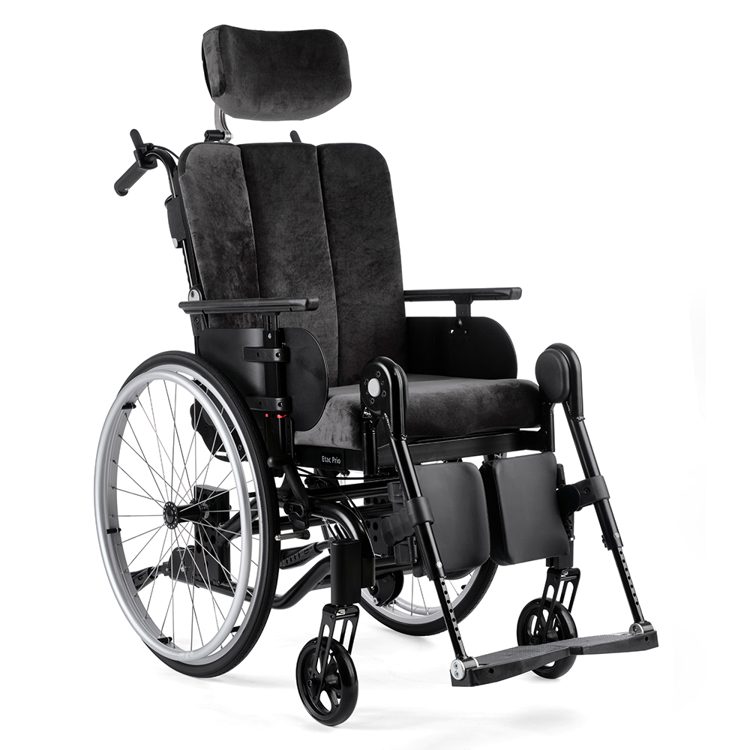

3D back cushion
The 3D back cushion has three soft padded panels connected with slide fabric, shape and optimum support can be created in all directions, following the user´s back. The 3D back cushion is ideal for kyphosis and asymmetrical postures.
-
Features

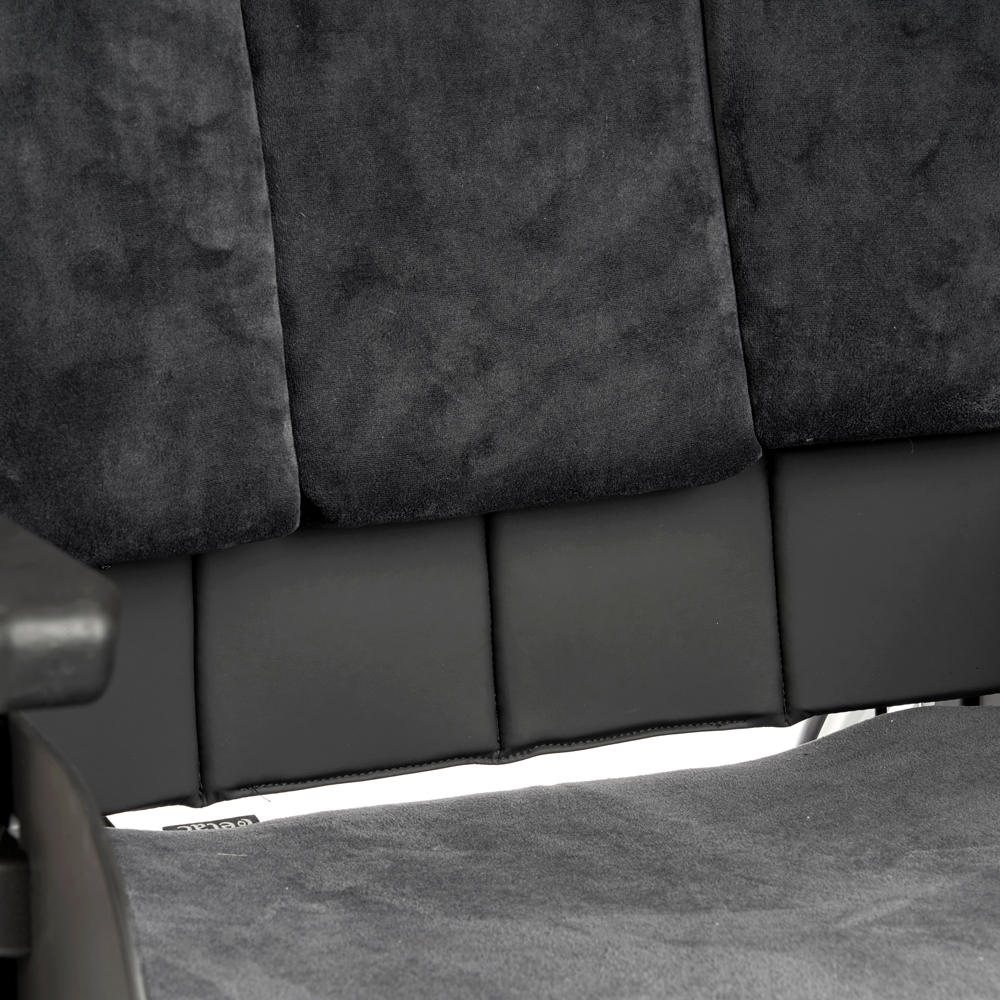

Back extension
Add 6 cm back height with the back extension incl. one extra strap. Using the back extension on the 3A back support the highest back height is 68 cm.
-
Features
Embracing side cushions
Embracing support that can be combined with all cushion options. Rotate to choose between two different shapes. Supported by the arm support or side stops. Sold per piece.
Variants
| Item number | Seat depth (mm) | Seat width (mm) | Total width (mm) | Transport weight (kg) | Transport width (mm) | Weight (kg) | Width with attendant brakes (mm) | |
|---|---|---|---|---|---|---|---|---|
| 40 cm | 13420405 | 390-510 | 400 | 590 | 22,4 | 560 | 33,0 | 640 |
| 45 cm | 13420409 | 390-510 | 450 | 640 | 22.7 | 610 | 33.3 | 690 |
| 50 cm | 13420413 | 390-510 | 500 | 690 | 23.0 | 660 | 33.6 | 740 |
| 55 cm | 13420417 | 390-510 | 550 | 740 | 23.3 | 710 | 33.9 | 790 |
Back Support height: 46 - 62 cm (18 – 24½”) std, Including the back
extension (6 cm) 52 - 68 cm (20½ – 26¾”)
Tilt angle: -3° to +20° (with accessory 0°– +20º)
Back support adjustable angulation: 0° – +30°
Back support lumbar angulation: -12º - +10º
Balance positions: Etac Prio with 20", 22", or 24" rear wheels has three altarnative balance positions for each seat height.
Maximun user weight: 135 kg (21.5 lbs)
Total weight: Measured with arm supports,head support, elevating leg supports, calf support, rear wheels and anti-tippers.
Total width: M100 rear wheels +19 cm (7½") / Cross 5 rear wheels +21 cm (8¼") / 24" rear wheels, attendant brakes +24 cm (9½") / 16" hjul +19.5 cm (7¾")
Seat height: 20", 22" and 24" rear wheels: 38–52.5 cm (15-20¾")

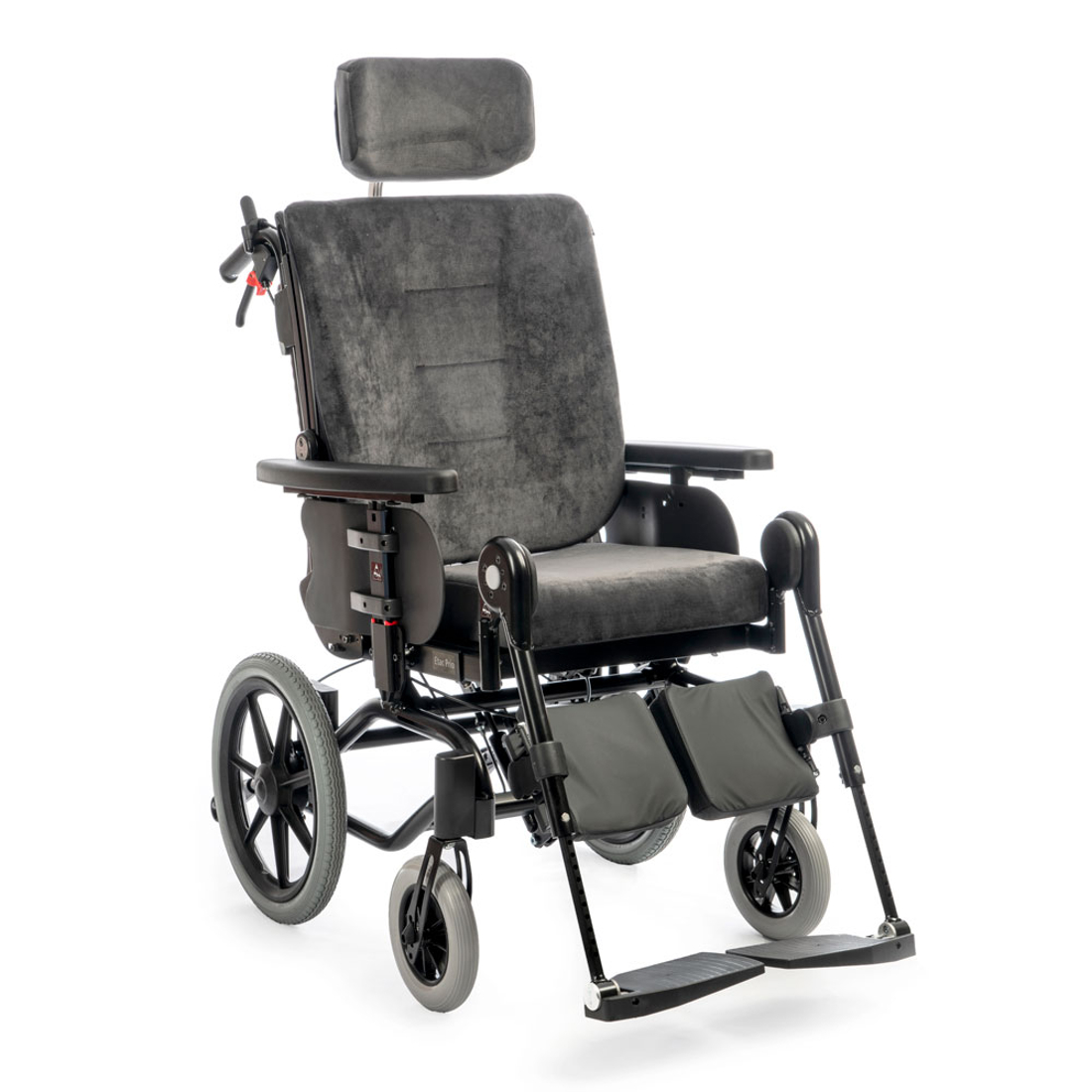

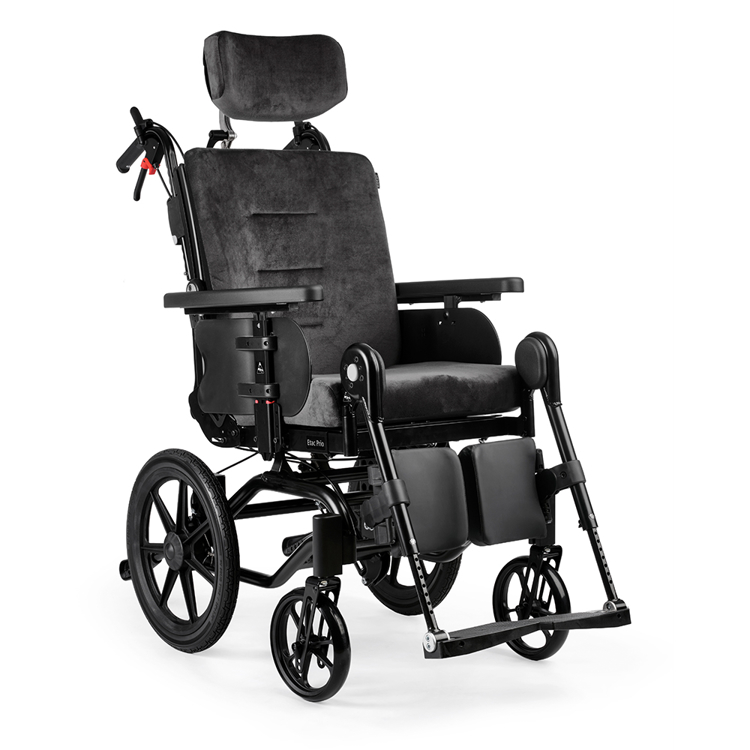

Seat height: 16" rear wheels: 40-45 cm (15¾-17¾")
Transport weight: Weight without arm supports, elevating leg supports, calf support and rear wheels.
