With a unique curved design for comfortable and spacious position

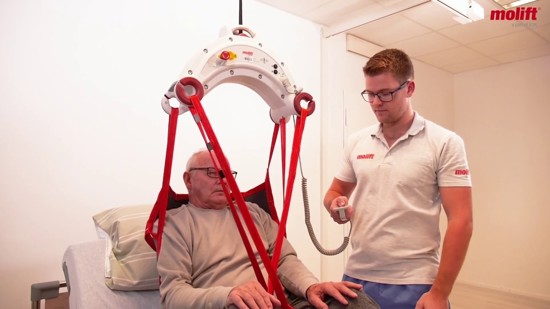

Molift Nomad has a unique curved design and the integrated 4-point sling bar provides the user with a comfortable and spacious position. The hoist can be used with all passive Molift Slings. Molift Nomad is equipped with numerous safety features such as electronic overload protection, electrical emergency lowering and emergency stop.
Low weight – high hoisting capacity

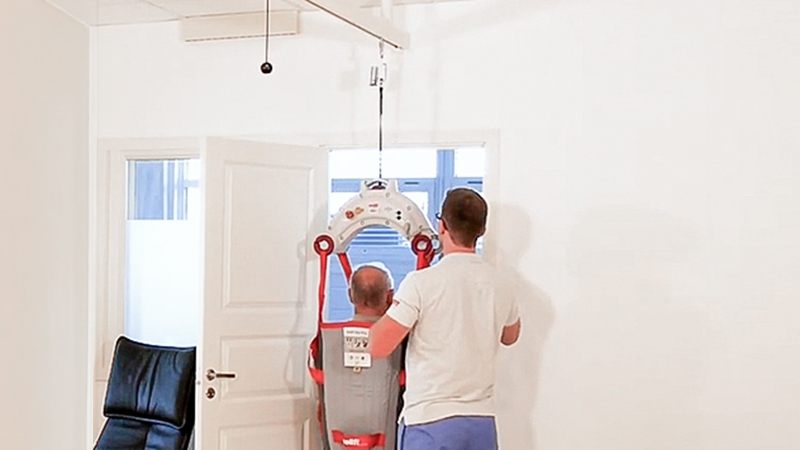

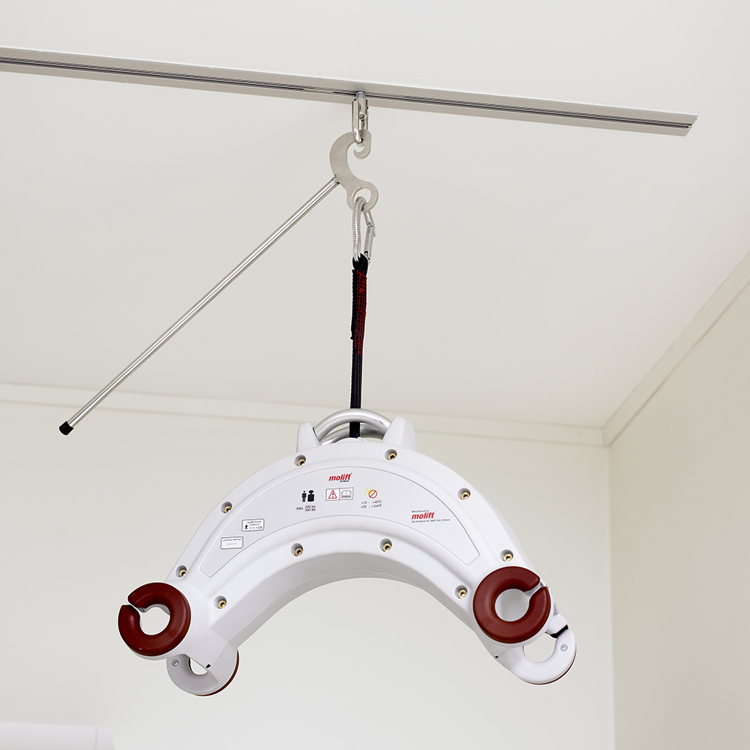

The weight of the Molift Nomad is only 6.8 kg. Despite its low weight, Molift Nomad has a hoisting capacity of up to 255 kg. The hoist also has integrated carry handles for easy handling. In combination with a specially designed trolley, the Molift Nomad can be used to climb from one rail system to another without a transition rail. This results in easy transfer from room to room.
Connects and disconnects easily – without any tools

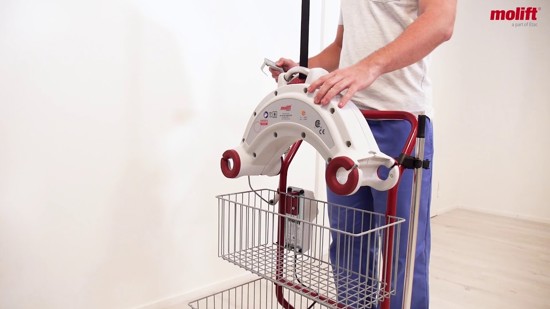

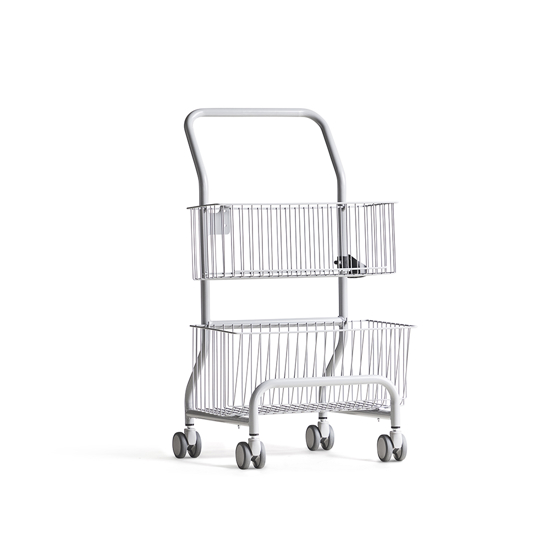

By using the Molift Nomad Extension Arm the Molift Nomad can easily be connected and disconnected by a single caregiver. The Molift Nomad Cart is ideal for storing and transporting the hoist. The Molift Nomad provides flexibility for day-to-day operations, as well as for temporary needs.

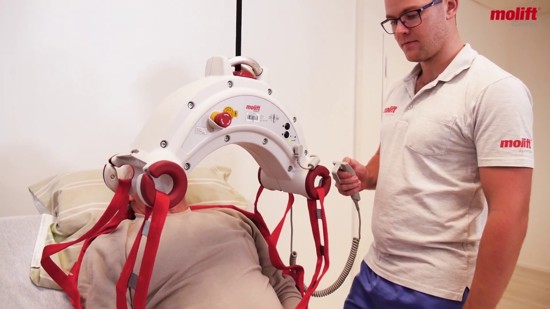

The operation of Molift Nomad is easily accessible through the handset or the integrated display in the front. It is operated by environmentally friendly NiMH batteries and equipped with audio and visual battery indicators.
Automatic service notification
The automatic service notification system calculates and indicates when service is required. The integrated software can, via Molift Service Tool also be used to retrieve data about hoister usage and service history.

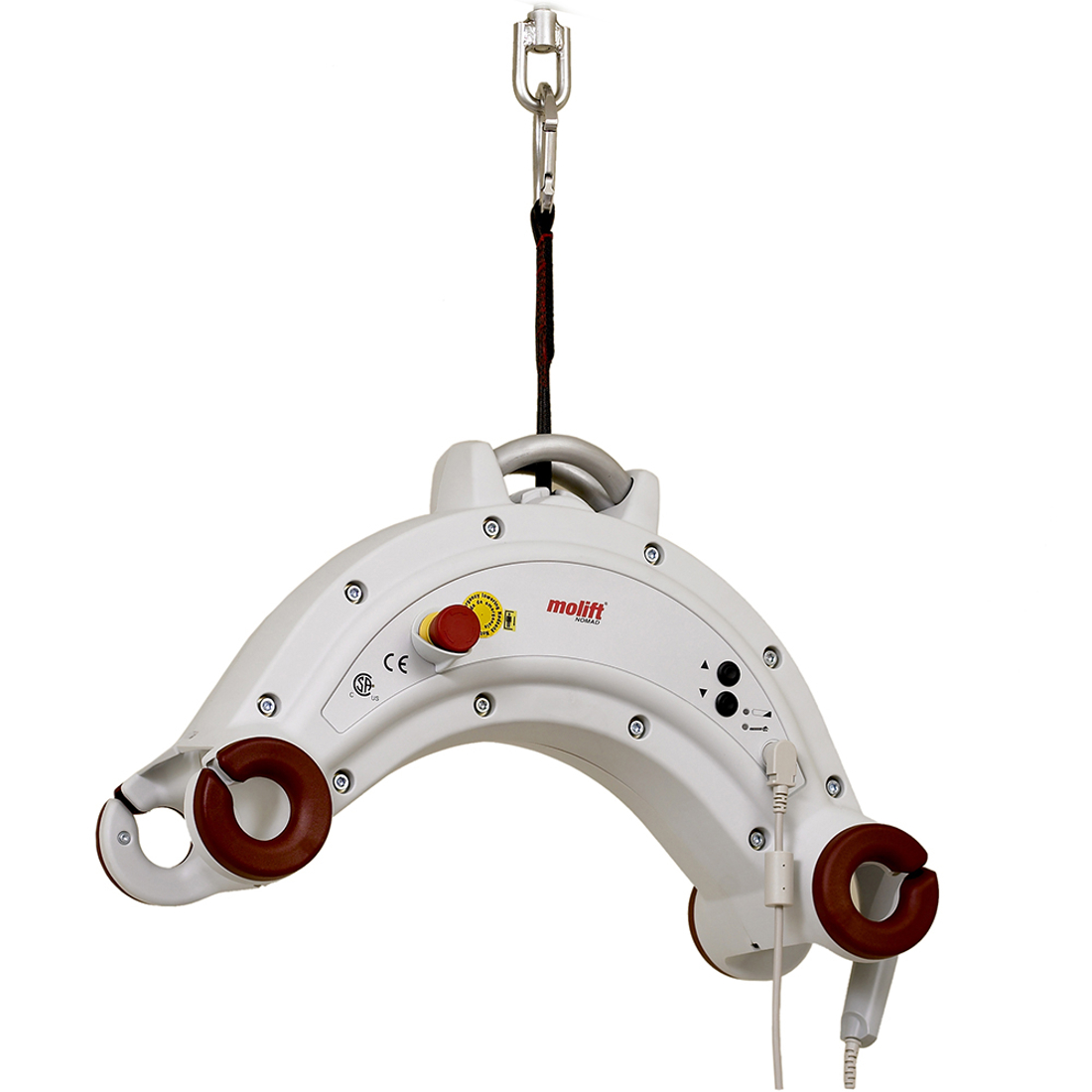

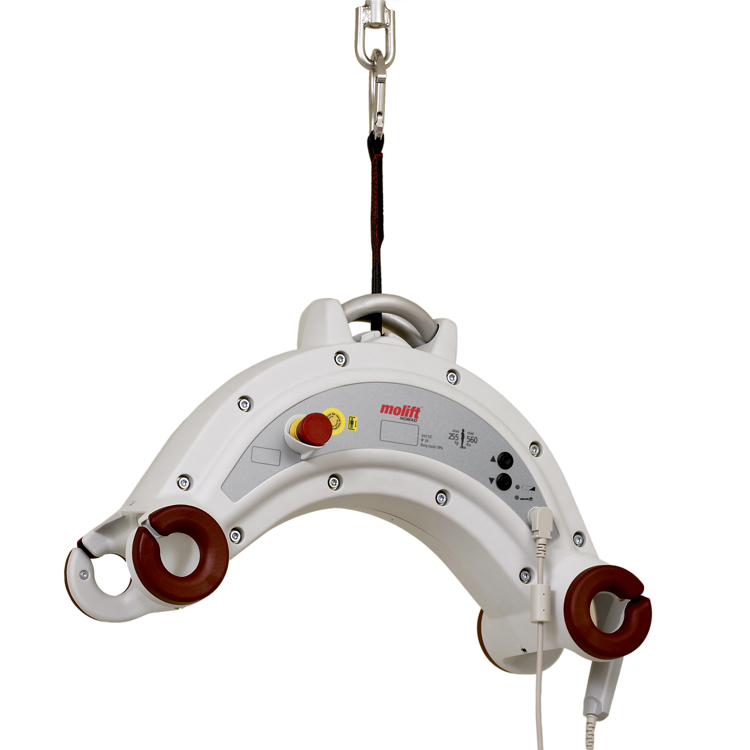

Unique curved design
Molift Nomad battery charger
Molift Service Tool
|Battery||NiMh 26,4 V-2,6 Ah||Material||Reinforced composite and aluminum|
|Battery charge time (hours)||4||Protection class||IPX4|
|Height (mm)||330||Rated performance||80 hoists at 75 kg and 500 mm|
|Hoisting interval (mm)||2000||Service software||Molift Service Tool|
|Hoisting speed 75 kg (mm/sec)||23||Weight (kg)||6,8|
|Length (mm)||522||Width (mm)||200|
|Item number||Safe working load (SWL) (kg)|
|Molift Nomad 205||M22205||205|
|Molift Nomad 255||M22255||255|
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
