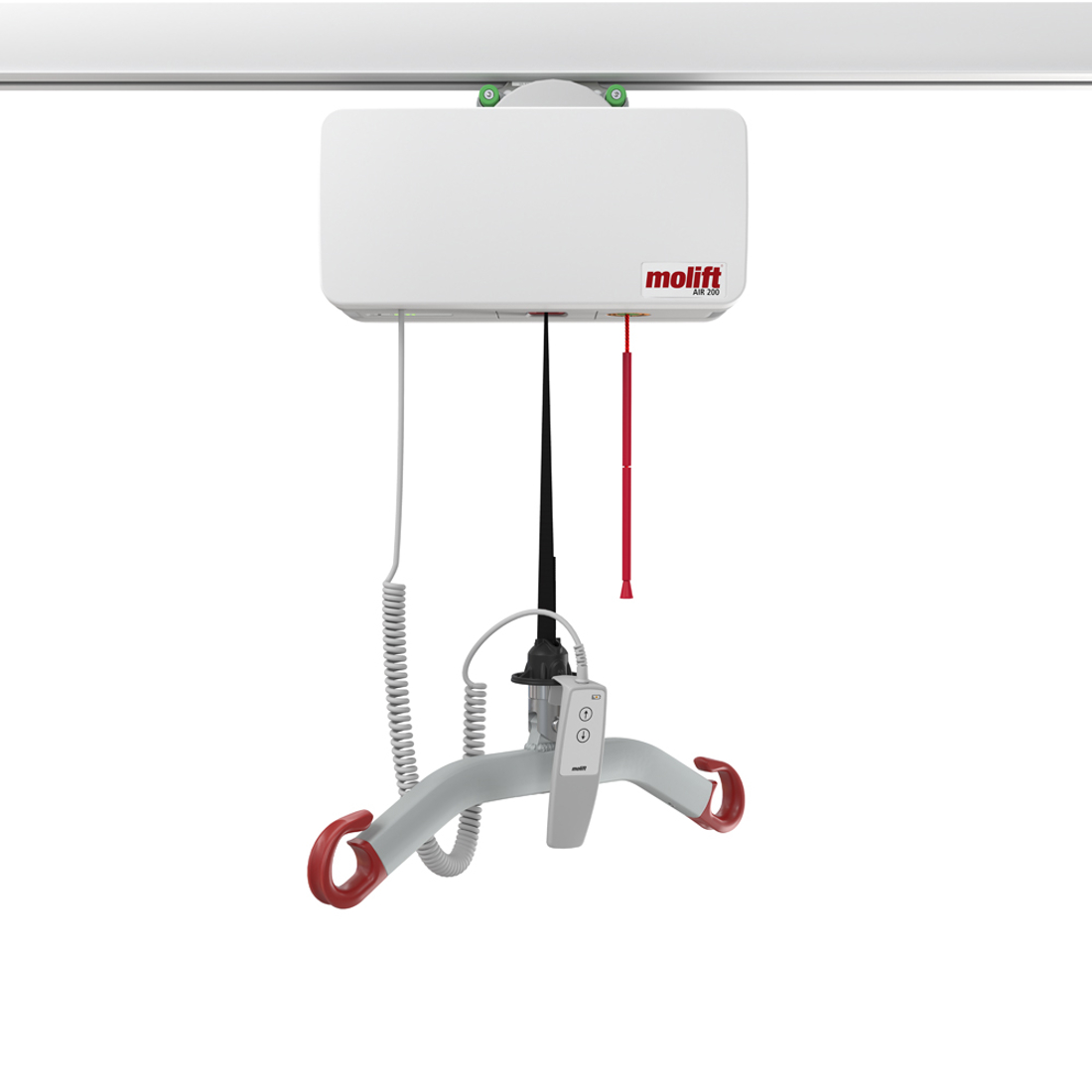

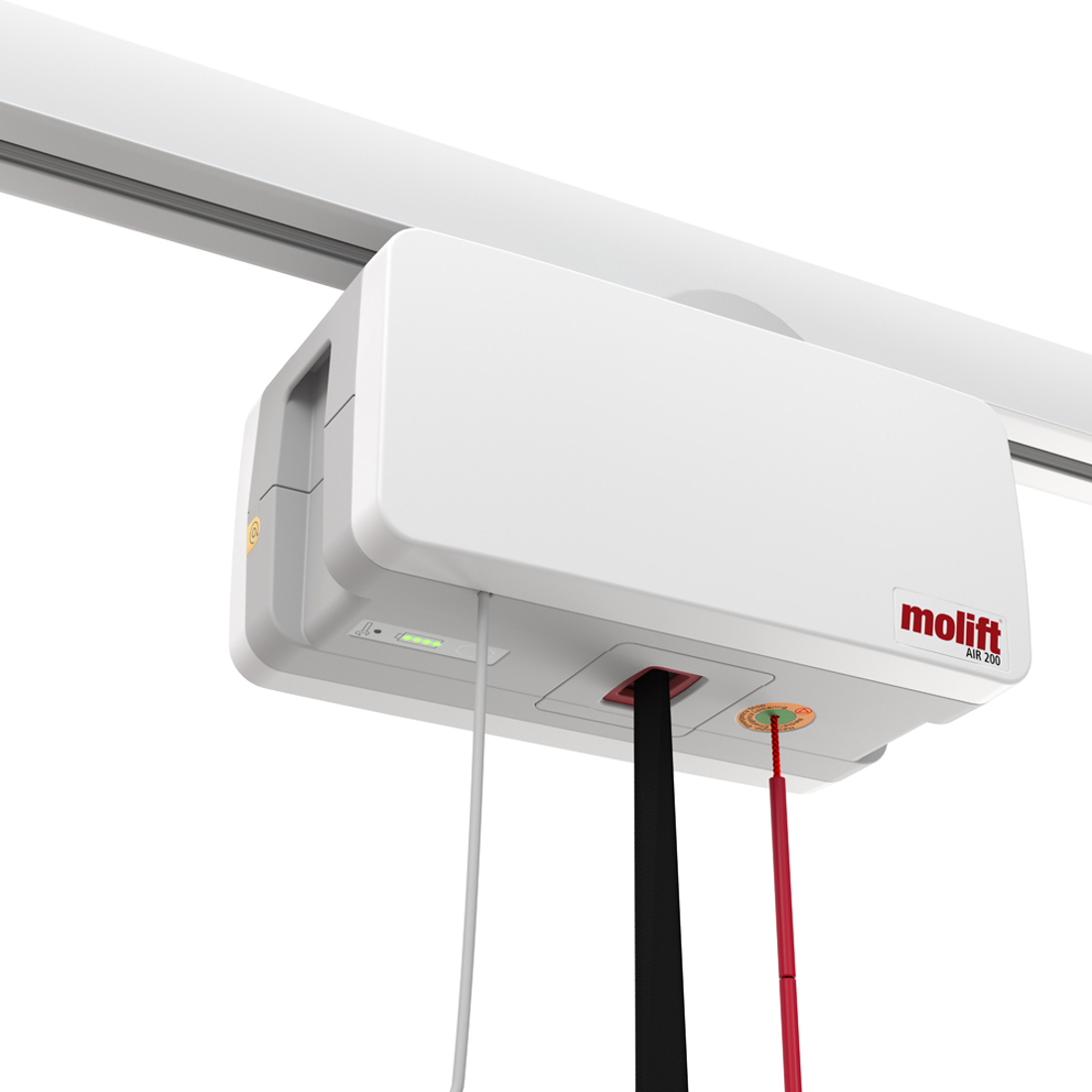

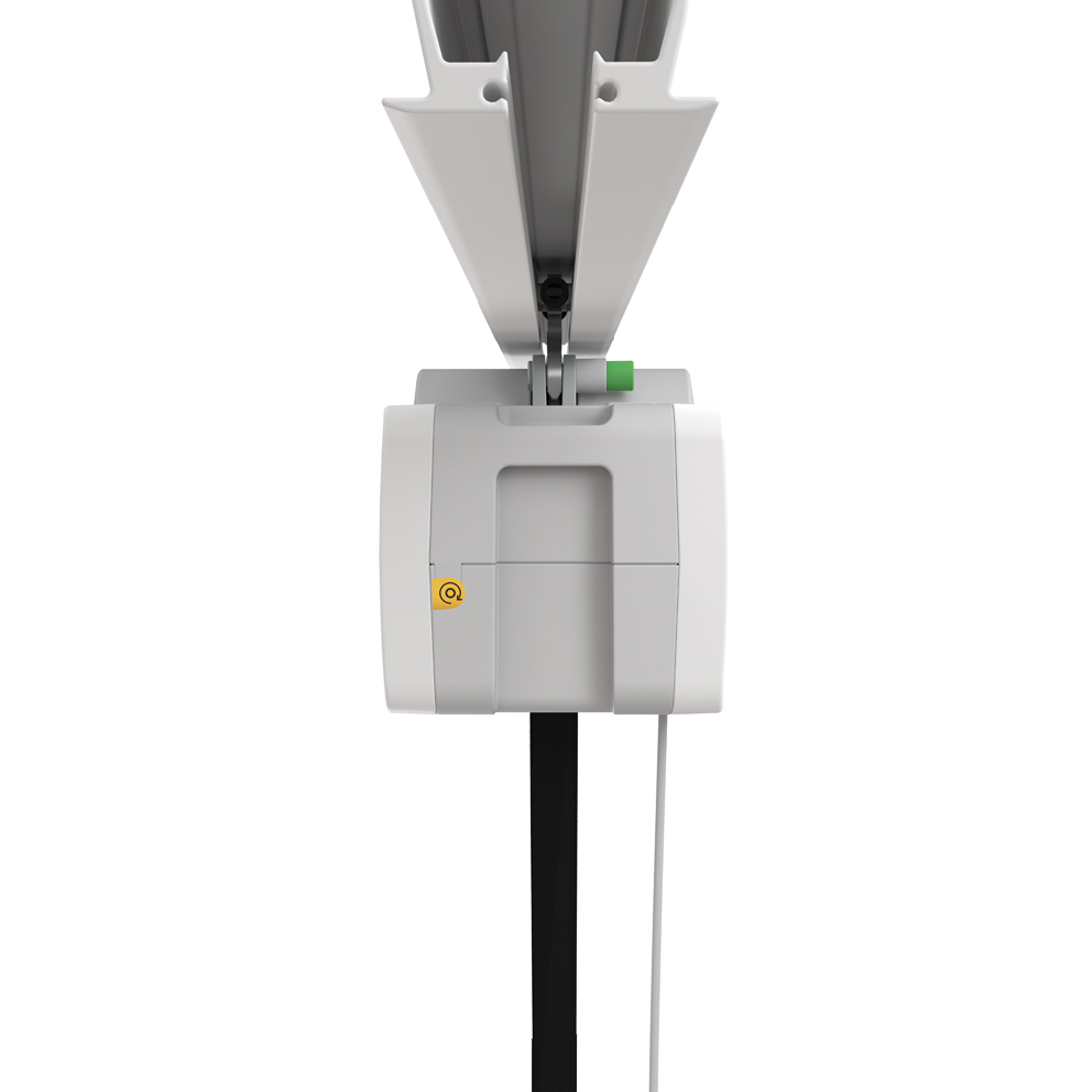

Molift Air 200

The compact, powerful hoist optimized for long term care (SWL 205 kg)

Molift Air 200 is the smallest member of the Molift Air family. Combined with Molift Rail System and Molift slings, Molift Air solves most day-to-day hoisting situations in health care and other patient handling environments.

Comfort and quality
Molift Air 200 combines the need for maximum comfort with efficient and safe hoisting situations. The design and user-friendliness bring an exceptional freedom, which enables a single caregiver to perform daily lifting situations, allowing more time for caring for the individual user. For the caregiver, a better working environment is possible without the need for manual lifting. The user experiences a dignified, safe and comfortable lifting.

The flexible hoist

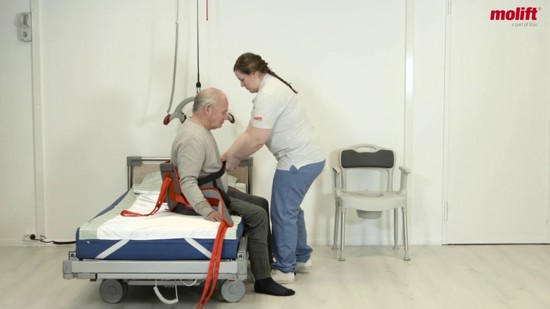

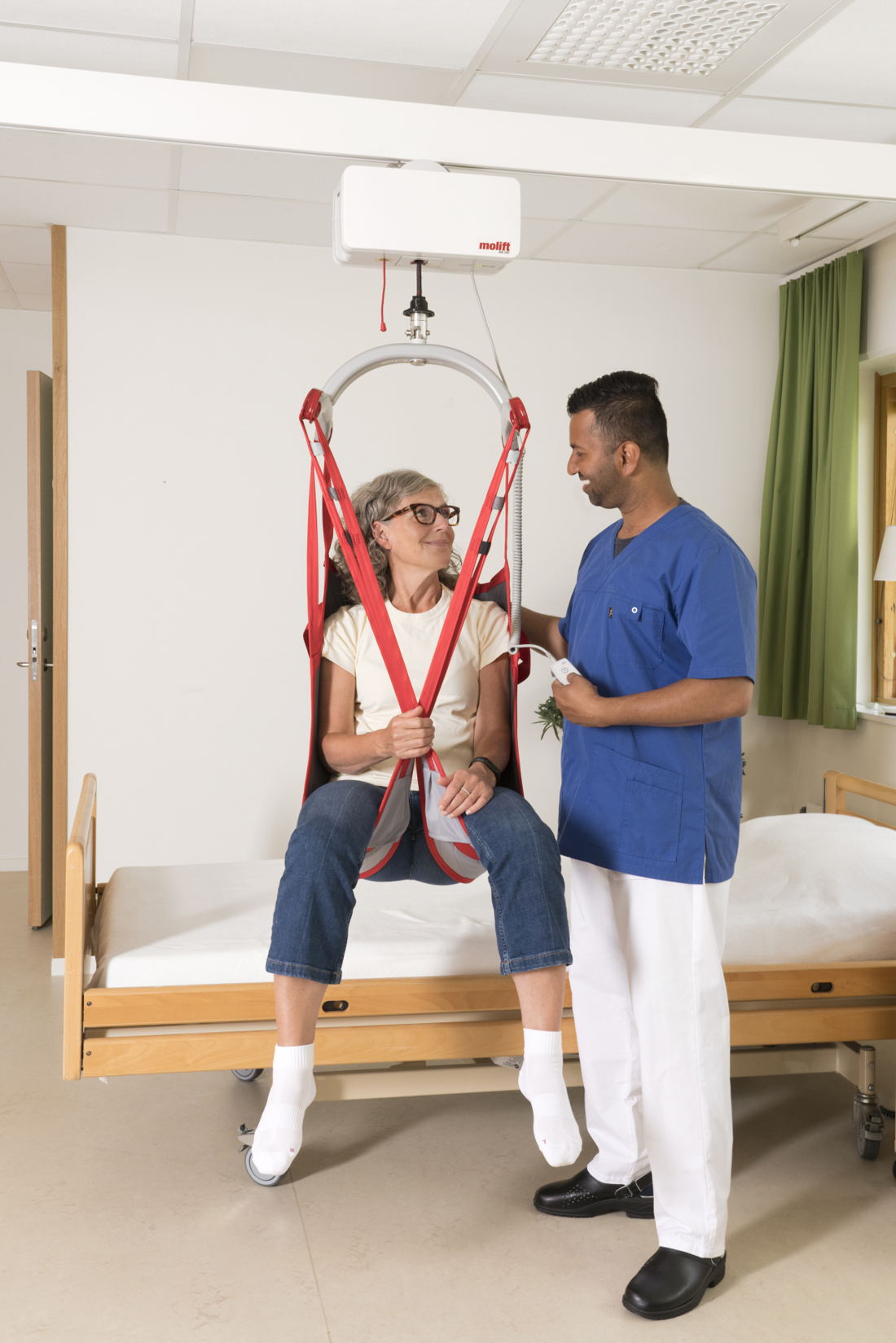

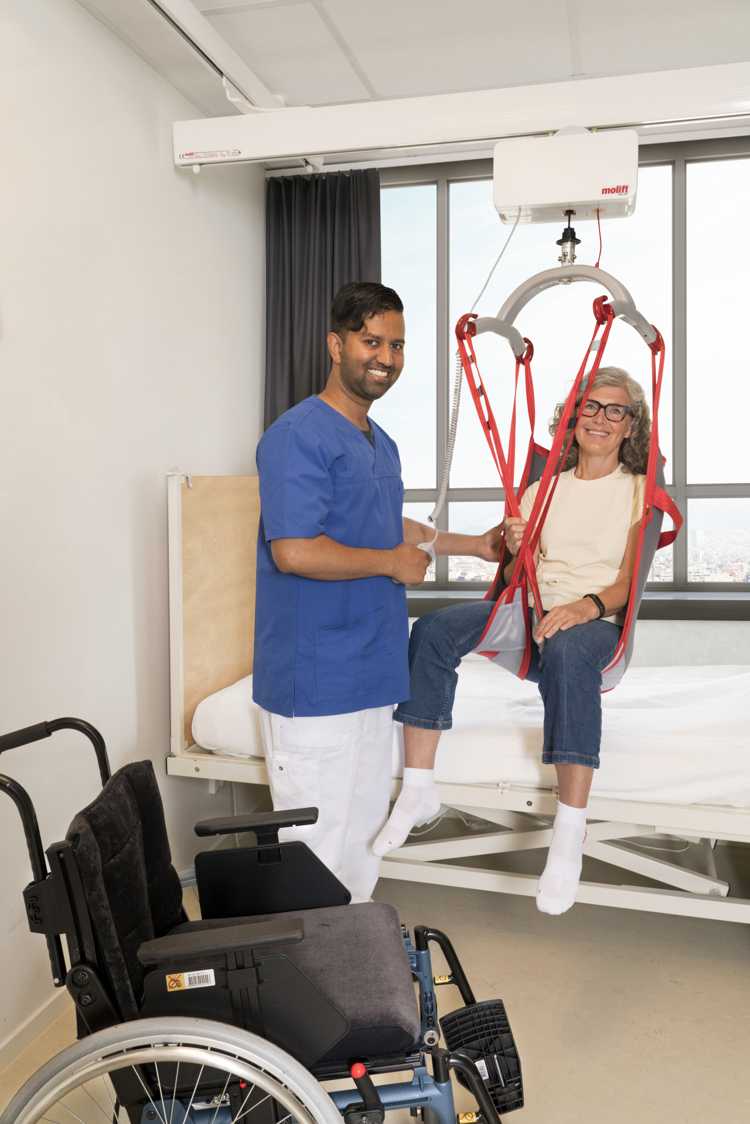

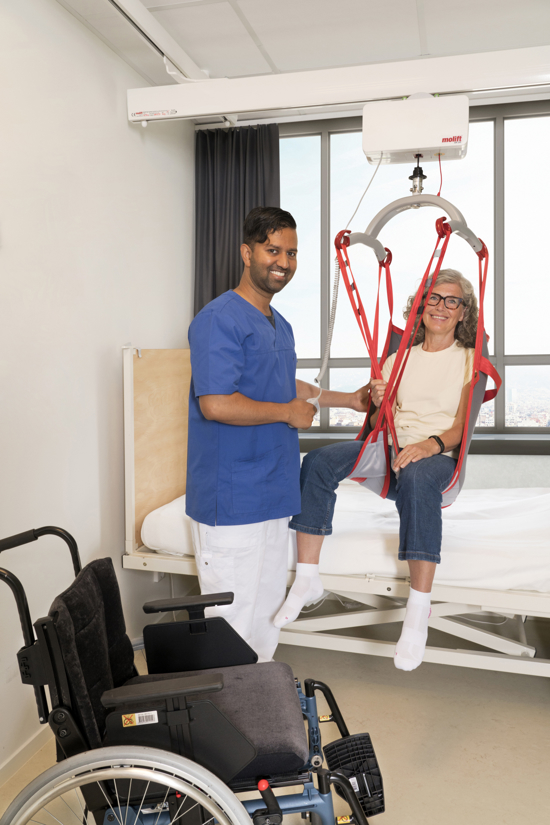

Molift Air 200 is suitable for sitting and horizontal transfers, as well as standing and gait training situations. It is used with fixed ceiling rails but can also be used for portable free-standing systems.

Molift Air 200 is easy to handle during installation and servicing, due to a very low weight and the clever quick release function.

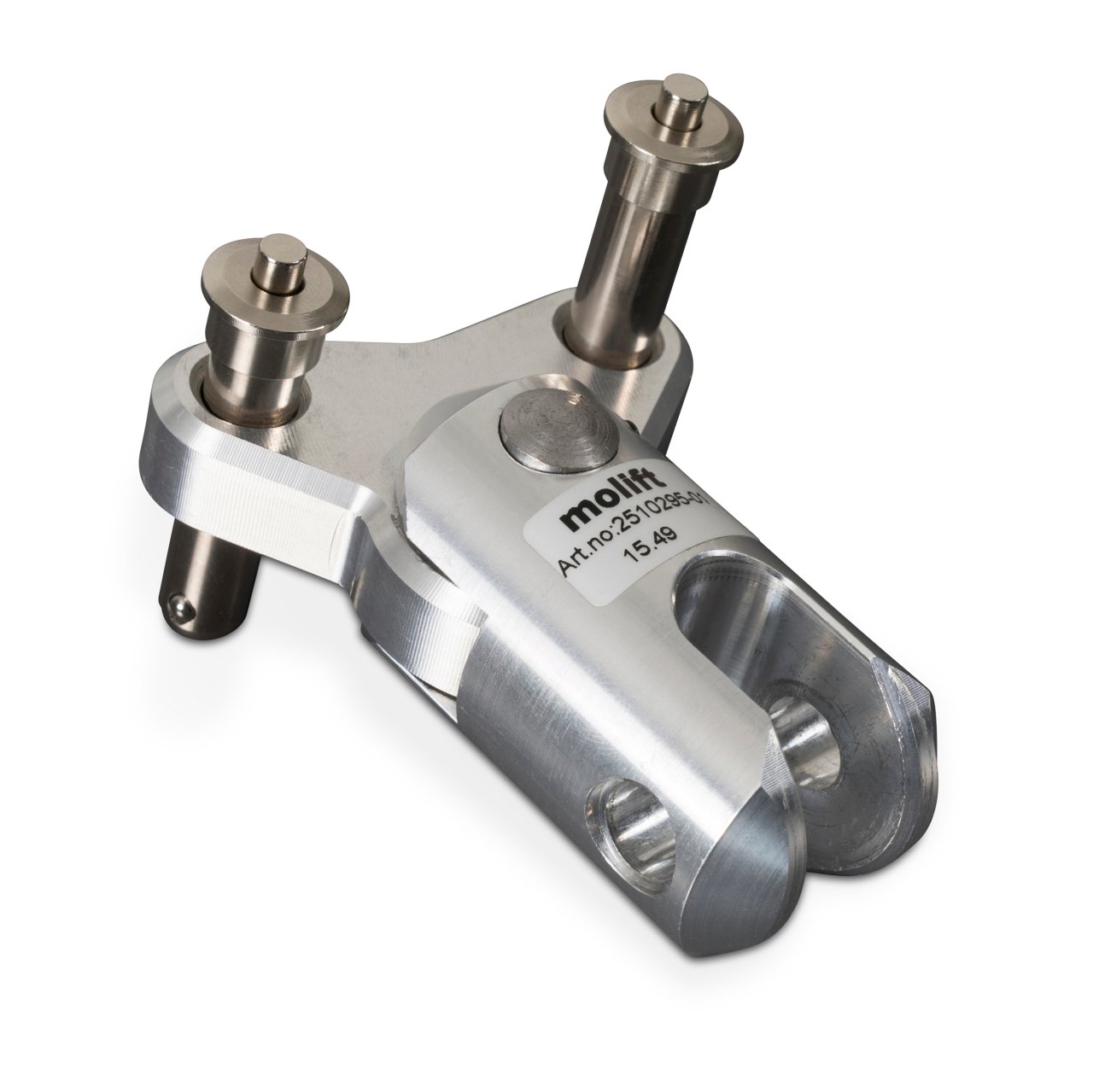

Molift Air 200 offers flexible solutions such as In-Rail Charging (IRC), Propulsion, remote control and possibilities for room-to-room transfer. Add to this the safety features, the large hoisting interval and the multiple range of sling bars. This hoist is the complete solution in all health care segments.

Features

Molift Air 200 is very small and weigts only 8,6 kg. Nevertheless it has a lifting capacity (SWL) of 205 kg. The size and weight makes it very easy to operate and move for the carer during different transfer situations.

Small hoist - great lifting capacity

Molift Air 200 is very small and weighs only 8,6 kg. Nevertheless, it has a lifting capacity (SWL) of 205 kg. The size and weight make it very easy to operate and move for the carer during different transfer situations.

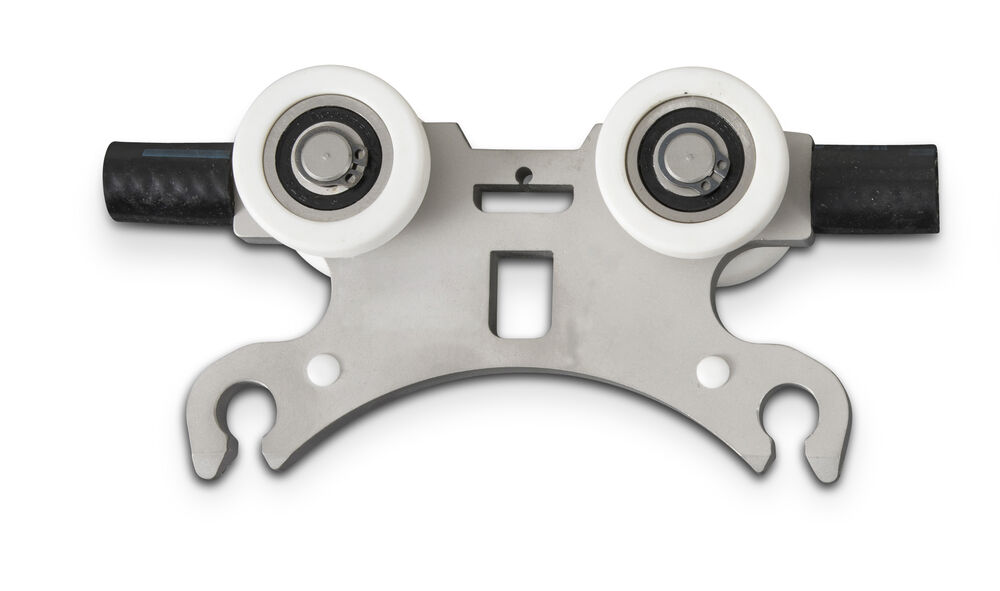

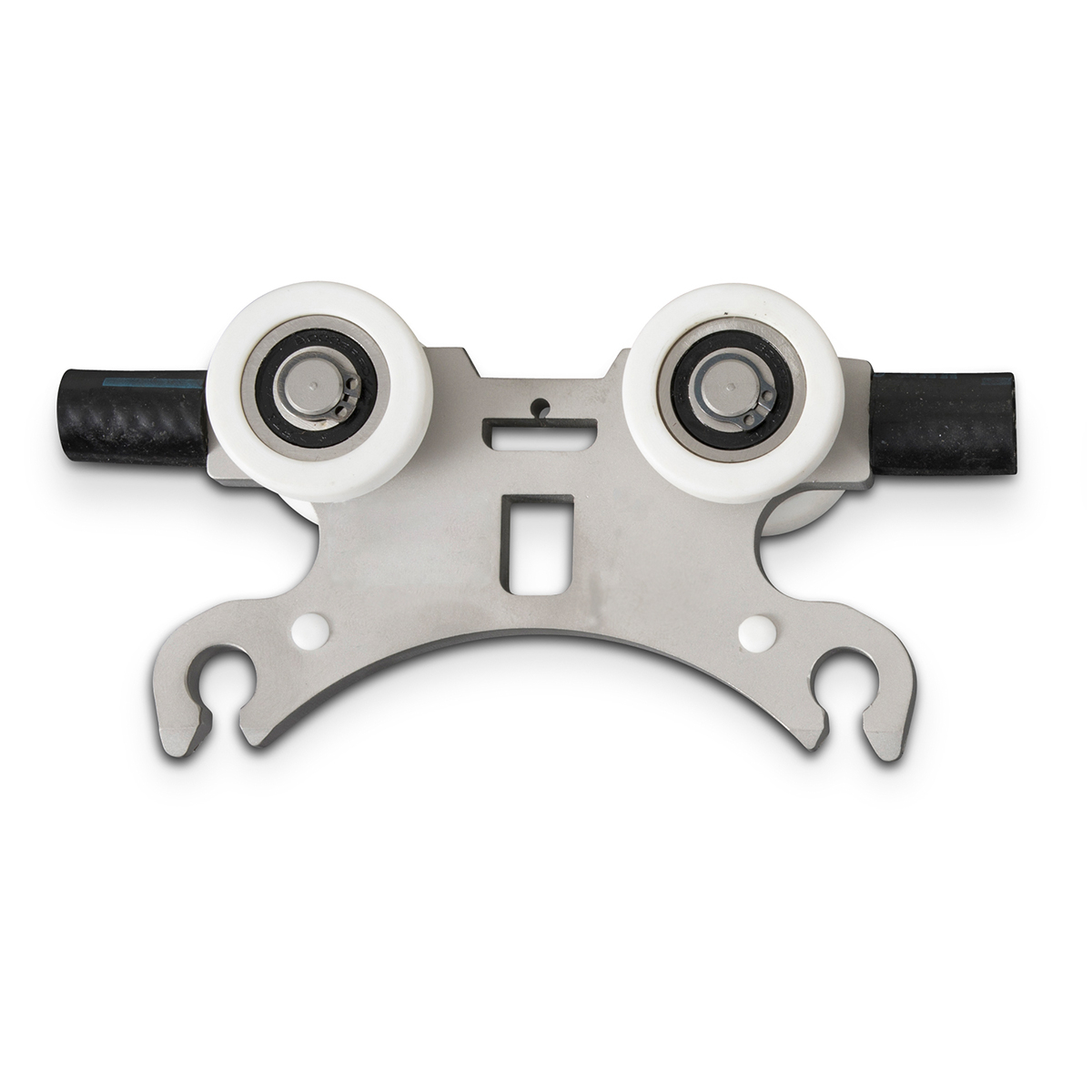

Quick release device for trolley

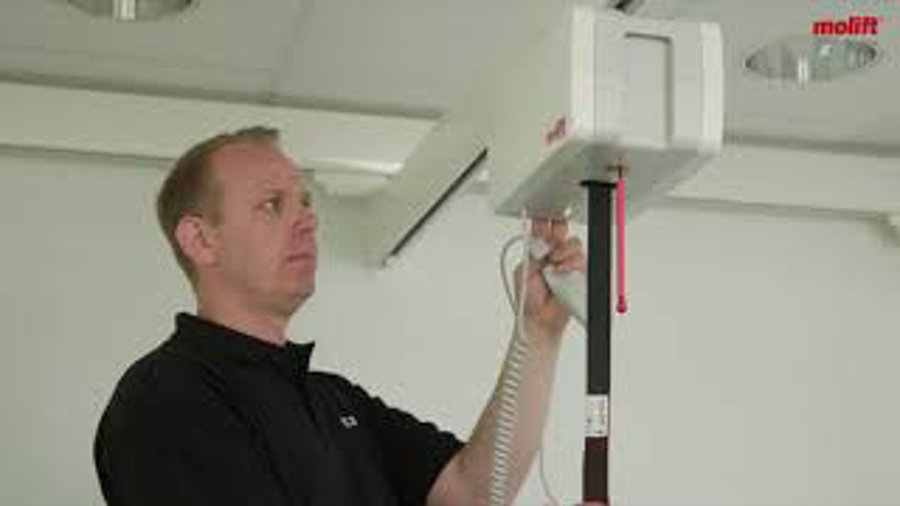

Molift Air 200 is easy to handle during installation and servicing, due to a very low weight and the clever quick release function. With a simple grip, the motor is disconnected from its trolley and removed.

Silent and soft operation

Molift Air works very quietly and has a soft start and stop operation. This results in a comfortable and safe feeling for the user during the transfer situation.

Intuitive hand control

Molift Air 200 has an intuitive hand control with a hanger on the sling bar and an optional docking station or parking bracket for the wall.

Variants

Specifications
Battery charge time (hours)	6	Protection class	IP24
Expected lifetime	30 000 lifts SWL/10 years	Safe working load (SWL) (kg)	205
Height (mm)	195	Service software	Molift Service Tool
Hoisting speed 75 kg (mm/sec)	60	Weight (kg)	8.6
Length (mm)	360	Width (mm)	190
Material	Aluminium, Plastic

	Item number	Battery	Battery charger	Hoisting interval (mm)
Molift Air 200	M26201	25,6 V LiFePO4 2,4 Ah	100–240 V AC, 40–60 Hz	3000
Molift Air 200	M26200	12 V SLA 2,9 Ah	100–240 V AC, 40–60 Hz	3000
Molift Air 200 IRC	M26356	12 V SLA 2.9 Ah	100-240 V AC, 50-60 Hz max 0.5A	2600
Molift Air 200 IRC Propulsion	M26358	12 V SLA 2.9 Ah	100-240 V AC, 50-60 Hz max 0.5A	2600
Molift Air 200 Propulsion	M26359	12 V SLA 2.9 Ah	100-240 V AC, 50-60 Hz max 0.5A	2600

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
