Molift Duo

A flexible freestanding unit

With a Molift free standing unit, we offer a system that is easy to install without additional fixtures on ceiling or walls. It is ideally suited to temporary lift applications in hospitals, nursing homes or private homes.

Lightweight construction
The Molift Rail System Duo has a lightweight aluminium construction and a functional design which makes the gantry system easy to install, dismantle and move elsewhere. In combination with Molift Air or Molift Nomad lift motor and a sling, Molift Rail System Duo solves all overhead lifting situations, whatever the environment. With a lifting capacity of 300 kg, it is ideal for lifting and transferring a person from or to; bed, floor, chair, wheelchair, toilet etc.

Suitable for all bed and room sizes
Due to a 2 post freestanding system with a rail length from 200 cm up to 350 cm and and a four step adjustable height up to 255 cm, the freestanding unit is suitable for all bed and room sizes.

Features

Due to the lightweight system it is easy to install the gantry and move it to a new location.

Easy to install

Due to the lightweight system it is easy to install the gantry and move it to a new location.
The gantry system has supreme stability and a functional design.

Supreme stability

The gantry system has supreme stability and a functional design.

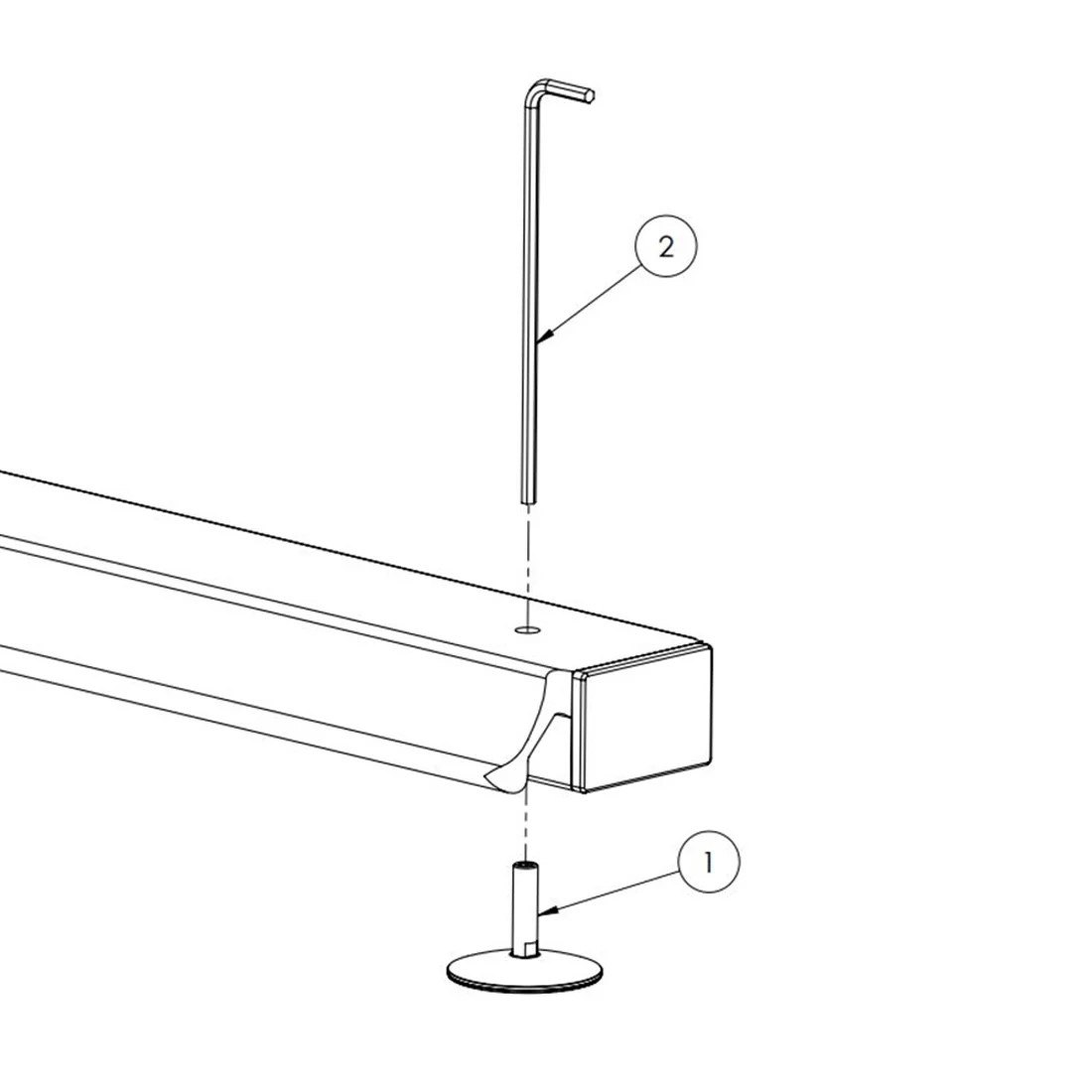

Height positions can be set at four fixed positions from 225 cm (88,6") up to 255 cm (100,4"). Adjust the height with the quick release pin.

Adjustable height

Height positions can be set at four fixed positions from 225 cm up to 255 cm. Adjust the height with the quick release pin.
Molift hoist motors can easily be charged thorough the hand control or optionally through in-rail charging.

Charging of hoist motor

Molift hoist motors can easily be charged thorough the hand control or optionally through in-rail charging.

Variants

Specifications
Depth (mm) 1200 Safe working load (SWL) (kg) 300
Height (mm) 2250 - 2550 Transport height (mm) 1700
Material Anodized aluminum, plastic
Item number
Maximum internal width (mm)
Rail length (mm)
Weight (kg)
Width (mm)
Molift Duo 2000 1600013 2000 2000 38 2150
Molift Duo 2500 1600015 2500 2500 40 2650
Molift Duo 3000 1600017 3000 3000 42 3150
Molift Duo 3500 1600019 3500 3500 44 3650

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
