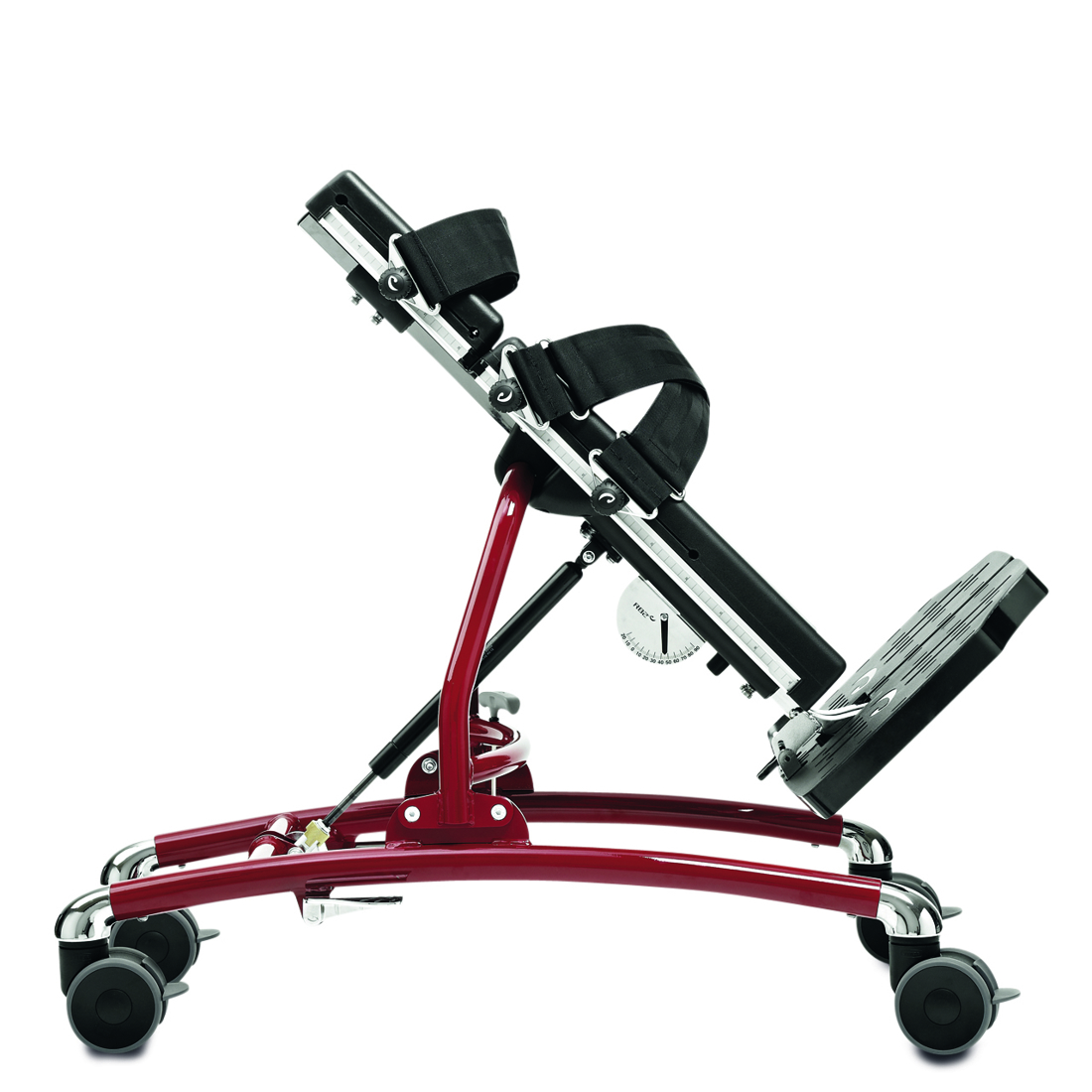

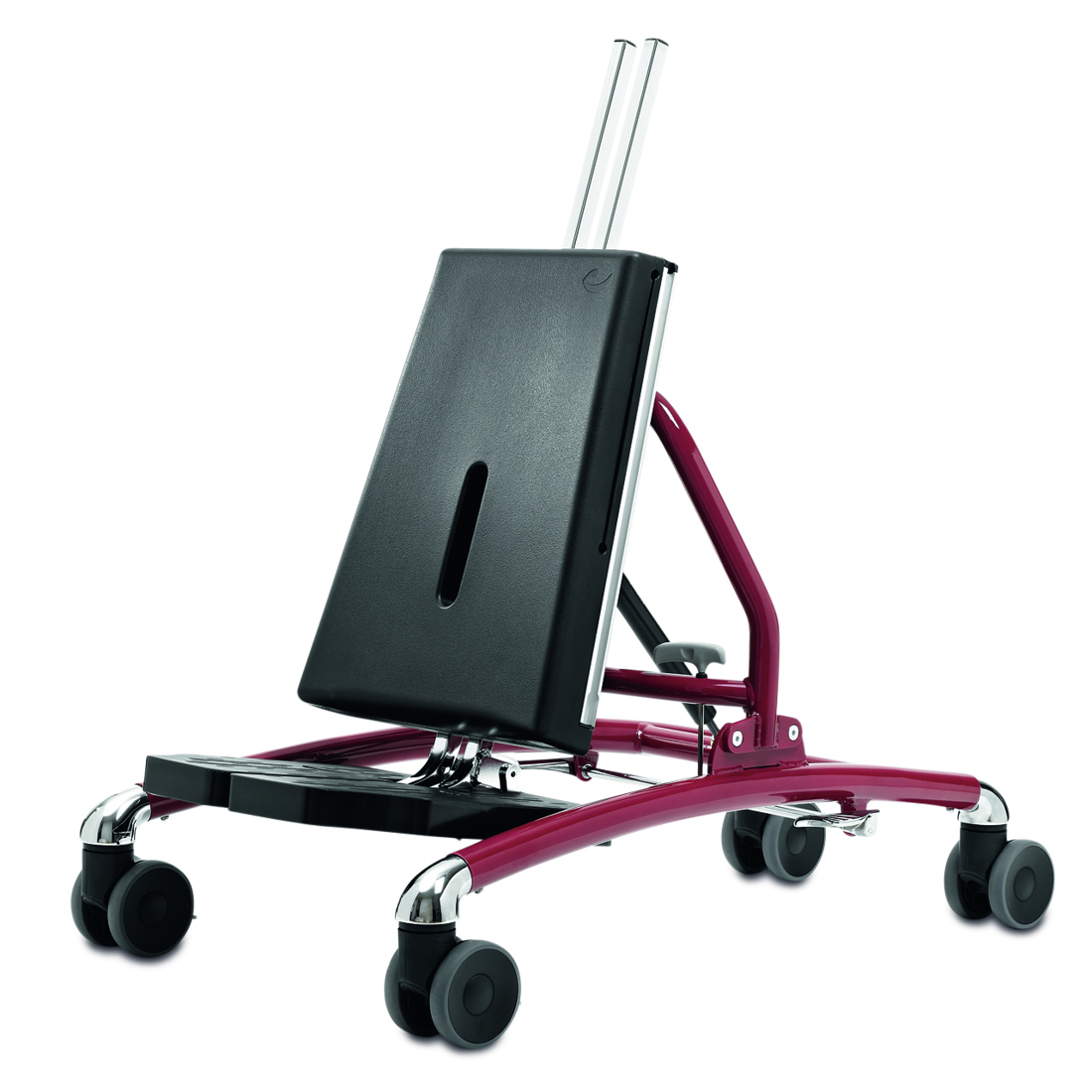

R82 Caribou
The Caribou is a standing frame that supports a prone, upright, or supine standing position.
The tilt function and the extensive accessories selection allows users who have severe limitations in head and trunk control or who experience limitations in their range of motion to adopt the standing position. Thereby the Caribou supports the child to participate in things they value – and it can bridge the disparities between children with and without disabilities.
The Caribou is available in four sizes and suitable for children from approximately 850 mm (33 1/2”) to 1840 mm (72 1/2"). The max. user mass is 100 kg (220 lb).
Features

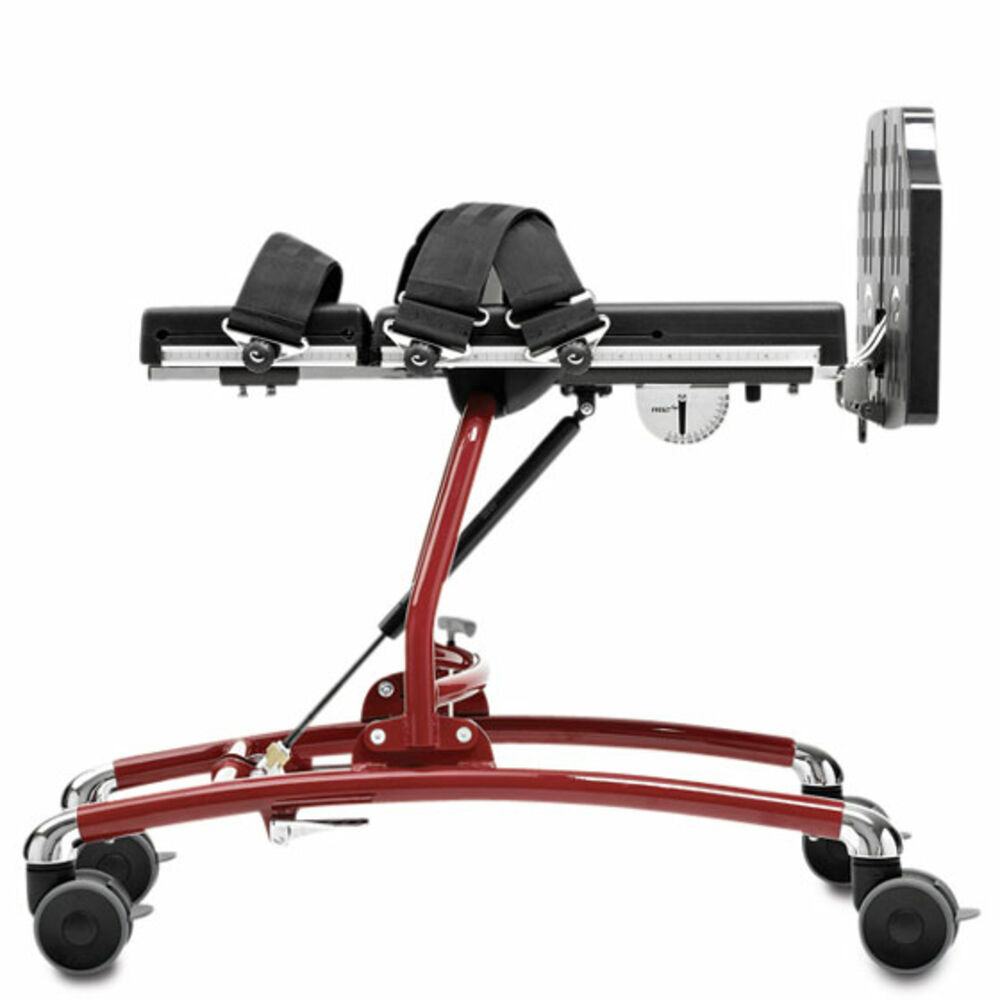

Easy transfer

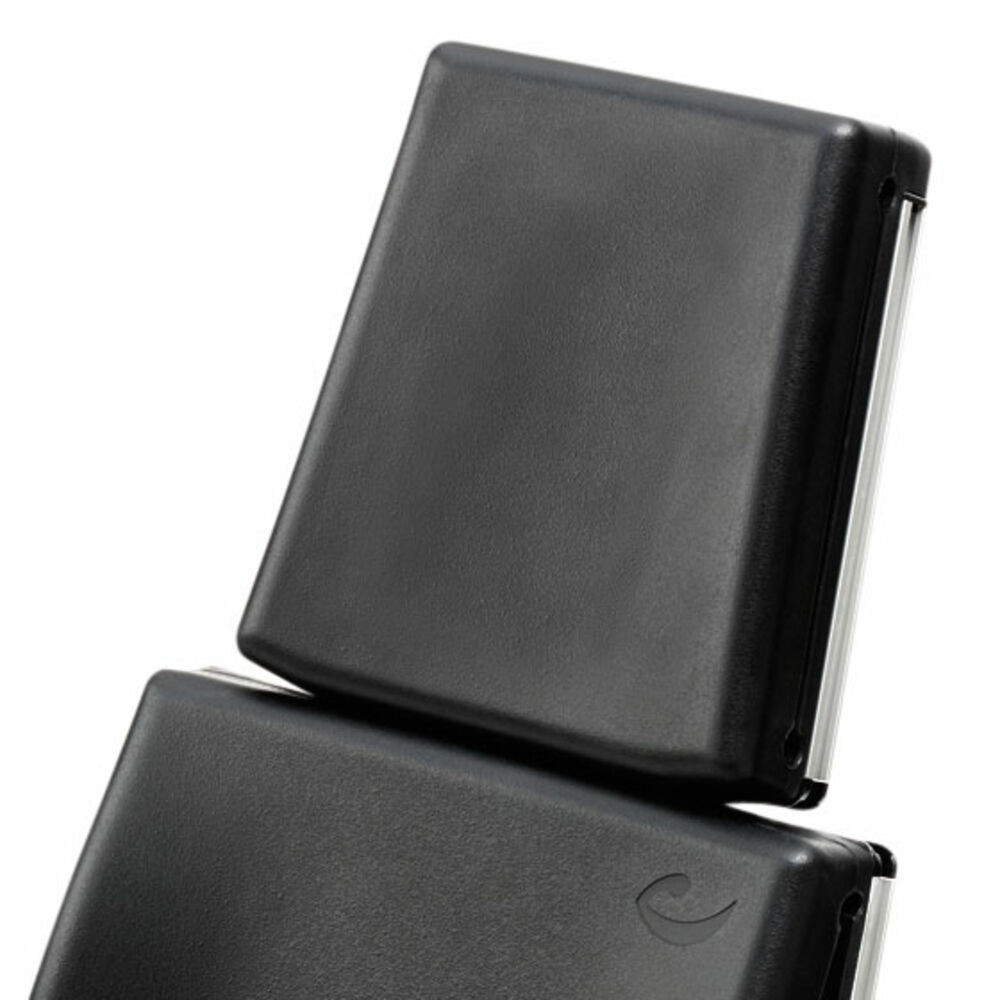

Anatomic design and soft mouldable PU

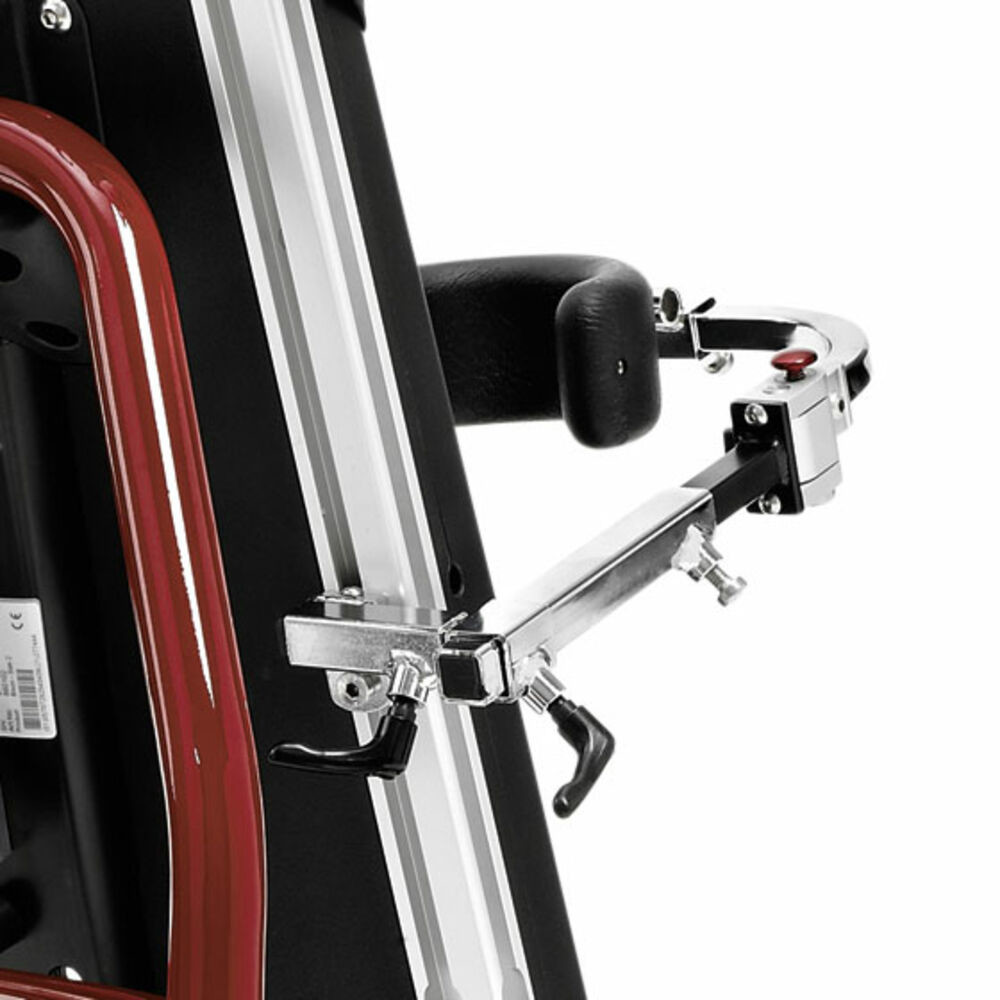

Interchangeable accessories

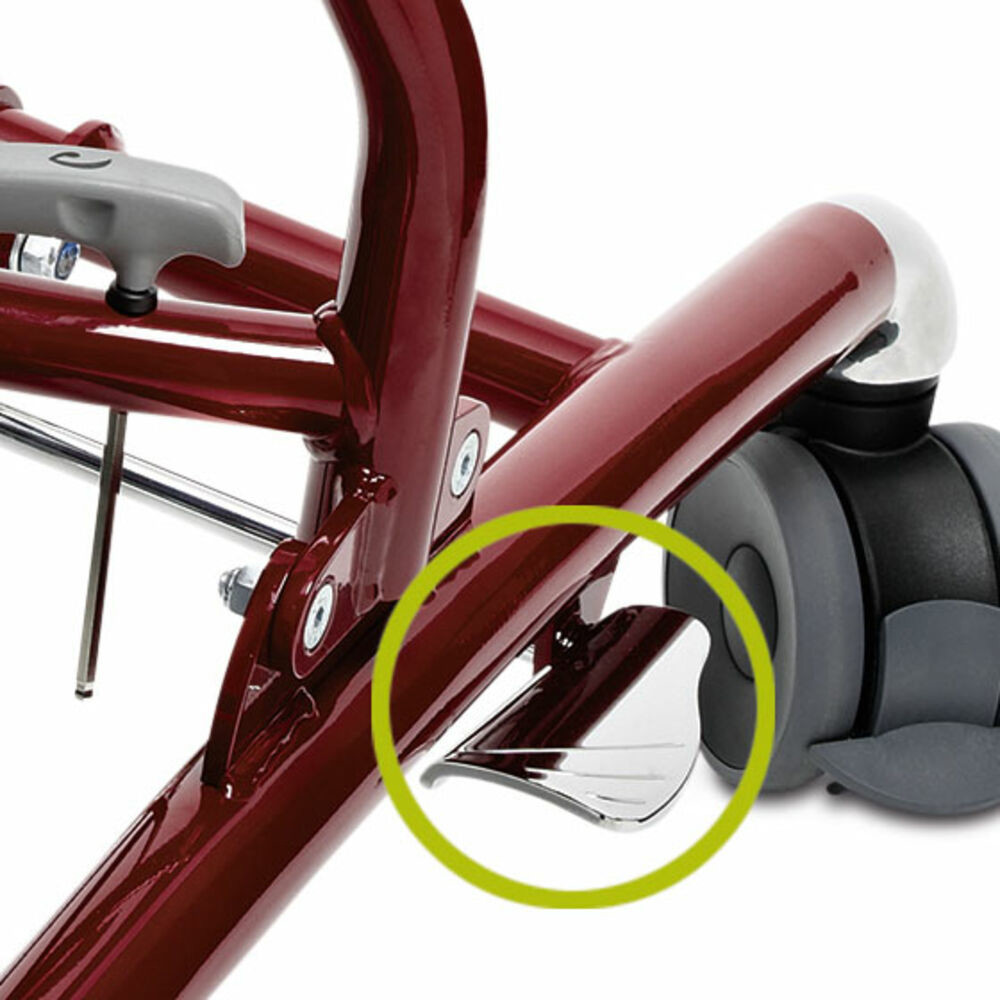

Easy tilt
Variants
| Size 1 | Size 1 (w/ power) | Size 2 | Size 2 (w/ power) | Size 3 | Size 3 (w/ power) | Size 4 | Size 4 (w/ power) | |
|---|---|---|---|---|---|---|---|---|
| Etac item number | 31860101 | 31860101-EL | 31860102 | 31860102-EL | 31860113 | 31860103-EL | 31860114 | 31860104-EL |
| R82 item number | 860101 | 860101-EL | 860102 | 860102-EL | 860113 | 860103-EL | 860114 | 860104-EL |
| Angling (°) | 0-87 | 0-87 | 0-87 | 0-87 | 0-87 | 0-87 | 0-87 | 0-87 |
| Approximate total user height (mm) | 850-1120 | 850-1120 | 980-1290 | 980-1290 | 1250-1560 | 1250-1560 | 1530-1840 | 1530-1840 |
| Foot plate angle (°) | (-10) - 10 | (-10) - 10 | (-10) - 10 | (-10) - 10 | (-10) - 10 | (-10) - 10 | (-10) - 10 | (-10) - 10 |
| Length (mm) | 750 | 750 | 920 | 920 | 1110 | 1110 | 1110 | 1110 |
| Maximum rated load (kg) | 62.5 | 64.5 | 88 | 87.5 | 112.5 | 114.5 | 137 | 139 |
| Maximum user mass (kg) | 40 | 40 | 60 | 60 | 80 | 80 | 100 | 100 |
| Overall height, horizontal (mm) | 700 | 700 | 700 | 700 | 800 | 800 | 800 | 800 |
| Overall height, vertical (mm) | 460-570 | 460-570 | 530-640 | 530-640 | 680-790 | 680-790 | 880-990 | 880-990 |
| Overall width (mm) | 510 | 510 | 570 | 570 | 650 | 650 | 750 | 750 |
| Static stability downhill (°) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Static stability sideways (°) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Static stability uphill (°) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Total mass (kg) | 20.5 | 22.5 | 23.5 | 25.5 | - | 32.5 | 35 | 37 |
| Total weight (kg) | - | - | - | - | 30.5 | - | - | - |
Overall height configuration: Standard product and top plate (measured from the floor)
Options

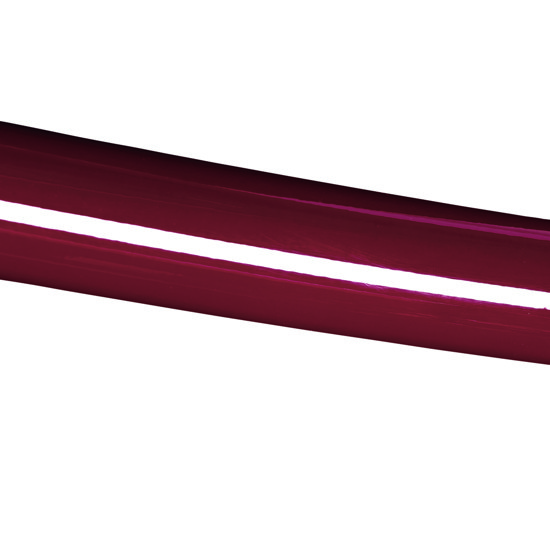

Frame colour
Available in different colours.
Yellow for size 1
Red for size 2
Blue for size 3
Anthracite grey for size 4

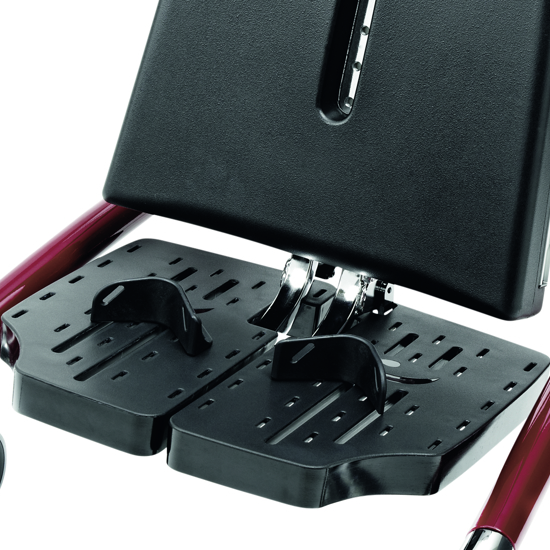

Foot plates
Parted foot supports makes it possible to adjust individual foot heights and angles.
Tilt mechanism
Goes from minus 3 degrees to horizintal position. Sizes 3 and 4 are recommended in the power versions to ease tilting.
Foot operated gas spring
With power actuator
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.

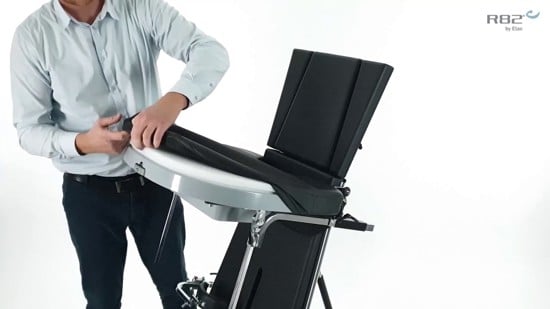

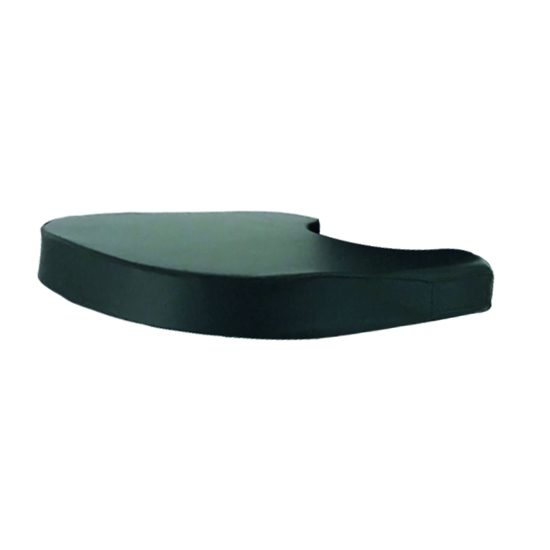

How to mount the tray top cover
