R82 x:panda

The x:panda is a multi-adjustable dynamic seat, developed to establish an ideal seating position for children and youngsters living with a disability.

x:panda is a multi-adjustable dynamic seat, delivered in 4 different sizes - each seat with up to 12 cm in seat width and up to 20 cm of depth adjustment coupled with sliding back growth. The back is dynamic, making it possible for the child to extend and push back against relatively light resistance and then regain the desired sitting position. The back is lockable which could be preferred in feeding situations and required when being used in transportation. The back can also be angled to make it possible to seat the child with either an open or closed hip angle.

The x:panda seat complies with ISO 16840-4

Features

The x:panda has a unique dynamic back that absorbs the energy of extension and returns the child to upright sitting without compromising pelvic positioning.

Dynamic back

The x:panda has a unique dynamic back that absorbs the energy of extension and returns the child to upright sitting without compromising pelvic positioning.
Overlap in sizing means that the starting option always offers the maximum
growth potential coupled with individual leg positioning.

Multi-adjustable

Overlap in sizing means that the starting option always offers the maximum growth potential coupled with individual leg positioning.
Individual growth in width, depth and back height extend the life of the seat and accomodate the greatest range of sizes.

Growth

Individual growth in width, depth and back height to extend the life of the seat and accommodate the greatest range of sizes.
The point for rotation (recline of the back) is close to the axis of the hips which means that the back support maintains the correct position and minimizes shear.

Dynamic back recline

The point for rotation (recline of the back) is close to the axis of the hips which means that the back support maintains the correct position and minimises shear.

Variants

Size 1
Size 2
Size 3
Size 4
Item number 891011x-01 891012x-01 891013x-01 891014x-01
Abduction angle each leg, size 1 in smallest position (°) 0 - 8 - - -
Abduction angle, each leg (°) 0 - 15 0 - 15 0 - 15 0 - 15
Armrest to seat distance (mm) 100-165 100-165 100-165 100-165
Back width, top of backrest (mm) 230 280 330 350
Backrest angle (°) (-5) - 30 (-5) - 30 (-5) - 30 (-5) - 30
Backrest height (mm) 270-370 320-420 350-470 500-710
Effective seat depth (mm) 160-260 220-330 260-390 390-530
Effective seat width (mm) 160, 200, 240 200, 240, 280 260, 310, 360 340, 400, 460
Front location of arm rest structure (mm) 140 140 180 350
Mass device (kg) 6.5 8.5 11 13
Maximum rated load (kg) 38.5 40.5 73 95
Maximum user height (mm) 1050 1280 1430 1800
Maximum user mass (kg) 30 30 60 80
Maximum user mass in transportation (kg) 30 30 60 75
Minimum User Height (mm) 650 850 1000 1390
Width thighs (mm) 70, 90, 110 100, 120, 140 120, 145, 170 130, 190, 250

Abduction angle each leg for size 1 in the smallest position 0° - 8°.

Options

Each size of seat can easily be adjusted in three different widths.

Small

Medium

Large

The seat is delivered as standard with the lockable dynamic gas spring. A non-dynamic gas spring is available as an accessory. Seat size 1+2 comes with a 100N lockable dynamic gas spring. Seat size 3 comes with a 150N lockable dynamic gas spring. Seat size 4 comes with a 350N lockable dynamic gas spring.

Standard

The seat is delivered as standard with fix lock fittings for mounting of various belts and vests.

Fix lock fittings

The x:panda can be mounted on different frames. Find our frame and seat combinations under documents for more information.

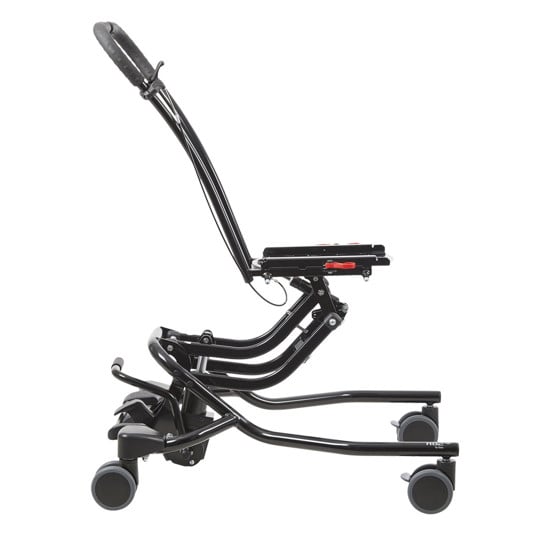

R82 High-low:xo

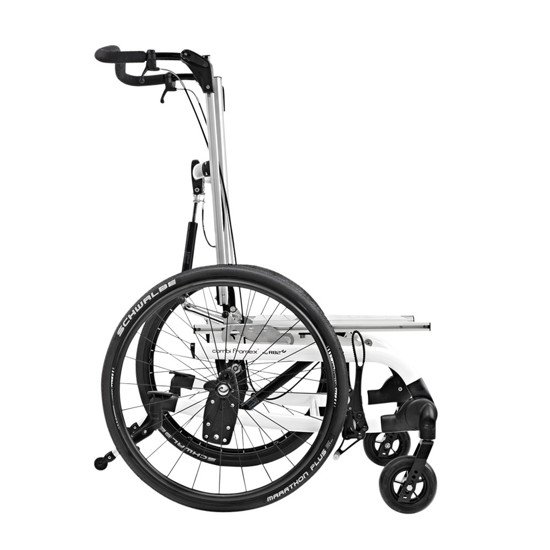

R82 Combi Frame:x

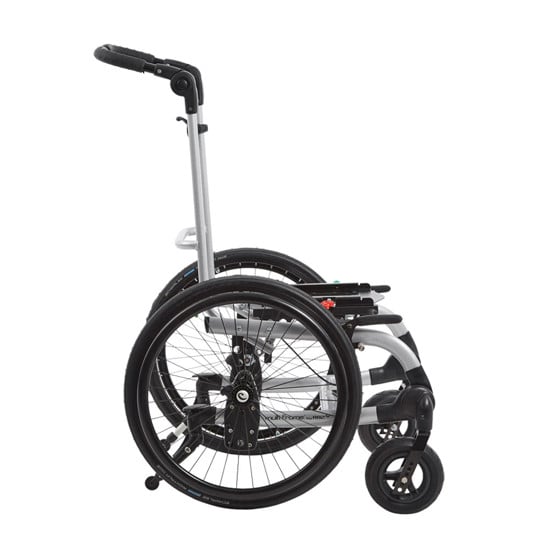

R82 Multi Frame

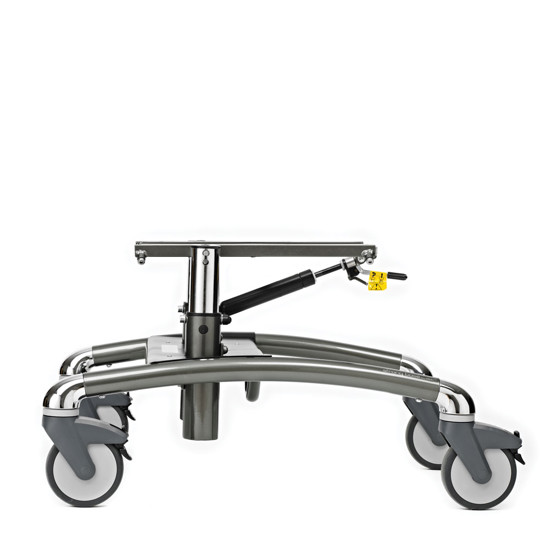

R82 Strong Base
