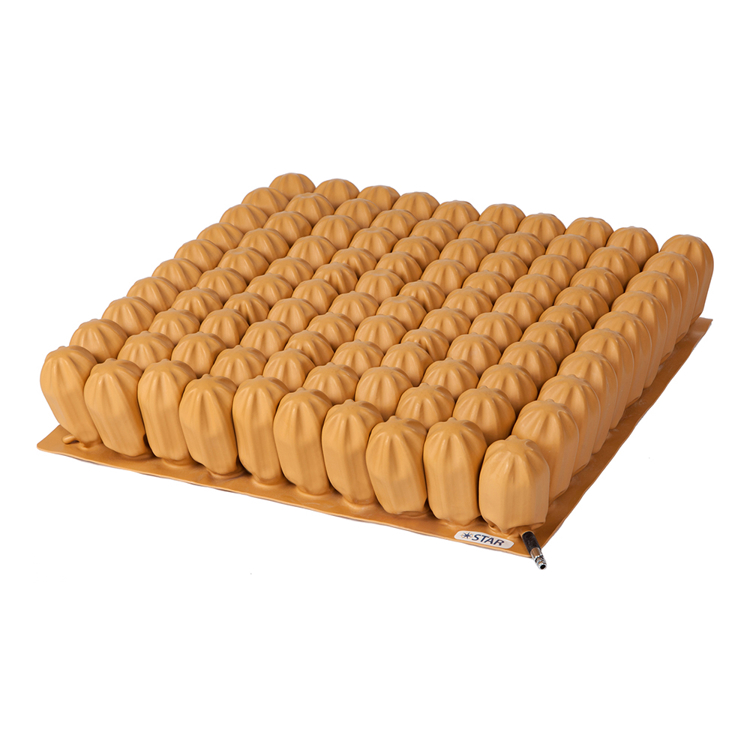

Star StabilAir

Foam stability meets air cell protection.

Slowed Airflow Enhancing Stability
Each StabilAir cushion has two sizes of foam cylinders which are higher on the outside, while those under the buttocks, coccyx and legs are lower. The foam cylinders in the air cells function as baffles, slowing the movement of air and enhancing stability. The air pocket above the foam similarly enables effective pressure redistribution, just like all Star Cushions.

Ideal cushion solution if used to a foam cushion
StabilAir is the ideal cushion solution for users who are used to the feel of a foam cushion but need the protection of a vertical air cell cushion.

User manual

Declaration of conformity

Brochure

Features

Features

Pressure Redistribution

The interconnected air cells ensure excellent pressure redistribution properties, continually readjusted to the user’s shape as they move in their seat.
Features

Vertical Air Cell

Interconnected vertical air cell cushions have long been used for pressure redistribution due to high envelopment and immersive properties and reduced surface tension.
Features

Adjustability

The air level can be adjusted and reset again and again to achieve the optimal amount of immersion for the individual.
Features

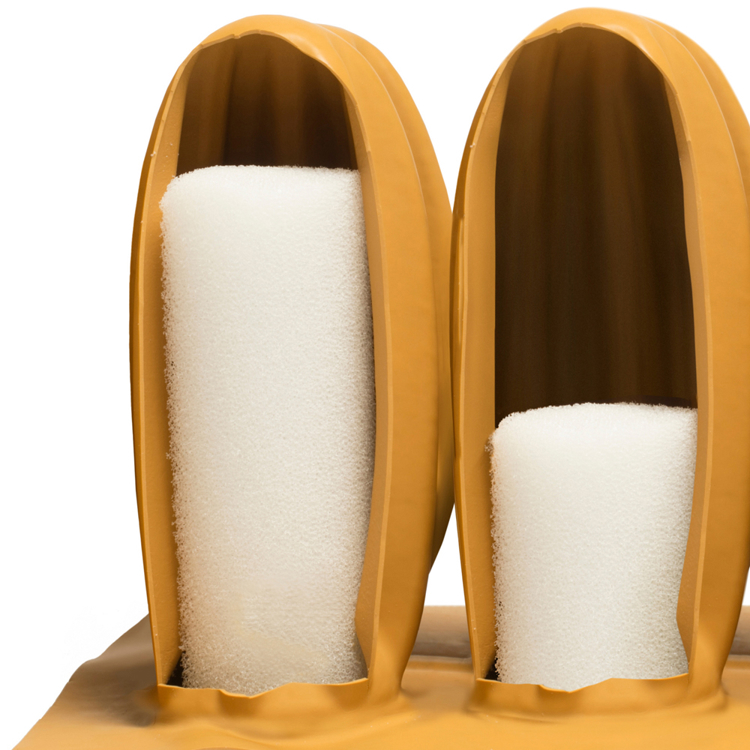

Foam Baffles

Each cell has a built-in soft foam cylinder, which acts as a baffle, slowing air movement throughout the cushion to increase stability. In addition, the foam cylinders are higher on the side to maximise stability.

Variants

	Item number	Cell height (mm)	Maximum user weight	Suits wheelchair seat depth (mm)	Suits wheelchair seat width (mm)
26 x 26 cm	ESSA30909-1	75	Unlimited	240-270	220-250
26 x 30 cm	ESSA30911-1	75	Unlimited	280-310	220-250
26 x 34 cm	ESSA30913-1	75	Unlimited	320-350	220-250
30 x 26 cm	ESSA31109-1	75	Unlimited	240-270	260-300
30 x 30 cm	ESSA31111-1	75	Unlimited	280-310	260-300
30 x 34 cm	ESSA31113-1	75	Unlimited	320-350	260-300
30 x 39 cm	ESSA31115-1	75	Unlimited	360-400	260-300
34 x 26 cm	ESSA31309-1	75	Unlimited	240-270	310-350
34 x 30 cm	ESSA31311-1	75	Unlimited	280-310	310-350
34 x 34 cm	ESSA31313-1	75	Unlimited	320-350	310-350
34 x 39 cm	ESSA31315-1	75	Unlimited	360-400	310-350
34 x 44 cm	ESSA31317-1	75	Unlimited	410-450	310-350
39 x 30 cm	ESSA31511-1	75	Unlimited	280-310	360-400
39 x 34 cm	ESSA31513-1	75	Unlimited	320-350	360-400
39 x 39 cm	ESSA31515-1	75	Unlimited	360-400	360-400
39 x 44 cm	ESSA31517-1	75	Unlimited	410-450	360-400
39 x 49 cm	ESSA31519-1	75	Unlimited	460-500	360-400
39 x 53 cm	ESSA31521-1	75	Unlimited	510-550	360-400
44 x 34 cm	ESSA31713-1	75	Unlimited	320-350	410-450
44 x 39 cm	ESSA31715-1	75	Unlimited	360-400	410-450
44 x 44 cm	ESSA31717-1	75	Unlimited	410-450	410-450
44 x 49 cm	ESSA31719-1	75	Unlimited	460-500	410-450
44 x 53 cm	ESSA31721-1	75	Unlimited	510-550	410-450
49 x 39 cm	ESSA31915-1	75	Unlimited	360-400	460-500
49 x 44 cm	ESSA31917-1	75	Unlimited	410-450	460-500
49 x 49 cm	ESSA31919-1	75	Unlimited	460-500	460-500
49 x 53 cm	ESSA31921-1	75	Unlimited	510-550	460-500
53 x 39 cm	ESSA32115-1	75	Unlimited	360-400	510-550
53 x 44 cm	ESSA32117-1	75	Unlimited	410-450	510-550
53 x 49 cm	ESSA32119-1	75	Unlimited	460-500	510-550
53 x 53 cm	ESSA32121-1	75	Unlimited	510-550	510-550
26 x 26 cm	ESSA40909-1	100	Unlimited	240-270	220-250
26 x 30 cm	ESSA40911-1	100	Unlimited	280-310	220-250
26 x 34 cm	ESSA40913-1	100	Unlimited	320-350	220-250
30 x 26 cm	ESSA41109-1	100	Unlimited	240-270	260-300
30 x 30 cm	ESSA41111-1	100	Unlimited	280-310	260-300
30 x 34 cm	ESSA41113-1	100	Unlimited	320-350	260-300
30 x 39 cm	ESSA41115-1	100	Unlimited	360-400	260-300
34 x 26 cm	ESSA41309-1	100	Unlimited	240-270	310-350
34 x 30 cm	ESSA41311-1	100	Unlimited	280-310	310-350
34 x 34 cm	ESSA41313-1	100	Unlimited	320-350	310-350
34 x 39 cm	ESSA41315-1	100	Unlimited	360-400	310-350
34 x 44 cm	ESSA41317-1	100	Unlimited	410-450	310-350
39 x 30 cm	ESSA41511-1	100	Unlimited	280-310	360-400
39 x 34 cm	ESSA41513-1	100	Unlimited	320-350	360-400
39 x 39 cm	ESSA41515-1	100	Unlimited	360-400	360-400
39 x 44 cm	ESSA41517-1	100	Unlimited	410-450	360-400
39 x 49 cm	ESSA41519-1	100	Unlimited	460-500	360-400
39 x 53 cm	ESSA41521-1	100	Unlimited	510-550	360-400
44 x 34 cm	ESSA41713-1	100	Unlimited	320-350	410-450
44 x 39 cm	ESSA41715-1	100	Unlimited	360-400	410-450
44 x 44 cm	ESSA41717-1	100	Unlimited	410-450	410-450
44 x 49 cm	ESSA41719-1	100	Unlimited	460-500	410-450
44 x 53 cm	ESSA41721-1	100	Unlimited	510-550	410-450
49 x 39 cm	ESSA41915-1	100	Unlimited	360-400	460-500
49 x 44 cm	ESSA41917-1	100	Unlimited	410-450	460-500
49 x 49 cm	ESSA41919-1	100	Unlimited	460-500	460-500
49 x 53 cm	ESSA41921-1	100	Unlimited	510-550	460-500
53 x 39 cm	ESSA42115-1	100	Unlimited	360-400	510-550
53 x 44 cm	ESSA42117-1	100	Unlimited	410-450	510-550
53 x 49 cm	ESSA42119-1	100	Unlimited	460-500	510-550
53 x 53 cm	ESSA42121-1	100	Unlimited	510-550	510-550

Accessories

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
