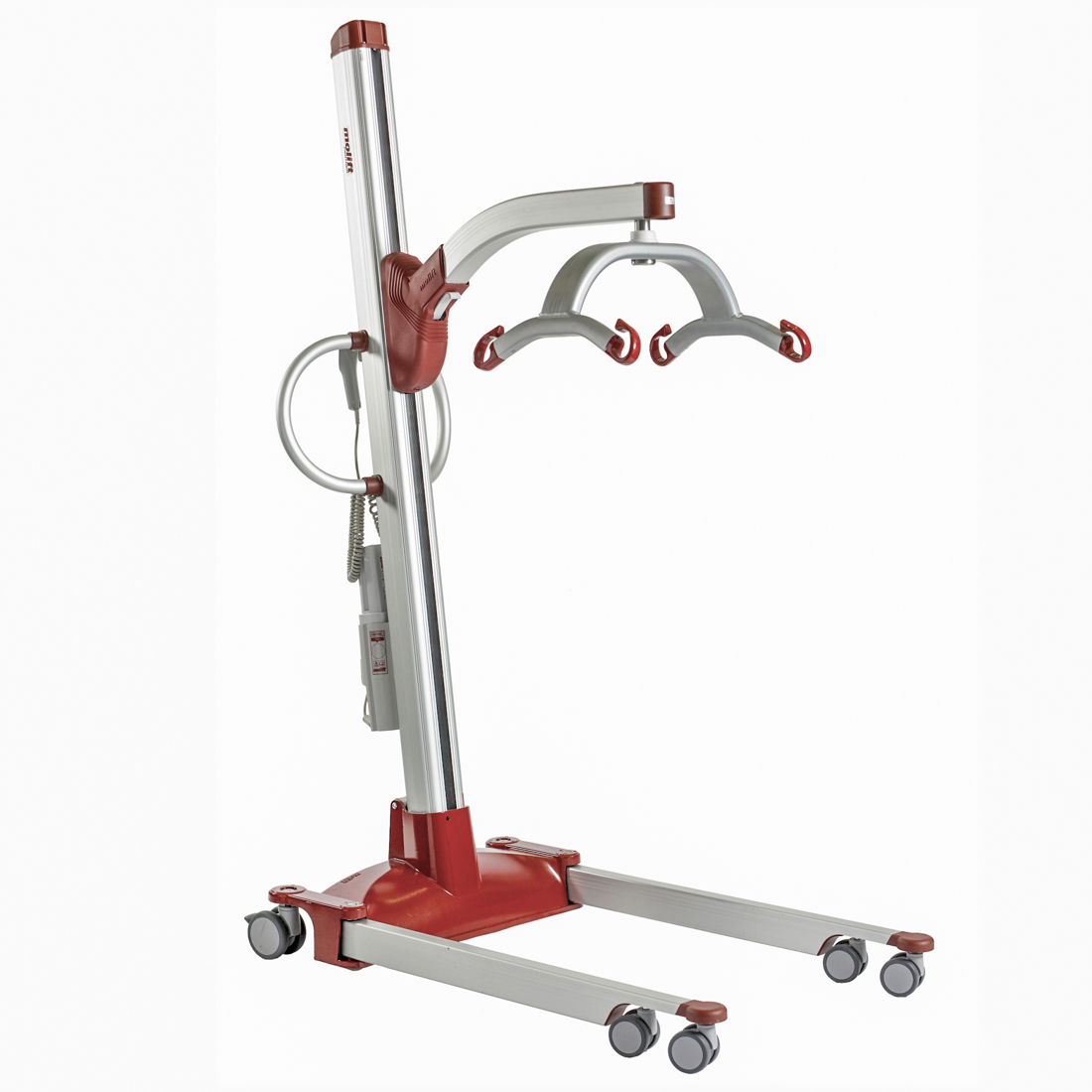

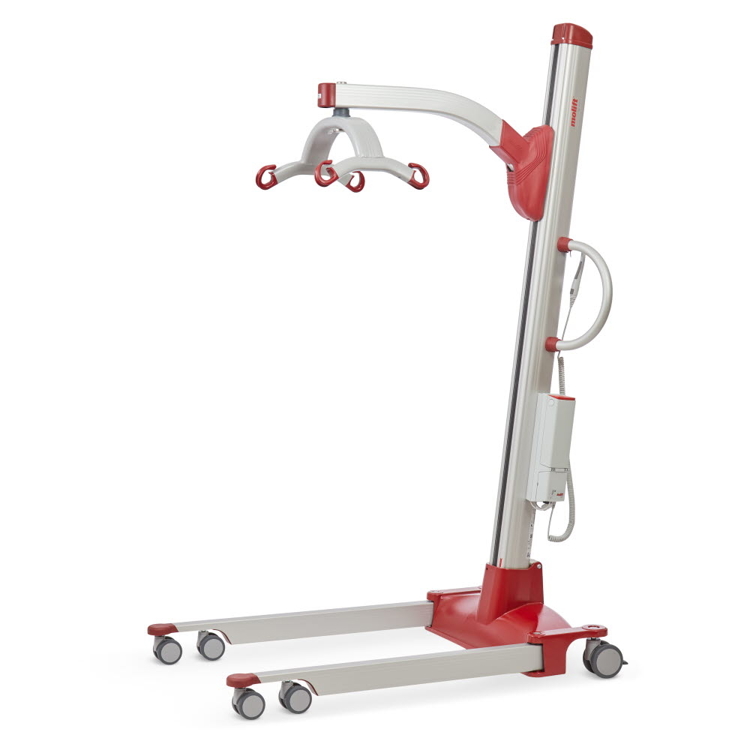

Molift Partner 255

With vertical hoisting pattern for excellent stability

Molift Partner 255 provides an ideal solution for hoisting with high complexity situations in acute and critical care areas in both hospitals and care facilities. With an excellent hoisting range: 39 – 168 cm the Molift Partner 255 allows easy hoisting from the floor as well as high surfaces. The straight vertical column in combination with the fixed sling bar provides excellent stability and maintains the user at a good distance from the column.

Stability, manoeuvrability and hoisting capacity
With a total weight of 42.5 kg Molift Partner 255 is one of the lightest in its category. Combined with excellent construction design and wheel solution it becomes very easy to manoeuvre with a safe working load of 255 kg.

Equipped with environmentally friendly NiMh-battery.

Molift Service Tool on laptop_800x450.jpg

Molift Service Tool - an intelligent software

All Molift hoists are supplied with the Molift Service Tool – an intelligent software that interacts with the hoist, ensures correct service and maintenance and enables analysis of the lift's use.

Features

High safe working load

Molift Partner 255 has a safe working load of 255 kg.

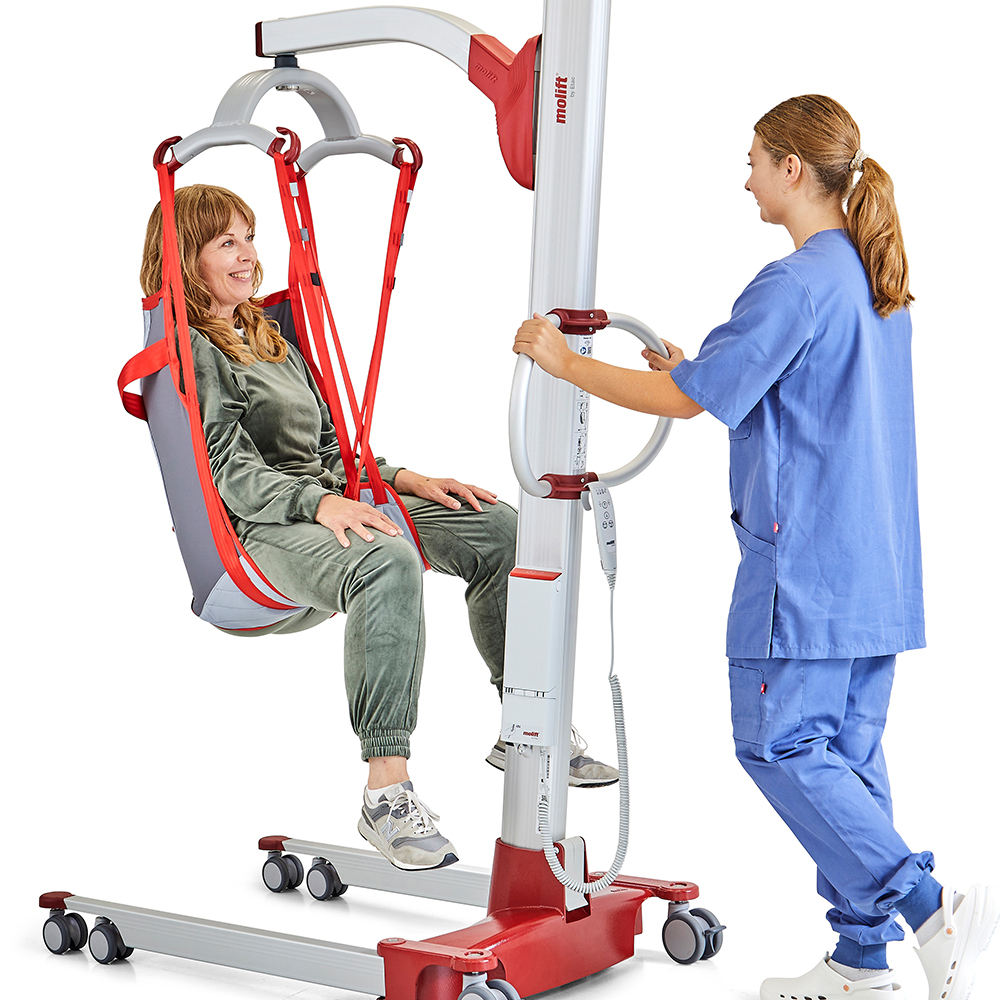

A safe and stable position

The vertical hoisting pattern keeps the user at the same distance from the column during the entire lift, creating a secure and stable position.

Spacious hoisting positioning

The 4-point sling bar ensures a comfortable and spacious hoisting position and a stable transfer.

Variants

Specifications
Battery	NiMh 26,4 V-2,6 Ah	Material	Aluminium, steel
Battery charge time (hours)	3	Maximum user weight (kg)	255
Hoisting height max (mm)	1680	Rated performance	50 hoists at: 75 kg and 500 mm
Hoisting height min (mm)	390	Service software	Molift Service Tool
Hoisting interval (mm)	1290	Width chassis, legs open inner (mm)	1065
Hoisting speed 75 kg (mm/sec)	30	Width chassis, outer (mm)	690
Length (mm)	1285

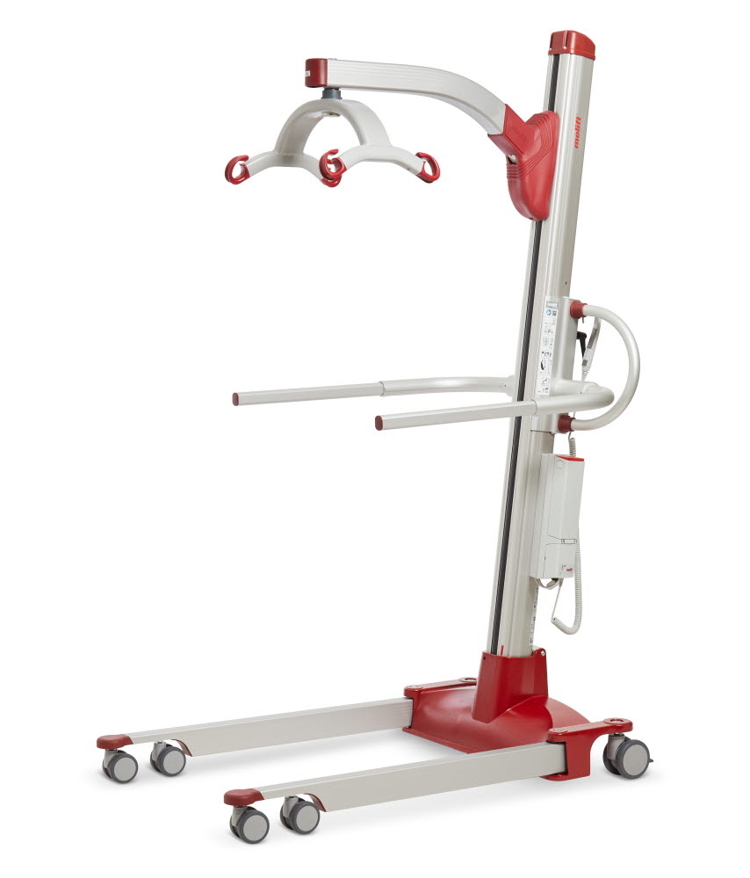

	Standard	Low base	With support arms	Standard with scale	Low base with scale	With support arms and scale
Item number	M13000	M13050	M13100	M13001	M13051	M13101
Leg height (mm)	115	60	115	115	60	115
Weight (kg)	42,5	45	50	42,5	45	50

Sling bar is not included and must be ordered separately.

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
