R82 Pony

The Pony is a gait trainer for disabled children and has a frame-shaped like an arrow with five castors.

A central bar holds the chest support and the seat with pelvic support. The bar can be tilted forwards to stimulate walking. Between the legs is a plate to counteract scissoring. The Pony is for indoor use.

The Pony is available in 2 sizes and suitable for children between the ages of 1½ - 12 years. Not all children are alike - that is why it is important to use the measuring chart to find the correct size.

Features

The Pony has brakes on the two front castors. Further, it is equipped with one drag wheel and directional stabilizer for added support

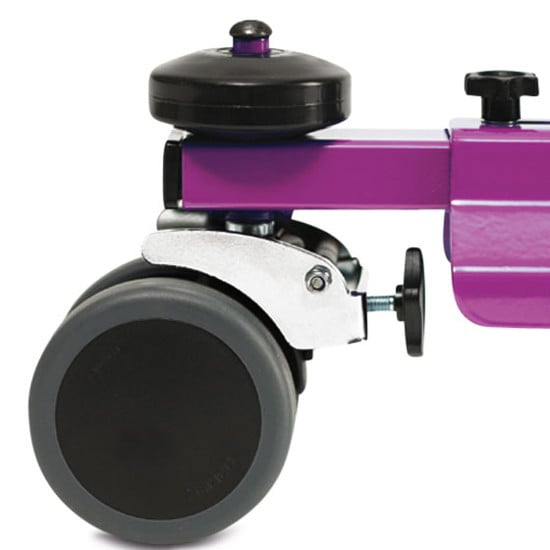

Brakes on castors

The Pony has brakes on the two front castors. Further, it is equipped with one drag castor and directional stabilizer for added support.
Adjusts to accommodate optimal walking angle and initiate the stepping process

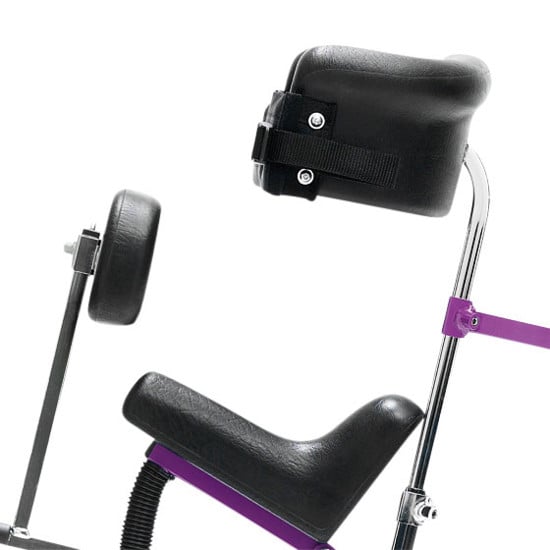

Adjustable forward lean

Adjusts to accommodate optimal walking angle and initiate the stepping process.
Allows for height adjustment to fit the user and provide optimum position when walking. The child is not supposed to sit on the saddle

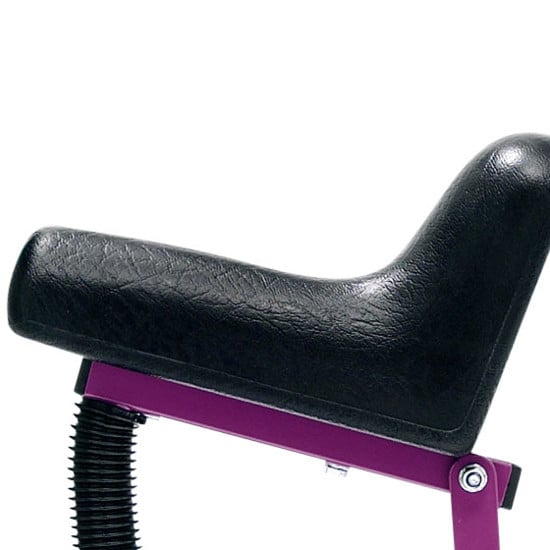

Height adjustable seat

Allows for height adjustment to fit the user and provide optimum position when walking. The child is not supposed to sit on the saddle.
Allows for height and depth adjustment for positioning the pelvis into a neutral position. Furthermore the back support can be removed for easy access of child onto the Pony

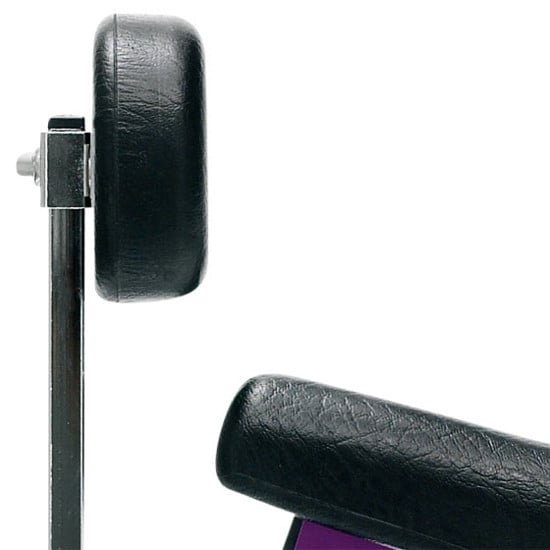

Back support

Allows for height and depth adjustment for positioning the pelvis into a neutral position. Furthermore the back support can be removed for easy access of child onto the Pony.

Variants

Pony Size 0
Pony Size 1
Item number 86400 86401
Angle, center bar (°) 32 32
Frame colour Yellow Purple
Length (mm) 670 720
Mass device (kg) 7 10
Maximum rated load (kg) 39 52
Maximum user mass (kg) 30 40
Overall height (mm) 520-690 600-820
Overall width (mm) 590 690
Seat height (mm) 240-380 380-500

Options

Available in different colours

Yellow for size 0

Purple for size 1

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
