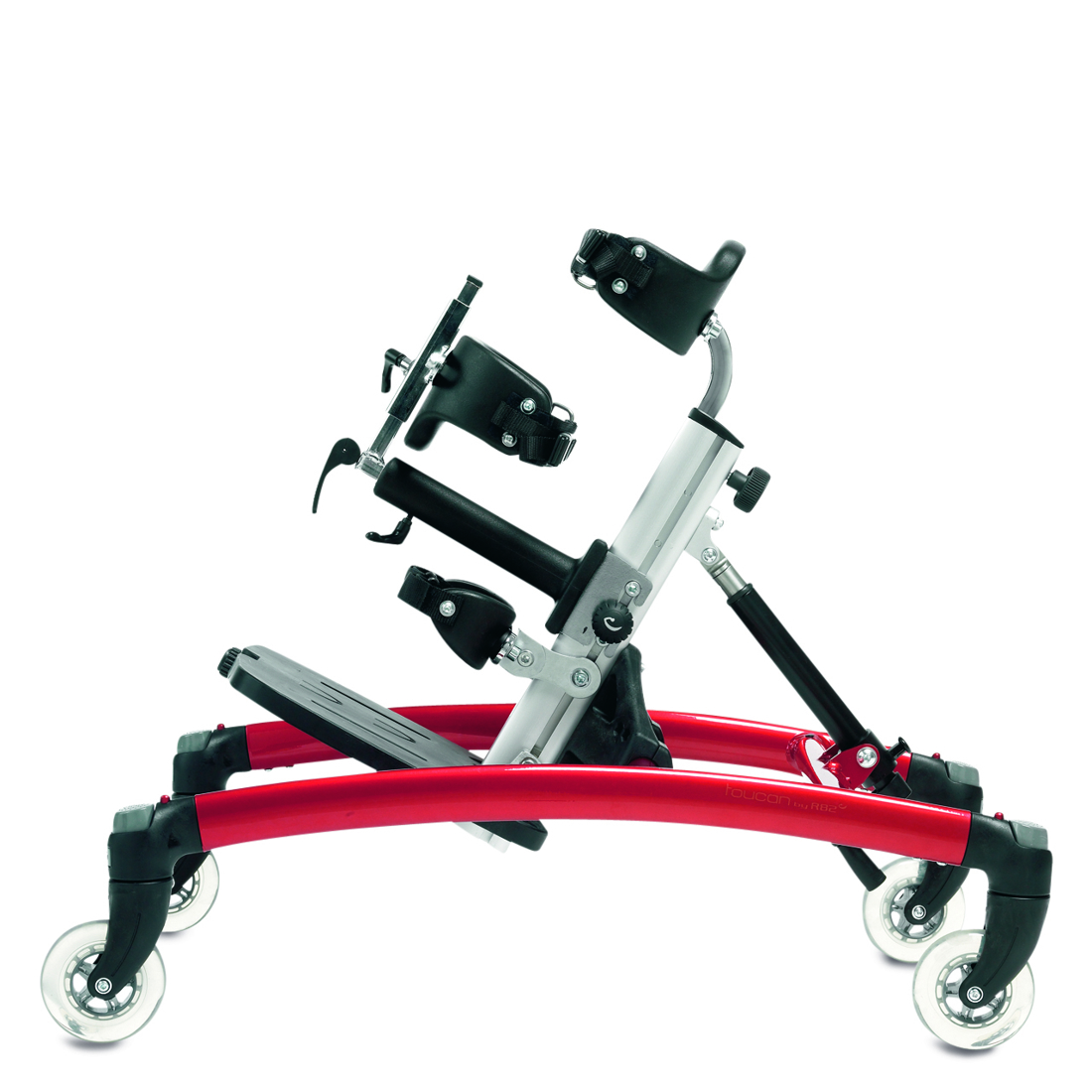

R82 Toucan
The R82 Toucan is an innovative standing frame for children. Crafted with precision and care, the R82 Toucan standing frame supports both an upright and prone standing position, offering versatility tailored to children's specific needs.
The Toucans design features soft curves and vibrant colours, making it an inviting choice for therapy or home use. The Toucan is designed to help children stand with confidence, participate more activily and support their ongoing development. The open frame facilitates easy sit-to-stand transfers. Its low step-in height encourages independence by allowing effortless access. This adaptable standing frame supports optimal positioning, fostering social interaction and development for children with varying needs.
Features
-
Features
Prepared for accessories

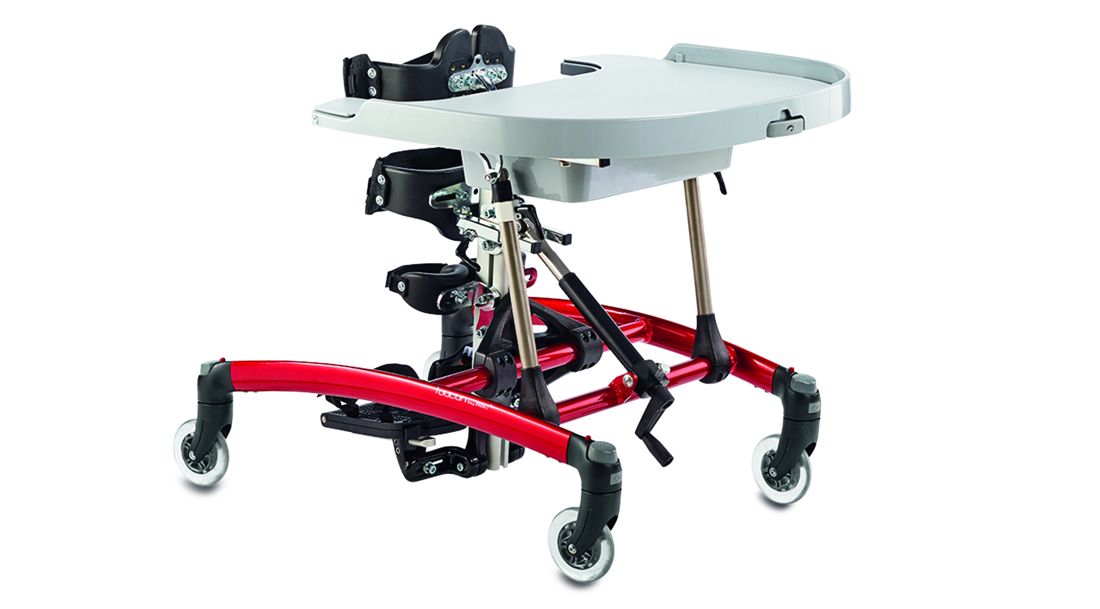

All sizes of Toucan can be equipped with all sizes of accessories. The Toucan is designed with slots in the centre bar for easy and simple mounting.
-
Features

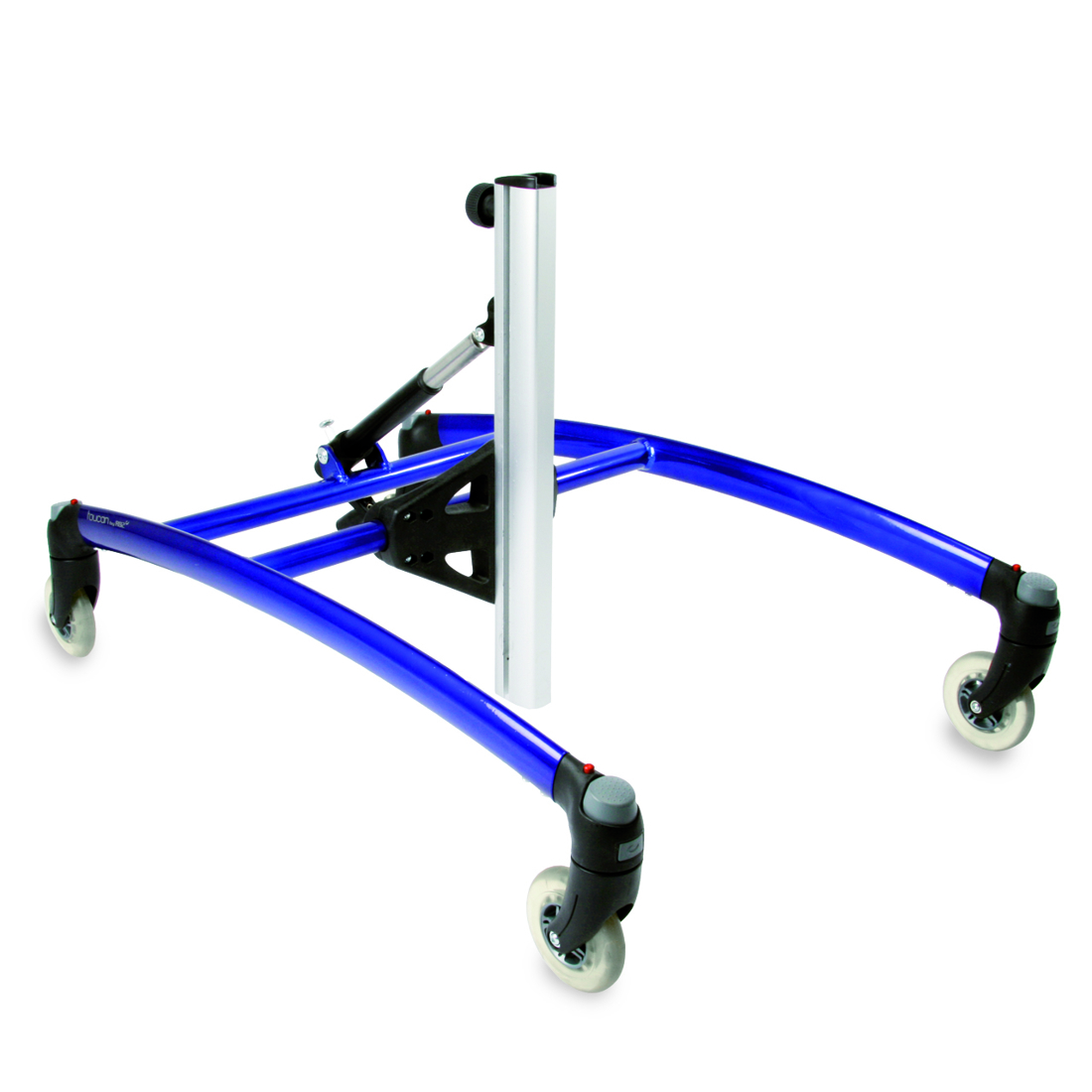

Angle adjustable centre bar
The Toucan has easy and steady angle adjustment making it possible to obtain the optimum standing position.
-
Features
Handle with lock
The handle for angling the centre bar is equipped with a security lock. Pull out the lock whilst turning the handle to change the angle.
-
Features
Castors with locks
All four castors are equipped with locks securing the Toucan for stability. The wheels are very easy to manouvre making it easy to move the Toucan around.
Variants
| Size 1 | Size 2 | Size 3 | Size 4 | Size 5 | |
|---|---|---|---|---|---|
| Item number | 861001 | 861002 | 861003 | 861004 | 861005 |
| Angle, center bar (°) | 0-30 | 0-30 | 0-30 | 0-20 | 0-20 |
| Foot plate angle (°) | 15 - (-10) | 15 - (-10) | 15 - (-10) | 15 - (-10) | 15 - (-10) |
| Height from floor to foot plate (mm) | 60 | 60 | 60 | 60 | 60 |
| Length (mm) | 750 | 880 | 880 | 1110 | 1110 |
| Length, centre bar (mm) | 450 | 500 | 700 | 800 | 1000 |
| Mass device (kg) | 7.5 | 8.5 | 9 | 10.5 | 10.75 |
| Maximum rated load (kg) | 39.5 | 50.5 | 61 | 72.5 | 82.75 |
| Maximum user mass (kg) | 30 | 40 | 50 | 60 | 70 |
| Maximum user weight (kg) | 30 | 40 | 50 | 60 | 70 |
| Overall height (mm) | 670-870 | 720-1010 | 970-1230 | 1040-1340 | 1240-1540 |
| Overall width (mm) | 560 | 630 | 630 | 700 | 700 |
| Static stability downhill (°) | 5 | 5 | 5 | 5 | 5 |
| Static stability sideways (°) | 5 | 5 | 5 | 5 | 5 |
| Static stability uphill (°) | 5 | 5 | 5 | 5 | 5 |
| User height: floor to axil (mm) | 340-700 | 540-900 | 740-1100 | 910-1210 | 1110-1410 |
Washing instructions
The product is CE marked
Options
Frame colour
Red for size 1
Blue for size 2+3
Silver for size 4+5
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
