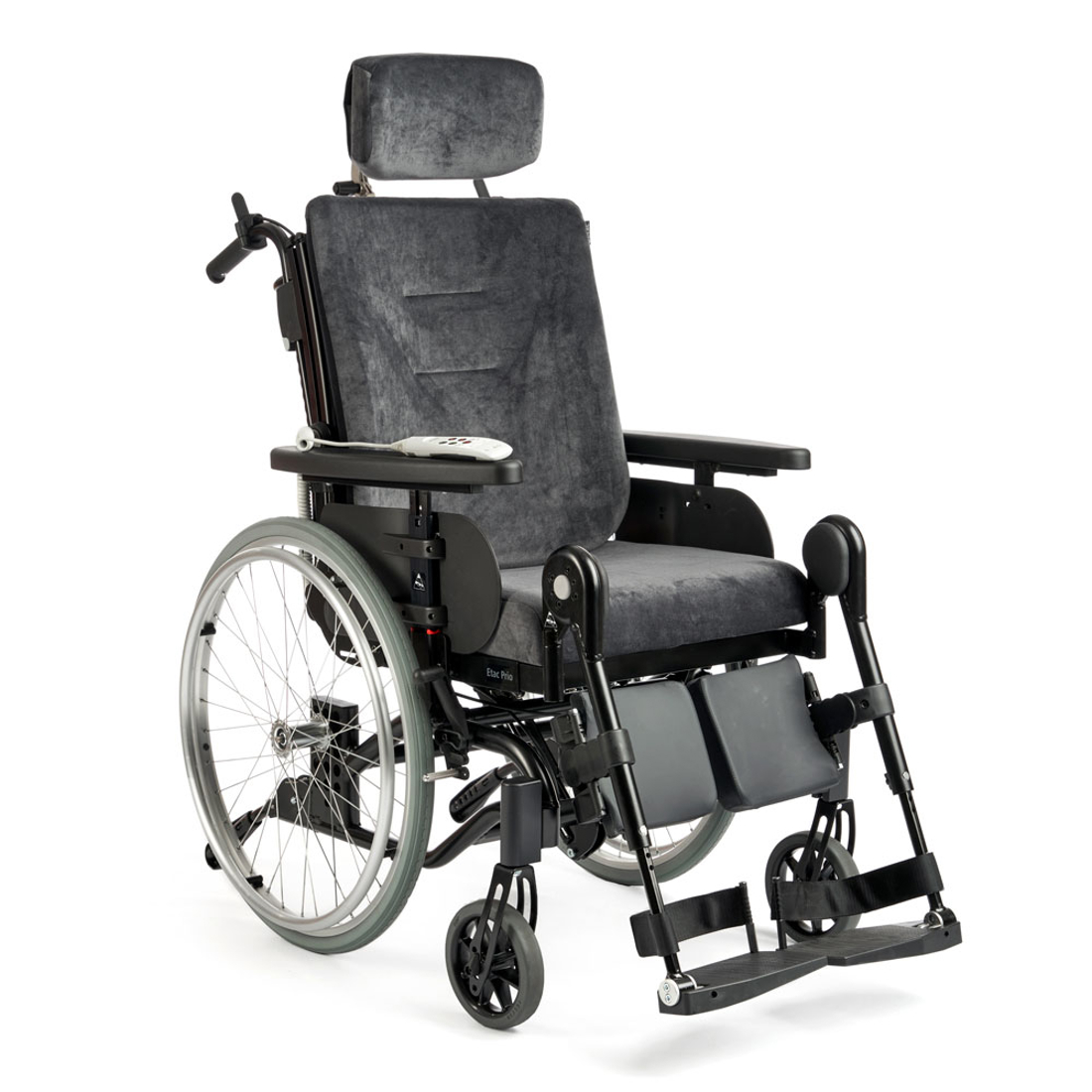

Etac Prio, configuration 3A E-tilt

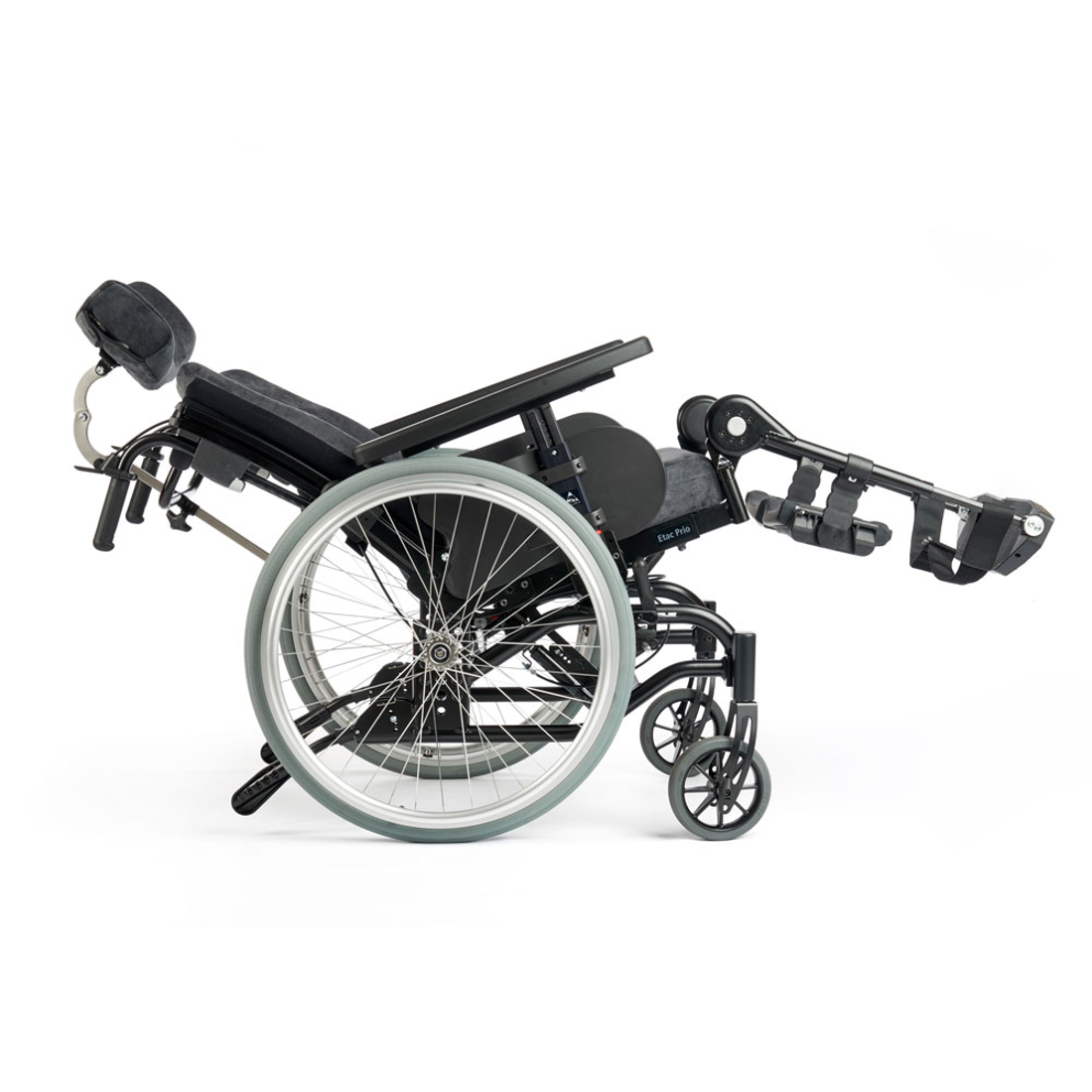

A setting of Prio with electric adjustment of the tilt- and recline.
The electrical back and seat recline is available as a configuration option or as an accessory. The electrical unit is discreet and adds only 3.5 kg to the total weight, which means that Prio maintains its feature as an easy-to-operate wheelchair.
Prio with electrical back and seat recline functions can also contribute to creating activity. Prio with electric tilt facilitates the abilities and contributes to even more possibilities for a longer active life.
The Prio is designed to optimise activity based on individual ability providing the support and comfort needed every step of the way. Right now and tomorrow too as needs change.
Note: Prio electric tilt cannot be combined with the dynamic posterior pelvic support, comfort tilt lock, locking pin quick release back, gas piston clips and/or basket. When retrofitting on Prio with 16" wheels, the safety edge must be fitted as well.
All you need to know is the hip width
All you need to know is the hip width to define the correct wheelchair size. The rest can be adjusted to fit the individual user´s needs.
Prio gives more opportunities to create shape and support for the user to sit active/upright and for comfort and relief while resting. Work with adjustments and simple accessories to shape the wheelchair completely according to the user’s needs. Right now. And also tomorrow.
Facilitate ability, do not give up on it - With Prio, you can reach your positioning and activity goals.
Features
-
Features

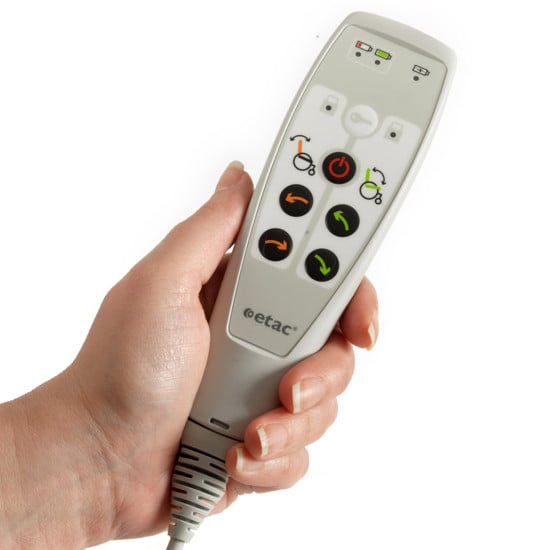

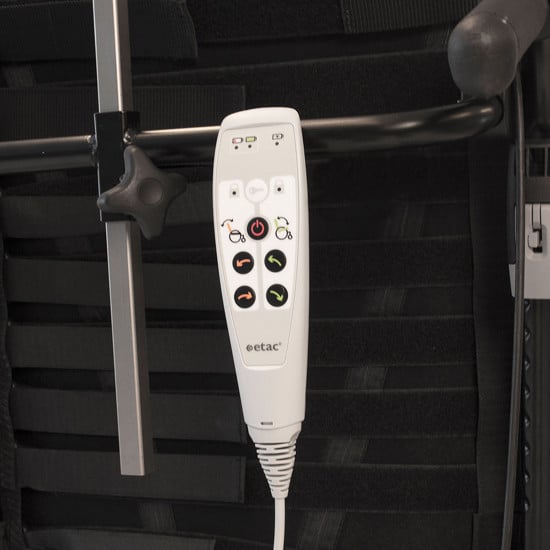

Magnetic hand control
The hand control is magnetic and can be, thanks to the accompanying metallic plate, attached where most convenient.
-
Features

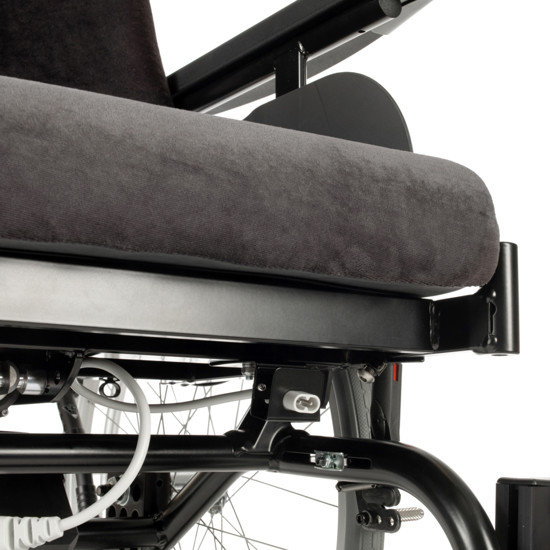

Easily accessible charging
The compact electrical unit including the lithium battery has an easily accessible position for charging.
-
Features
Adjustable lumbar angle
Adjust the lumbar angle for individual posture needs. Adjustable -12º to +10º .
-
Features
Adjustable back support height
You only need one back support chassi. The back support height is adjustable between 46 - 62 cm (18 – 24½”) and by adding the back extension accessory you can get as high as 52 - 68 cm (20½ – 26¾”).
-
Features
Adjustable front and rear seat depht
Seat depth is adjustable from 39 - 51 cm (15½” – 20”). Using both rear and front adjustment facilitates finding an optimized balance point. Front adjustment 7 cm (2¾”). Rear adjust: 5 cm (2”).
-
Features
Optimum balance
Optimise the wheel position in relation to the selected seat depth to find the optimum balance position.
-
Features
3D back cushion
The 3D back cushion has three soft padded panels connected with slide fabric, shape and optimum support can be created in all directions, following the user´s back. The 3D back cushion is ideal for kyphosis and asymmetrical postures.
Variants
| Item number | Seat depth (mm) | Seat width (mm) | Total width (mm) | Transport weight (kg) | Transport width (mm) | Weight (kg) | Width with attendant brakes (mm) | |
|---|---|---|---|---|---|---|---|---|
| 40 cm | 13420405 | 390-510 | 400 | 590 | 22,4 | 560 | 33,0 | 640 |
| 45 cm | 13420409 | 390-510 | 450 | 640 | 22.7 | 610 | 33.3 | 690 |
| 50 cm | 13420413 | 390-510 | 500 | 690 | 23.0 | 660 | 33.6 | 740 |
| 55 cm | 13420417 | 390-510 | 550 | 740 | 23.3 | 710 | 33.9 | 790 |
Back Support height: 46 - 62 cm (18 – 24½”) std, Including the back
extension (6 cm) 52 - 68 cm (20½ – 26¾”)
Tilt angle: -3° to +20° (with accessory 0°– +20º)
Back support adjustable angulation: 0° – +30°
Back support lumbar angulation: -12º - +10º
Balance positions: Etac Prio with 20", 22", or 24" rear wheels has three altarnative balance positions for each seat height.
Maximun user weight: 135 kg (21.5 lbs)
Total weight: Measured with arm supports, head support, elevating leg supports, calf support, rear wheels and anti-tippers.
Total width: M100 rear wheels +19 cm (7½") / Cross 5 rear wheels +21 cm (8¼") / 24" rear wheels, attendant brakes +24 cm (9½") / 16" hjul +19.5 cm (7¾")
Seat height: 20", 22" and 24" rear wheels: 38–52.5 cm (15-20¾")
16" rear wheels: 40-45 cm (15¾-17¾")
Transport weight: Weight without arm supports, elevating leg supports, calf support and rear wheels.
