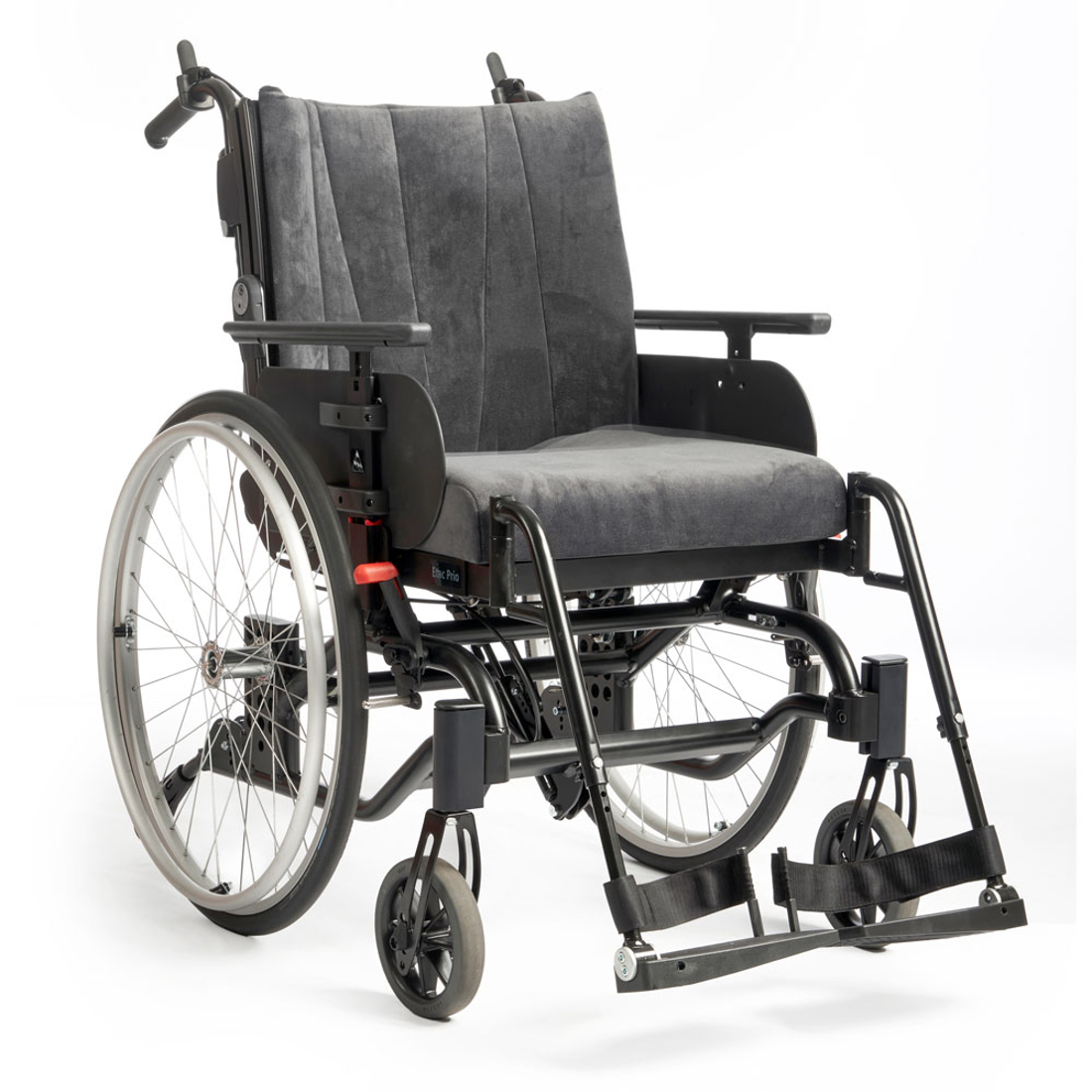

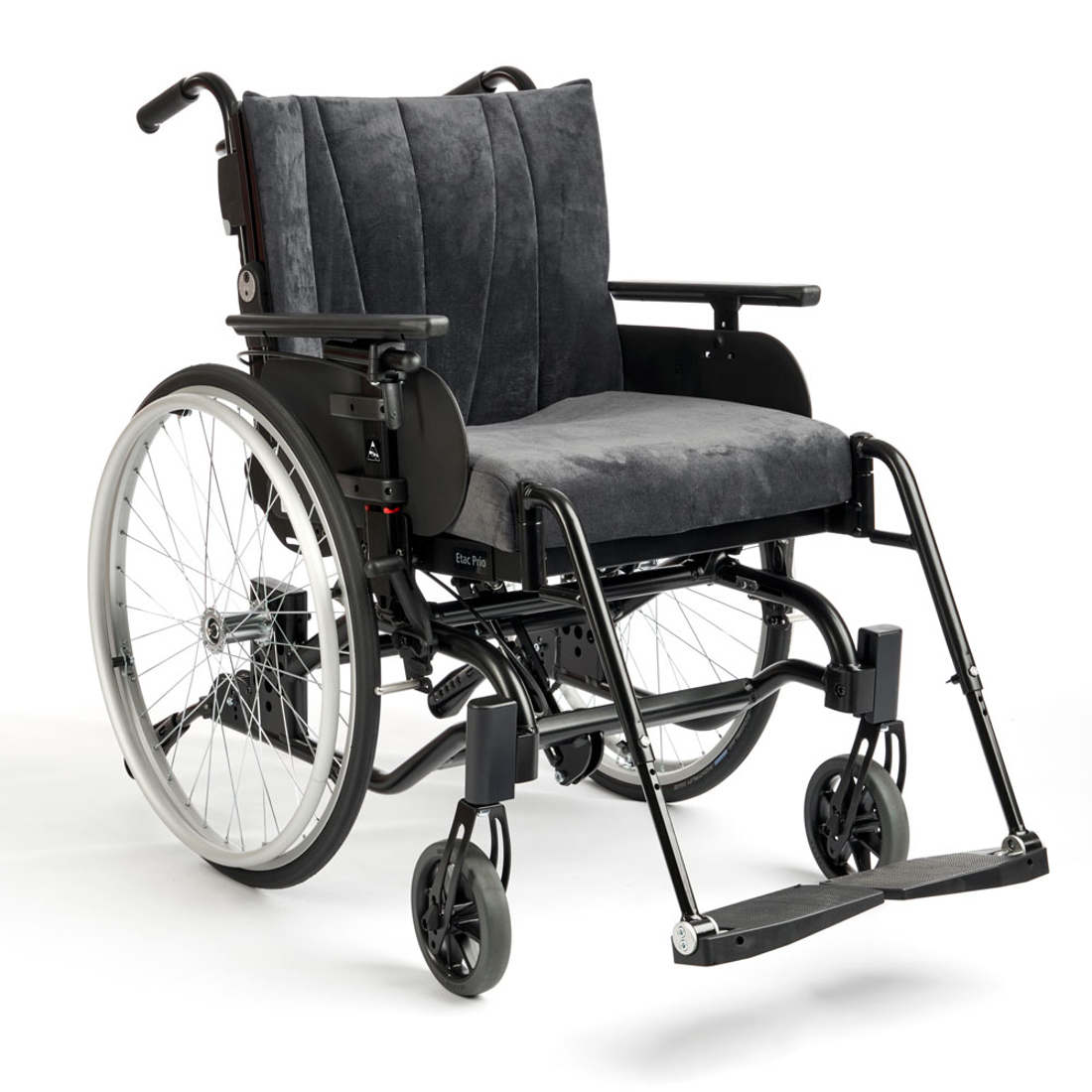

Etac Prio, configuration 3A Active
An active setting of Prio to reduce the step from a multi-functional wheelchair to tilt- and recline.
Moving from a medium active wheelchair to a Prio in an active setup provides a step increase in support. While a well-balanced frame, a medium height back support, and limited tilt all unlock potential independent activity. You can use the Prio 3A in a more active setting with the possibility to add and use the self-operating tilt
All you need to know is the hip width
All you need to know is the hip width to define the correct wheelchair size. The rest can be adjusted to fit the individual user´s needs.
Prio give more opportunities to create shape and support for the user to sit active/upright and for comfort and relief while resting. Work with adjustments and simple accessories to shape the wheelchair completely according to the user’s needs. Right now. And also tomorrow.
Facilitate ability, do not give up on it - With Prio, you can reach your positioning and activity goals.
Prio is designed to optimise activity based on individual ability providing the support and comfort needed every step of the way. Right now and tomorrow too as needs change.
Features
-
Features

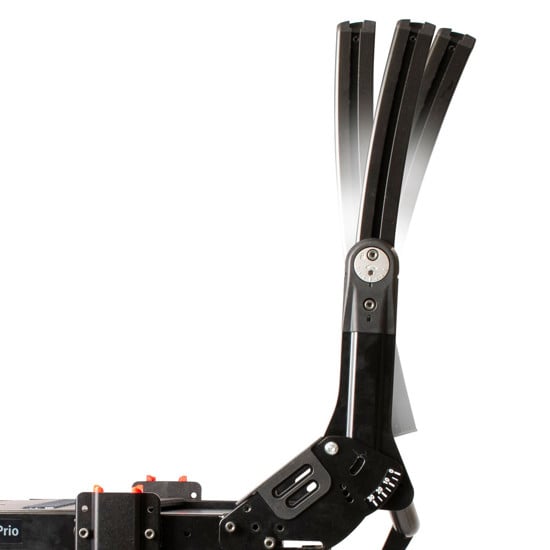

Adjustable lumbar angle
Adjust the lumbar angle for individual posture needs. Adjustable -12º to +10º .
-
Features

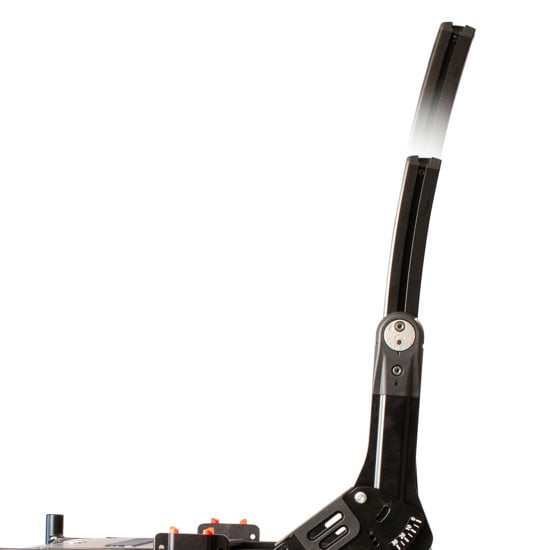

Adjustable back support height
You only need one back support chassi. The back support height is adjustable between 46 - 62 cm (18 – 24½”) and by adding the back extension accessory you can get as high as 52 - 68 cm (20½ – 26¾”).
-
Features

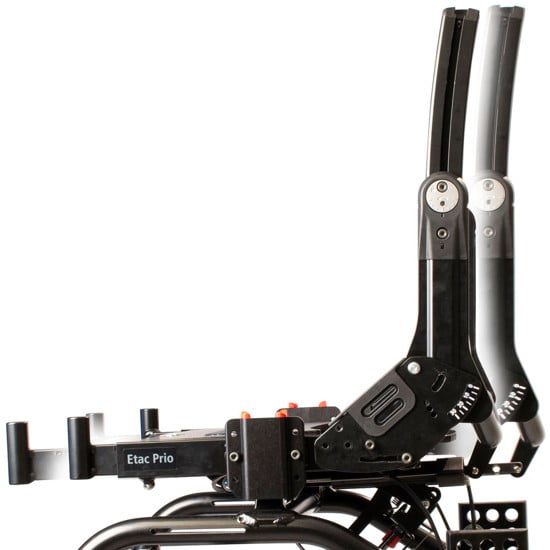

Adjustable front and rear seat depht
Seat depth is adjustable from 39 - 51 cm (15½” – 20”). Using both rear and front adjustment facilitates finding an optimized balance point. Front adjustment 7 cm (2¾”). Rear adjust: 5 cm (2”).
-
Features
Optimum balance
Optimise the wheel position in relation to the selected seat depth to find the optimum balance position.
-
Features

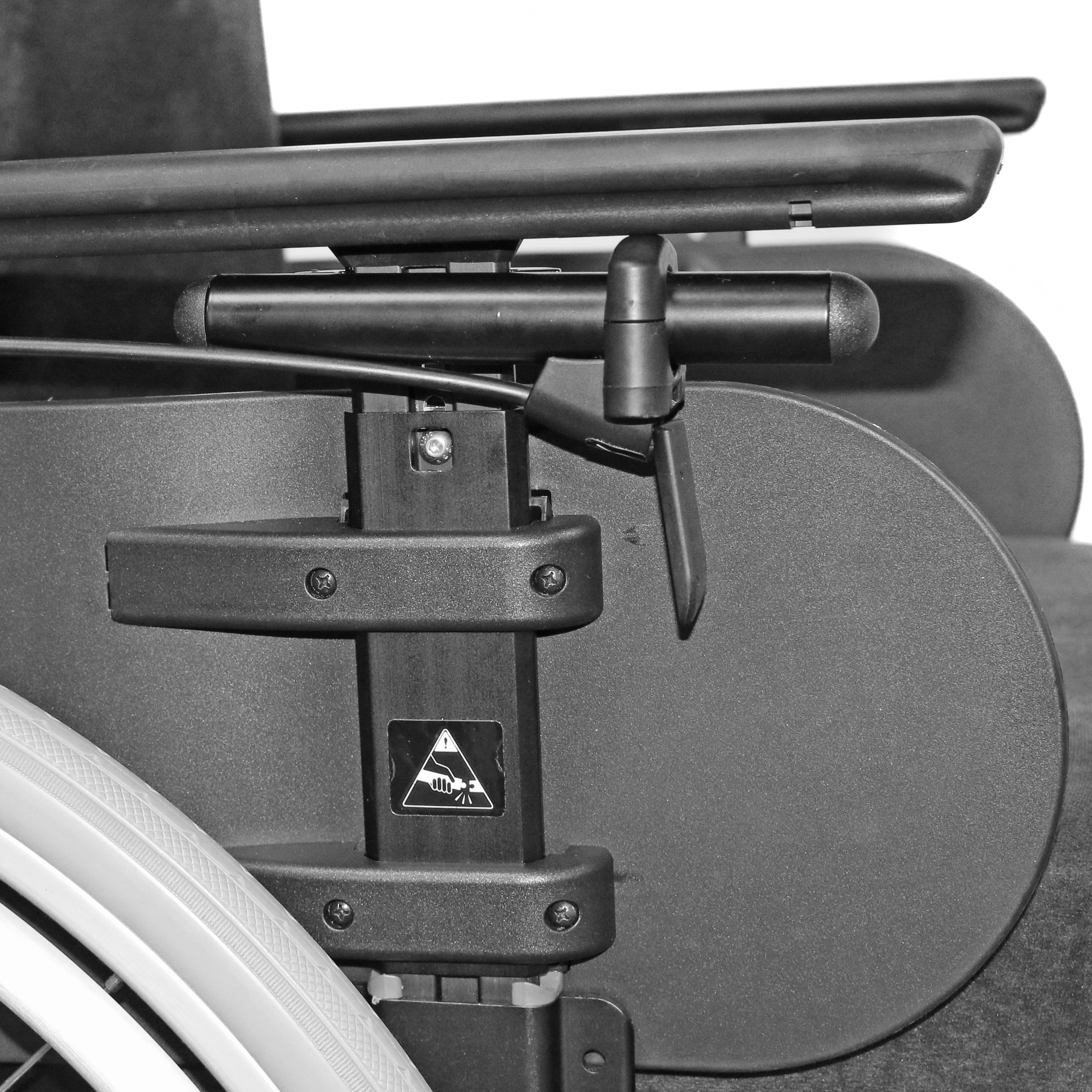

User operated self-tilt
The user operated manual self-tilting enables the more active user to independently manage the adjustment of the seat angle for rest and activity.
-
Features
3D back cushion
The 3D back cushion has three soft padded panels connected with slide fabric, shape and optimum support can be created in all directions, following the user´s back. The 3D back cushion is ideal for kyphosis and asymmetrical postures.
-
Features
Back extension
Add 6 cm back height with the back extension incl. one extra strap. Using the back extension on the 3A back support the highest back height is 68 cm.
-
Features
Activity is as important as resting
Narrow wheel assembly (total width), low product weight and premium balancing options are features making Prio users more active and mobile.
Variants
| Item number | Seat depth (mm) | Seat width (mm) | Total width (mm) | Transport weight (kg) | Transport width (mm) | Weight (kg) | Width with attendant brakes (mm) | |
|---|---|---|---|---|---|---|---|---|
| 40 cm | 13420405 | 390-510 | 400 | 590 | 22,4 | 560 | 33,0 | 640 |
| 45 cm | 13420409 | 390-510 | 450 | 640 | 22.7 | 610 | 33.3 | 690 |
| 50 cm | 13420413 | 390-510 | 500 | 690 | 23.0 | 660 | 33.6 | 740 |
| 55 cm | 13420417 | 390-510 | 550 | 740 | 23.3 | 710 | 33.9 | 790 |
Back Support height: 46 - 62 cm (18 – 24½”) std, Including the back
extension (6 cm) 52 - 68 cm (20½ – 26¾”)
Tilt angle: -3° to +20° (with accessory 0°– +20º)
Back support adjustable angulation: 0° – +30°
Back support lumbar angulation:-12º - +10º
Balance positions: Etac Prio with 20", 22", or 24" rear wheels has three altarnative balance positions for each seat height.
Maximun user weight: 135 kg (21.5 lbs)
Total weight: Measured with arm supports, elevating leg supports, calf support, rear wheels and anti-tippers.
Total width: M100 rear wheels +19 cm (7½") / Cross 5 rear wheels +21 cm (8¼") / 24" rear wheels, attendant brakes +24 cm (9½") / 16" hjul +19.5 cm (7¾")
Seat height: 20", 22" and 24" rear wheels: 38–52.5 cm (15-20¾")
16" rear wheels: 40-45 cm (15¾-17¾")
Transport weight: Weight without arm supports, elevating leg supports, calf support and rear wheels.
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos

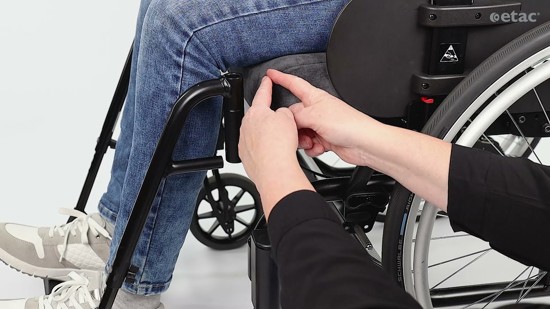

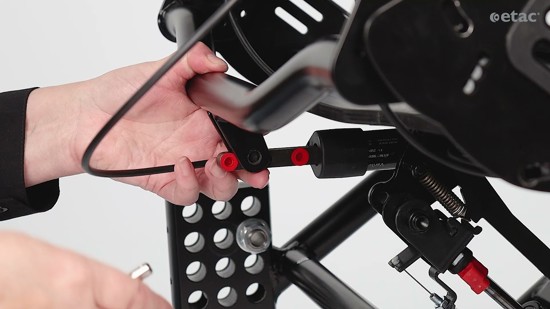

Etac Prio 3A, How to adjust front seat depth

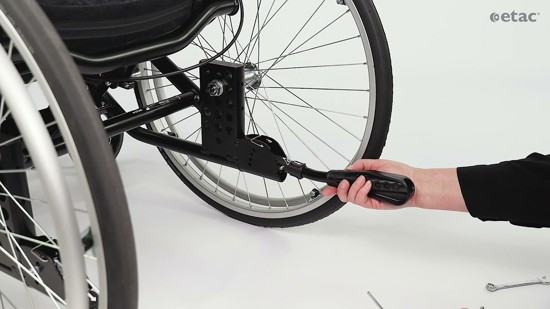

Etac Prio 3A, How to adjust anti-tippers

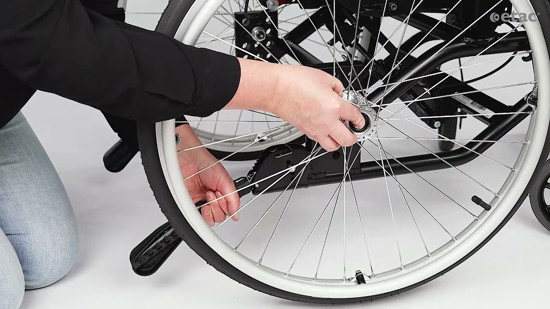

Etac Prio 3A, How to adjust rear seat depth
