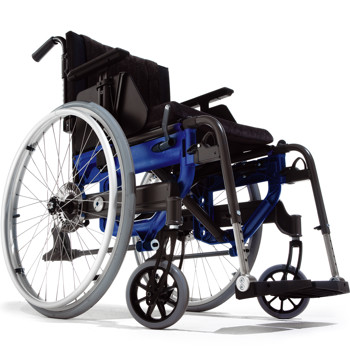

Etac Next

Many adjustment possibilities, performed with a minimum of grips.

There are no compromises made in order to provide the best positioning and propelling properties. Etac Next wheelchair has all adjustment possibilities and options needed to create comfort and stability.

Easy adjustments
The unique feature is the simplicity to do the adjustments and all possible combinations.Both the front fork attachments and hub brakes are fixed with no need for adjustments. Further more the narrow leg supports can be combined with 150 mm (6”) castors.

Features

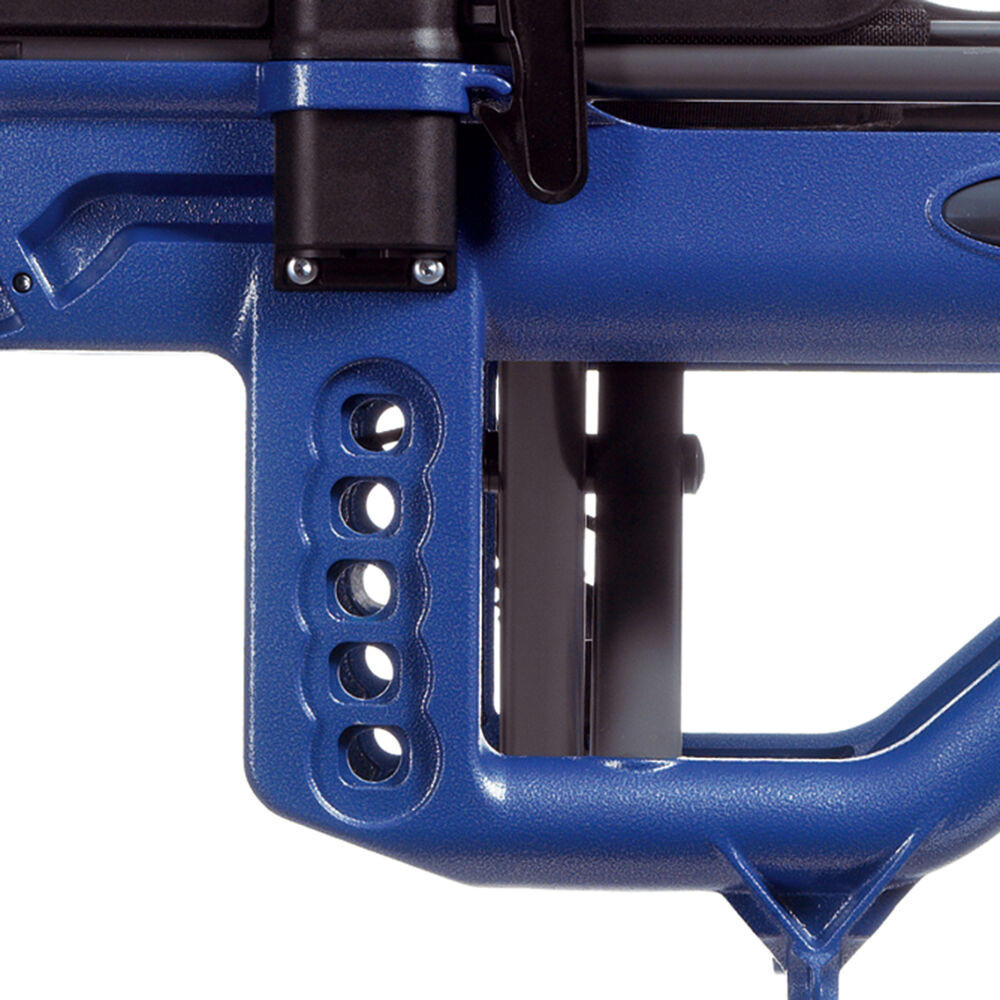

Connecting bolts

Connecting bolts

With the connecting bolts, the seat height is set. To achieve very low seat heights, 22” or 20” rear wheels and thereto belonging front forks are available.

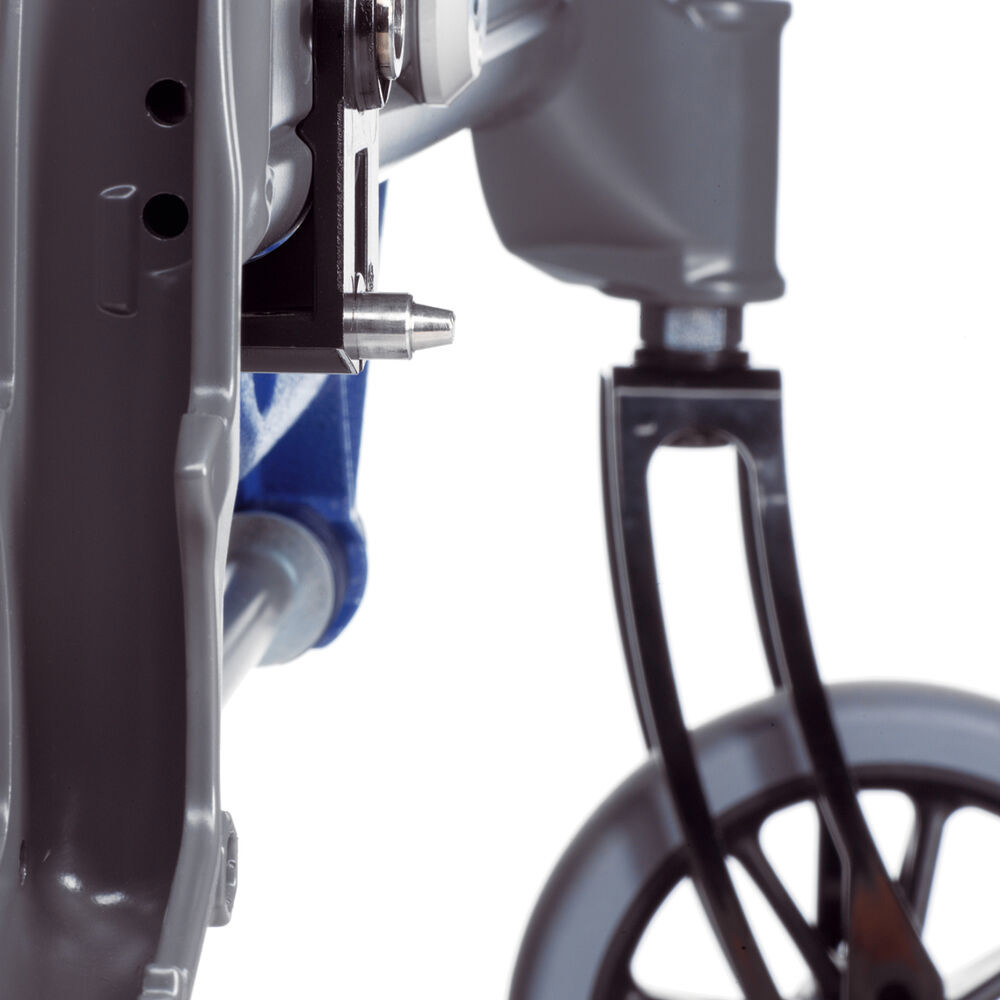

Hub brakes

Hub brakes

Next is equipped with hub brakes. Perfect function independent of tire pressure and no readjustments if rear wheel position or size \ is altered.

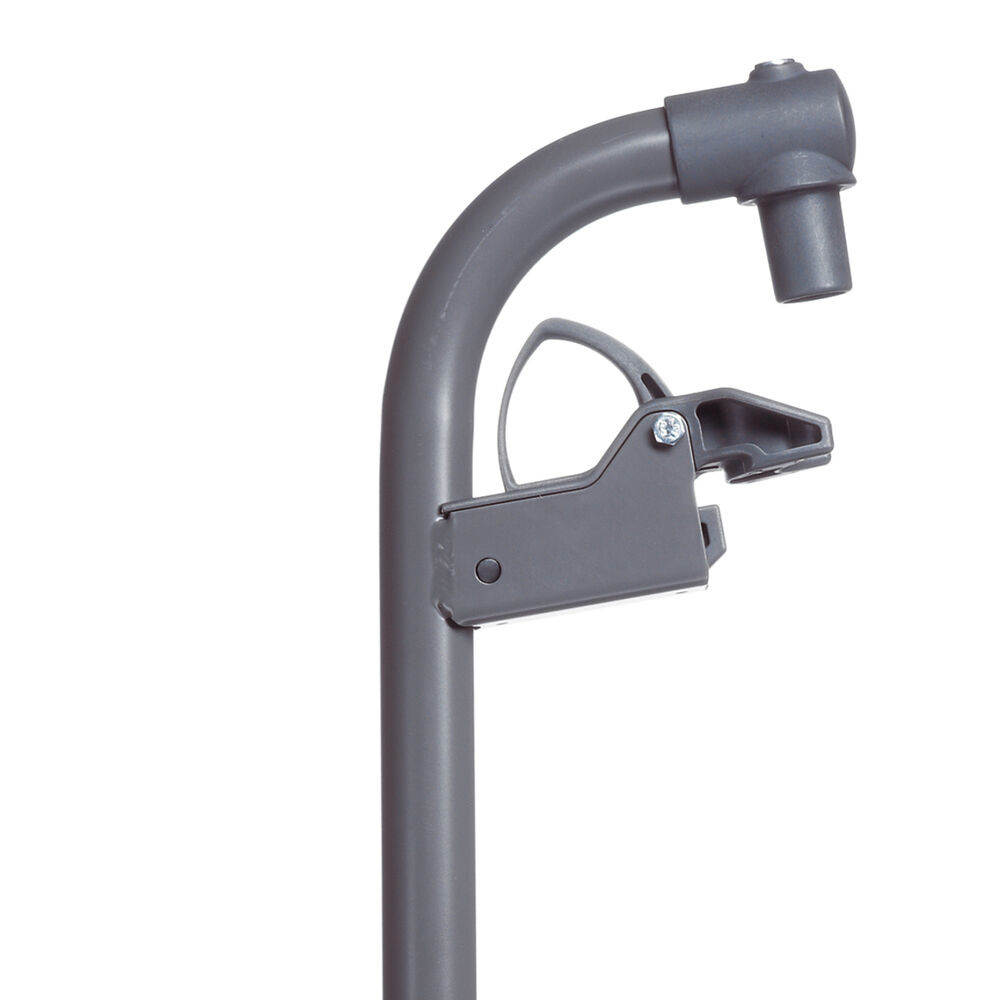

Leg supports

Leg supports

The swing away leg supports are detachable and lockable. Choose between a standard or narrow knee angle. The narrow version can be combined with 150 mm (6”) castors.

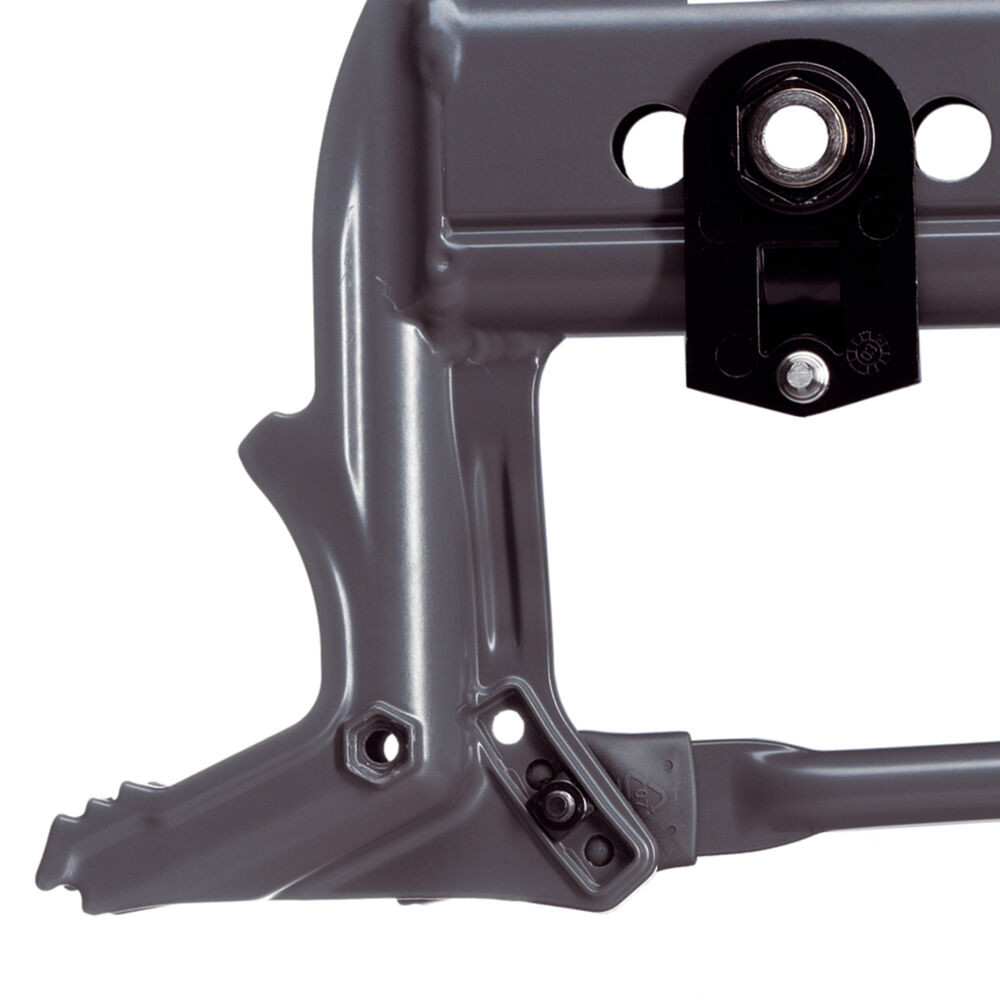

Seat angles

Seat angles

There are four different seat angle positions: +3°, 0°, –3° and –5°. The angle is easily set by changing the position of the rod.

Variants and details

Etac item number
Seat depth (mm)
Seat width (mm)
Total width (mm)
Weight (kg)
35 cm short 13200101 360-420 350 545 15,95
35 cm long 13200102 420-480 350 545 16,25
37,5 cm short 13200103 360-420 375 570 16
37,5 cm long 13200104 420-480 375 570 16,3
40 cm short 13200105 360-420 400 595 16,1
40 cm long 13200106 420-480 400 595 16,4
42,5 cm short 13200107 360-420 425 620 16,2
42,5 cm long 13200108 420-480 425 620 16,5
45 cm short 13200109 360-420 450 645 16,25
45 cm long 13200110 420-480 450 645 16,55
47,5 cm short 13200111 360-420 475 670 16,3
47,5 cm long 13200112 420-480 475 670 16,6
50 cm short 13200113 360-420 500 695 16,4
50 cm long 13200114 420-480 500 695 16,7

The dimensions and weights indicated apply to chairs with 24” rear wheels/aluminium handrims, legrests, and height-adjustable push handles.
Seat height: 44–55 cm
Back support height: 31–45 cm
Back support adjustable: -5° to +15°
Transport width: 23 cm
Dimensions and tolerance: +/– 1 cm ().
Note! Wheelchairs with adjustable back support upholstery have a longer seat depth when the back straps are slackened. We recommend that you use our prescription forms when ordering Etac wheelchairs.
