Etac Cross 5

Combines maximum comfort with optimum functionality.

The best seating and propulsion
The multi-adjustable back support, the unique frame design and the large variety of options ensure each user a wheelchair with the best seating and propulsion properties possible.

Shape is created with the user in the wheelchair
Adjusting Cross 5 wheelchair is easy and requires minimum of tools. Choose seat width and the wheelchair can be set and reset to meet individual needs. The multi– adjustable 3A back support can be set asymmetrically and also be to extend the seat depth. All fine tunings can be done with the Cross 5 wheelchair user positioned in the chair. The chassis' unique stability means that the Cross 5 wheelchair responds rapidly while propelling and turning.

Cross 6 campaign page - Discover card item block

Right wheelchair. Right now and tomorrow.

Etac Cross 6 is designed in collaboration with experienced clinicians confirming the new easier adjustments will save valuable assessment time. Etac Cross 6 can always be readjusted for better sitting and changing needs. Durable and adjustable for the first user and the users after. - Right wheelchair. Right now and tomorrow.
Clinical-guide-Discover_card_item_block

Cross 6 - Clinical assessment guide

This is a general guidance for assessments with the user in the Cross 6. Our goal is that this guide will be a practical and chronological guide for clinicians when working with Cross 6. Open this pdf, download it, and be inspired.
Cross Body shapes - Discover-card item block

Shape up for different body shapes

We are all individuals, with different body shapes, abilities and needs. In a seated position the shape and support for the upper body is of outmost importance, from the pelvis and up. Every body is different - Let´s build the correct support and shape up.

Features

The combination of angle, height and contour adjustments create the best conditions for trunk support and stability. Available in Standard and high version. Easy to adjust.

3A Back Support

The combination of angle, height and contour adjustments create the best conditions for trunk support and stability. Available in Standard and high version. Easy to adjust.
The rear wheels can be fitted in four positions in each hole. More settings both horizontally and vertically, ensures the perfect seat height and balance.

36 + 2 rear wheel positions

The rear wheels can be fitted in four positions in each hole. More settings both horizontally and vertically, ensures the perfect seat height and balance.
Cross 5 has a very durable cross folding frame design with the stability of a rigid frame which ensures a long product life span and the best propulsion properties.

Double cross brace

Cross 5 has a very durable cross folding frame design with the stability of a rigid frame which ensures a long product life span and the best propulsion properties.
Fitting a 20" rear wheel in the upper row, gives a seat height of 34 cm (13½").

Extra low seat height

Fitting a 20" rear wheel in the upper row, gives a seat height of 34 cm (13½").

Variants

Item number
Seat depth (mm)
Seat width (mm)
Total width (mm)
Transport weight (kg)
Weight (kg)
Width with attendant brakes (mm)
35 cm standard 13123001 360-420 +70* 350 560 10,8 15 570
35 cm long 13123002 420-480 +70* 350 560 11,1 15,2 570
37,5 cm standard 13123003 360-420 +70* 375 585 10,9 15,1 595
37,5 cm long 13123004 420-480 +70* 375 585 11,2 15,3 595
40 cm long 13123006 420-480 +70* 400 610 11,3 15,4 620
42,5 cm standard 13123007 360-420 +70* 425 635 11,1 15,3 645
42,5 cm long 13123008 420-480 +70* 425 635 11,4 15,5 645
45 cm, standard 13123009 360-420 +70* 450 660 11,2 15,5 670
45 cm long 13123010 420-480 +70* 450 660 11,5 15,7 670
47,5 cm standard 13123011 360-420 +70* 475 685 11,3 15,6 695
47,5 cm long 13123012 420-480 +70* 475 685 11,6 15,8 695
50 cm standard 13123013 360-420 +70* 500 710 11,4 15,7 720
50 cm long 13123014 420-480 +70* 500 710 11,7 15,9 720

Front seat height: 34–56.5 cm (13½"-22¼")
Rear seat height: 34–53 cm (13½"-20¾")
Back support height: 32–45 cm (12½"-17¾") with standard back support 3A. Back support 3A high: 38—51 cm (15"-20")
Transport width: 32 cm (12½")
Seat depth: *Measured with 3A triangular back
Max user weight Cross 5: 135 kg.
Weights and dimensions given are for a chair with 24" rear wheels with quick-release hubs, high-pressure tire, aluminium handrims, leg supports, foot supports, brakes, arm supports, 6½" castors with medium forks. The measurements given may vary by +- 2%.

Accessories

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.

Assembly instruction
Adapter seat upholstery loop/loop (pdf)
Assembly instruction
Adjustment Cushion Universal (pdf)
Assembly instruction
Angle adjustable legrest with foldable calf support (pdf)
Assembly instruction
Angle-adjustable legrest (pdf)
Assembly instruction
Angled brake handle (pdf)
Assembly instruction

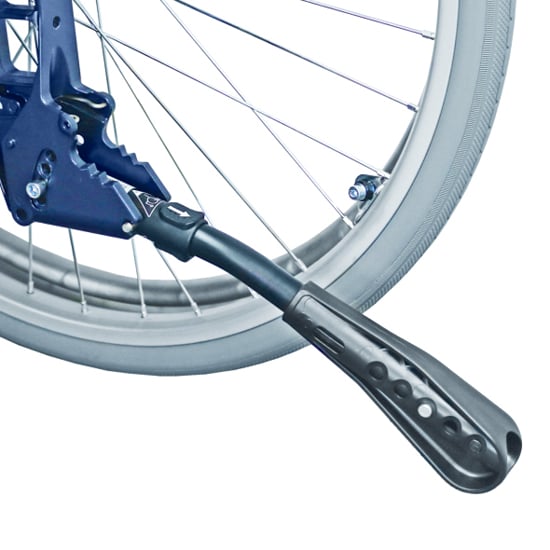

Anti-tip mod 2 low sh 34-37 (pdf)
Assembly instruction
Anti-tip mod 2 std sh 37-55 (pdf)
Assembly instruction
Anti-tip telescoping multi cc59 cpl/cc66 cpl (pdf)
Assembly instruction

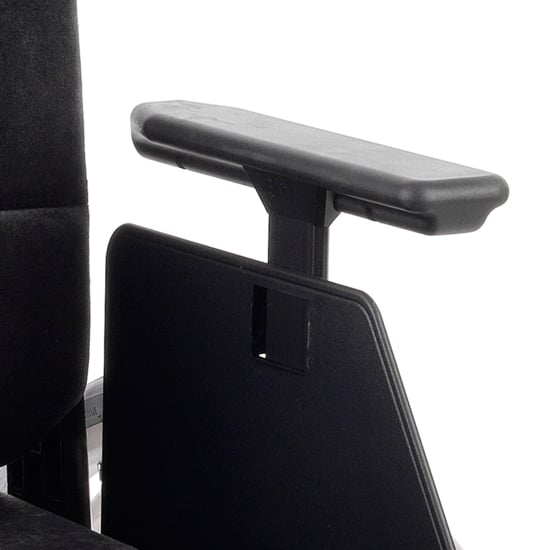

Armrest (with fingerscrew) (pdf)
Assembly instruction
Armrest cushion, wide and soft (pdf)
Assembly instruction
Armrest pad hemi M100/Cross (pdf)
Assembly instruction
Assembly kit front fork attachment (pdf)
Assembly instruction
Attachment kit handrim (pdf)
Assembly instruction
Attachment push handle (pdf)
Assembly instruction
Back support brace mod 4 (pdf)
Assembly instruction
Back support kit Cross mod 3A 35-60 cm (pdf)
Assembly instruction
Backrest brace (pdf)
Assembly instruction
Brake lever extension (pdf)
Assembly instruction
Calf strap Cross (pdf)
Assembly instruction
Calf support (pdf)
Assembly instruction
Cane holder universal (pdf)
Assembly instruction
Comfort wedge backrest (pdf)
Assembly instruction
Comfort Wedge pair - H20 B110 L185 / H25 B175 L200 /20 B90 L130 (pdf)
Assembly instruction
Counterweight amputee Cross (pdf)
Assembly instruction
Cover trunk support (pdf)
Assembly instruction
Drum Brake System Cross 5 (pdf)
Assembly instruction

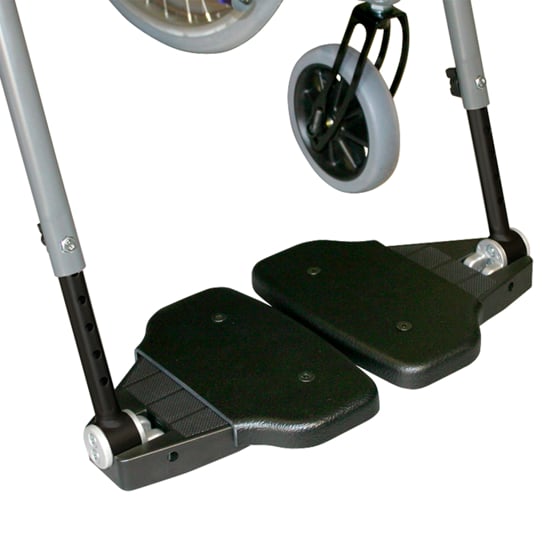

Extension footrest (pdf)
Assembly instruction
Footrest one piece (pdf)
Assembly instruction
Frontfork attachment widened/low/std (pdf)
Assembly instruction
Head support (pdf)
Assembly instruction
Head support attachment (pdf)
Assembly instruction
Head support attachment mod 4 (pdf)
Assembly instruction
Heel-loop (pdf)
Assembly instruction
IV stand compl Cross 5 (pdf)
Assembly instruction
Legrest amputee (pdf)
Assembly instruction
Legrest elevating / Attachment legrest / Calf support (pdf)
Assembly instruction
Legrest elevating / Attachment legrest / Calf support (pdf)
Assembly instruction
Legrest for plaster (pdf)
Assembly instruction
Lockable legrests (pdf)
Assembly instruction
Locking (pdf)
Assembly instruction
Mudguard, right/left (pdf)
Assembly instruction
Padding foot support (pdf)
Assembly instruction
Padding for solid foot support (pdf)
Assembly instruction
Positioning Belt, Cross 5 (pdf)
Assembly instruction
Push handle fixed Cross compl (pdf)
Assembly instruction
Push handle fixed Crossback 3A (pdf)
Assembly instruction
Quadraplegic wheel release for 22", 24", 26" Rear wheel (pdf)
Assembly instruction
Side Cushion Back Support right/left (pdf)
Assembly instruction
Side stop (pdf)
Assembly instruction
Single hand brake, right and left hand side (pdf)
Assembly instruction
Single-hand drive (pdf)
Assembly instruction
Soft pad thigh support (pdf)
Assembly instruction
Solid seat for Cross, Cross XL, Next and Next comfort (pdf)
Assembly instruction
Spoke covers (pdf)
Assembly instruction
Thigh support (pdf)
Assembly instruction
Tray (pdf)
Assembly instruction

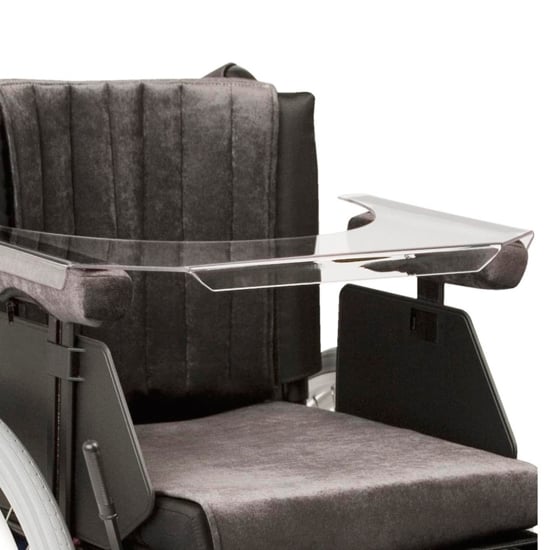

Tray Hemi (pdf)
Assembly instruction
Tray Hemi Communication tip up (pdf)
Assembly instruction
Trunk Support -0 mm / +15 mm / -15 mm / -45 mm (pdf)
Assembly instruction
Trunk Support compl swing away - hö/vä (-45 mm / -15 mm / 0 mm) (pdf)
Assembly instruction
Trunk support Dartex fixed - 3A H10 L15 compl (pdf)
Assembly instruction
Trunk support medium swing away ri / le (pdf)
Assembly instruction
Trunk support PUR large fixed - 3A H9 L19 compl (pdf)
Assembly instruction
Upholstery seat extender Cross (pdf)
Assembly instruction
Widening kit 10 mm Cross 5 (pdf)
Assembly instruction
Widening pad for back support (pdf)
Combination Agreement
Combination Agreement Etac Wheelchairs (pdf)
EC Declaration of conformity
DoC Cross 5 (pdf)
Pre purchase guide
Pre Purchase guide (pdf)
Prescription form
Etac Cross 5 prescription form, clickable. Right click, download as pdf and open in Acrobat reader! (pdf)
Product folder
Etac Cross 5 and Cross 5 XL (pdf)
Recondition instruction
Etac manual wheelchairs Re-use (pdf)
Sparepart list
Note! Right click, download and open in Acrobat Reader! Clickable version. (pdf)
Sparepart list
Printable version. Cross 5/Cross 5 XL Spareparts list EN (pdf)
User manual
Manual Cross 5 EN (pdf)
User manual
Manual Cross 5 FI (pdf)

Videos

Cross 5 - How to change front fork housing

Cross 5 - How to change front fork housing

Etac Cross 5 - Guide - Extend seat depth EN

Etac Cross 5 - Guide - Extend seat depth EN

Etac Cross 5 - Guide - Adjust the strap back EN

Etac Cross 5 - Guide - Adjust the strap back EN

Etac Cross 5 - Guide - Adjust the back support lumbar angle EN

Etac Cross 5 - Guide - Adjust the back support lumbar angle EN
