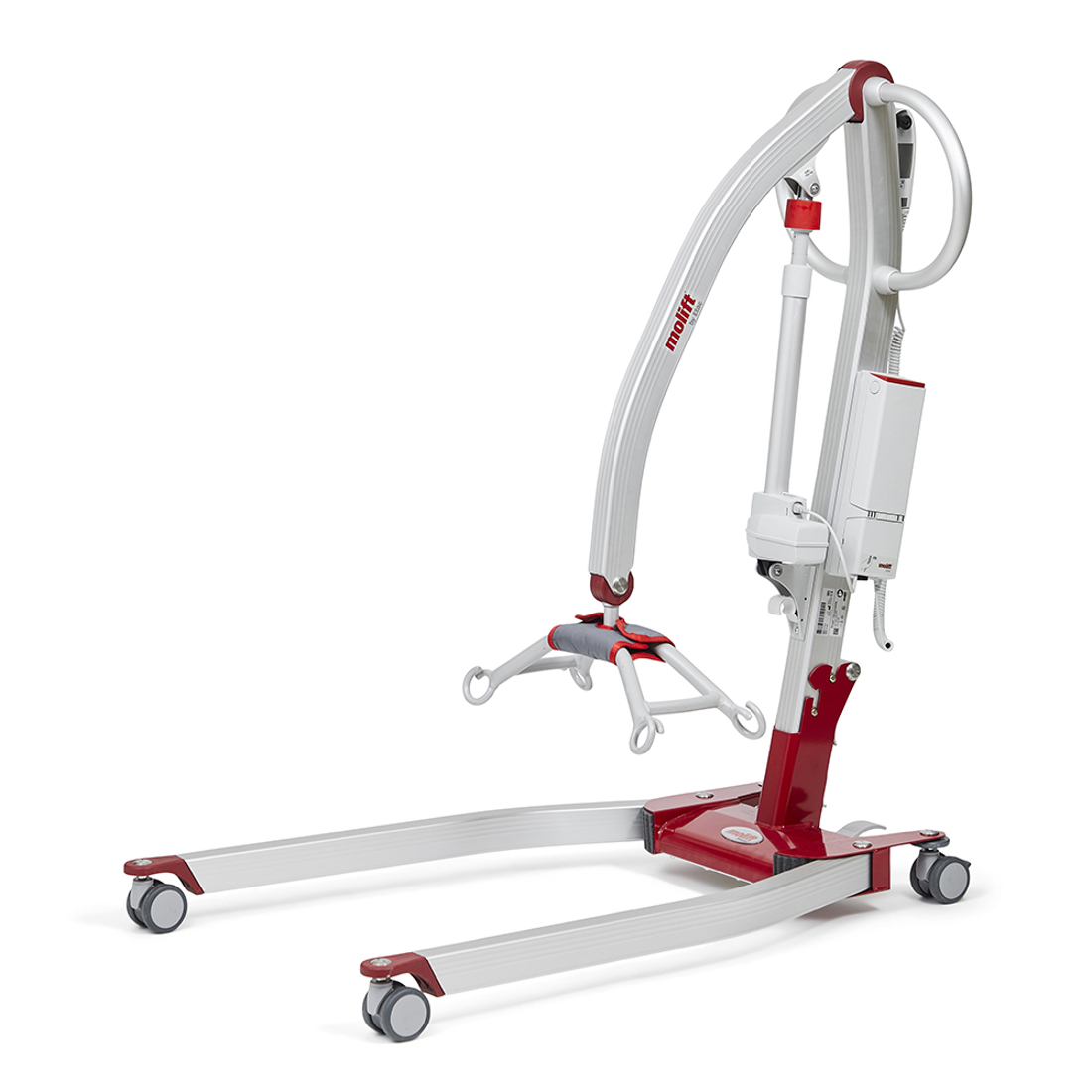

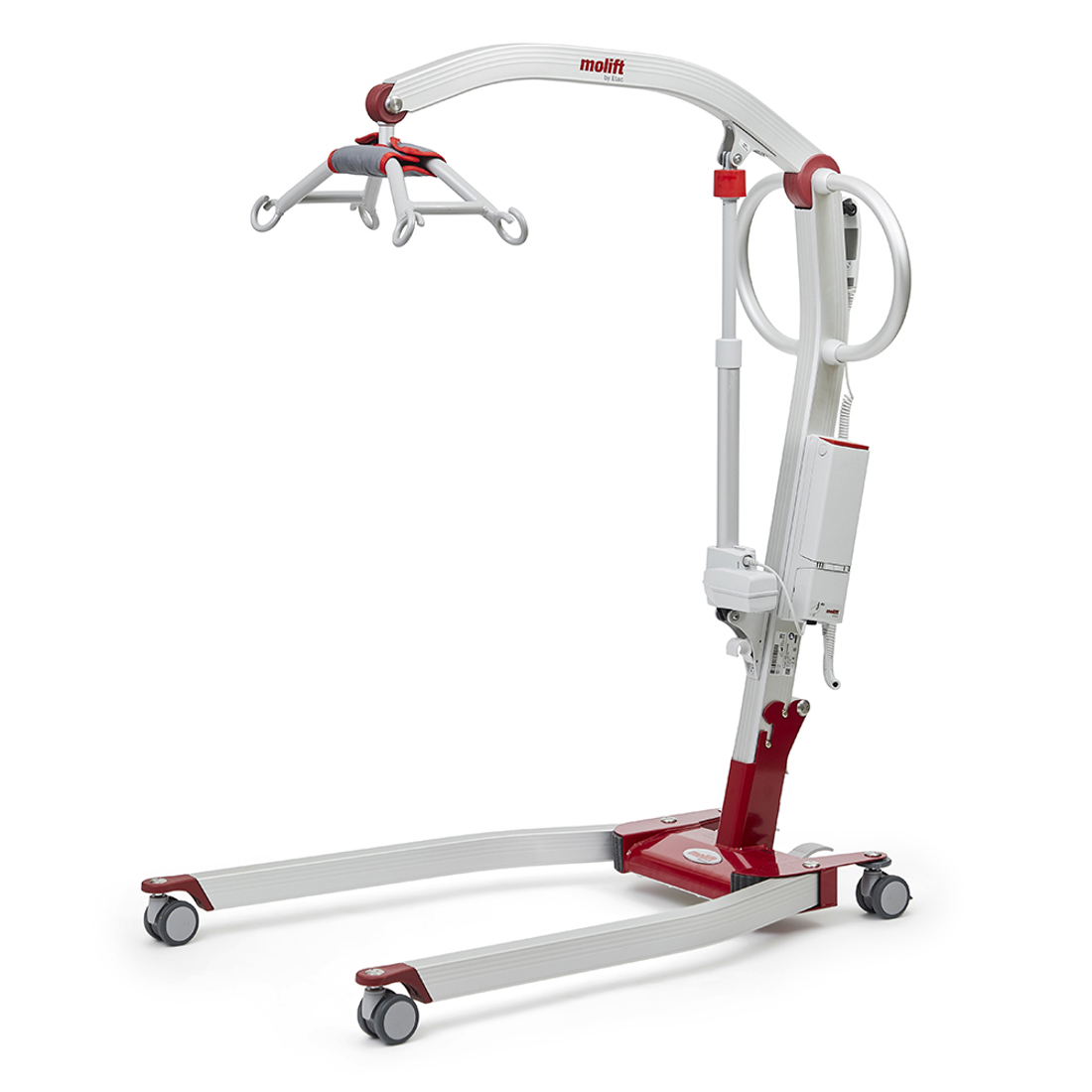

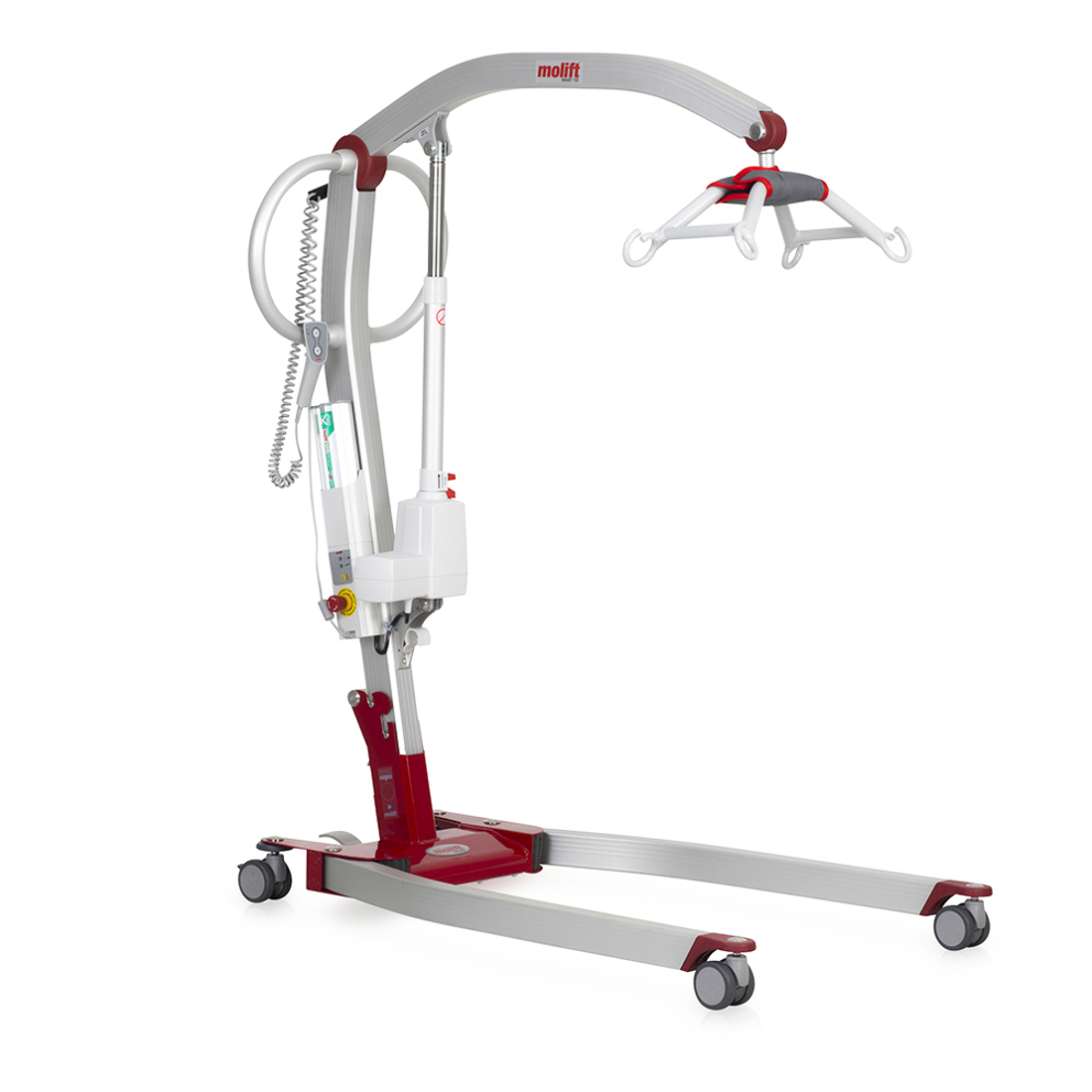

Molift Smart 150

Light, foldable and transportable without tools

Molift Smart 150 is designed to be easily wheeled and transported to where it is required. It is designed for home care, travelling and easy storage. Molift Smart 150 is foldable in one piece without using any tools.

Low weight and unique construction
Due to its low weight, small footprint and unique construction, the Molift Smart 150 is easy to manoeuvre even in narrow spaces.

Comfortable and safe transfer

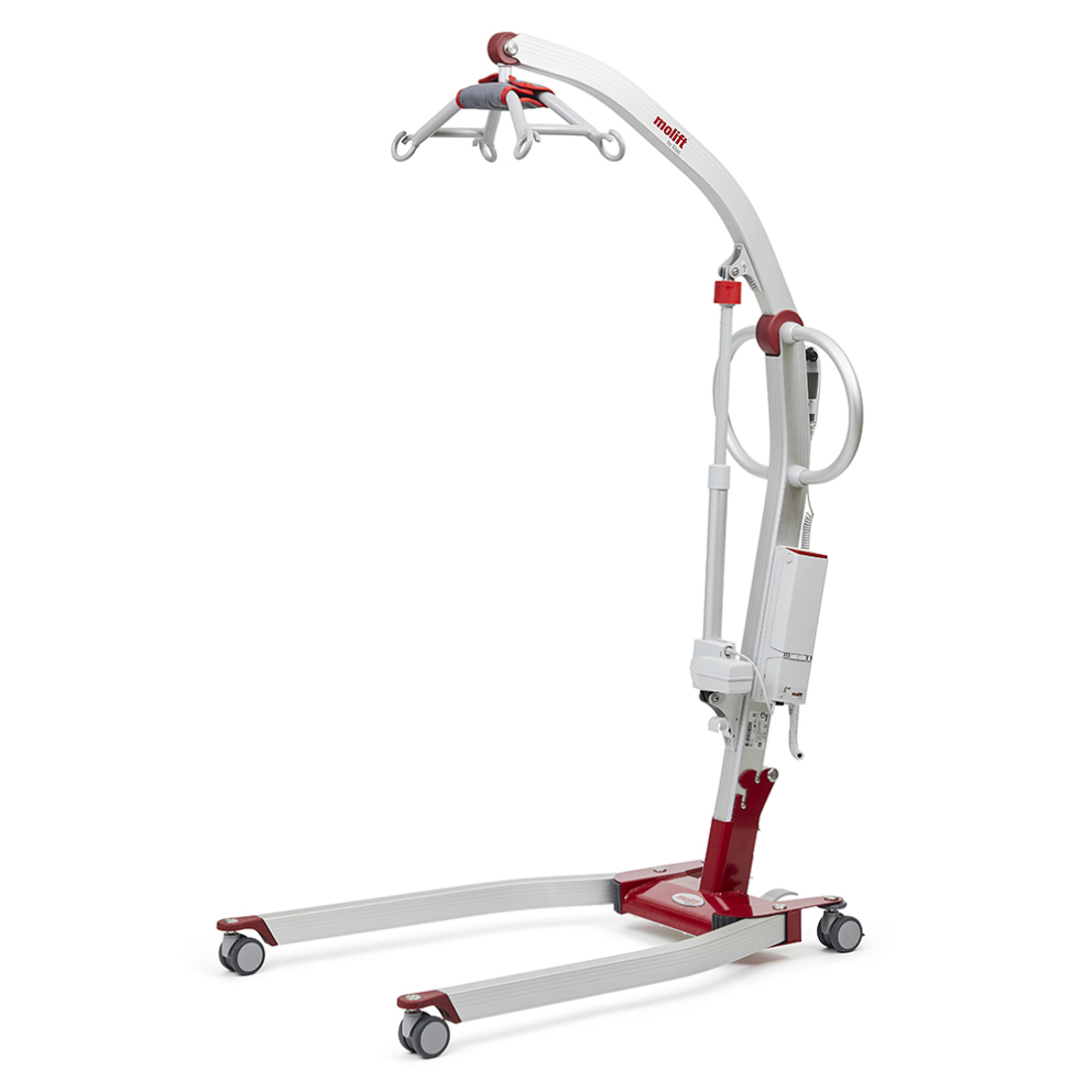

The hoisting range of 27 – 168 cm provides an excellent maximum hoisting height and at the same time gets very low, facilitating hoisting from the floor. The standard 4-point sling bar ensures a comfortable and spacious hoisting position for the user.

Molift Smart 150 has been awarded for Design Excellence by the Norwegian Design Council.

Molift Service Tool on laptop_800x450.jpg

Molift Service Tool - an intelligent software

All Molift hoists are supplied with the Molift Service Tool – an intelligent software that interacts with the hoist, ensures correct service and maintenance and enables analysis of the lift's use.

Features

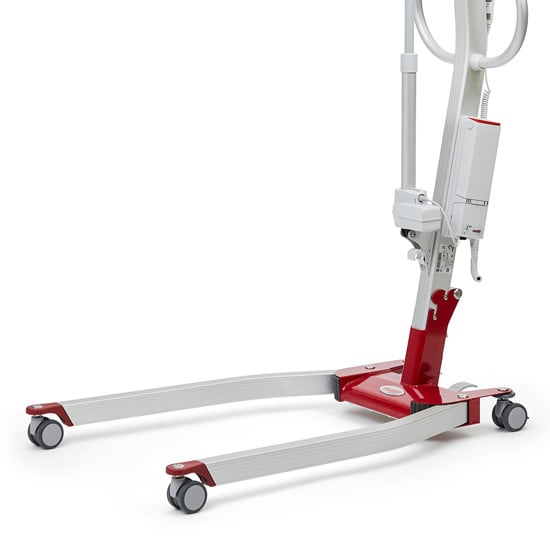

Small footprint

The small footprint makes it easy to maneouver in narrow spaces.

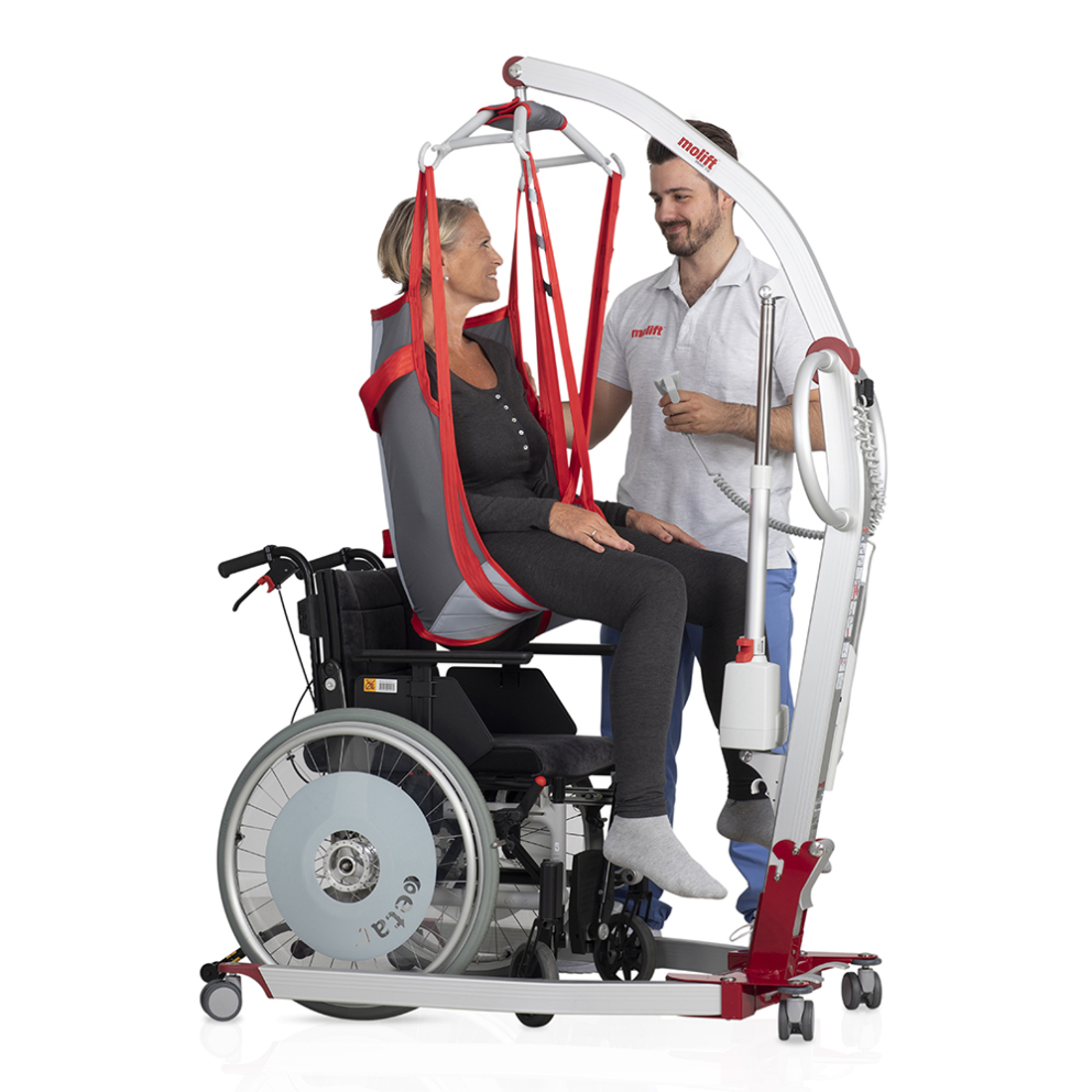

Spacious hoisting position

The 4-point sling bar ensures a comfortable and more spacious hoisting position for the user.

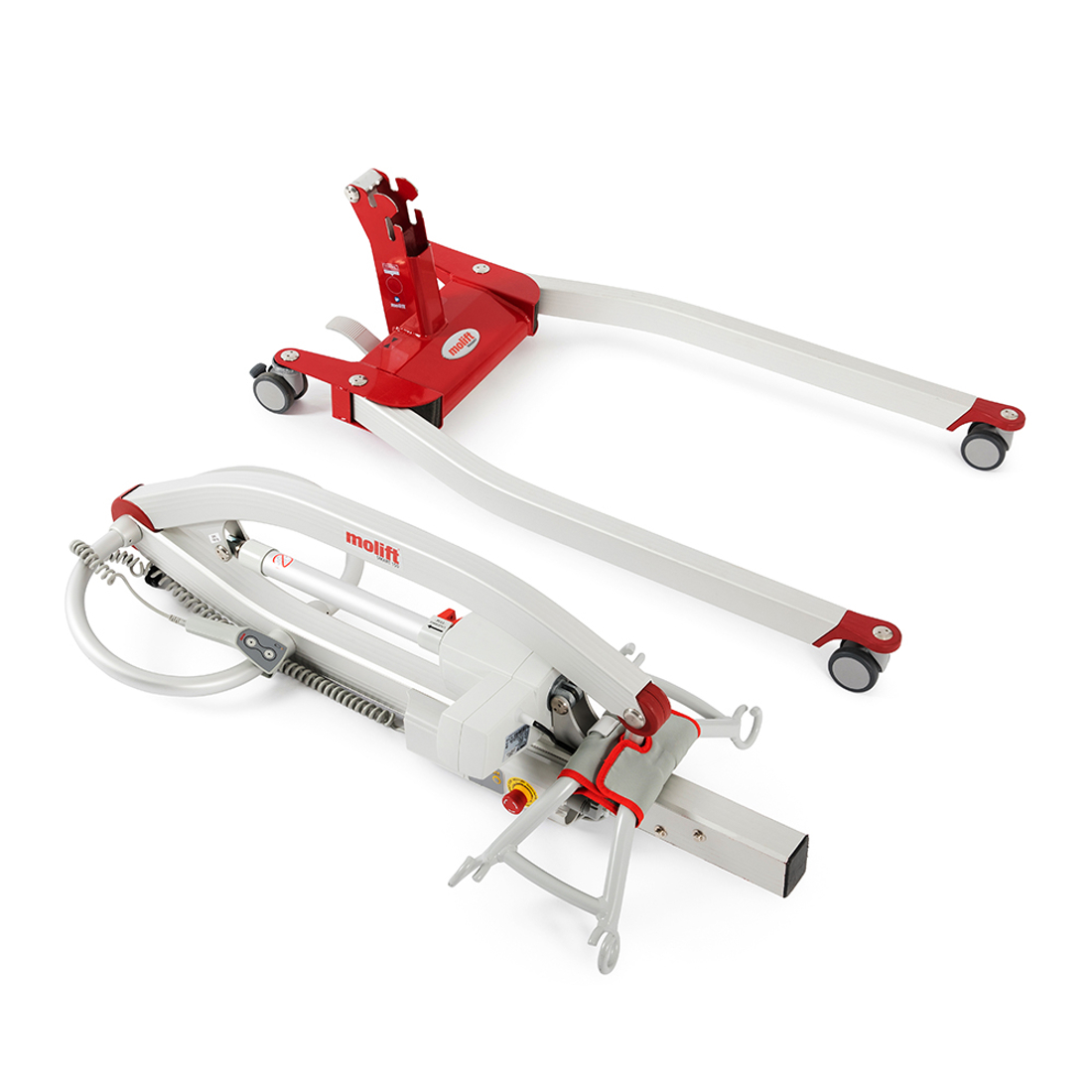

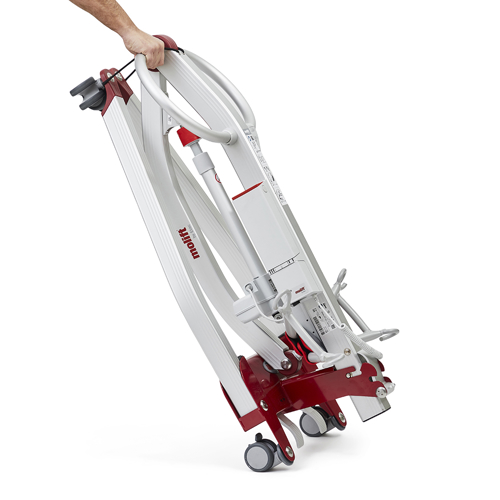

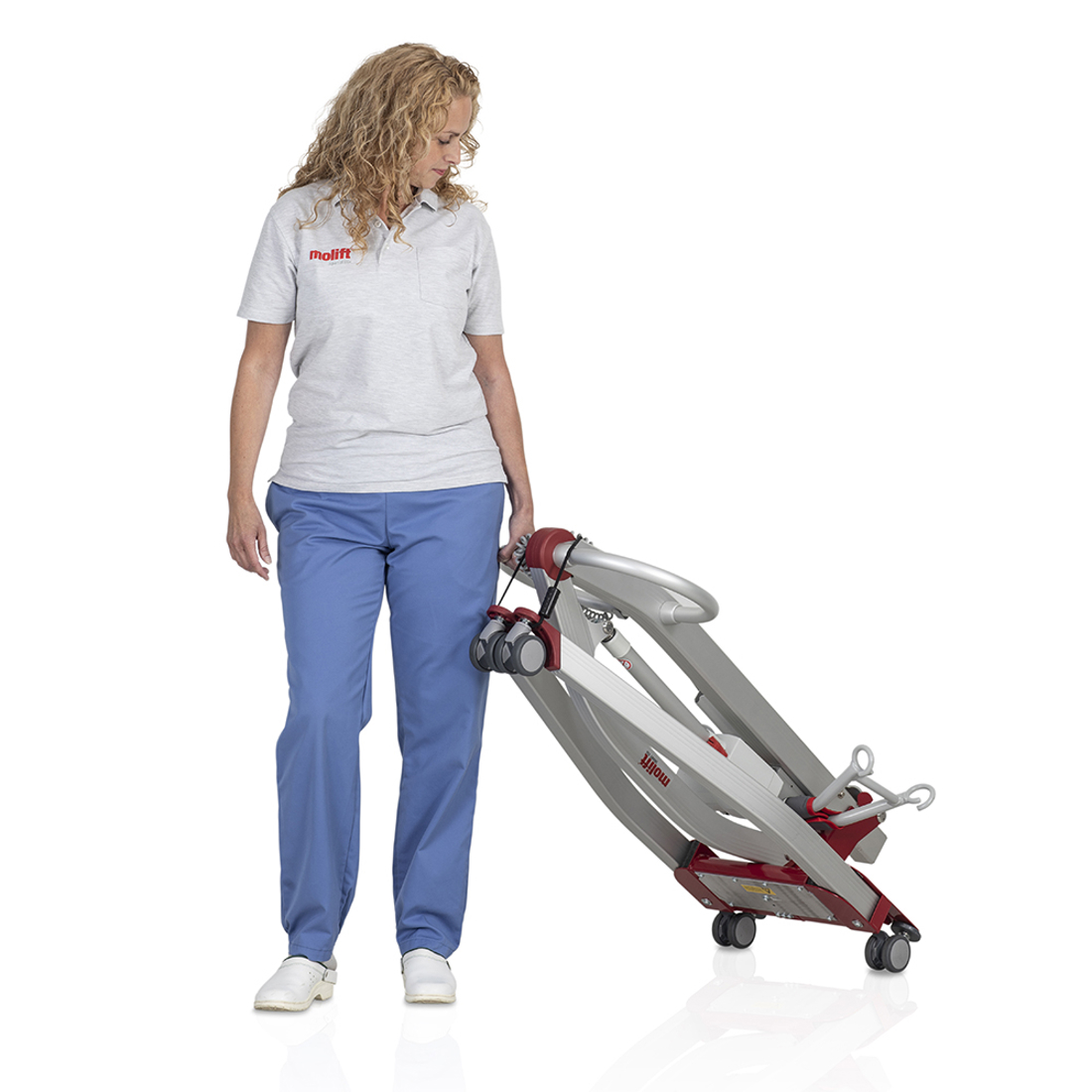

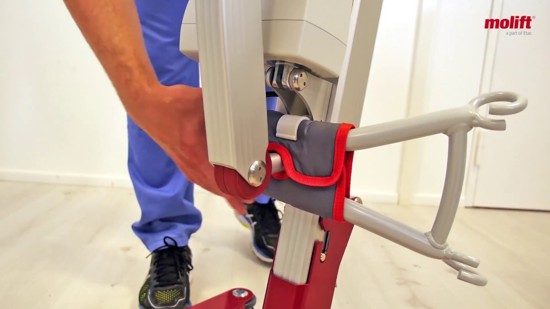

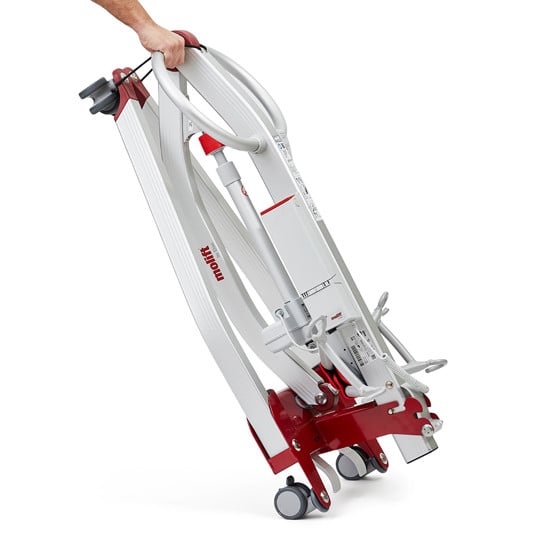

Foldable without tools

Molift Smart 150 is designed to be easy and convenient at home and to transport when travelling. The possibility to easily fold the hoist without tools is a big advantage.

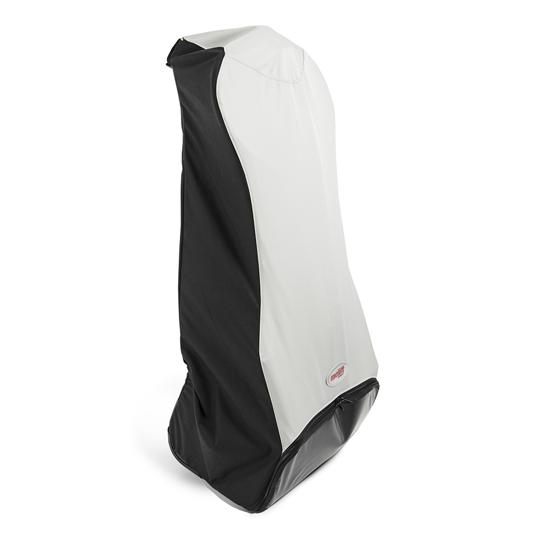

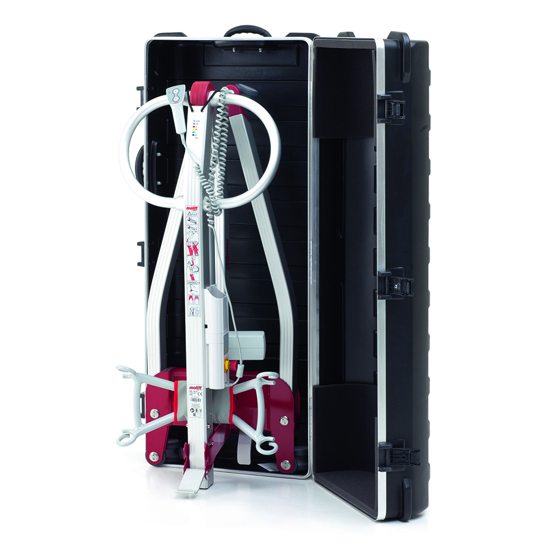

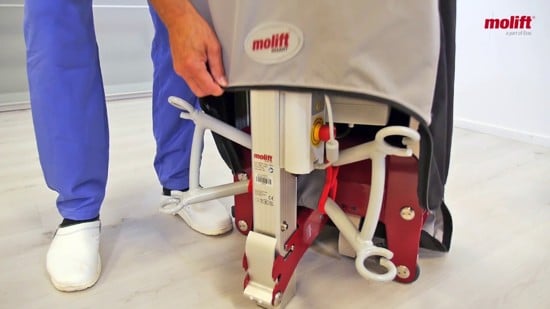

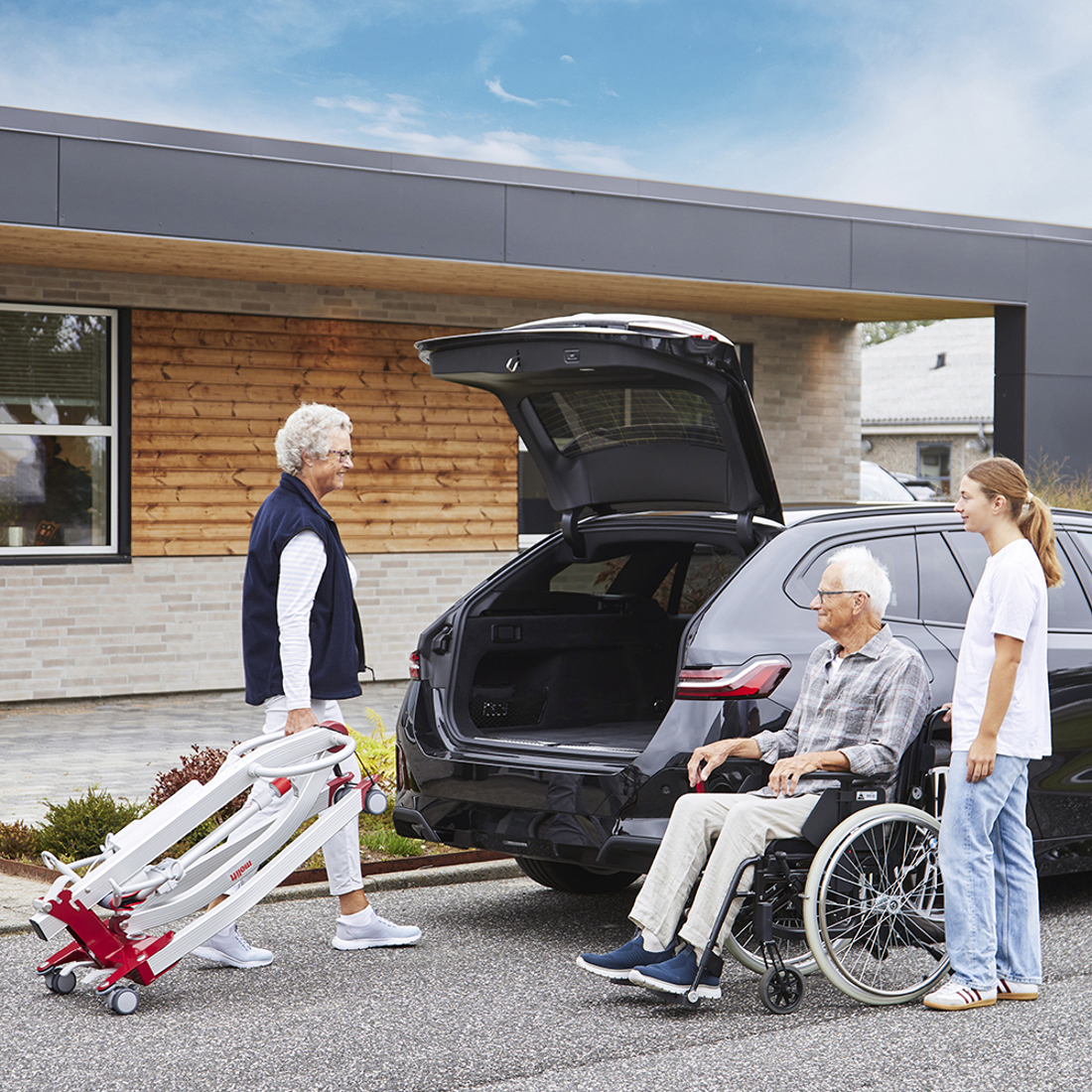

Compact and easy to transport

The design of the Molift Smart 150 makes it very easy and flexible to transport when travelling. The compact size also makes it easy to store at home.

Variants

	Molift Smart 150
Item number	M10200

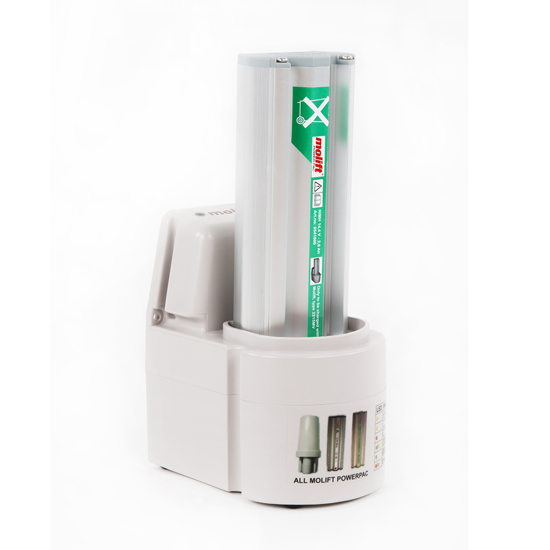

Battery	NiMH 14,4 V-2,6 Ah
Battery charge time (hours)	3
Hoisting height max (mm)	1665
Hoisting height min (mm)	210
Hoisting interval (mm)	1410
Hoisting speed 75 kg (mm/sec)	60
Leg height (mm)	110
Length (mm)	1200
Material	Aluminium, steel
Maximum user weight (kg)	150
Rated performance	40 hoists at: 75 kg and 500 mm
Service software	Molift Service Tool
Weight (kg)	26
Width chassis, legs open inner (mm)	925
Width chassis, outer (mm)	660

Use pH-neutral cleaning agents. If disinfection is required, use isopropyl alcohol. Do not use abrasive or corrosive substances for cleaning.

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
