Molift Mover 300
When a high safe working load is needed
High capacity in a low total weight
With its high hoisting capacity of 300 kg, Molift Mover 300 is the ideal solution for hospitals and care facilities with bariatric clients who have frequent and everyday moving and handling needs. With a total weight of only 39.3 kg the Molift Mover 300 is the lightest in its category. The unique construction and wheel positioning provides excellent manoeuvrability.
Excellent hoisting range
Molift Mover 300 hoists easily from the floor, reaching down to 37 cm at the lowest. Excellent maximum hoisting height at 177 cm provides good free hoisting space and possibility for gait training. The hoist is also equipped with an environmentally friendly NiMh-battery.
Features
Ideal for plus size users

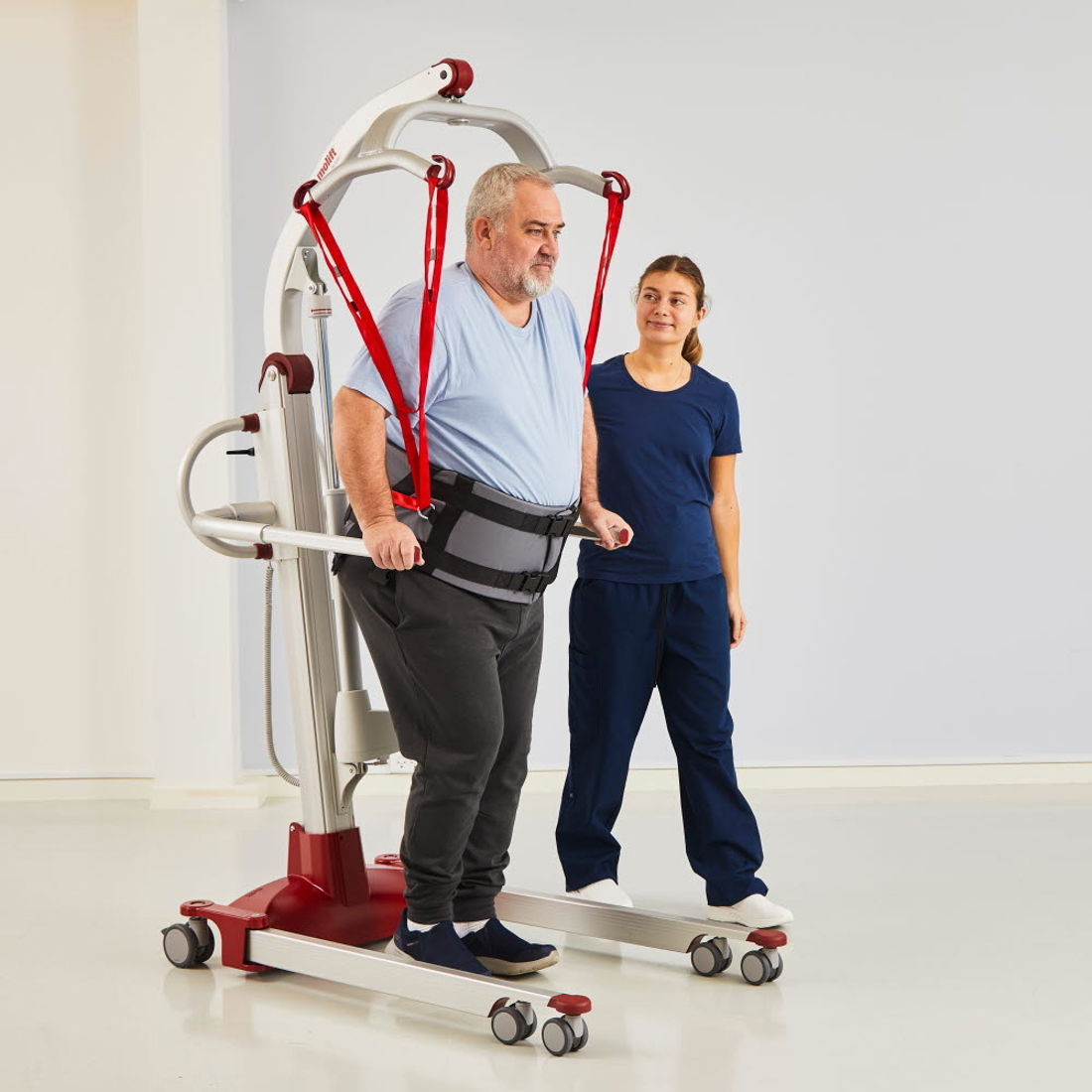

Excellent for gait training
Unique quick-release function
Several alternative sling bars
Variants
| Specifications | |||
|---|---|---|---|
| Battery charge time (hours) | 3 | Rated performance | 50 hoists at: 75 kg and 500 mm |
| Hoisting height max (mm) | 1775 | Safe working load (SWL) (kg) | 300 |
| Hoisting height min (mm) | 375 | Service software | Molift Service Tool |
| Hoisting interval (mm) | 1420 | Width chassis, legs inner (mm) | 550 |
| Hoisting speed 75 kg (mm/sec) | 27 | Width chassis, legs open inner (mm) | 1065 |
| Length (mm) | 1285 | Width chassis, outer (mm) | 690 |
| Material | Aluminium, steel | ||
| Low base chassis, excl. sling bar | Standard | Standard with support arms | |
|---|---|---|---|
| Item number | M15051 | M15050 | M15150 |
| Battery | NiMH 26.4 V-2.6 Ah | NiMh 26,4 V-2,6 Ah | NiMh 26,4 V-2,6 Ah |
| Leg height (mm) | 105 | 115 | 115 |
| Total weight (kg) | 37.6 | 36 | 42 |
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
