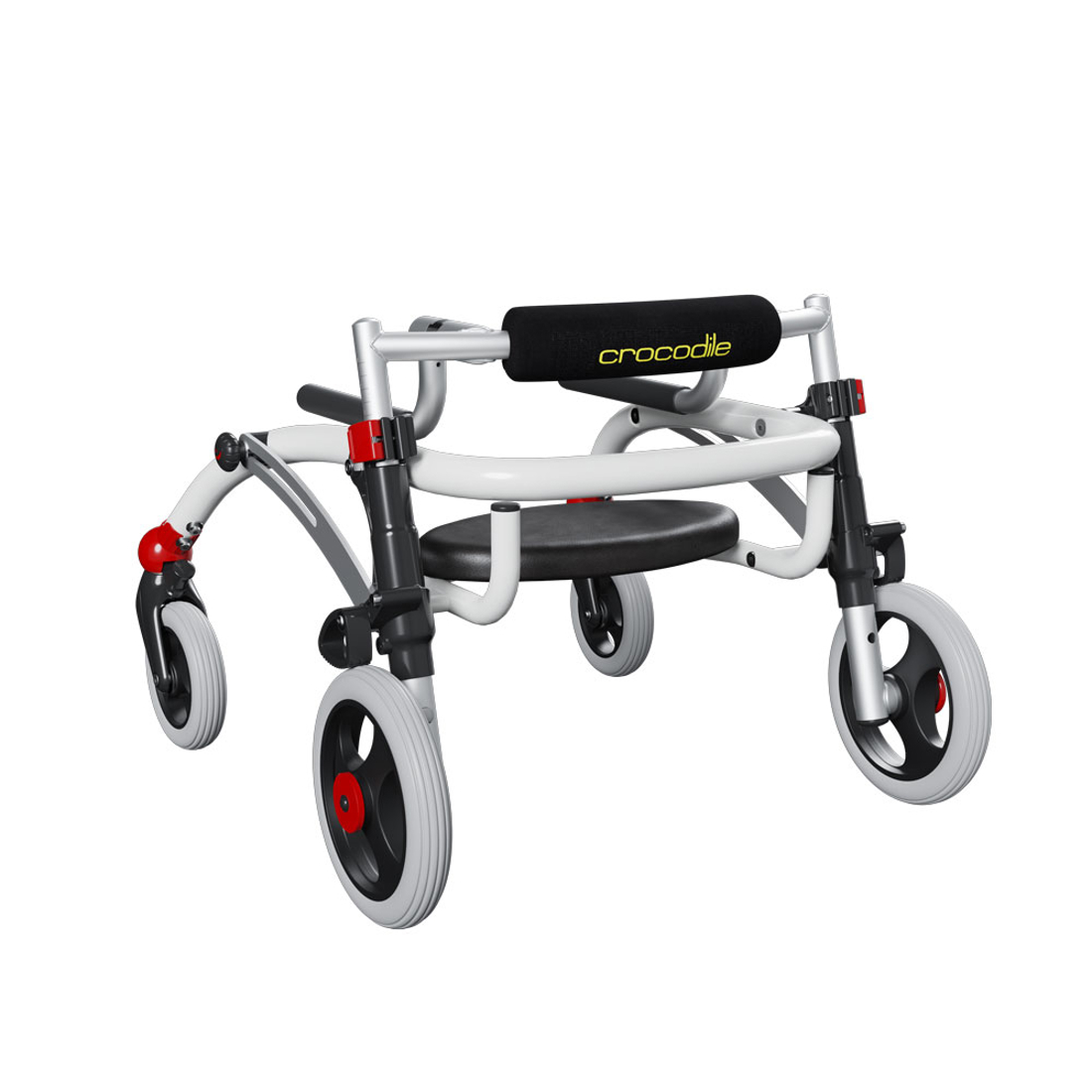

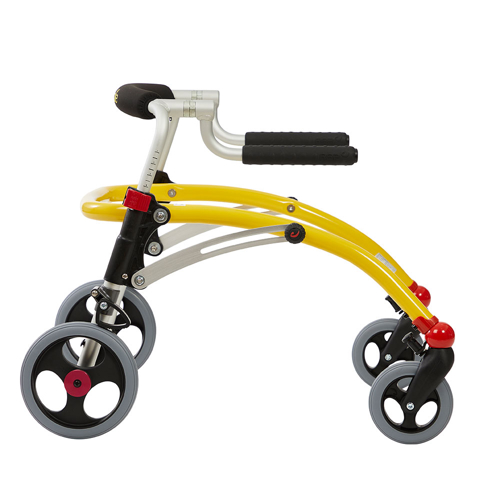

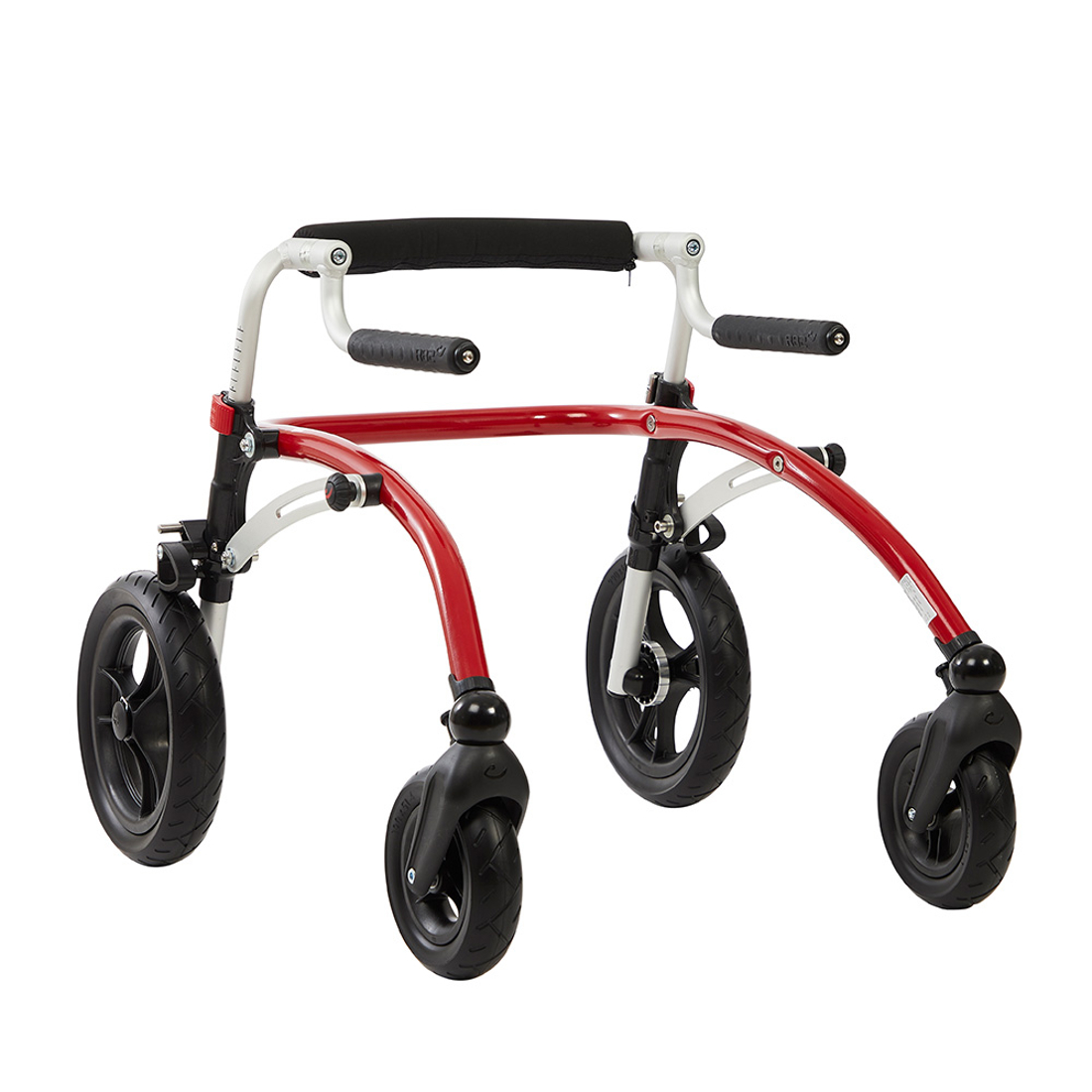

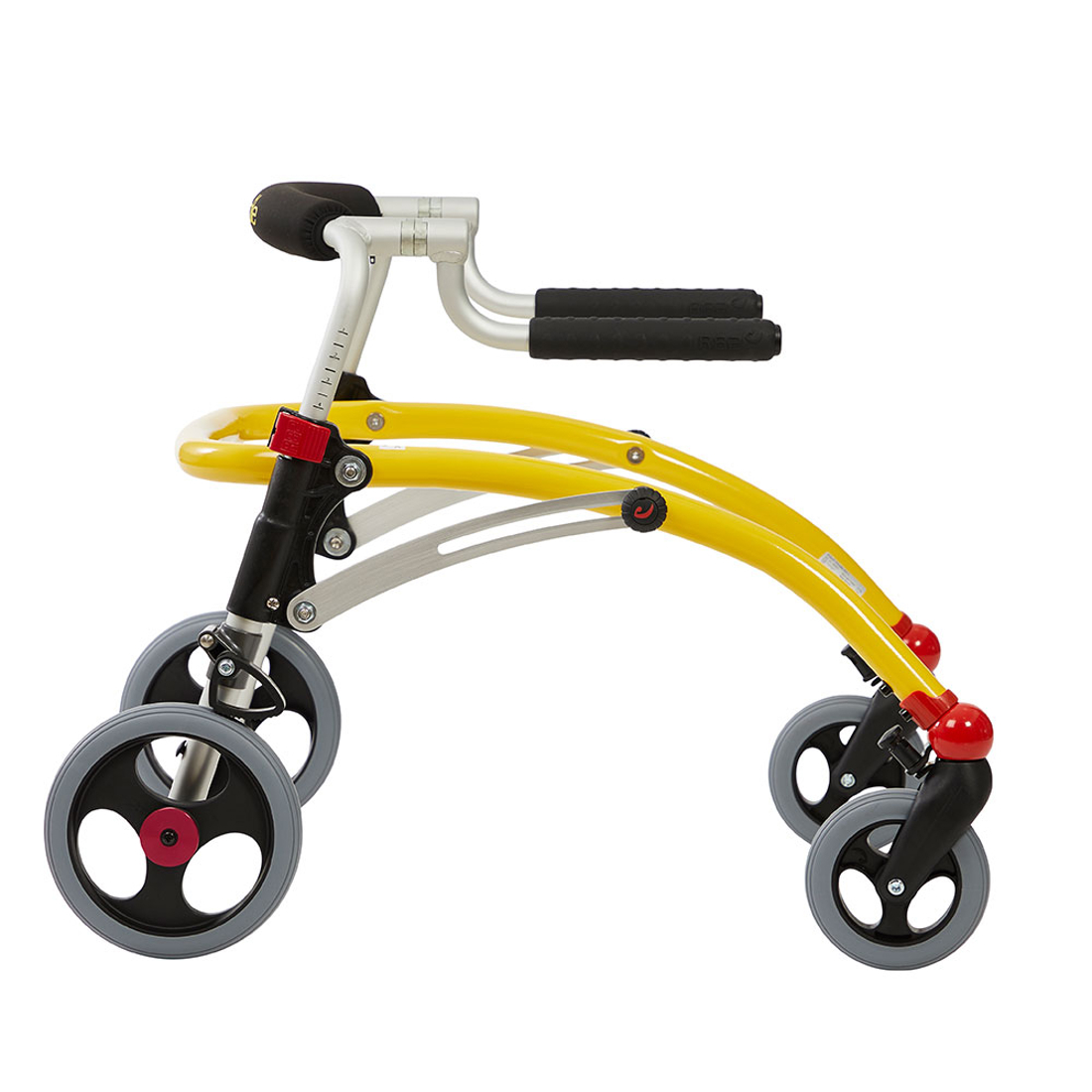

R82 Crocodile

The Crocodile is a walking aid for disabled children and youngsters, who need supplementary assistance with their daily walking.

Crocodile aims for harmony, balance and rhythm. Placed behind the child, the frame allows freedom of movement and facilitates walking in the upright position. The adjustable handles can be individually adapted to a position conveniently close to the child’s body providing maximum support and stability.

The Crocodile is light, easy to dismantle and safe and easy to use. Crocodile can be used just as effectively by a child who needs little support or by a child needing a fully supported upright gait trainer with all the accessories added.

The Crocodile is available in three sizes and suitable for a large group of children and youngsters. Not all children are alike - that is why it is important to use the measuring chart to find the correct size.

Features

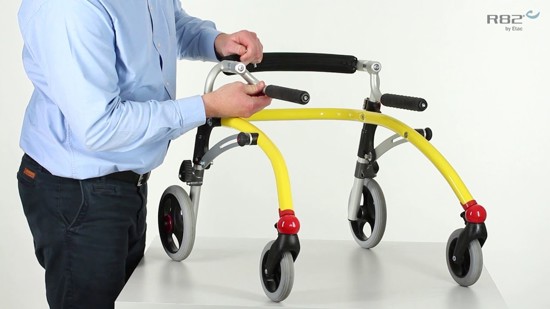

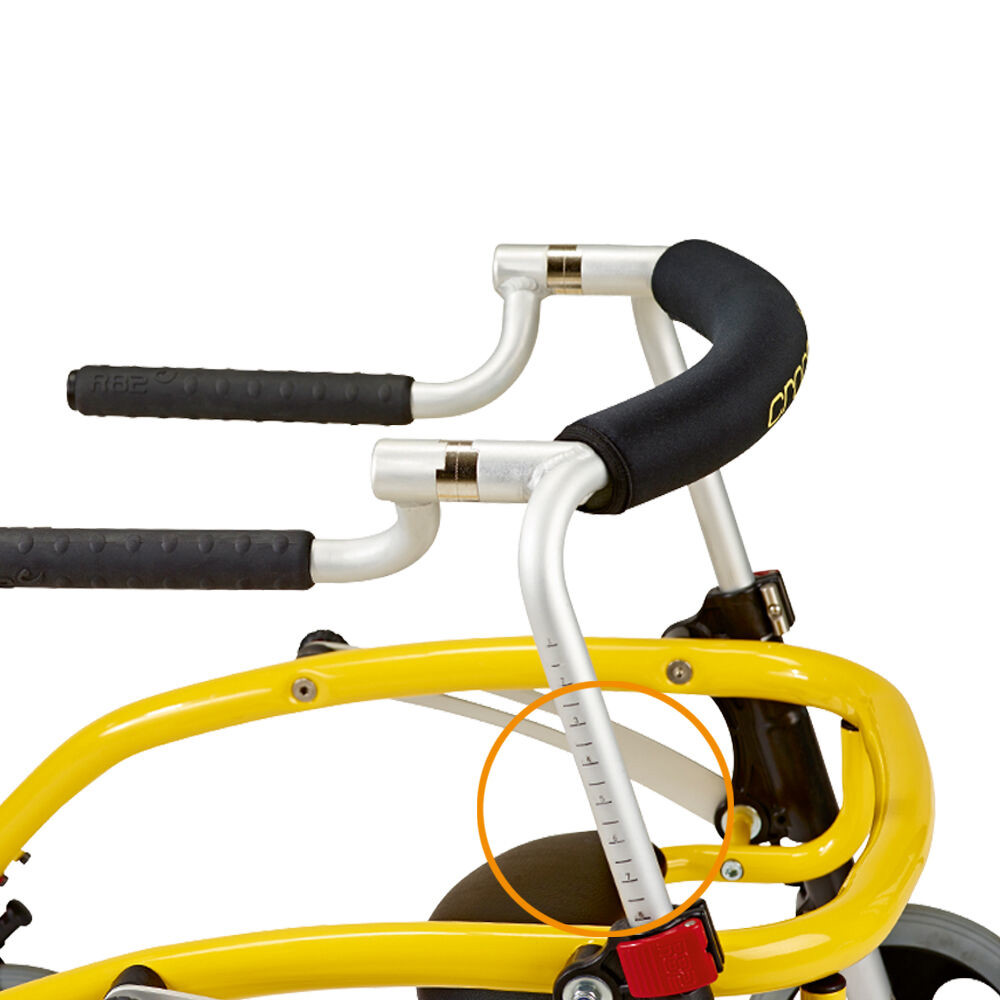

Height adjustable top frame

Height adjustable top frame

Easy to adjust the height without using any tools.

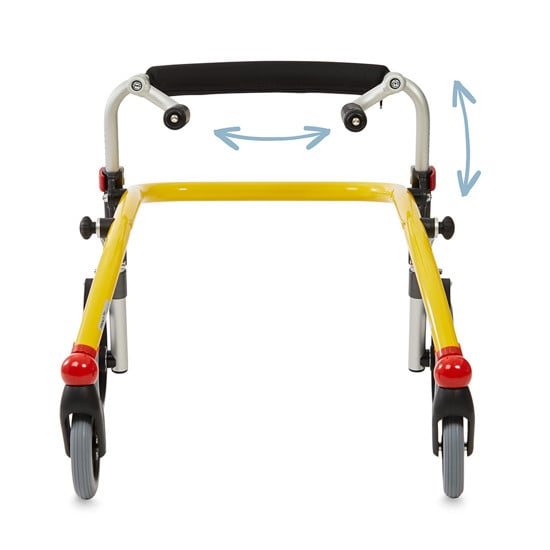

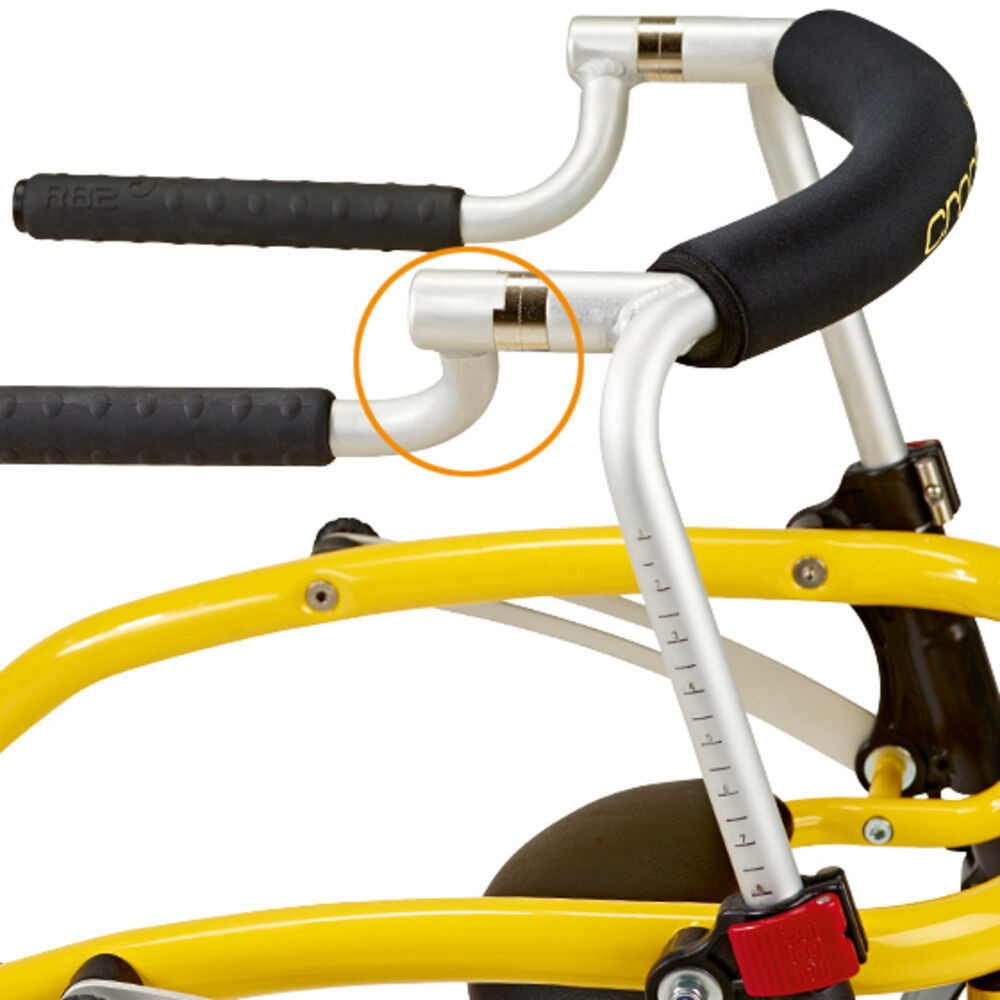

Multi-adjustable handle

Multi-adjustable handle

Allows you to grow in width as well as in height. Positioning the grips close to the body gives better support and a better walking position.
On/off anti-reverse handles

On/off anti-reverse handles

Keep the unit from rolling backwards. It is very easy to lock/unlock once walking skills improve. The anti-reverse wheel stops are used for children with less balance and control.

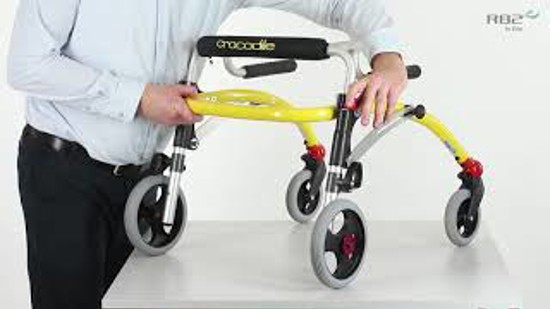

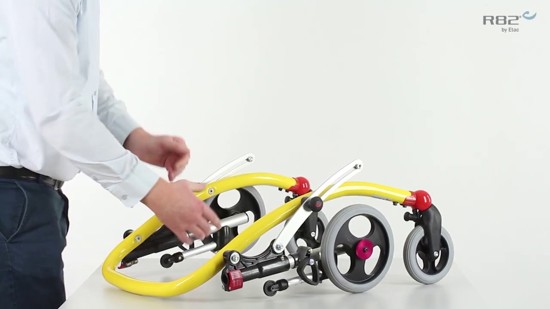

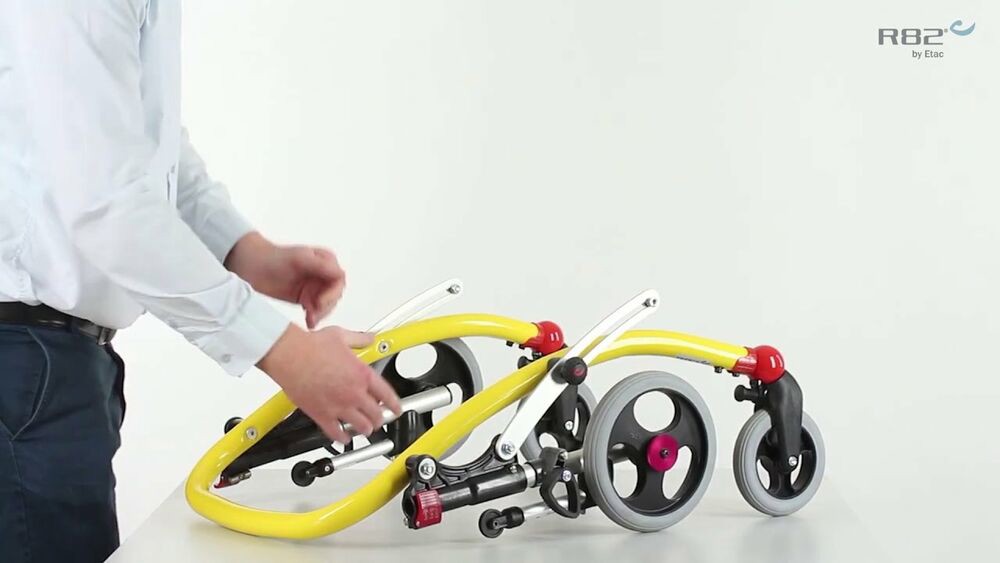

Foldable frame

Foldable frame

Makes storage and transporting the Crocodile easy.

Variants and details

Size 1
Size 2
Size 3
R82 item number 86801 86802 86803
Brake grip distance (mm) 74 74 74
Height from floor to handles (mm) 420-715 550-840 750–1045
Large castor (mm) 30x200 30x200 30x200
Length (mm) 720 840 870
Mass device (kg) 7 7 12
Maximum rated load (kg) 39 54 94
Max user height (mm) 1150 1500 1800
Maximum user mass (kg) 30 45 80
Minimum turning radius (mm) 500 570 570
Overall width (mm) 620 690 690
Small castor (mm) 28x140 28x140 28x140
Static stability downhill (°) 15 15 15
Static stability sideways (°) 4.5 4.5 4.5
Static stability uphill (°) 7 7 7
Width between handles (mm) 190-350 320-600 330-640

Options

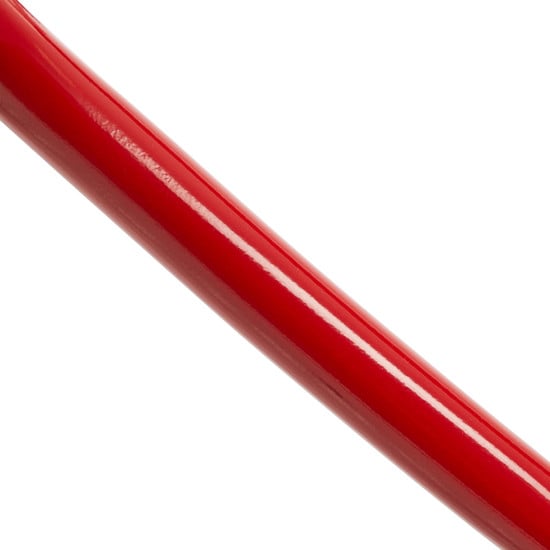

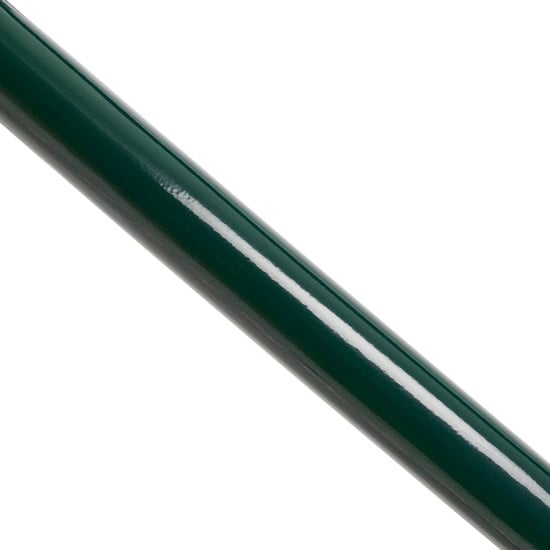

Available in different colours

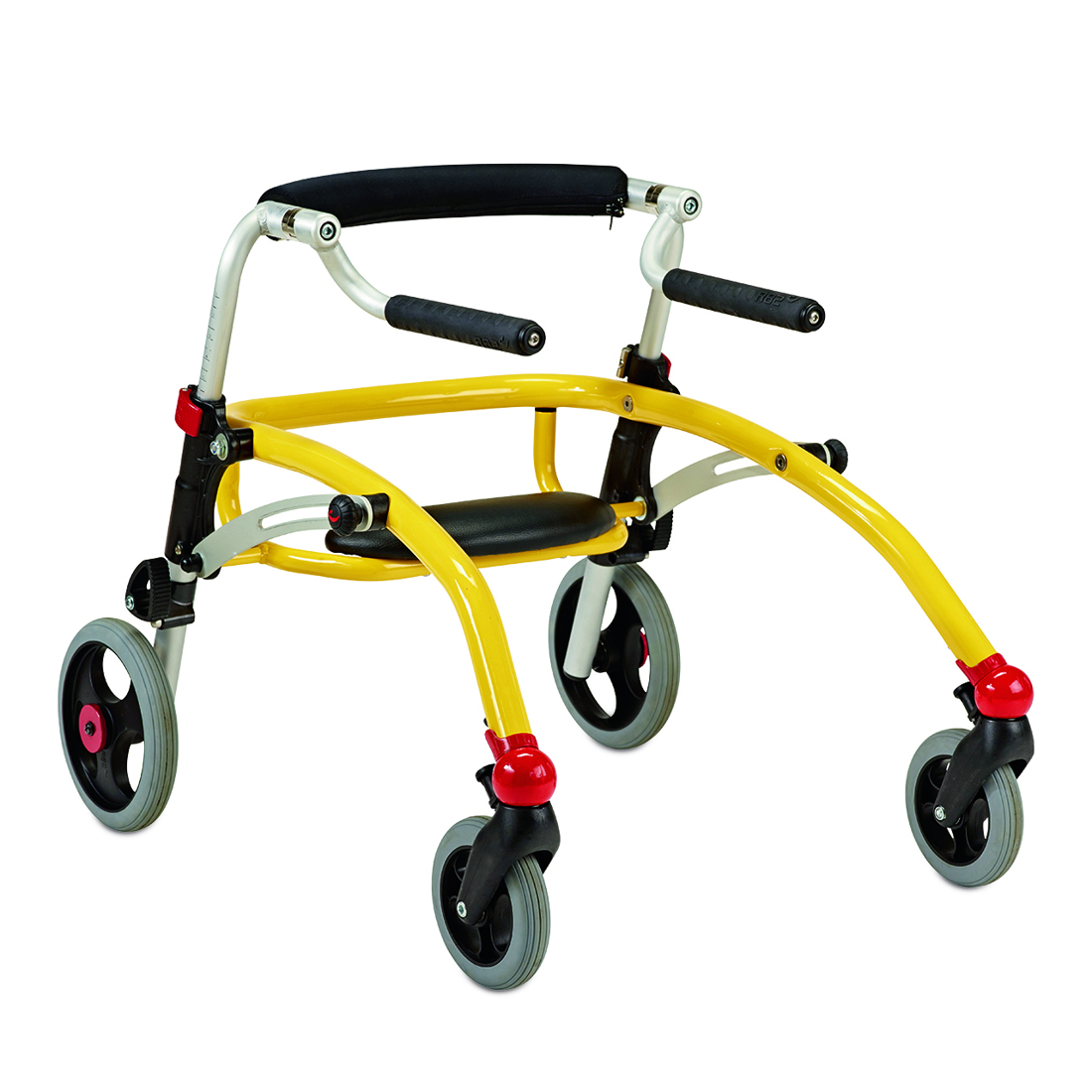

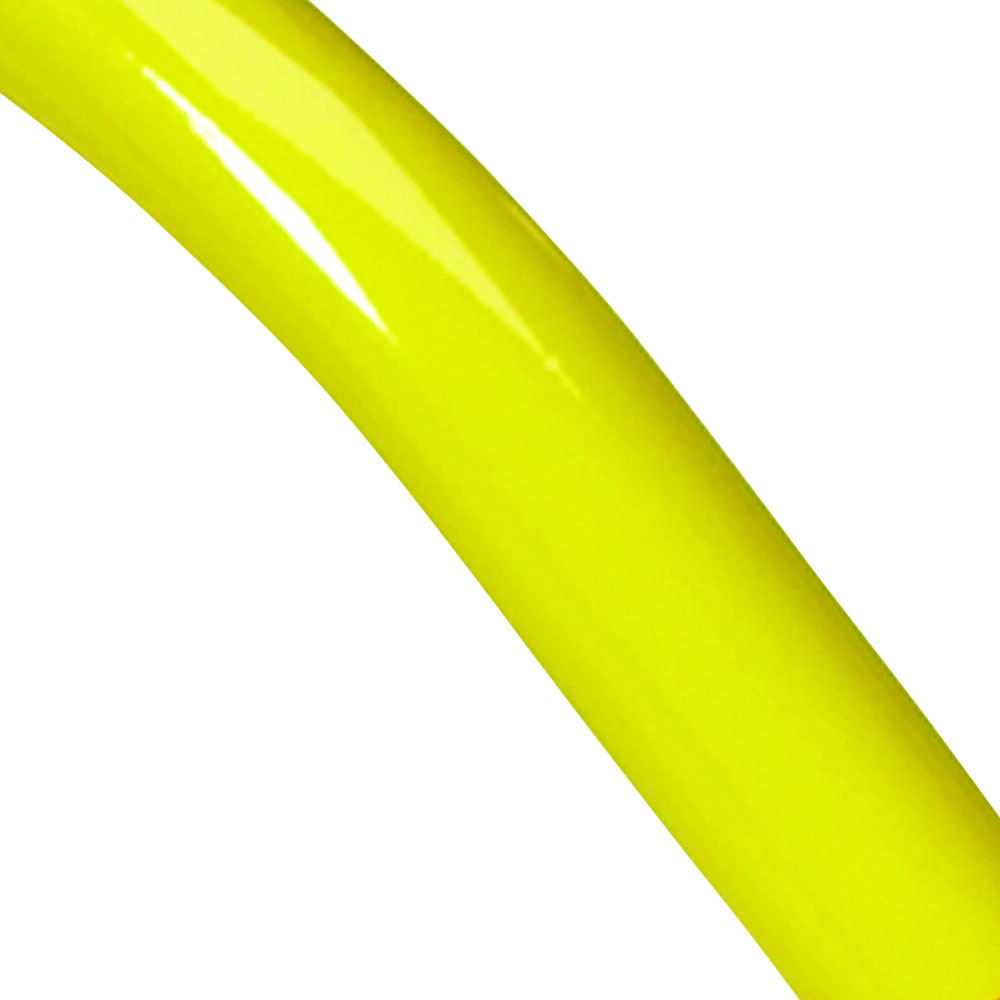

Yellow for size 1

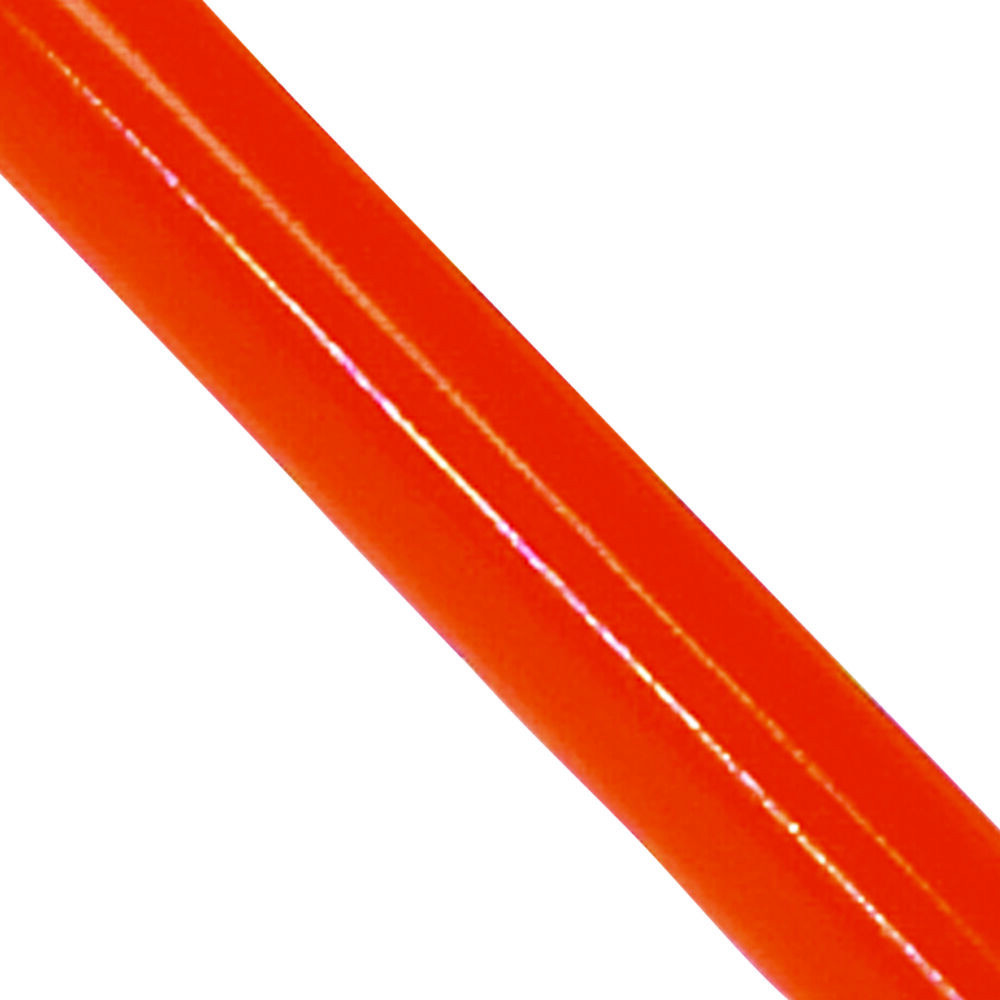

Orange for size 2

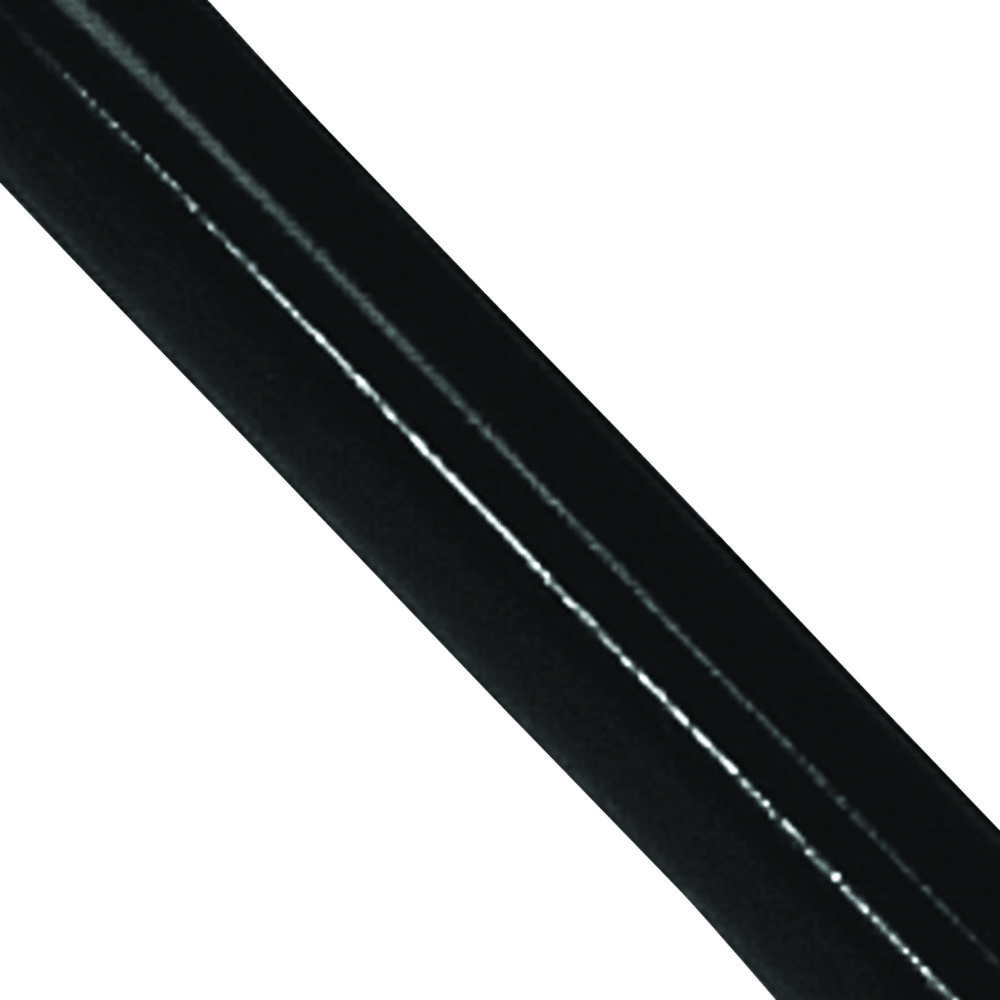

Metallic black for size 2

(Not available in Australia)

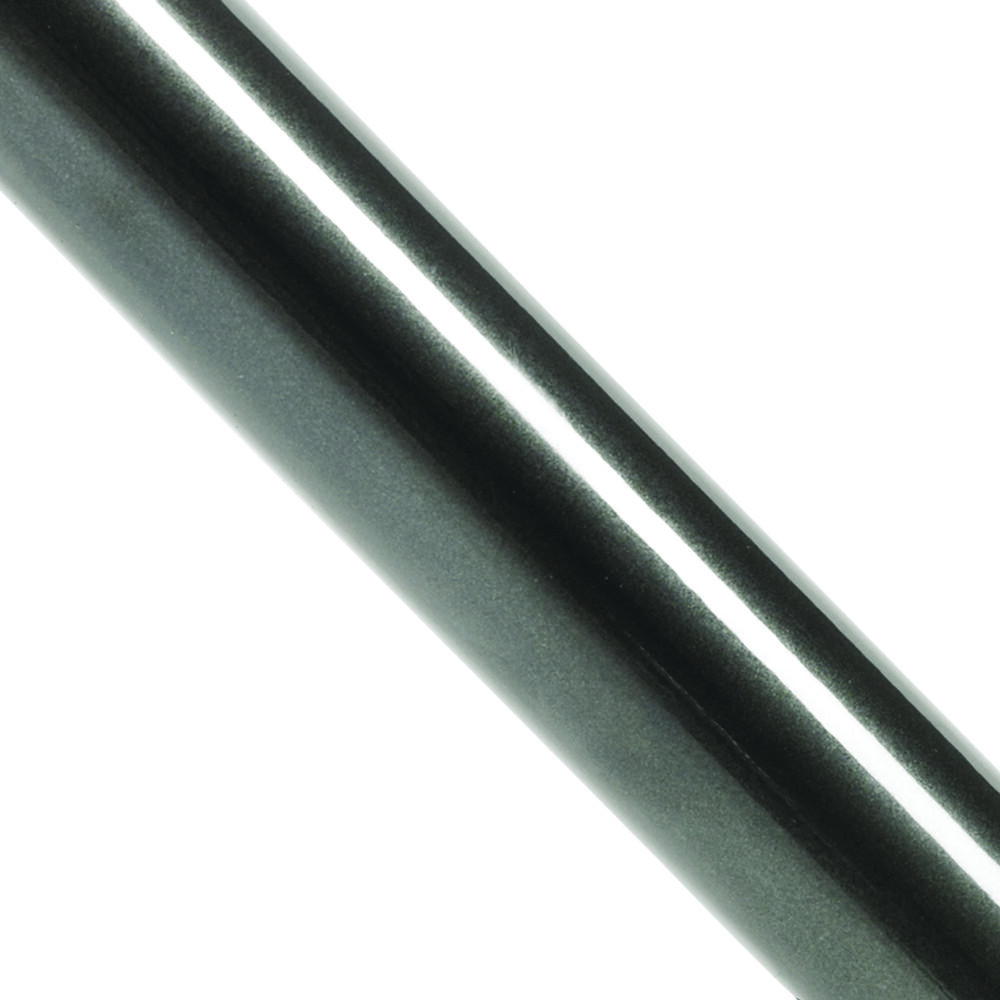

Anthracite grey for size 3

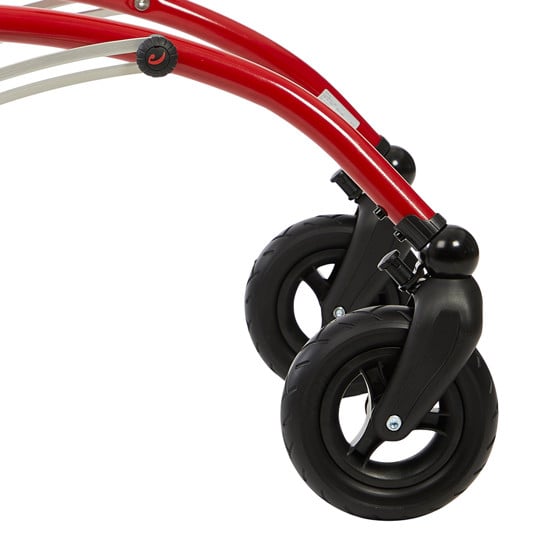

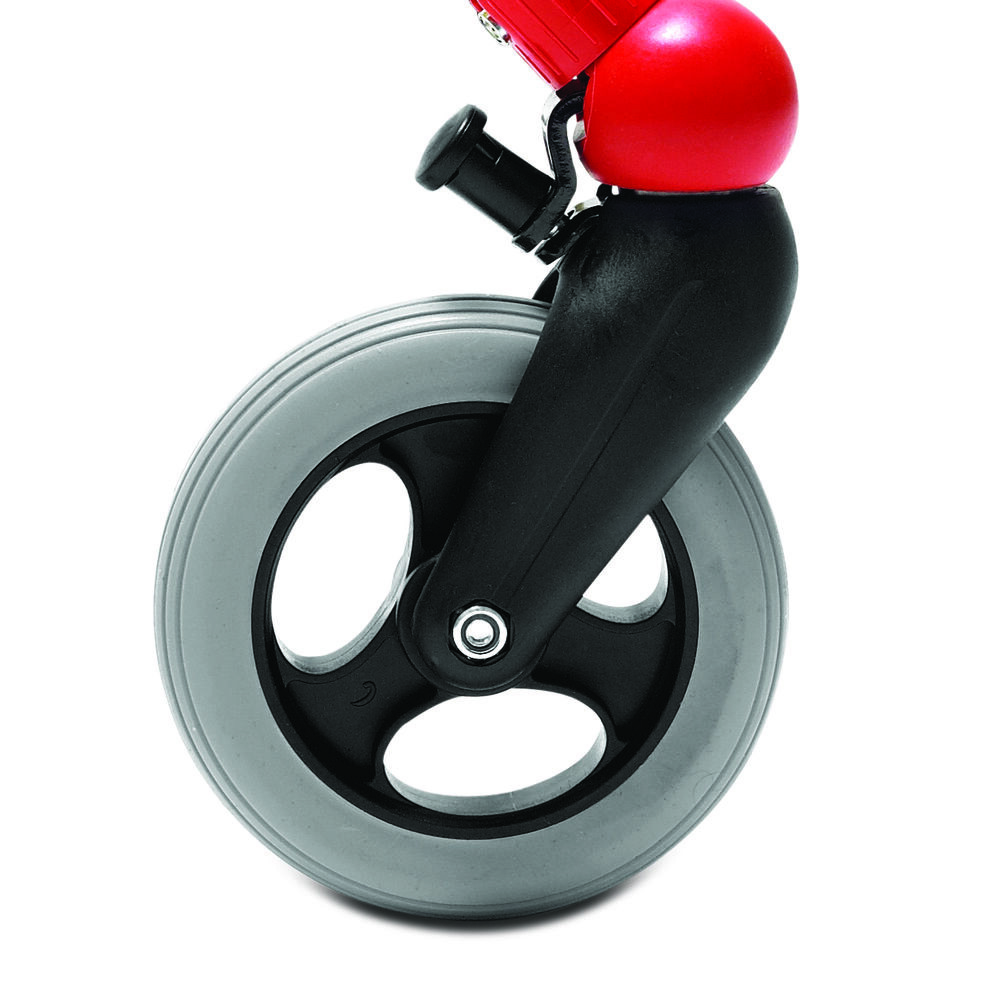

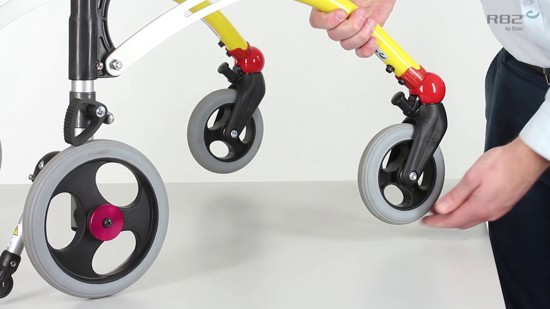

Front castors with directional stabilizer

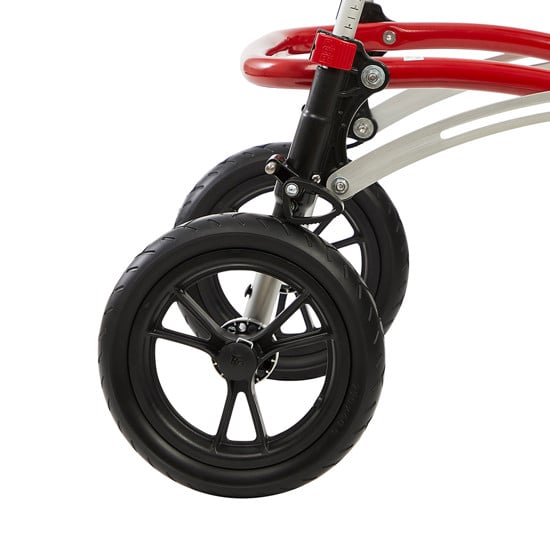

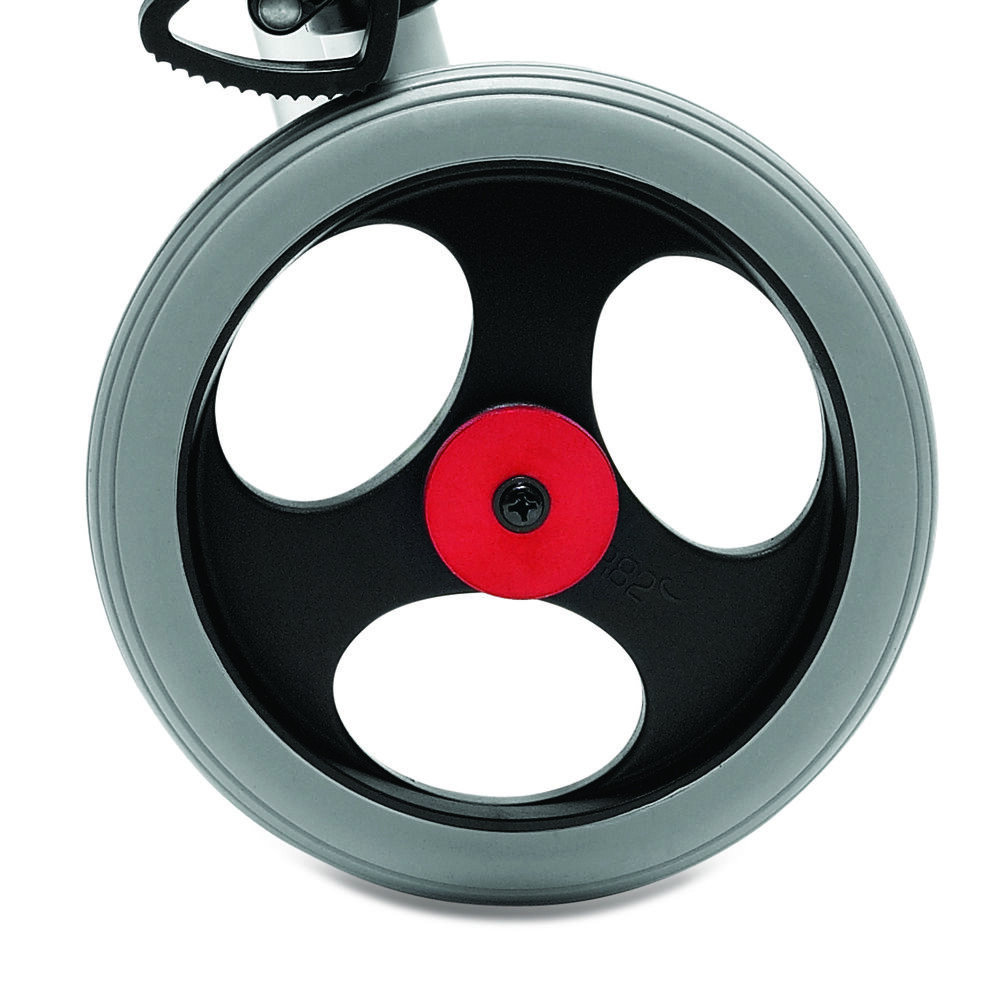

Tension adjustable back wheels

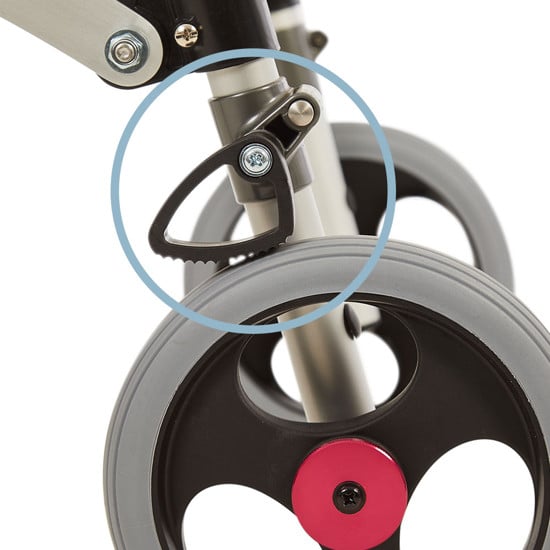

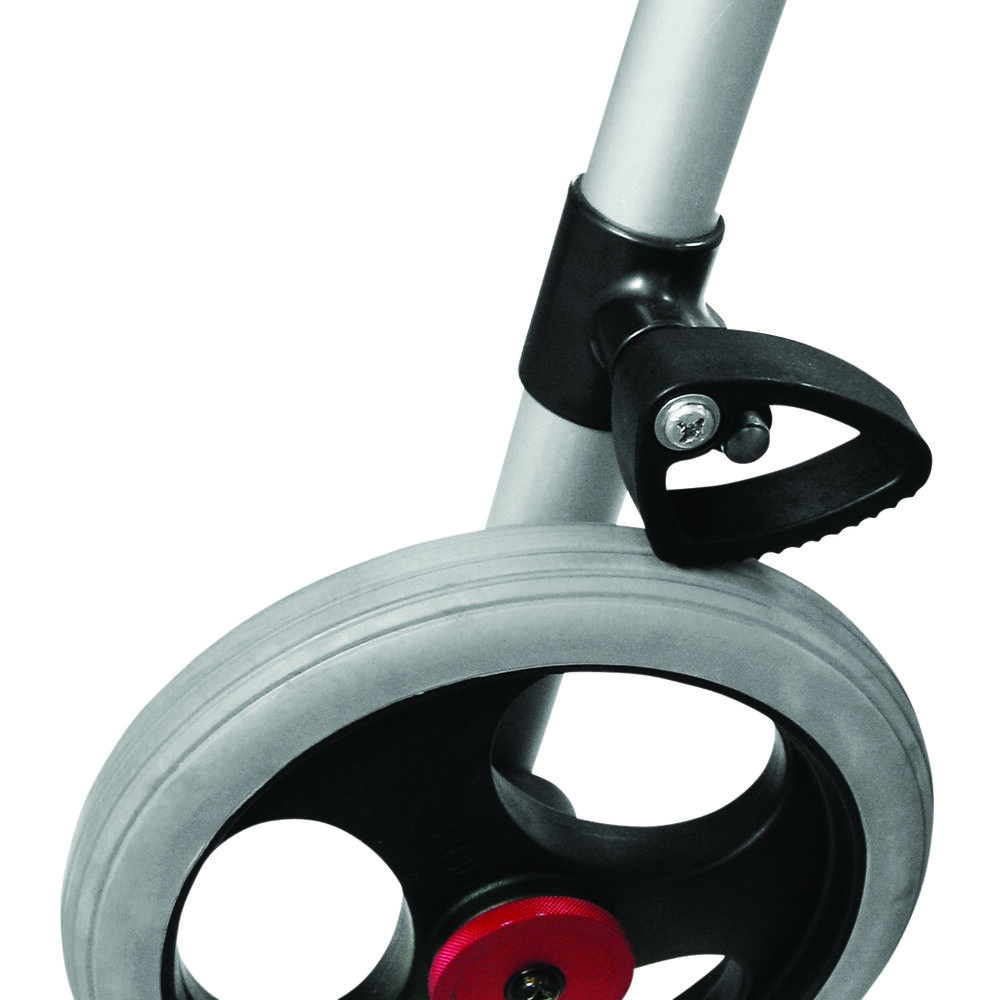

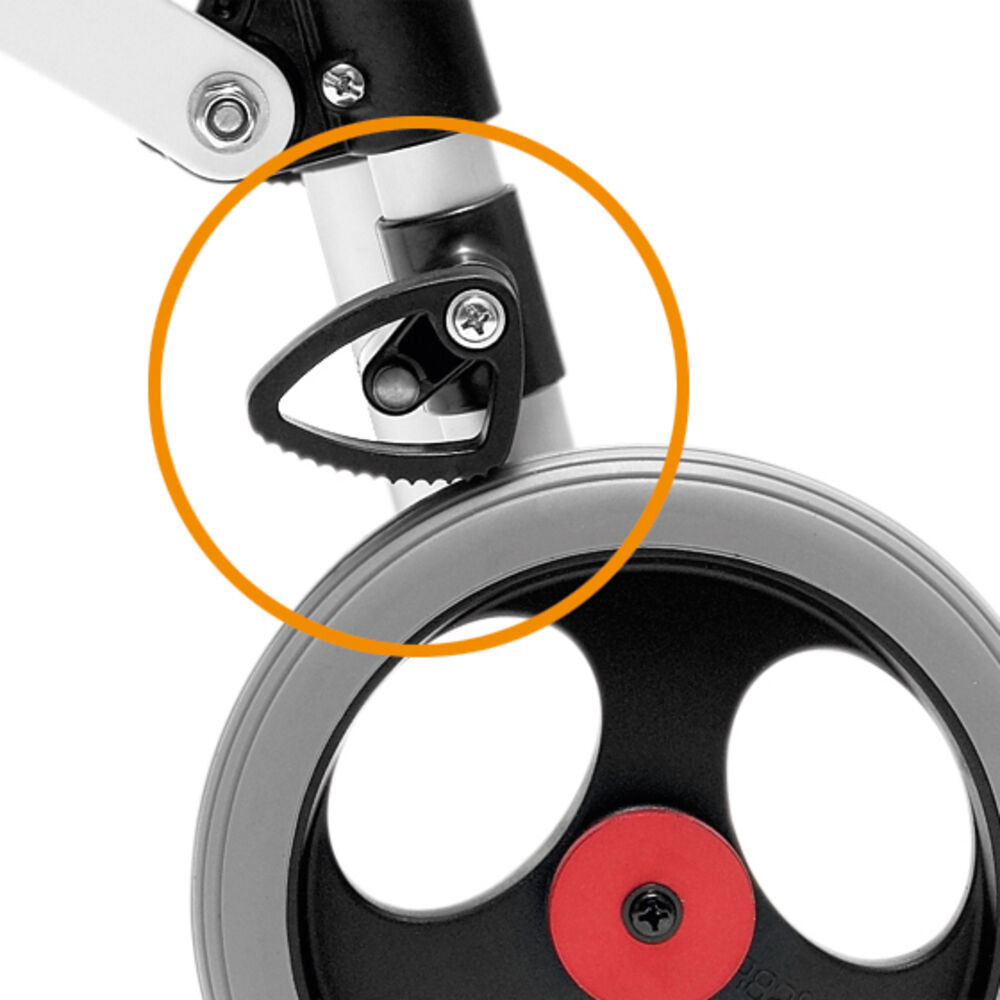

The unique on/off anti-reverse wheel stops are very easy to lock and unlock

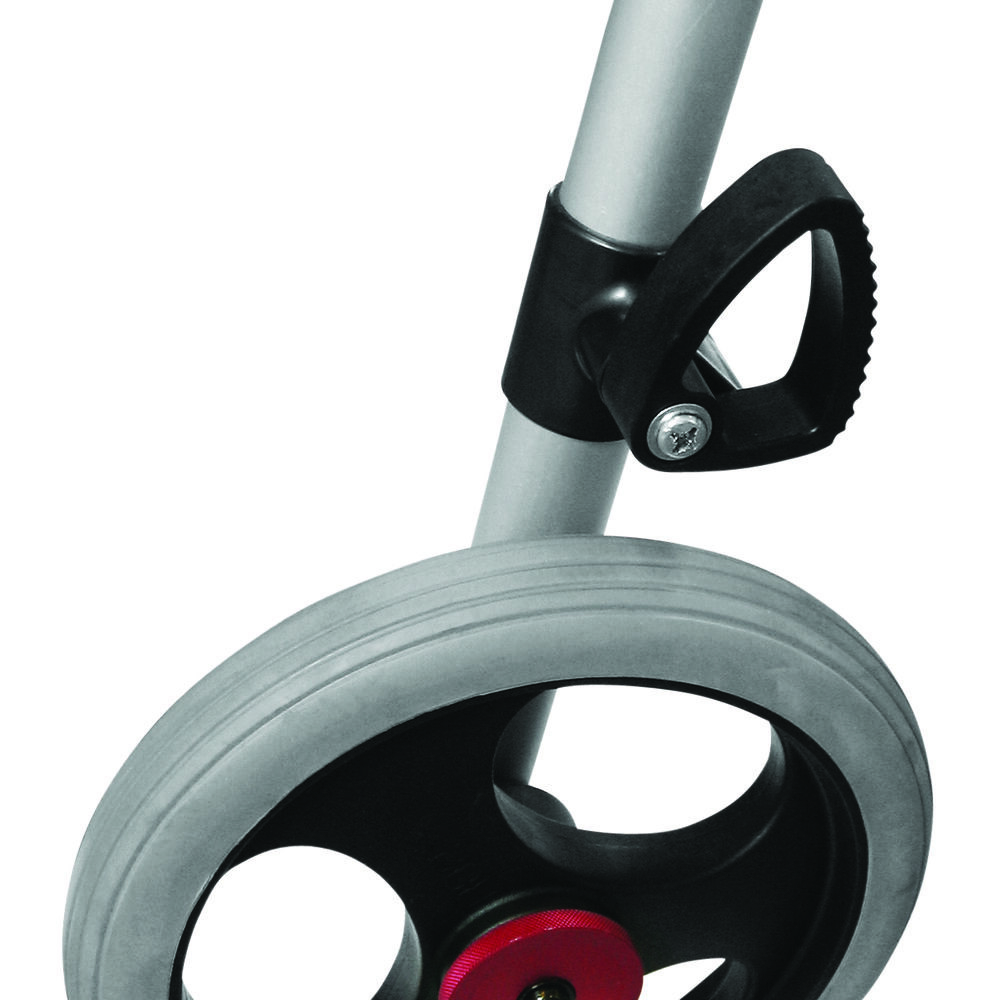

Unlocked

Locked

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
