R82 Swan Curo

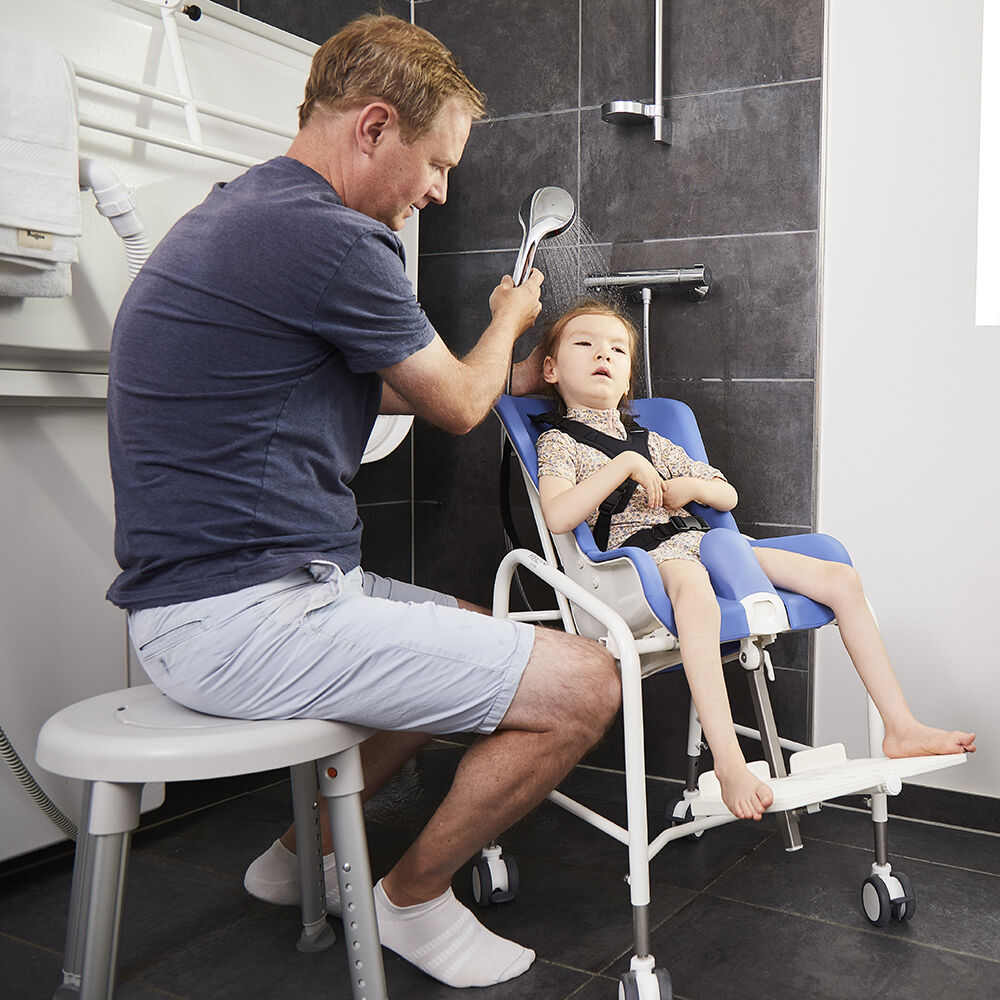

The R82 Swan Curo is a toilet and bath chair developed for children and youngsters with special needs.

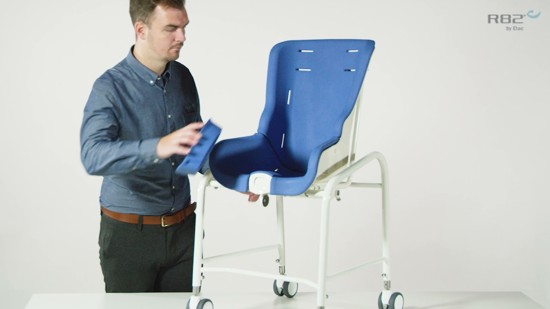

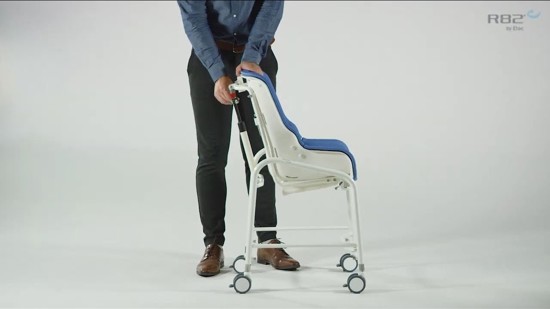

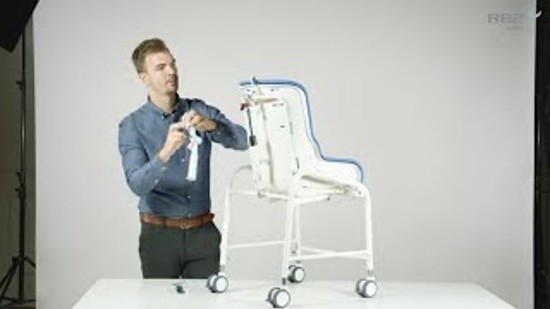

The Swan Curo toilet and bath chair has a minimalistic design and a small footprint, making it suitable for various bathrooms and homes. The shell is perfectly shaped for high comfort and with smooth surfaces for easy cleaning. The PU inlay is soft and ensures optimal seating comfort for the user and is easy to attach and detach. The gas spring-supported tilt mechanism comes as standard and makes the chair easy to adjust during use. The frame is height-adjustable to accommodate a wide range of toilets.
The Swan Curo is available in 4 different sizes. Size 1 is available with and without castors. Size 2-4 comes with castors.
Learn more about the R82 Swan Curo
R82 Swan Curo brochure
Comfort & support
|Size 1 without castors||Size 1||Size 2||Size 3||Size 4|
|Aperture W x D (mm)||125x185||125x185||150x220||180x280||180x330|
|Aperture with inlay W x D (mm)||100x175||100x175||125x210||155x270||155x320|
|Back width, bottom of backrest (mm)||210||210||250||315||400|
|Back width, top of backrest (mm)||270||270||350||425||490|
|Backrest height (mm)||380||380||470||525||600|
|Effective seat depth (mm)||265||265||310||400||450|
|Effective seat width (mm)||220||220||260||320||410|
|Length, with castors outside (low/high) at 0° tilt (mm)||-||495/555||625/645||680/715||680/715|
|Length, without castors outside (low/high) at 0° tilt (mm)||400/425||-||-||-||-|
|Mass device, with castors (kg)||-||8.5||10.5||11.75||12.75|
|Mass device, without castors (kg)||7.5||-||-||-||-|
|Maximum rated load with castors (kg)||-||46||73||99||125|
|Maximum rated load without castors (kg)||45||-||-||-||-|
|Maximum user mass (kg)||35||35||60||85||110|
|Minimum distance for turning 180° allowing for reversing movement (mm)||705||705||820||895||945|
|Minimum distance for turning 180° forward in movement (mm)||1205||1205||1350||1475||1600|
|Minimum turning diameter (mm)||1410||1410||1640||1790||1890|
|Overall height with castors (mm)||-||760-920||960-1120||990-1150||1060-1220|
|Overall height without castors (mm)||670-830||-||-||-||-|
|Overall width with castors (mm)||-||500||530||580||655|
|Overall width without castors (mm)||460||-||-||-||-|
|Pelvis width (mm)||240||240||275||340||420|
|Seat plane angle (°)||0°- 20°||0°-20°||0°-20°||0°- 20°||0°- 18,5°|
|Seat surface height at front edge, with castors (mm)||-||380-540||480-640||470-630||465-625|
|Seat surface height at front edge, without castors (mm)||290-450||-||-||-||-|
|Seat width front (mm)||320||320||355||425||475|
Cleaning instructions: The product can be washed at 60 °C / 140 °F for 10 minutes and at 85 °C / 185 °F for 3 minutes in a washing machine for medical devices. Disinfect with a 70% disinfectant IPA solution. Use warm water and mild detergent without chlorine for cleaning.
Size 1 is available with and without castors. Size 2-4 comes with castors.
Without castors (only for size 1)

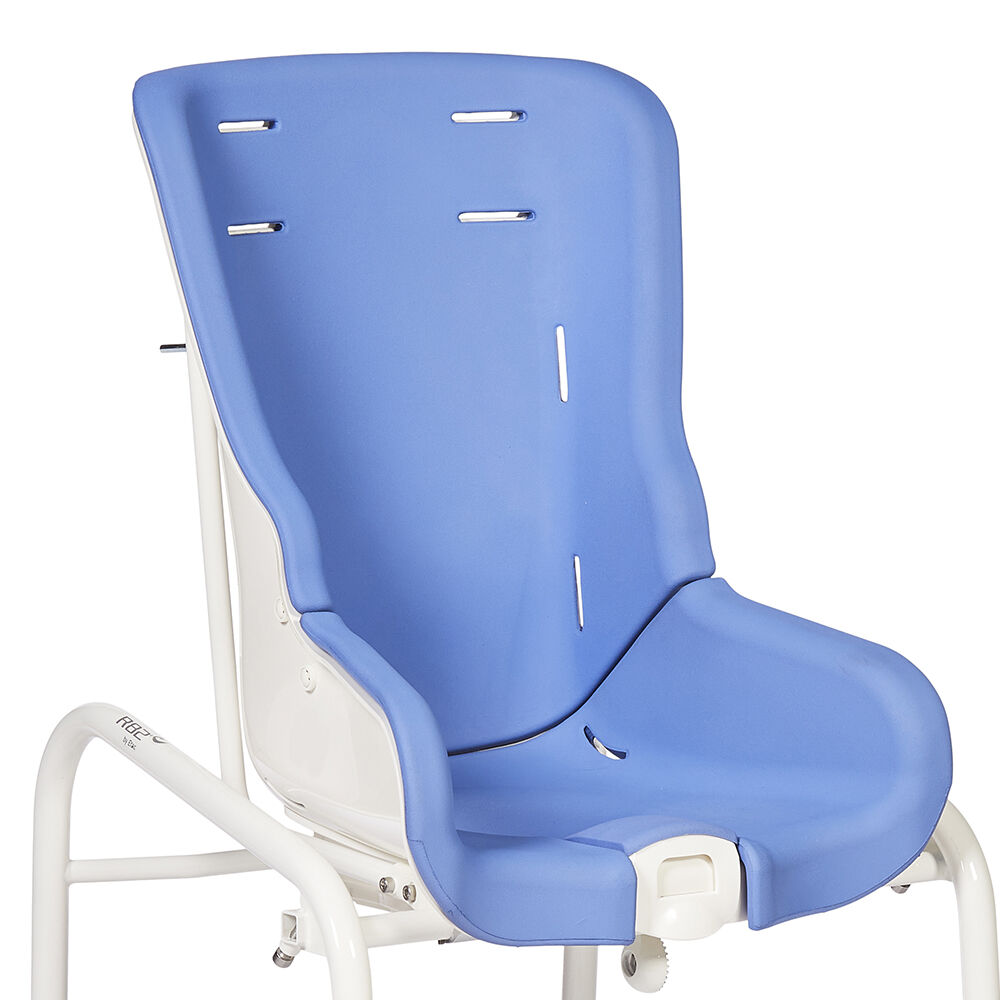

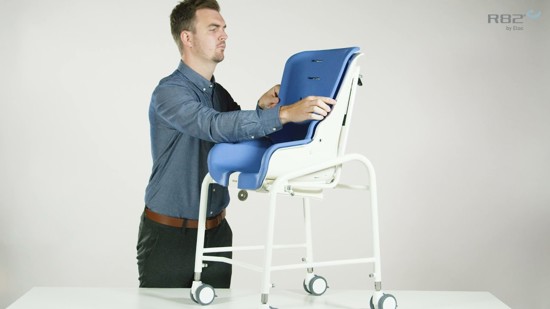

Complete PU inlay, blue

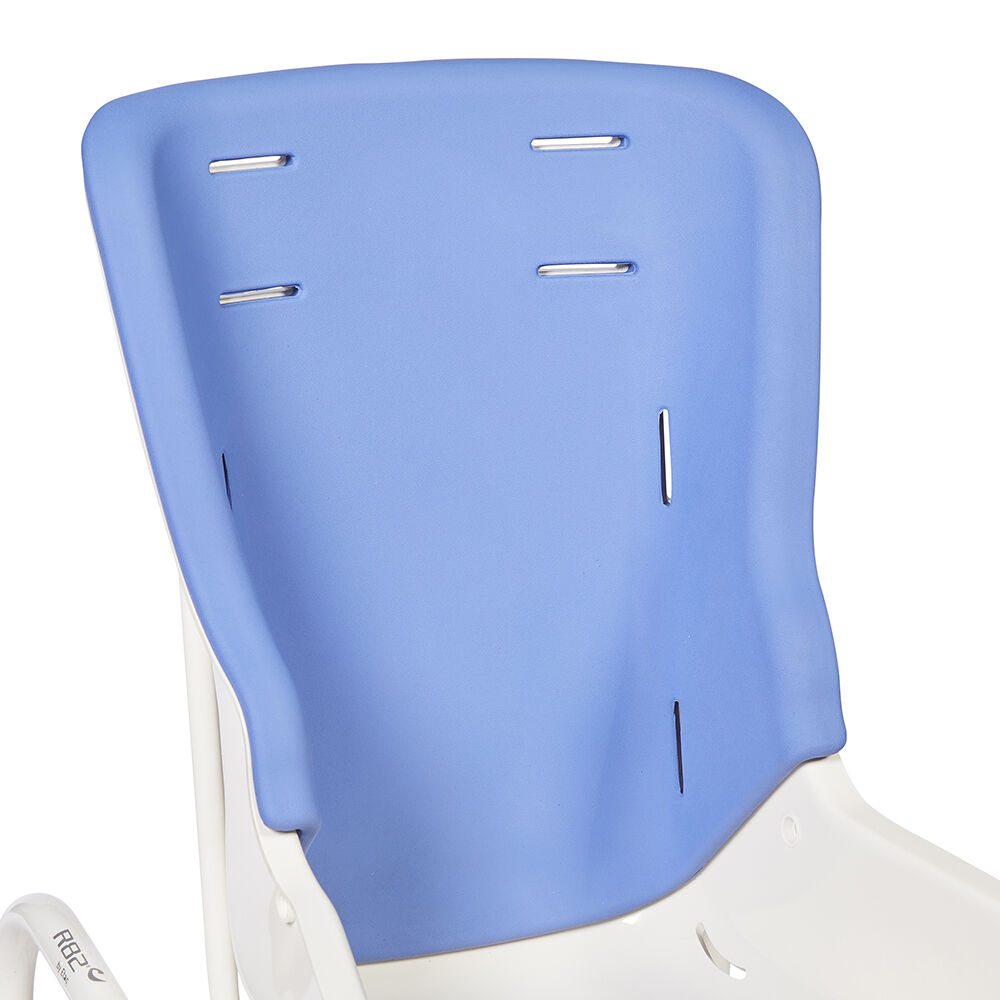

PU inlay for back, blue

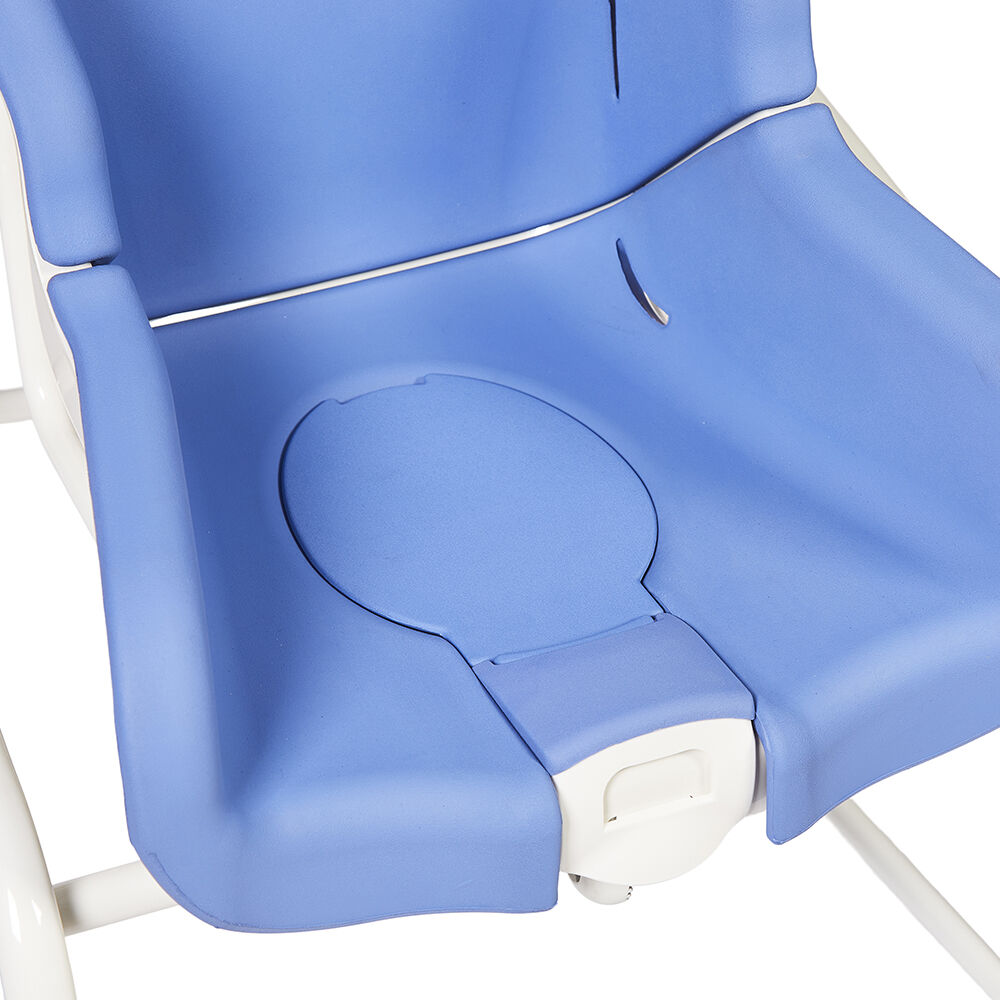

PU inlay for seat, blue
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
