R82 Swan Curo
The R82 Swan Curo is a toilet and bath chair developed for children and youngsters with special needs.

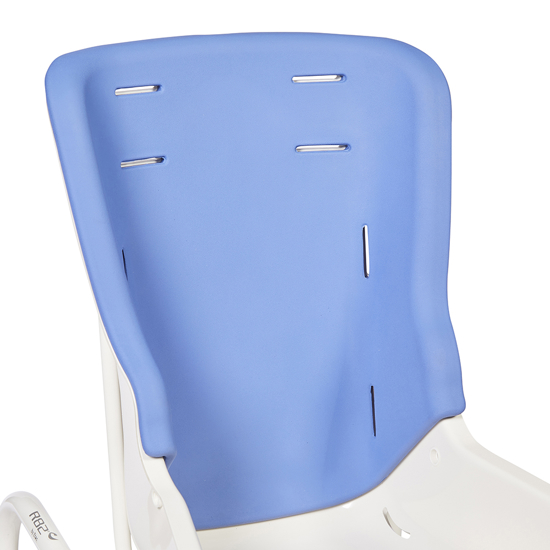

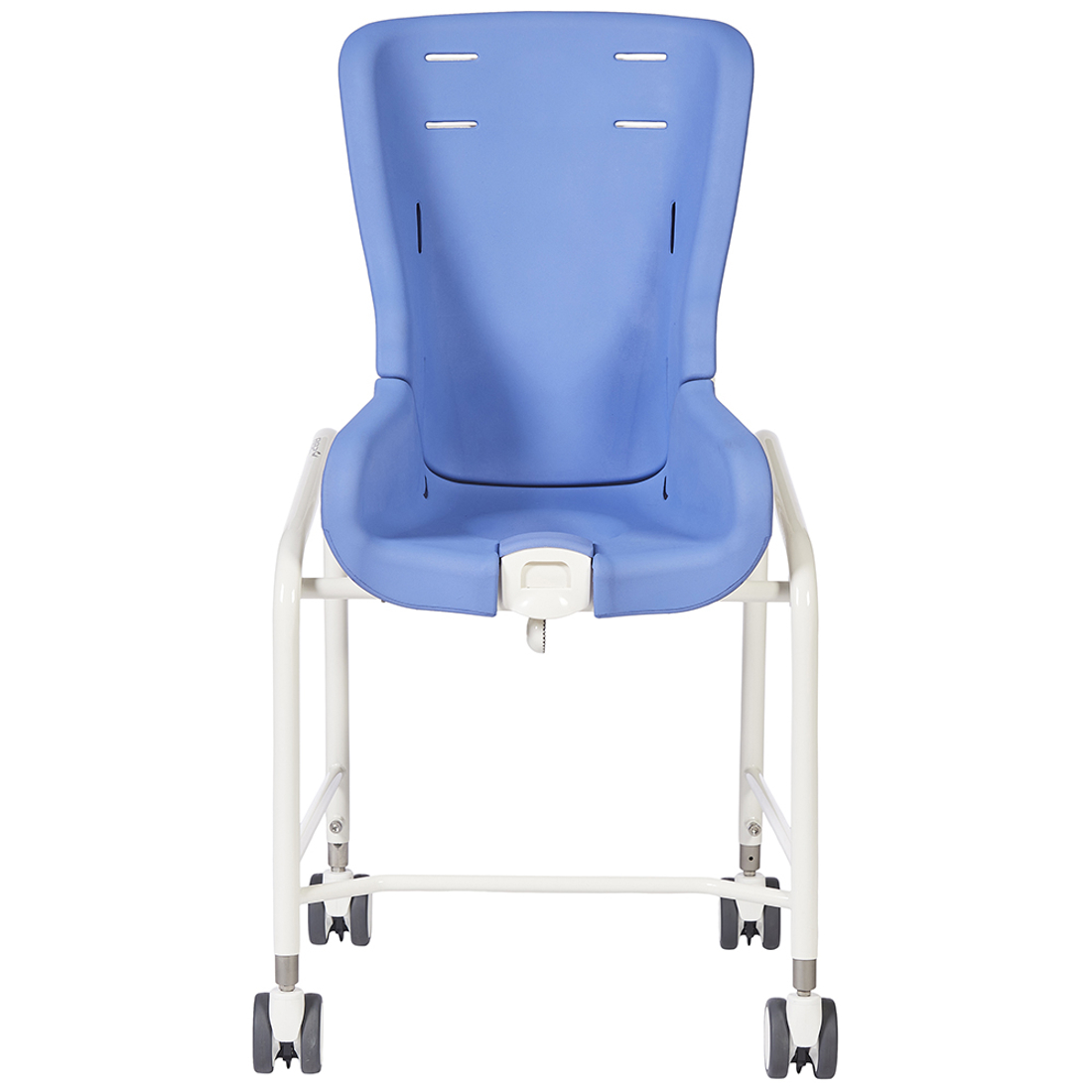

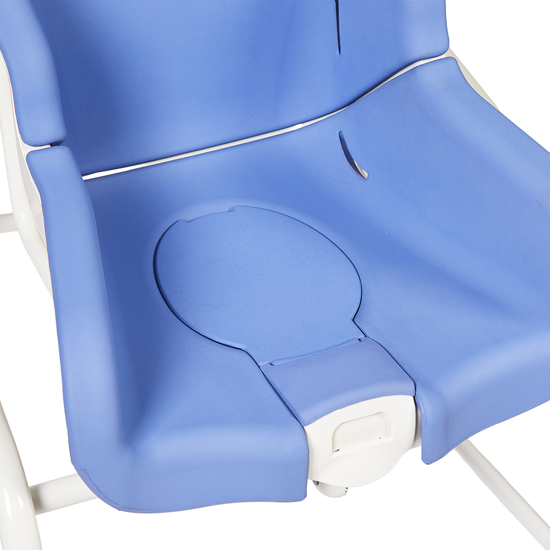

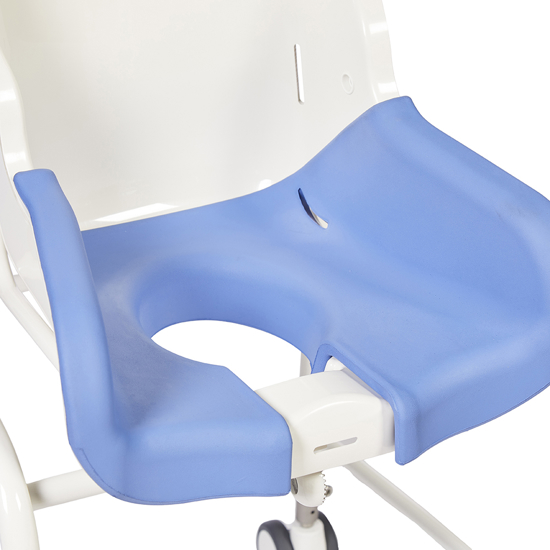

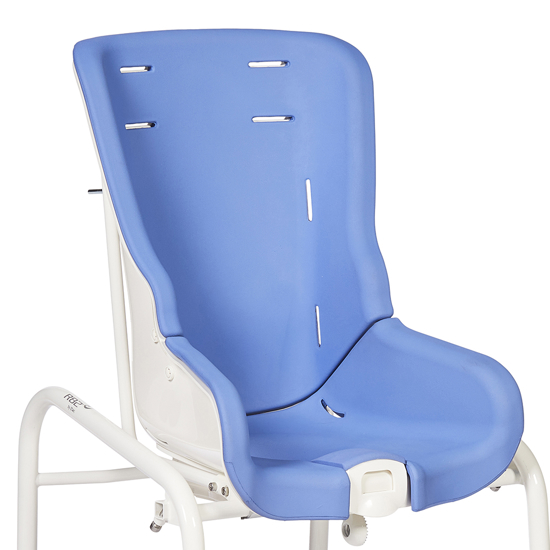

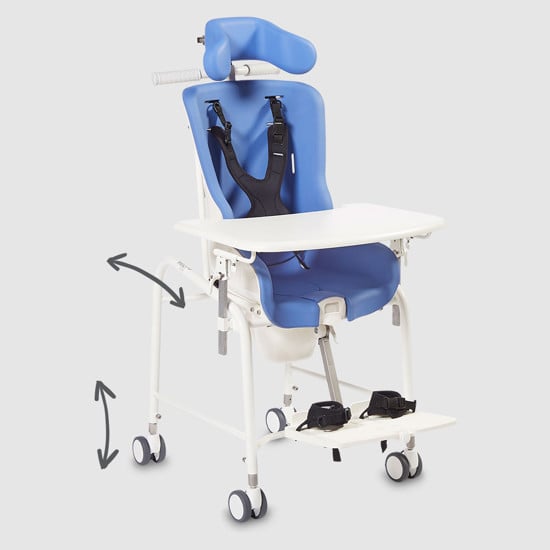

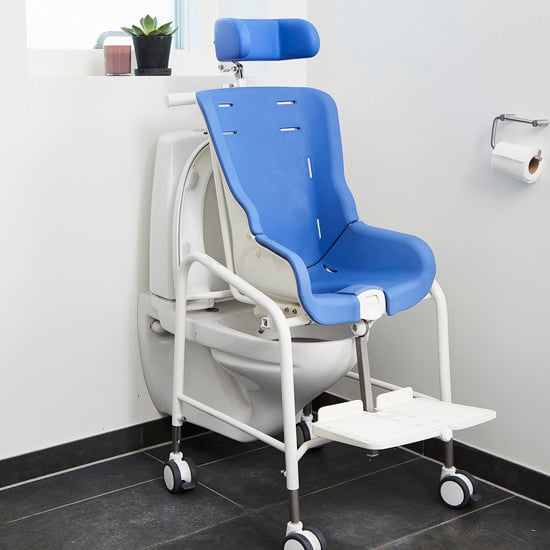

The Swan Curo toilet and bath chair has a minimalistic design and a small footprint, making it suitable for various bathrooms and homes. The shell is perfectly shaped for high comfort and with smooth surfaces for easy cleaning. The PU inlay is soft and ensures optimal seating comfort for the user and is easy to attach and detach. The gas spring-supported tilt mechanism comes as standard and makes the chair easy to adjust during use. The frame is height-adjustable to accommodate a wide range of toilets.
The Swan Curo is available in 4 different sizes. Size 1 is available with and without castors. Size 2-4 comes with castors.
Discover
Features
Versatile functionality
Everyday convenience
Comfort & support
Individual adjustment
Variants
| Size 1 without castors | Size 1 | Size 2 | Size 3 | Size 4 | |
|---|---|---|---|---|---|
| Item number | 87060 | 87061 | 87062 | 87063 | 87064 |
| Aperture W x D (mm) | 125x185 | 125x185 | 150x220 | 180x280 | 180x330 |
| Aperture with inlay W x D (mm) | 100x175 | 100x175 | 125x210 | 155x270 | 155x320 |
| Back width, bottom of backrest (mm) | 210 | 210 | 250 | 315 | 400 |
| Back width, top of backrest (mm) | 270 | 270 | 350 | 425 | 490 |
| Backrest height (mm) | 380 | 380 | 470 | 525 | 600 |
| Effective seat depth (mm) | 265 | 265 | 310 | 400 | 450 |
| Effective seat width (mm) | 220 | 220 | 260 | 320 | 410 |
| Length, with castors outside (low/high) at 0° tilt (mm) | - | 495/555 | 625/645 | 680/715 | 680/715 |
| Length, without castors outside (low/high) at 0° tilt (mm) | 400/425 | - | - | - | - |
| Mass device, with castors (kg) | - | 8.5 | 10.5 | 11.75 | 12.75 |
| Mass device, without castors (kg) | 7.5 | - | - | - | - |
| Maximum rated load with castors (kg) | - | 46 | 73 | 99 | 125 |
| Maximum rated load without castors (kg) | 45 | - | - | - | - |
| Maximum user mass (kg) | 35 | 35 | 60 | 85 | 110 |
| Minimum distance for turning 180° allowing for reversing movement (mm) | 705 | 705 | 820 | 895 | 945 |
| Minimum distance for turning 180° forward in movement (mm) | 1205 | 1205 | 1350 | 1475 | 1600 |
| Minimum turning diameter (mm) | 1410 | 1410 | 1640 | 1790 | 1890 |
| Overall height with castors (mm) | - | 760-920 | 960-1120 | 990-1150 | 1060-1220 |
| Overall height without castors (mm) | 670-830 | - | - | - | - |
| Overall width with castors (mm) | - | 500 | 530 | 580 | 655 |
| Overall width without castors (mm) | 460 | - | - | - | - |
| Pelvis width (mm) | 240 | 240 | 275 | 340 | 420 |
| Seat plane angle (°) | 0°- 20° | 0°-20° | 0°-20° | 0°- 20° | 0°- 18,5° |
| Seat surface height at front edge, with castors (mm) | - | 380-540 | 480-640 | 470-630 | 465-625 |
| Seat surface height at front edge, without castors (mm) | 290-450 | - | - | - | - |
| Seat width front (mm) | 320 | 320 | 355 | 425 | 475 |
Cleaning instructions: The product can be washed at 60 °C / 140 °F for 10 minutes and at 85 °C / 185 °F for 3 minutes in a washing machine for medical devices. Disinfect with a 70% disinfectant IPA solution. Use warm water and mild detergent without chlorine for cleaning.
Washing instructions
Options

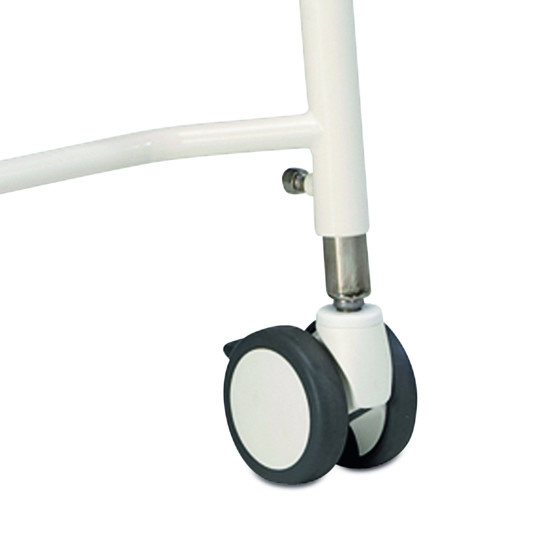

Castors
Size 1 is available with and without castors. Size 2-4 comes with castors.

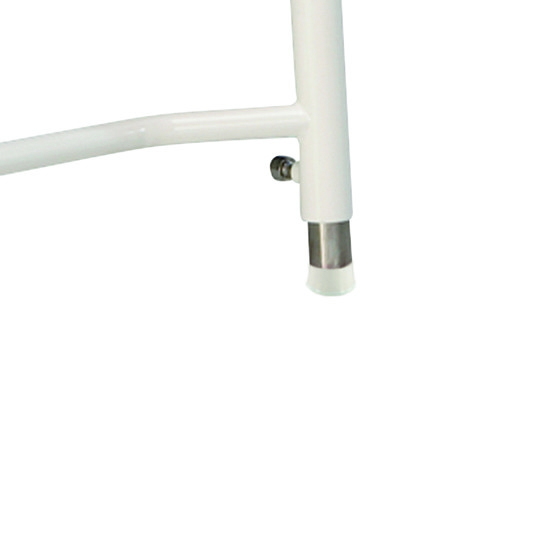

Without castors (only for size 1)
With castors
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos

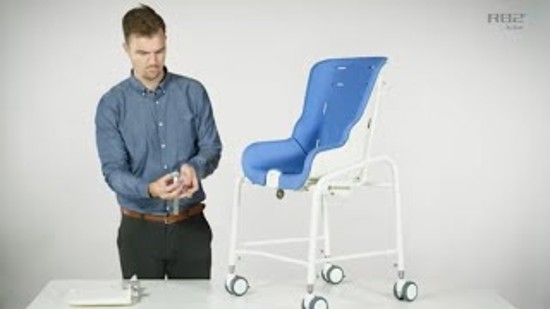

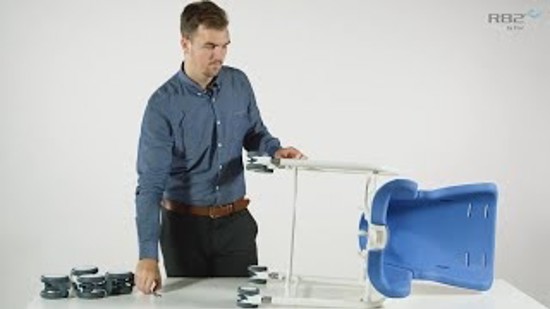

How to mount rod for foot support & footplate
How to mount head support
How to mount push brace & head support
