Convaid Rodeo

The Convaid Rodeo buggy offers up to 45° adjustable tilt and provides pressure relief and upper body support.

This dynamic wheelchair features an adjustable tilt of up to 45 degrees, offering optimal pressure relief and support for comfort during long, exciting outings. Experience the joy of adventure together! Constructed with high-quality materials, the Cruiser is built to withstand the rigors of daily life and outdoor adventures. With up to 5 inches of seat depth growth, this folding wheelchair easily adapts as your child grows, extending its life and usability for years to come.

Features

  • Convaid Rodeo

    Features

    5° to 45° of adjustable tilt

    Provides pressure relief and upper body support.

  • Rodeo Compact folding

    Features

    Lightweight & compact folding

    Folds into a tight and lightweight package for easy transport and storage.

  • Convaid Rodeo

    Features

    Zippered pockets

    Ideal for positioning wedges for additional padding and support.

  • Convaid Rodeo

    Features

    Tension adjustable back upholstery

    Adjustable back straps allow for individual adjustment to the Lumber and Thoracic sections for the back.

Features

  • Convaid Rodeo

    5° to 45° of adjustable tilt

    Provides pressure relief and upper body support.

  • Rodeo Compact folding

    Lightweight & compact folding

    Folds into a tight and lightweight package for easy transport and storage.

  • Convaid Rodeo

    Zippered pockets

    Ideal for positioning wedges for additional padding and support.

  • Convaid Rodeo

    Tension adjustable back upholstery

    Adjustable back straps allow for individual adjustment to the Lumber and Thoracic sections for the back.

Variants

RD10
RD12
RD14
RD16
Folded height (mm) 445 430 460 460
Folded length (mm) 850 860 860 1015
Folded width (mm) 530 585 635 685
Foot plate angle (°) -40 -40 -40 -40
Headrest extension (mm) 150 200 200 200
Overall height (mm) 1090 1090 1120 1140
Overall length (mm) 775 890 890 915
Overall width (mm) 530 585 635 685
Push handle adjustments (mm) 810-1230 880-1290 890-1320 930-1360
Recline adjustment (°) 90° or 110° 90° or 110° 90° or 110° 90° or 110°
Seat back height (mm) 530 560 610 635
Seat depth (mm) 180-305 230-360 280-410 330-460
Seat to flipped individual angle adjustable footplate (mm) - 115-235 110-280 185-340
Seat to flipped one piece angle adjustable footplate (mm) 130-285 130-285 180-340 235-390
Seat to floor (mm) 510 530 560 560
Seat to individual angle adjustable footplate (mm) 180-330 180-330 240-395 305-460
Seat to one piece angle adjustable footplate (mm) 230-360 230-360 280-410 305-460
Seat width (mm) 255 305 355 405
Shoulder strap height (mm) 330-480 380-530 410-560 460-610
Tilt in space tilt angle (°) 5° - 45° 5° - 45° 5° - 45° 5° - 45°
Total weight (kg) 13 15 17 18
Weight capacity (kg) 34 34 45.5 77
Weight seat unit (kg) 13 15 17 18

Options

Adjustable 90° or 110° recline

Adjustable 90° or 110° recline

Opens the seat-to-back angle to provide postural relief.
Rodeo without seating frame

Rodeo without seating frame

Accommodates adaptive and aftermarket seating.
Height Adjustable Flip-Up Armrests

Height adjustable flip-up armrest

Armrests “flip-up” out of the way for easy access into chair.
One-piece height adjustable footplate

One-piece height adjustable footplate

Standard
Individual angle adjustable footplates

Individual angle adjustable footplates

Option
Panther Black

Panther Black

Royal Blue

Royal Blue

Sassy Purple

Sassy Purple

Cherry Red

Cherry Red

Princess Pink

Princess Pink

Forest Green

Forest Green

7.5” X 2” Front air tyres

7.5” X 2” Front air tyres

Only offered on model sizes 10-16.
12.5” X 2” Rear solid knobby tires

12.5” X 2” Rear solid knobby tires

Only offered on model sizes 10-16.
Transit ready frame

Transit ready frame

Meets or exceeds WC19/ISO7176-19 safety standards for safe transportation in a bus or van.

Accessories

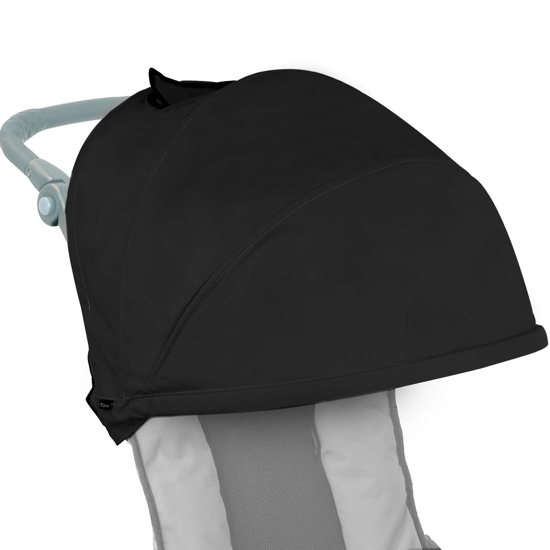

Extended Headrest Cover (Canopy)

Extended Headrest Cover (Canopy)

Provides extended protection from sun, rain, and wind, during outdoor activities.
Headrest Cover (Canopy)

Headrest Cover (Canopy)

Provides protection from sunlight, wind and the environment.
Headrest Extension

Headrest Extension

Extends back height to provide head support for taller individuals.
Padded Headwings

Padded Headwings

Height adjustable headwings provide soft foam lateral support for midline positioning of the head.
Occi-Headwings

Occi-Headwings

Provides sub-occipital support to help position the head midline. Provides added comfort, allows side to side head movement without obstruction, and does not block the...
Full Torso Vest

Full Torso Vest

Can be used for the client with a protruding abdomen with a flexible pelvis and spine to reposition his weight back over the pelvis, or to prevent forward flexion of the ...
Adjustable Firm Lateral Trunk Support - Contoured (Swing-Away Laterals)

Adjustable Firm Lateral Trunk Support - Contoured (Swing-Away Laterals)

These firm laterals are width and height adjustable to improve alignment and promote upright trunk, as well as minimize scoliotic tendencies seen with low to moderately...
Seat Reducer

Reducer Seat Insert

Provides proper positioning in an oversized wheelchair to maximize growth potential. The insert easily slips into the seat of the chair to reduce the seat width 2”, and...
H-Harness with Padded Covers

H-Harness with Padded Covers

Provides the occupant with anterior trunk support to maintain upper body trunk positioning and prevent upper body fatigue.
3-Pt Positioning Belt

3-Point Pelvic Belt

Helps position the user’s pelvis properly and prevents submarining out of the chair.
Support Cushion

Support Cushion

The soft foam base provides support and increased tolerance to aid in user’s comfort.
Position Cushion

Position Cushion

Medial thigh support helps to position the legs out of abduction and into medial alignment to improve weight-bearing and maximize loading contact surface area.
Align Cushion

Align Cushion

Contoured edges provide lateral pelvic stability and thigh positioning to reduce lateral movement of the pelvis and improve lower extremity stability.

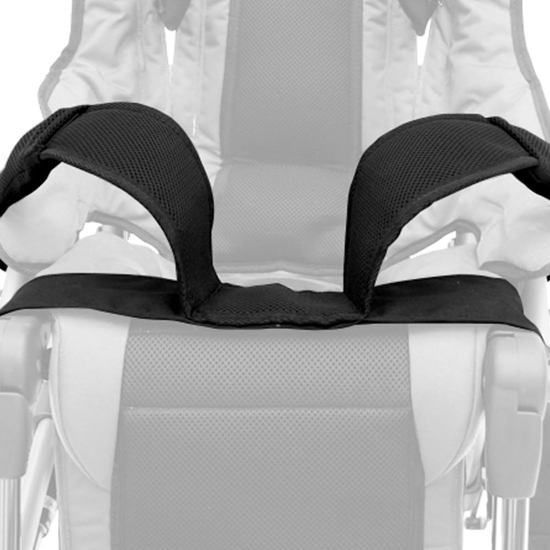

Medial Thigh Support (Abductor)

Medial Thigh Support (Abductor)

Separates the thighs to improve hip alignment and stabilize sitting posture. The degree of abduction can be adjusted to accommodate postural asymmetry.

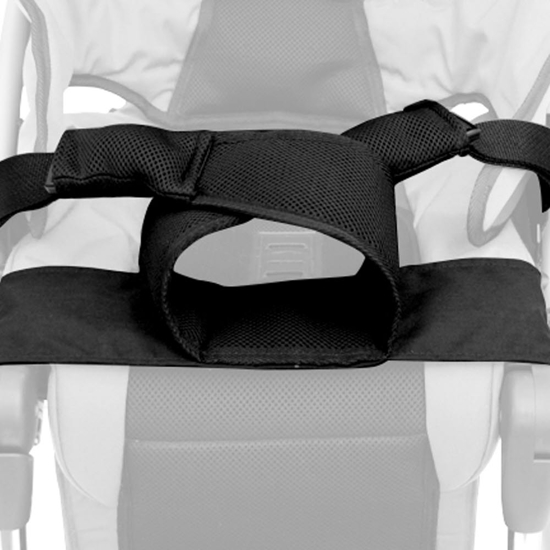

Lateral Thigh Support (Adductor)

Lateral Thigh Support (Adductor)

Pulls thighs together to improve hip alignment and stabilizing sitting posture. The degree of adduction can be adjusted and accommodate postural asymmetry.
Mesh Side Panels

Align Cushion - Lateral Pelvis/Lateral Thigh Support

Provides additional security to prevent the child from leaning out the sides of the seat. Mesh fabric allows for increased airflow and circulation.
Solid Side Panels

Solid Side Panels

Provide additional security to prevent the child from leaning out the sides of the seat.

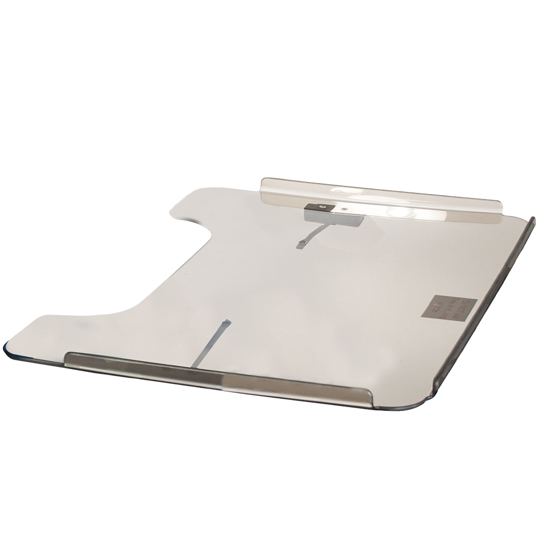

Upper Extremity Support Surface (Clear Tray)

Clear Tray

Provides upper extremity support and positioning to maximize upper extremity function during various activities.
Attendant Handbrake

Attendant Handbrake

Provides controlled and safe mobility in environments going up or downhill, and the hand brake is an addition to the wheel lock.
IV Pole

IV Pole

Convenient IV bag hanger that is height adjustable. The 7/8" diameter tubing allows for easy IV pump installation. Easily folds for compact storage and quick release
Oxygen Tank Bag

Oxygen Tank Bag

The oxygen tank holder holds a size D (4”) diameter tank. Clasps hold the tank away from the chair back, and the strap at the base adjusts to stay taut when the chair is ...
Utility Bag

Utility Bag

Perfect for storing essential medical supplies and disposable items. Easily detaches from the chair, and when removed, converts to a convenient tote.

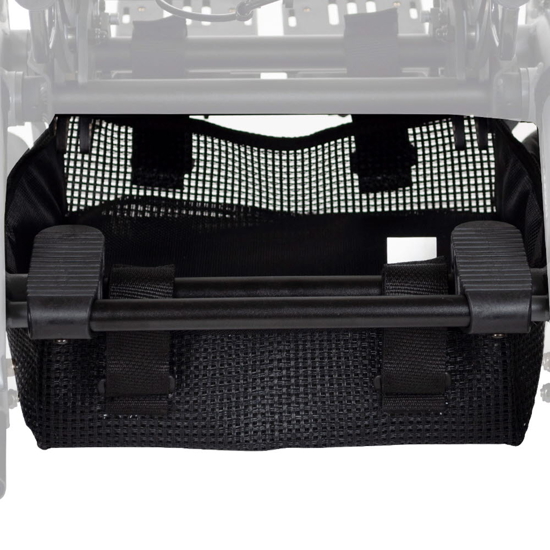

Medical Necessity Storage Basket

Medical Necessity Storage Basket

Designed to hold large support equipment such as ventilators, external batteries, IV pumps, suction pumps, or other medical disposables. Weight capacity is 50 lbs.
Padded Elevating Legrest Cover

Padded Elevating Legrest Cover

Leg rest extension pivot covers provide additional padding and support.

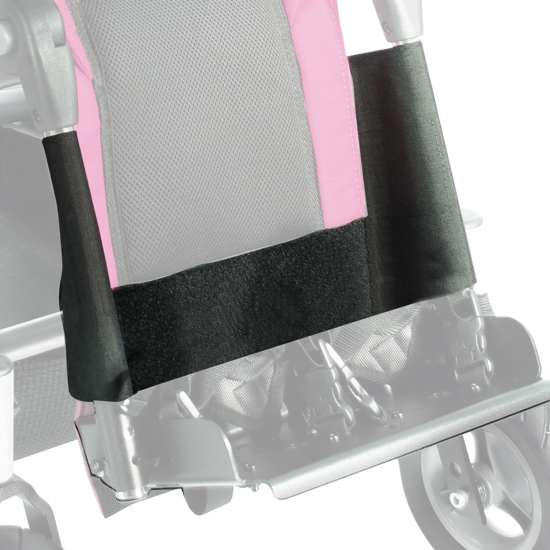

Calf Panel

Calf Panel

The calf panel provides support to the lower legs to give additional support, pressure relief, and comfort. Especially helpful when the chair is in a tilted or recline...
Foot Positioners

Foot Positioners

Adjustable Velcro® straps help position the feet properly on footplates and maximizes loading contact area and proper foot alignment. Straps can be positioned to attach...
Full Padded Footbox (One-Piece Footplate Required)

Full Padded Footbox

The full padded footbox provides comfort and safety while maintaining freedom of movement. (Requires one-piece footplate)

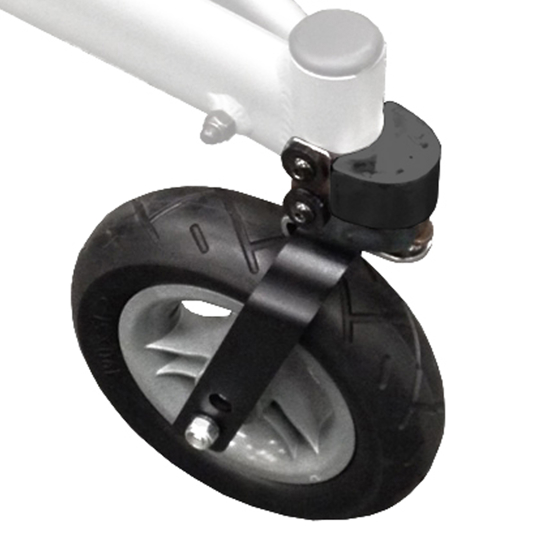

Caster Locks

Caster Lock for 2 Wide Front Tires

Provides a leverage point to elevate the front of the chair to easily go up curbs. Manufacturer installation required. Standard in EU.
Mosquito Net - Black

Mosquito Net

Designed to protect the user from mosquitos and other insects.

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.

Videos

Convaid Rodeo - The leader in tilt-in-space strollers for any adventure!

Convaid Rodeo - The leader in tilt-in-space strollers for any adventure!

Convaid Rodeo - How to fold

Convaid Rodeo - How to fold

Convaid Rodeo - How to recline

Convaid Rodeo - How to recline

Convaid Rodeo - How to tilt

Convaid Rodeo - How to tilt
