R82 Flamingo Curo
The Flamingo Curo is a modern and adaptable toileting and bathing chair designed for children, youngsters and caregivers.

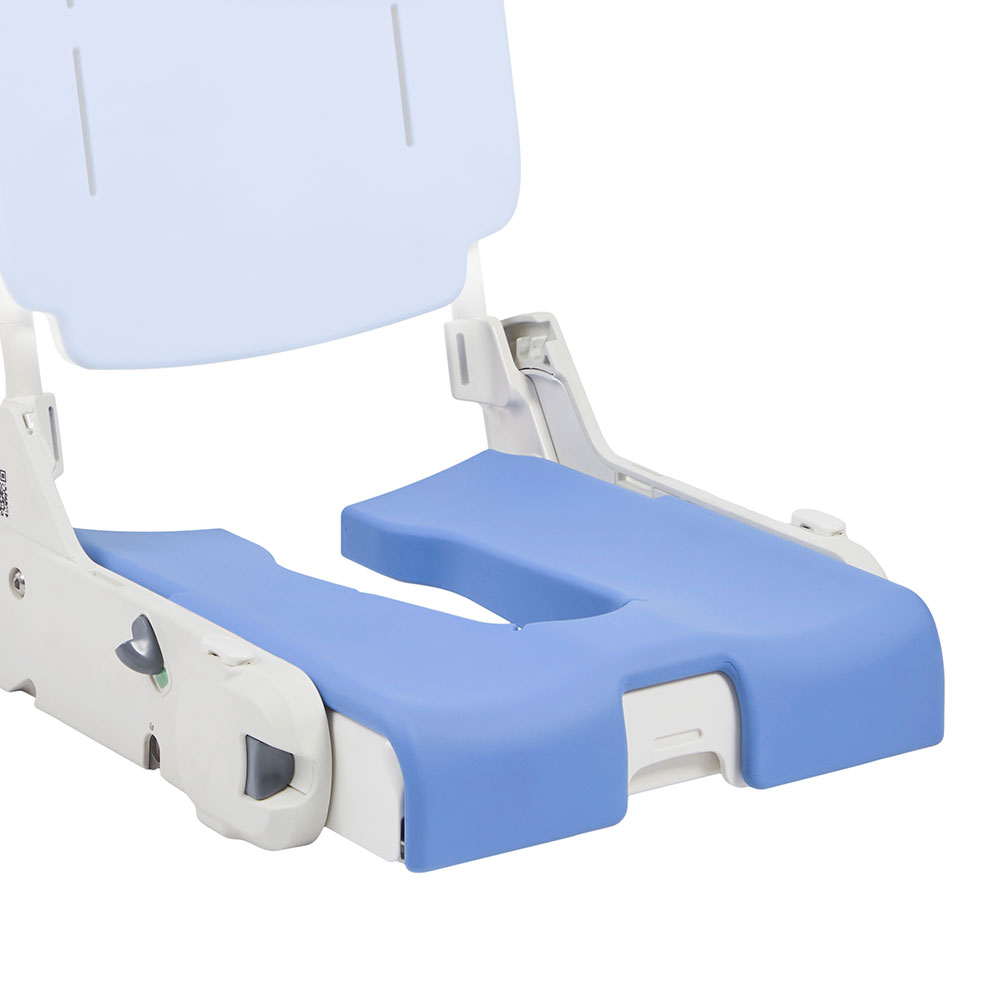

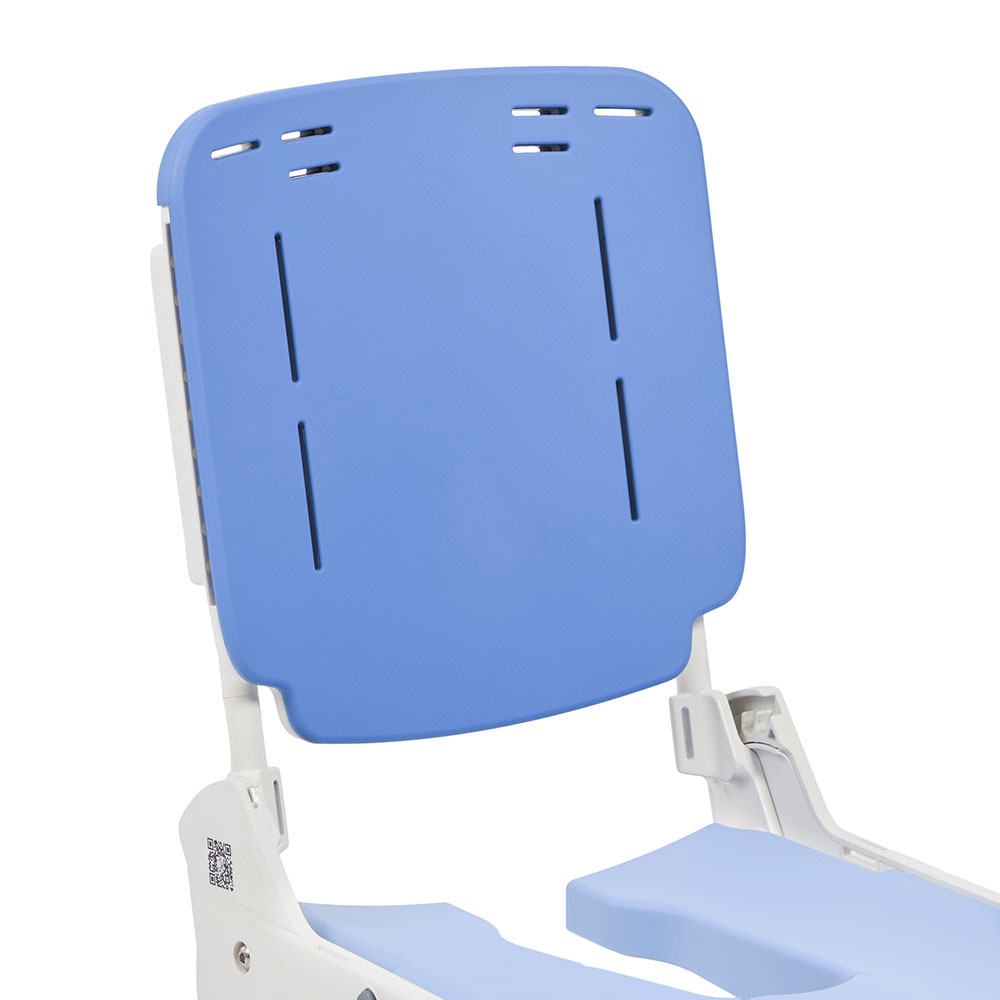

The Flamingo Curo is a versatile hygiene chair designed to support dignity and comfort during daily routines like toileting and showering. Its thoughtful design has been developed for smooth and efficient handling, minimising caregiver effort while prioritising child safety. The soft, curved inlays provide a supportive foundation and the chair can be adapted with many different accessories to meet specific needs. Growing with the child, the Flamingo Curo ensures hygiene tasks are managed with ease, flexibility, and respect for the individual.
Features
Variants
| Seat size 1 | Seat size 2 | Seat size 3 | Seat and Compact frame size 1 | Seat and Compact frame size 2 | Seat and Compact frame size 3 | Seat and High-low frame size 1 | Seat and High-low frame size 2 | Seat and High-low frame size 3 | |
|---|---|---|---|---|---|---|---|---|---|
| Item number | 882001 | 882002 | 882003 | 882001 + 882011 | 882002 + 882012 | 882003 + 882013 | 882001 + 882031 | 882002 + 882032 | 882003 + 882033 |
| Backrest recline angle (°) | (-20)-(30) | (-20)-(30) | (-20)-(30) | - | - | - | - | - | - |

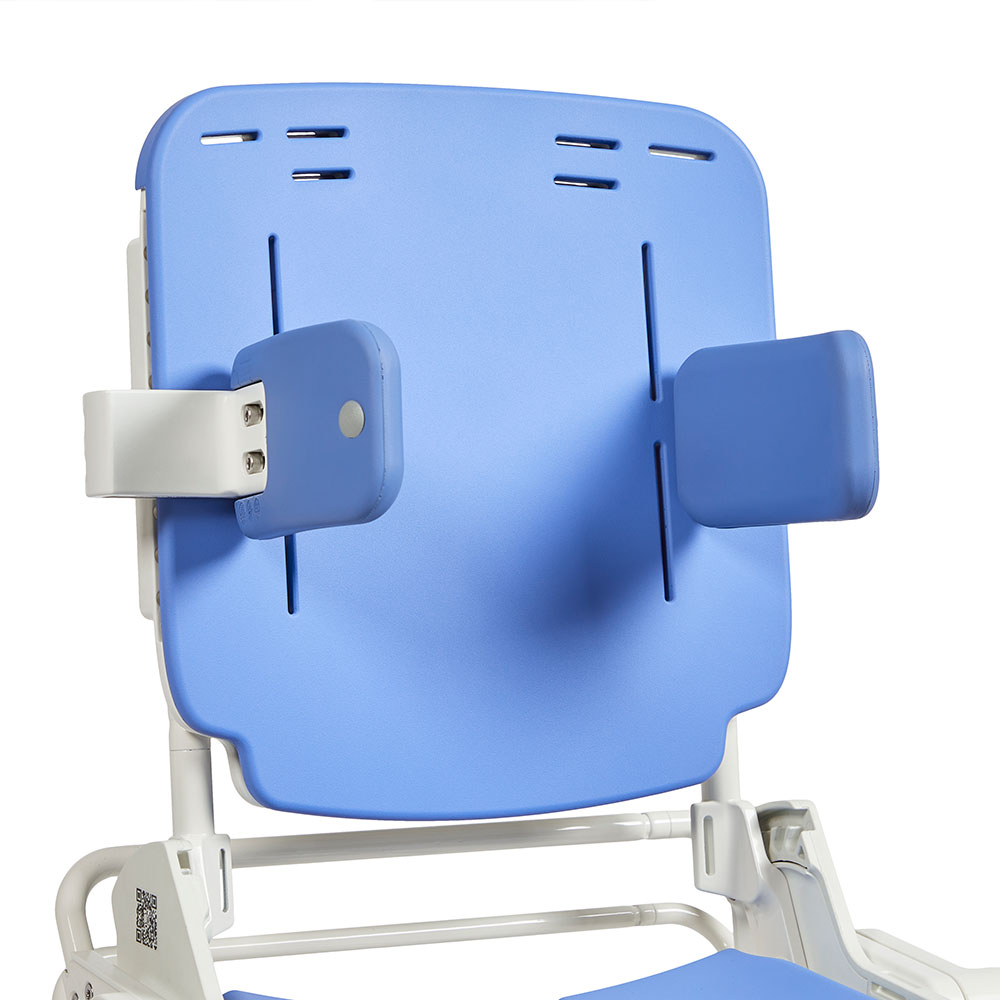

| Effective back width (with side supports) (mm) | 140-240 | 170-270 | 220-320 | - | - | - | - | - | - |
| Effective back width (without side supports) (mm) | 300 | 335 | 390 | - | - | - | - | - | - |
| Effective backrest height (mm) | 375/410/445 | 405/445/485 | 450/500/550 | - | - | - | - | - | - |
| Effective foot support to seat distance (mm) | 220-285 | 260-345 | 300-400 | - | - | - | - | - | - |
| Effective seat depth (mm) | 240-300 | 285-345 | 335-425 | - | - | - | - | - | - |
| Effective seat width (with upper leg supports) (mm) | 185/225/265 | 220/260/300 | 275/315/335 | - | - | - | - | - | - |
| Effective seat width (without upper leg supports) (mm) | 265 | 300 | 355 | - | - | - | - | - | - |
| Leg to seat surface angle (°) | (-11)-(37) | (-11)-(37) | (-11)-(37) | - | - | - | - | - | - |
| Mass device (kg) | 5.2 | 6.1 | 7.5 | 12.4 | 13.4 | 14.9 | 14.8 | 17 | 18.1 |
| Maximum rated load (kg) | 42.2 | 63.1 | 79.5 | - | - | - | - | - | - |
| Maximum user mass (kg) | 35 | 55 | 70 | - | - | - | - | - | - |
| Minimum distance that the device can be turned 180 degrees (mm) | - | - | - | 850 | 875 | 905 | 785 | 955 | 955 |
| Overall backrest height (mm) | 425-495 | 470-550 | 515-615 | - | - | - | - | - | - |
| Overall folded height (mm) | 225 | 225 | 225 | - | - | - | - | - | - |
| Overall folded length (mm) | 430 | 490 | 515 | - | - | - | - | - | - |
| Overall folded width (mm) | 360 | 400 | 450 | - | - | - | - | - | - |
| Overall height (mm) | - | - | - | 905-1000 | 950-1055 | 995-1120 | 895-1075 | 930-1205 | 975-1270 |
| Overall height to pushbrace (mm) | - | - | - | 850-1020 | 890-1070 | 930-1130 | 900-1180 | 945-1235 | 990-1350 |
| Overall length (mm) | 360-375 | 395-430 | 435-495 | 760 | 760 | 760 | 660 | 805 | 805 |
| Overall length with leg rest (mm) | - | - | - | 935 | 955 | 1110 | 930 | 1065 | 1200 |
| Overall minimum turning diameter (mm) | - | - | - | 850 | 875 | 905 | 785 | 955 | 955 |
| Overall width (mm) | - | - | - | 470 | 510 | 560 | 485 | 580 | 580 |
| Seat plane angle (tilt)(°) | - | - | - | (-10°)-(30°) | (-10°)-(30°) | (-10°)-(30°) | (-5°)-(20°) | (-5°)-(20°) | (-5°)-(20°) |
| Seat surface height at front edge (mm) | - | - | - | 480-580 | 480-580 | 480-580 | 530-740 | 530-740 | 530-740 |
"Seat" measurements: The measurements for "Overall backrest height", "Effective backrest height" & "Effective seat depth" are including PU. The measurements for "Mass device" are the seat only (without accessories).

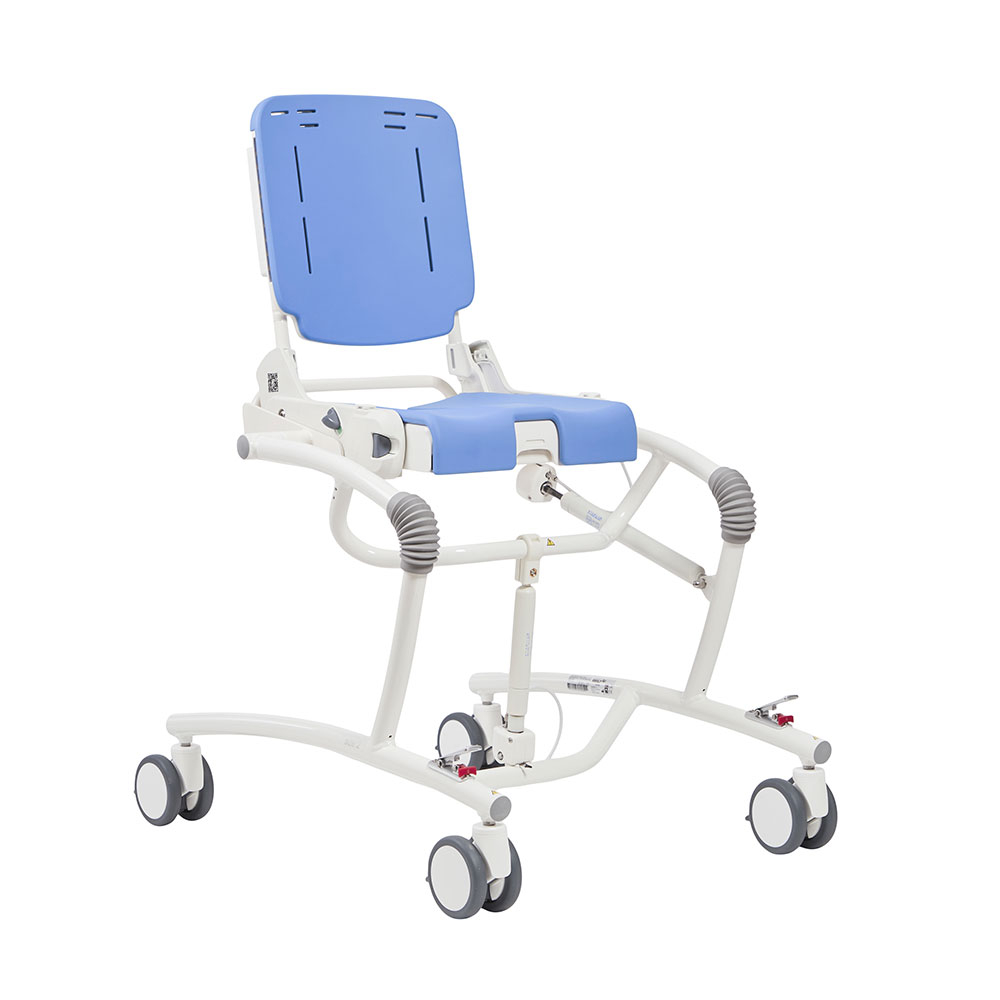

"Seat and High-low frame" measurements: The measurements are based on the use of 75 mm (3") castors. Castors diameter: 75/100 mm (3/4"). The "Seat plane angle (tilt)" measurements are (+/- 5°). The measurements for "Seat surface height at front edge" are including PU.

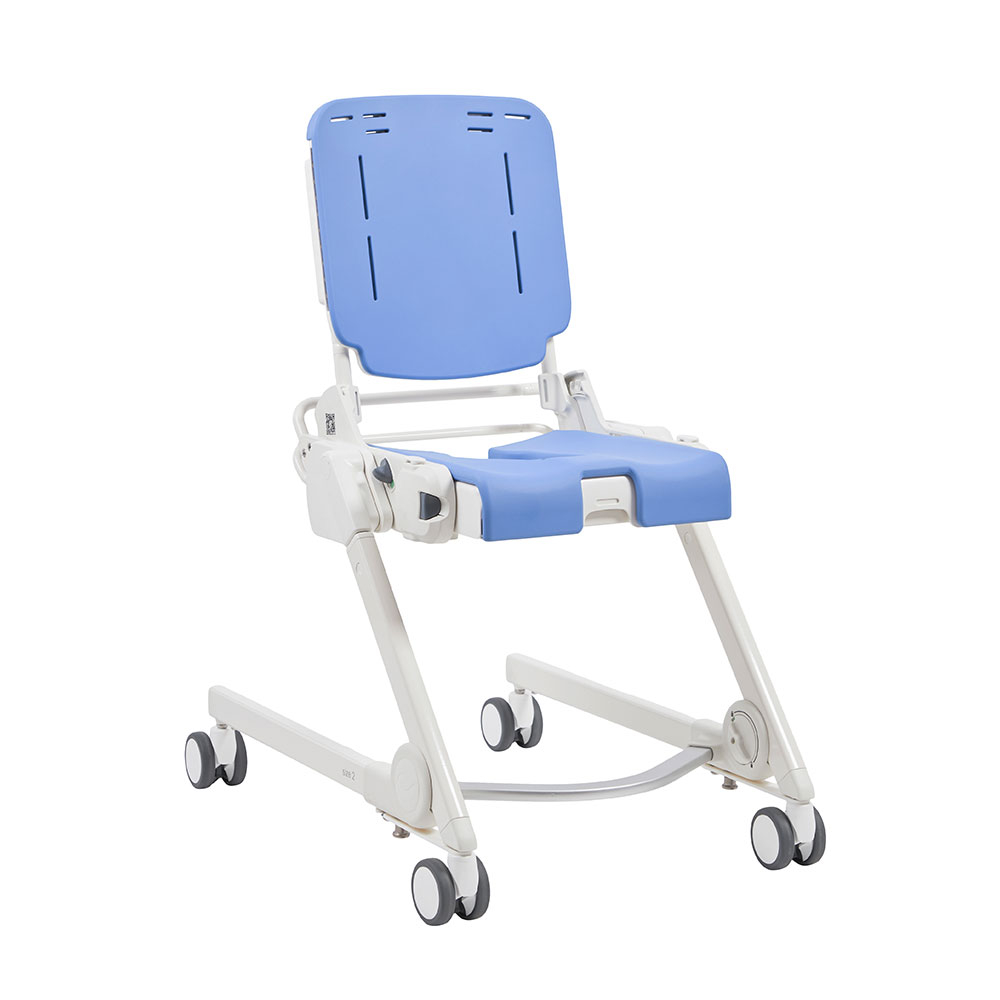

"Seat and Compact frame" measurements: The measurements are based on the use of 75 mm (3") castors. Castors diameter: 75/100 mm (3/4"). The "Seat plane angle (tilt)" measurements are (+/- 5°). The measurements for "Seat surface height at front edge" are including PU.
Options
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
How to adjust seat depth on Flamingo Curo
How to adjust the back height on Flamingo Curo

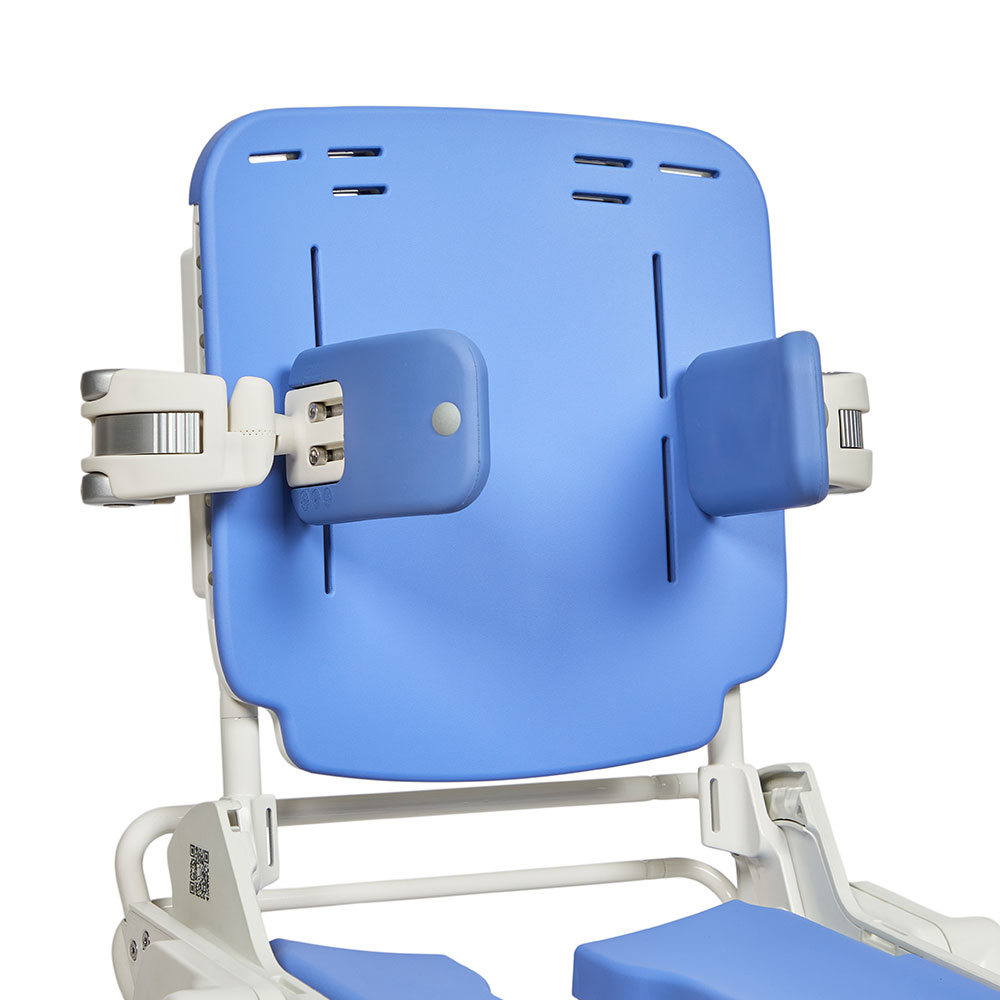

How to mount swing-away side supports on Flamingo Curo
