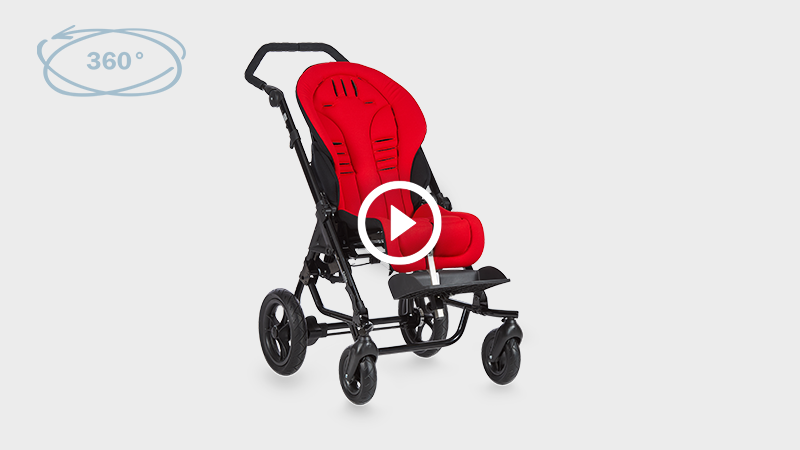

R82 Chilla
Chilla is outdoor adaptable and an obvious choice for any outdoor family adventure.
Chilla is designed to provide a safe and comfortable seating position for any family adventure. The seat adapts to the child with adjustments to depth and height, ensuring a tailored fit and a high level of comfort. Both forward and rear-facing options allow the child to either explore the surroundings or see the parents. With tilt and recline functions, it offers a secure place for the child to rest. The frame folds effortlessly, making it a flexible and convenient choice for exploring both the city and nature.
Features
-
Features
Growth and tailored support
Chilla is designed to enhance comfort, stability, and safety for the child. It is designed with attention to detail and therefore Chilla has a variety of features to secure a tailored fit for the children. Chilla grows with your child, accommodating their changing needs over the years.
-
Features
Outdoor adaptable
Chilla is an obvious choice for a variety of different outdoor family adventures. Chilla has the option of adjustable suspension on the frame. Having suspension provides several benefits as it improves stability to the buggy when moving through the terrain as well as help absorb vibrations and shocks during movement, providing a more comfortable and steadier ride.
-
Features
Easy toolless adjustments for everyday use
The Chilla is designed with the caregiver in mind and to make all daily adjustable features as easy to operate as possible, without compromising safety and comfort for the child.
-
Features
Comfort and safety
Chilla is designed with comfort and safety in mind. The combination of comfortable cushions, and addition of vest and belt and adjustable suspension, Chilla provides a very comfortable and safe ride in most terrains. Chilla is crash tested and complies with ISO 7176-19, for safe transportation in motor vehicles.
Variants
| Frame size 1 | Frame size 1 with suspension | Seat size 1 | Frame size 2 | Frame size 2 with suspension | Seat size 2 | |
|---|---|---|---|---|---|---|
| Item number | 881111x10 | 881111xx0 | 881012 | 881121x10 | 881121xx0 | 881022 |
| Back width, top of backrest (with side supports) (mm) | - | - | 150-225 | - | - | 170-260 |
| Back width, top of backrest (without side supports) (mm) | - | - | 315 | - | - | 365 |
| Backrest height with head support plate (mm) | - | - | 505-665 | - | - | 620-810 |
| Backrest height without head support plate (mm) | - | - | 365-525 | - | - | 420-610 |
| Backrest recline angle (°) | - | - | 80-160 | - | - | 80-160 |
| Effective seat depth (mm) | - | - | 180-340 | - | - | 240-420 |
| Effective seat width (without hip support) (mm) | - | - | 330 | - | - | 380 |
| Effective seat width minimum/maximum (with hip supports) (mm) | - | - | 180-260 | - | - | 230-310 |
| Folded height (mm) | 380 | 380 | 275 | 380 | 380 | 295 |
| Folded length (mm) | 1035 | 1035 | 535 | 1035 | 1035 | 635 |
| Folded width (mm) | - | - | 380 | - | - | 430 |
| Foot support to seat (mm) | - | - | 130-260 | - | - | 185-420 |
| Front wheel Height × Width (mm) | 190x50 | 190x50 | - | 190x50 | 190x50 | - |
| Leg to seat surface angle (°) | (-45)-(40) | (-45)-(40) | - | (-45)-(40) | (-45)-(40) | - |
| Length (mm) | 730 | 760 | - | 730 | 760 | - |
| Mass device (kg) | 9.2 | 9.7 | 5.3 | 9.5 | 10 | 6.3 |
| Mass of the heaviest part (kg) | 7.2 | 8.2 | - | 7.4 | 8.8 | - |
| Maximum load (kg) | 43 | 43 | - | 60 | 60 | - |
| Maximum rated load (kg) | 54.2 | 54.7 | 42.3 | 71.5 | 72 | 58.3 |
| Maximum slope (for use of driving brakes) (°) | 7 | 7 | - | 7 | 7 | - |
| Maximum user mass (kg) | - | - | 35 | - | - | 50 |
| Maximum user mass in transportation (kg) | 35 | 35 | 35 | 50 | 50 | 50 |
| Minimum turning radius (mm) | 1250 | 1250 | - | 1250 | 1250 | - |
| Minimum user mass in transportation (kg) | 22 | 22 | 22 | 22 | 22 | 22 |
| Overall height to pushbrace (mm) | 1200 | 1200 | - | 1200 | 1200 | - |
| Overall length (mm) | 800 | 800 | - | 800 | 800 | - |
| Overall length with leg rest (mm) | 1180 | 1180 | - | 1180 | 1180 | - |
| Overall width (mm) | 600 | 620 | - | 660 | 680 | - |
| Pivot width (mm) | 1160 | 1160 | - | 1200 | 1200 | - |
| Rear wheel Height × Width (mm) | 290x60 | 290x60 | - | 290x60 | 290x60 | - |
| Seat recline angle | - | - | (-5)-(40) | - | - | (-5)-(40) |
| Seat surface height at front edge (adapter plate) (mm) | 510 | 510 | - | 510 | 510 | - |
| Seat surface height at front edge (mm) | 450 | 450 | - | 450 | 450 | - |
| Static stability downhill (°) | 10 | 10 | - | 10 | 10 | - |
| Static stability sideways (°) | 10 | 10 | - | 10 | 10 | - |
| Static stability uphill (°) | 10 | 10 | - | 10 | 10 | - |
Folded height: The measurements above are without seat and rear wheels
Mass device frame: The measurements above are with solid wheels
Mass device seat: seat only (without accessories)
Mass of the heaviest part: The measurements above are without rear wheels
Options
Accessories

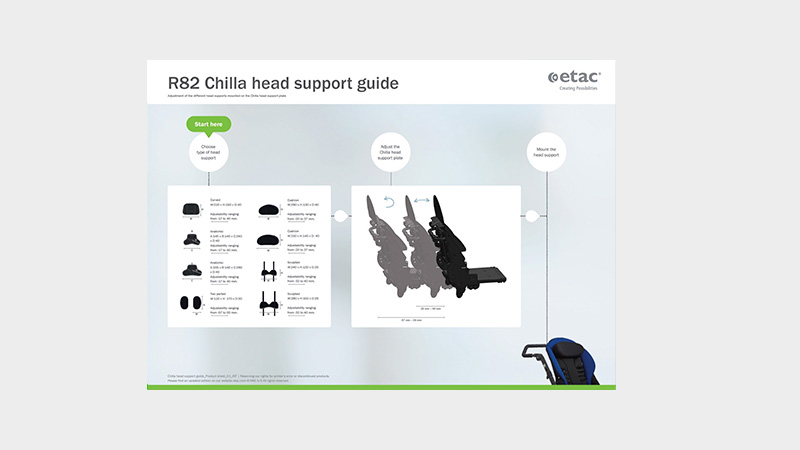

Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
How to fold frame and seat separately on Chilla
How to turn the Chilla seat
How to mount the premium canopy on Chilla
How to mount head support on turtle neck on Chilla
-
