R82 Swan Curo

A toilet and bath chair developed for children and youngsters with special needs. Its minimalistic design and soft inlay ensure optimal comfort and support, while the adjustable frame facilitates easy caregiving during daily hygiene routines.

Find your distributor

R82 Swan Curo

Ensuring great comfort and easy caregiving

The Swan Curo ensures great comfort and easy caregiving. Its minimalistic design and small footprint make it suitable for various homes, while the perfectly shaped shell and soft PU inlay provide optimal comfort for the child. Smooth surfaces allow for easy cleaning. The tilt mechanism and height-adjustable frame simplify adjustments during use, accommodating a wide range of toilets and making daily hygiene routines more efficient and dignified for both the child and caregiver.

User manual

Spare part list

Declaration of conformity

Features

Features

Versatile functionality

The R82 Swan Curo is a multifaceted toilet and bath chair, ideal for various daily self-care and wellness activities. This allows the child to be as active and involved as possible, promoting quality of life, minimising the need for transfers and the physical workload for the caregiver.
Features

Everyday convenience

Due to a minimalist and small footprint of the frame the toilet and bath chair fits very well into various houses and bathrooms. The simple design makes the chair very user-friendly and lightweight – making it easy for the caregiver to handle and the smooth surfaces easy to clean.
Features

Comfort & support

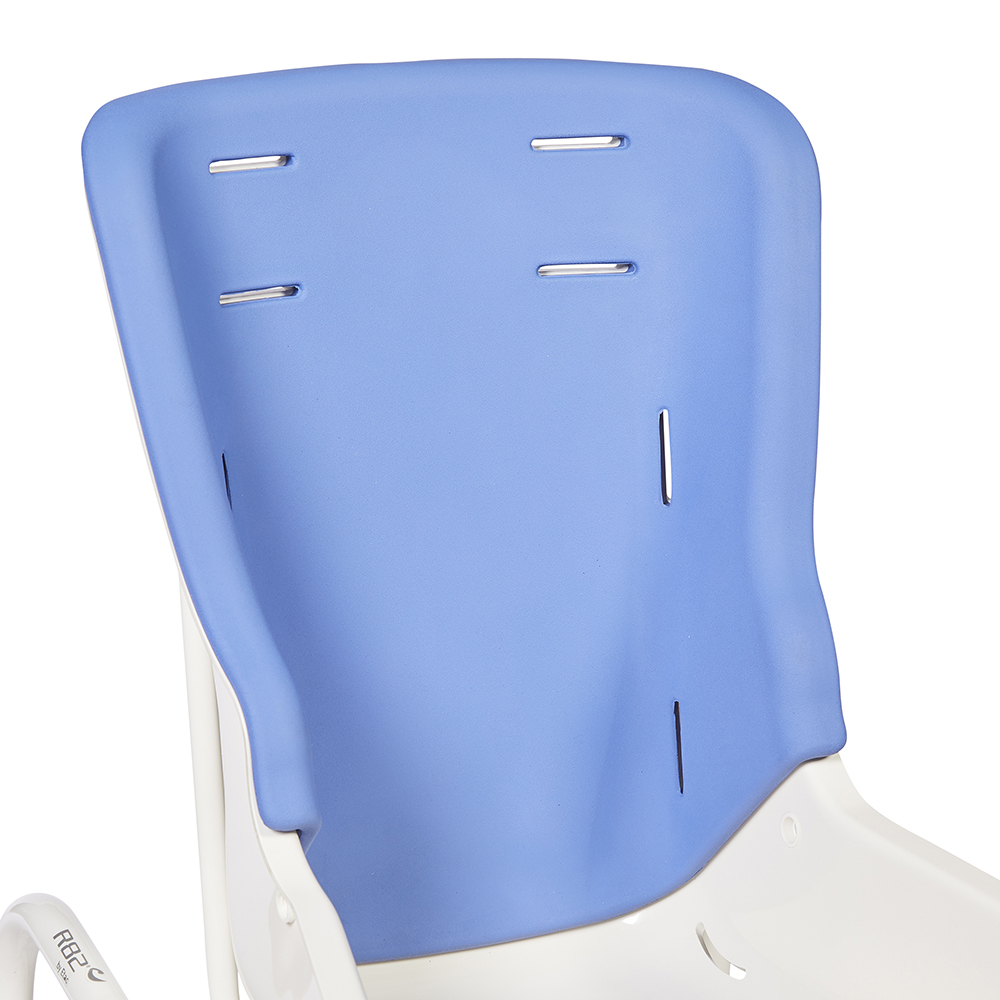

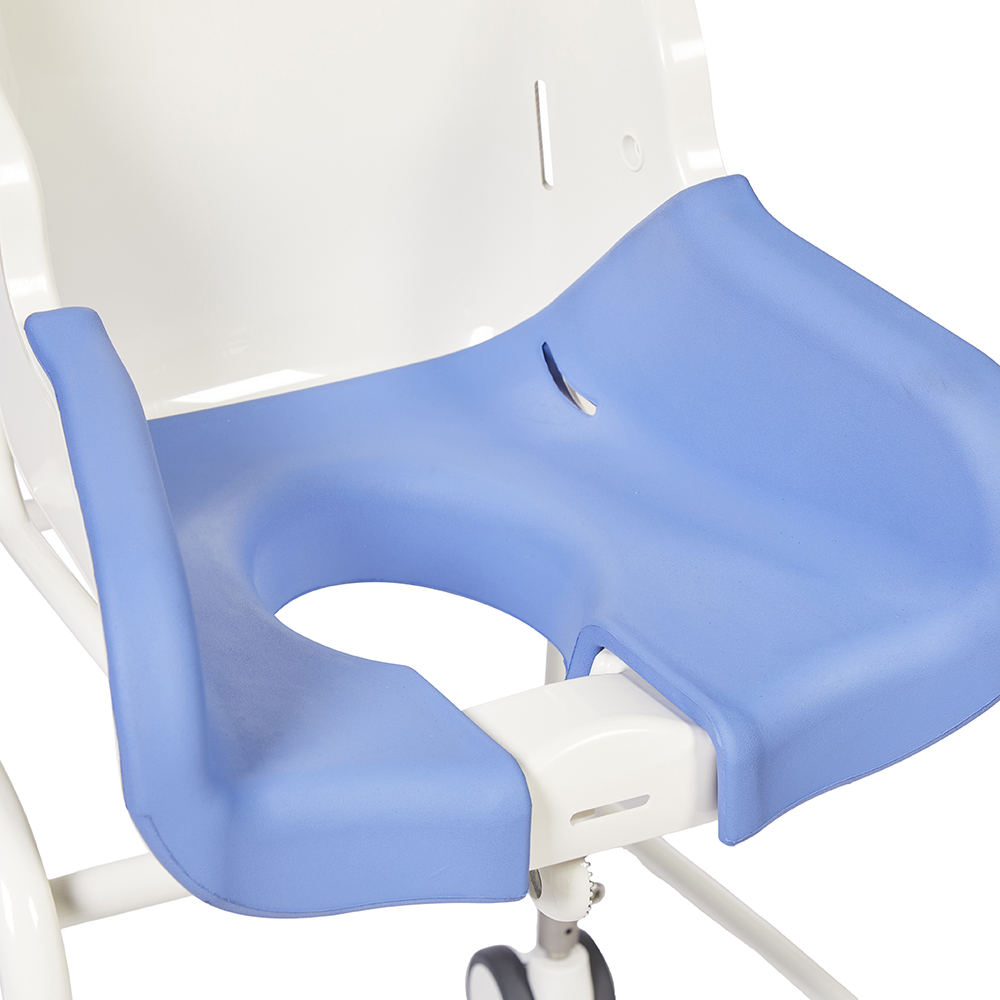

The shell is carefully designed to enclose the user, which along with the soft PU inlay, ensures high seating comfort. The PU inlay is easy to attach and has high durability. Head support, vests and belts ensure ideal support for the user.
Features

Individual adjustment

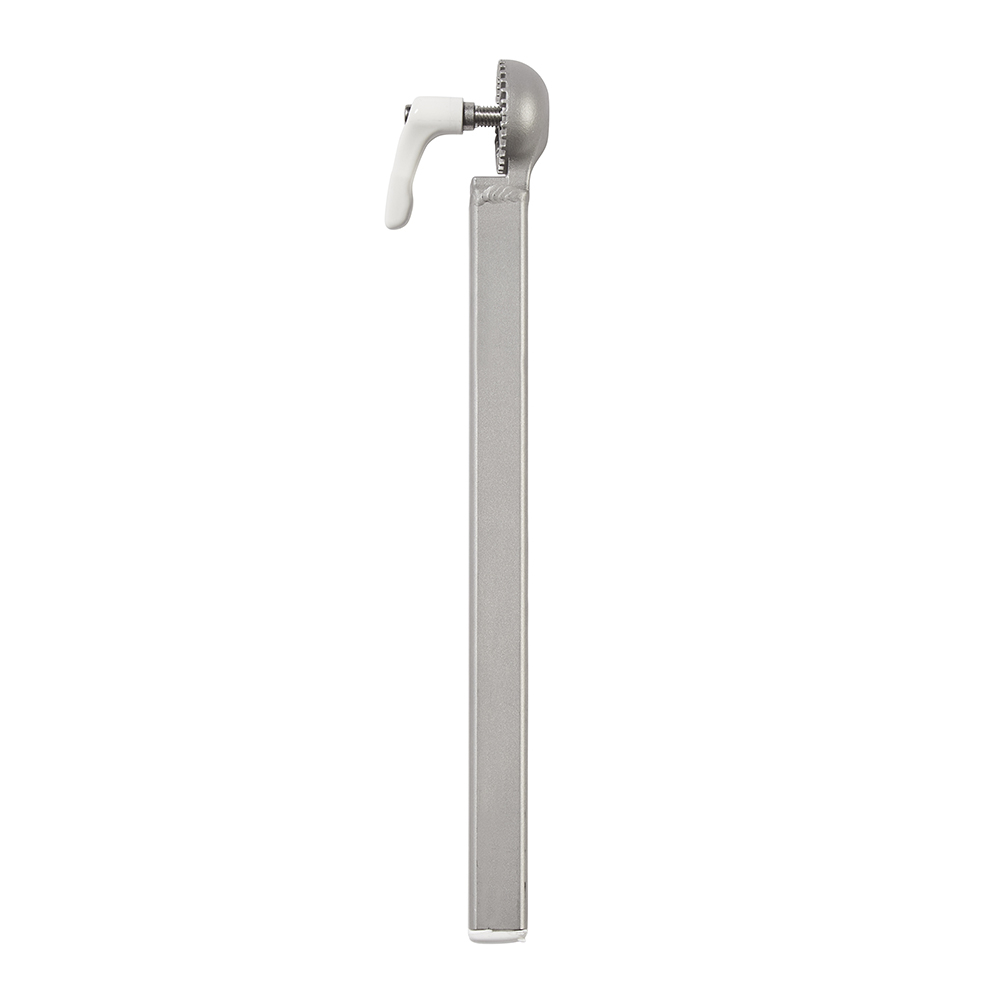

Positioning of the user is easily done using the tilt function assisted by a gas spring and the height- and angle-adjustable foot support. To obtain the best possible height for transfer, for caregivers or the toilet, the frame is height-adjustable.

Variants

	Size 1 without castors	Size 1	Size 2	Size 3	Size 4
Item number	87060	87061	87062	87063	87064
Aperture W x D (mm)	125x185	125x185	150x220	180x280	180x330
Aperture with inlay W x D (mm)	100x175	100x175	125x210	155x270	155x320
Back width, bottom of backrest (mm)	210	210	250	315	400
Back width, top of backrest (mm)	270	270	350	425	490
Backrest height (mm)	380	380	470	525	600
Effective seat depth (mm)	265	265	310	400	450
Effective seat width (mm)	220	220	260	320	410
Length, with castors outside (low/high) at 0° tilt (mm)	-	495/555	625/645	680/715	680/715
Length, without castors outside (low/high) at 0° tilt (mm)	400/425	-	-	-	-
Mass device, with castors (kg)	-	8.5	10.5	11.75	12.75
Mass device, without castors (kg)	7.5	-	-	-	-
Maximum rated load with castors (kg)	-	46	73	99	125
Maximum rated load without castors (kg)	45	-	-	-	-
Maximum user mass (kg)	35	35	60	85	110
Minimum distance for turning 180° allowing for reversing movement (mm)	705	705	820	895	945
Minimum distance for turning 180° forward in movement (mm)	1205	1205	1350	1475	1600
Minimum turning diameter (mm)	1410	1410	1640	1790	1890
Overall height with castors (mm)	-	760-920	960-1120	990-1150	1060-1220
Overall height without castors (mm)	670-830	-	-	-	-
Overall width with castors (mm)	-	500	530	580	655
Overall width without castors (mm)	460	-	-	-	-
Pelvis width (mm)	240	240	275	340	420
Seat plane angle (°)	0°- 20°	0°-20°	0°-20°	0°- 20°	0°- 18,5°
Seat surface height at front edge, with castors (mm)	-	380-540	480-640	470-630	465-625
Seat surface height at front edge, without castors (mm)	290-450	-	-	-	-
Seat width front (mm)	320	320	355	425	475
