Tall upper body

- Shape up in Prio 3A

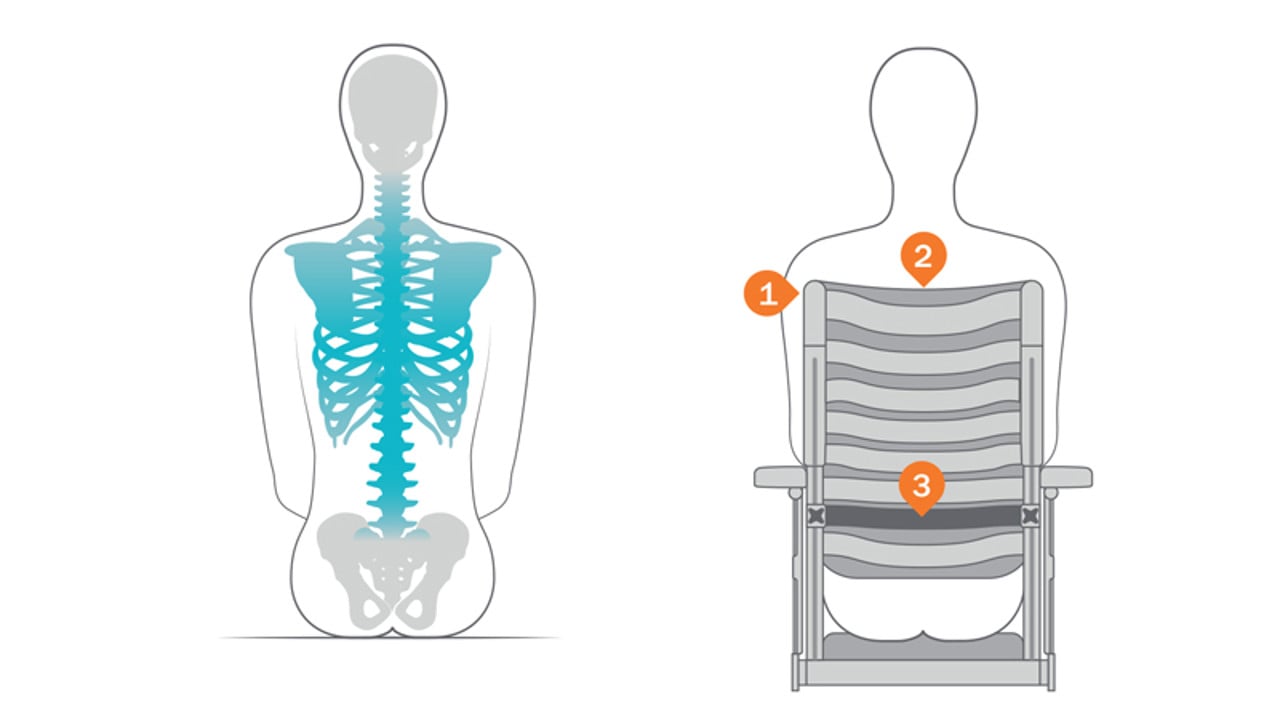

/globalassets/0-international/wheelchairs-and-pressure-care-landing-page/body-shapes-cross-5-and-6-and-prio-3a/prio-3a/illustration_prio3a_accessories_body-shape_tall.jpg?width=1280&Quality=90&rmode=max&scale=down

The 3A back can be adjusted at the lumbar angle if the individual with the tall upper body feels more balanced, with the thoracic angle slightly more open.

The Back extension 3A (1) can be easily added to give an additional 6 cm of back height.

Select back cushion or back cover (2). The back support can be adjusted as high as 68 cm (27½"). Be sure to adjust the Dynamic Pelvic Support (3) in height with PSIS.

When tilting and reclining a person with a tall upper body, the weight shift can affect the chair´s stability. Use Gas Piston Clips (4) to reduce maximum tilt and recline angles if required. A user with a tall upper body can have difficulties stabilizing the trunk if the active position is too upright. Secure the active seat tilt with the Comfort Tilt Lock (5) and the seat-to-back angle with the Back Angle Control (6).

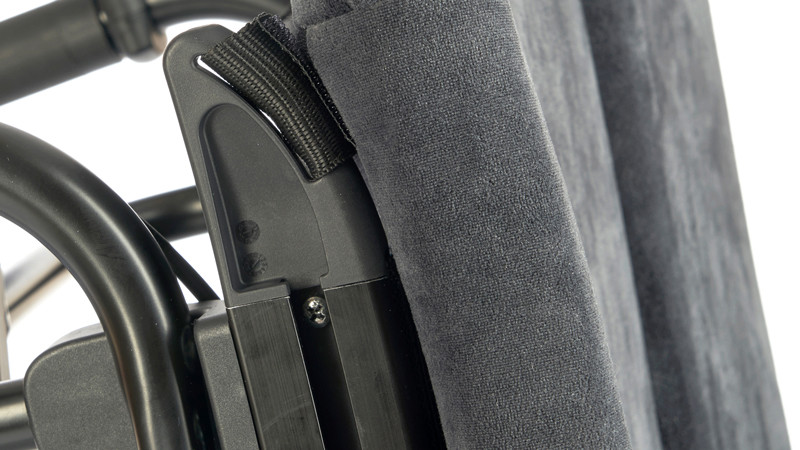

1. Back extension 3A

Add 6 cm to the 3A-back support profile. With the back extension mounted on the 3A back support, a back height up to 68 cm is achieved.

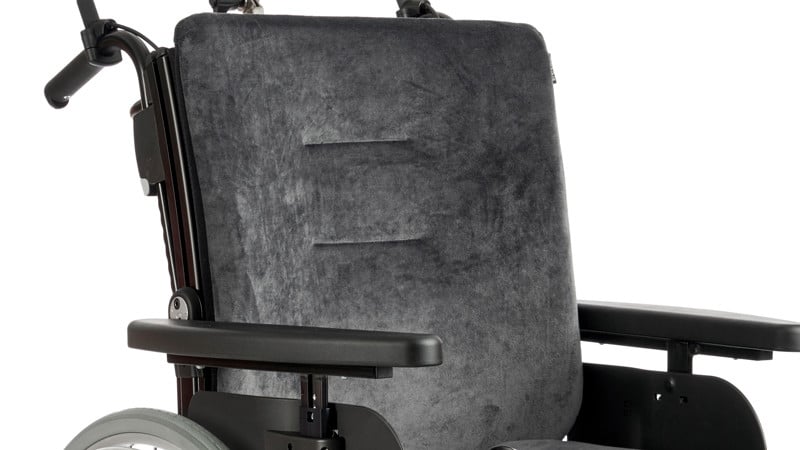

2. Back Cushion

With softly built in side support. Available with plush or hygienic cover.

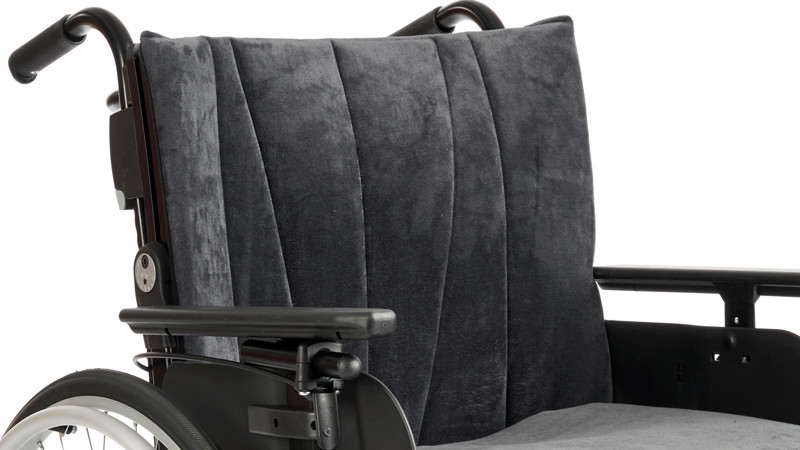

2. Back Cover

With thin foam padding. Can be supplemented with wedges. Only available in plush.

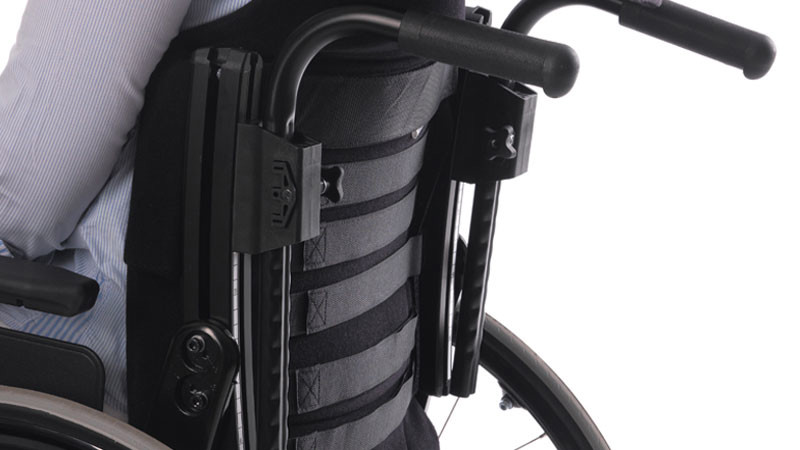

3. Dynamic Posterior Pelvic Support

Automatically relieves the tension in the reclined position and re-tightens in the active position. Adjust the height to the level of PSIS.

4. Gas Piston Clips

Reduce the angle options. The more clips added, the less the chair can recline. Reduces the control range of the seat angle by 2° per clip and the back angle by 2.5° per clip.

5. Comfort Tilt Lock

This function ensures the same preset tilt position. There are four alternative settings (0°, 4°, 8° or 12°). Choose one position that is frequently used, for activity or rest. Not in combination with Etac Prio electrical tilt.

6. Back Angle Control

Limits the back angle forward on the Prio for an active seat position. By adjusting the length of the strap, the active back support setting can be controlled. The back will always stop at the preset angle.
