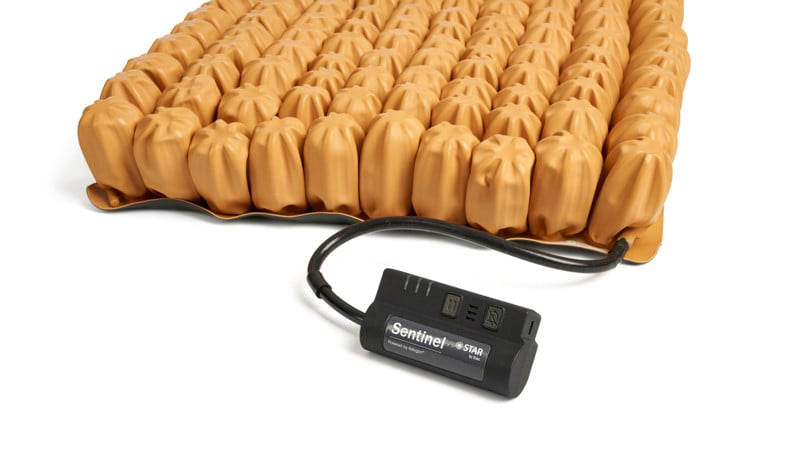

Star StabilAir
The perfect blend of multi air cell cushion with soft foam cylinders within each air cell.
StabilAir – the new generation air cell cushion
Each StabilAir cushion has two sizes of foam cylinders. The cylinders on the outside are higher, while those under the buttocks, coccyx and legs are lower, creating an anatomically shaped secondary layer of skin protection. This increases the stability and eases transfer to and from the cushion. The StabilAir cushion has one chamber which is easy to use and provides stability.
Features
Single compartment with concealed stability
The Stabil-Air cushion has a soft foam cylinder within each air cell. They are anatomically contoured and add exceptional stability to a single compartment air cell cushion.
Immersion and envelopment
The soft foam cylinders contain a considerable amount of air and allow the user to immerse into the cushion to obtain the best envelopment. The StabilAir is available in two cell heigths: 7.5 cm and 10 cm.
Pressure redistribution
The air cell formability ensures very good pressure redistribution properties. They adapt to the body structure and minimize the risk of tissue deformation. Perfect for prevention and care of pressure ulcers.
Easy Handling
One compartment entails only one valve adjustment. The StabilAir cushion is an ideal combination of easy handling and stability, which can improve sitting tolerance over time.
Variants
| Item number | Cell height (mm) | Maximum user weight | Suits wheelchair seat (mm) | |
|---|---|---|---|---|
| 26 x 26 cm | ESSA30909-1 | 75 | Unlimited | 220-250 |
| 26 x 30 cm | ESSA30911-1 | 75 | Unlimited | 220-250 |
| 26 x 34 cm | ESSA30913-1 | 75 | Unlimited | 220-250 |
| 30 x 26 cm | ESSA31109-1 | 75 | Unlimited | 250-300 |
| 30 x 30 cm | ESSA31111-1 | 75 | Unlimited | 250-300 |
| 30 x 34 cm | ESSA31113-1 | 75 | Unlimited | 250-300 |
| 30 x 39 cm | ESSA31115-1 | 75 | Unlimited | 250-300 |
| 34 x 26 cm | ESSA31309-1 | 75 | Unlimited | 300-350 |
| 34 x 30 cm | ESSA31311-1 | 75 | Unlimited | 300-350 |
| 34 x 34 cm | ESSA31313-1 | 75 | Unlimited | 300-350 |
| 34 x 39 cm | ESSA31315-1 | 75 | Unlimited | 300-350 |
| 34 x 44 cm | ESSA31317-1 | 75 | Unlimited | 300-350 |
| 39 x 30 cm | ESSA31511-1 | 75 | Unlimited | 350-400 |
| 39 x 34 cm | ESSA31513-1 | 75 | Unlimited | 350-400 |
| 39 x 39 cm | ESSA31515-1 | 75 | Unlimited | 350-400 |
| 39 x 44 cm | ESSA31517-1 | 75 | Unlimited | 350-400 |
| 39 x 49 cm | ESSA31519-1 | 75 | Unlimited | 350-400 |
| 39 x 53 cm | ESSA31521-1 | 75 | Unlimited | 350-400 |
| 44 x 34 cm | ESSA31713-1 | 75 | Unlimited | 400-440 |
| 44 x 39 cm | ESSA31715-1 | 75 | Unlimited | 400-440 |
| 44 x 44 cm | ESSA31717-1 | 75 | Unlimited | 400-440 |
| 44 x 49 cm | ESSA31719-1 | 75 | Unlimited | 400-440 |
| 44 x 53 cm | ESSA31721-1 | 75 | Unlimited | 400-440 |
| 49 x 39 cm | ESSA31915-1 | 75 | Unlimited | 440-490 |
| 49 x 44 cm | ESSA31917-1 | 75 | Unlimited | 440-490 |
| 49 x 49 cm | ESSA31919-1 | 75 | Unlimited | 440-490 |
| 49 x 53 cm | ESSA31921-1 | 75 | Unlimited | 440-490 |
| 53 x 39 cm | ESSA32115-1 | 75 | Unlimited | 490-540 |
| 53 x 44 cm | ESSA32117-1 | 75 | Unlimited | 490-540 |
| 53 x 49 cm | ESSA32119-1 | 75 | Unlimited | 490-540 |
| 53 x 53 cm | ESSA32121-1 | 75 | Unlimited | 490-540 |
| 26 x 26 cm | ESSA40909-1 | 100 | Unlimited | 220-250 |
| 26 x 30 cm | ESSA40911-1 | 100 | Unlimited | 220-250 |
| 26 x 34 cm | ESSA40913-1 | 100 | Unlimited | 220-250 |
| 30 x 26 cm | ESSA41109-1 | 100 | Unlimited | 250-300 |
| 30 x 30 cm | ESSA41111-1 | 100 | Unlimited | 250-300 |
| 30 x 34 cm | ESSA41113-1 | 100 | Unlimited | 250-300 |
| 30 x 39 cm | ESSA41115-1 | 100 | Unlimited | 250-300 |
| 34 x 26 cm | ESSA41309-1 | 100 | Unlimited | 350-400 |
| 34 x 30 cm | ESSA41311-1 | 100 | Unlimited | 300-350 |
| 34 x 34 cm | ESSA41313-1 | 100 | Unlimited | 300-350 |
| 34 x 39 cm | ESSA41315-1 | 100 | Unlimited | 300-350 |
| 34 x 44 cm | ESSA41317-1 | 100 | Unlimited | 300-350 |
| 39 x 30 cm | ESSA41511-1 | 100 | Unlimited | 350-400 |
| 39 x 34 cm | ESSA41513-1 | 100 | Unlimited | 350-400 |
| 39 x 39 cm | ESSA41515-1 | 100 | Unlimited | 350-400 |
| 39 x 44 cm | ESSA41517-1 | 100 | Unlimited | 350-400 |
| 39 x 49 cm | ESSA41519-1 | 100 | Unlimited | 350x400 |
| 39 x 53 cm | ESSA41521-1 | 100 | Unlimited | 350-400 |
| 44 x 34 cm | ESSA41713-1 | 100 | Unlimited | 400-440 |
| 44 x 39 cm | ESSA41715-1 | 100 | Unlimited | 400-440 |
| 44 x 44 cm | ESSA41717-1 | 100 | Unlimited | 400-440 |
| 44 x 49 cm | ESSA41719-1 | 100 | Unlimited | 400-440 |
| 44 x 53 cm | ESSA41721-1 | 100 | Unlimited | 400-400 |
| 49 x 39 cm | ESSA41915-1 | 100 | Unlimited | 440-490 |
| 49 x 44 cm | ESSA41917-1 | 100 | Unlimited | 440-490 |
| 49 x 49 cm | ESSA41919-1 | 100 | Unlimited | 440-490 |
| 49 x 53 cm | ESSA41921-1 | 100 | Unlimited | 440-490 |
| 53 x 39 cm | ESSA42115-1 | 100 | Unlimited | 490-540 |
| 53 x 44 cm | ESSA42117-1 | 100 | Unlimited | 490-540 |
| 53 x 49 cm | ESSA42119-1 | 100 | Unlimited | 490-540 |
| 53 x 53 cm | ESSA42121-1 | 100 | Unlimited | 490-540 |
Washing instructions
Wiping - the product can be wiped clean with a cleaning cloth
Clean the product with a 70% disinfectant solution.
The product is CE marked
Hand wash - max. temperature 40 °C/104 °F
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
