Molift Mover 300

Generation 1 - Ar. nr: M15051, M15050, M15150, M15001, M15002, M15151

High capacity in a low total weight\ With its high lifting capacity of 660 lbs, Molift Mover 300 is the ideal solution for hospitals and care facilities with bariatric clients who have frequent and everyday moving and handling needs. With a total weight of only 88.4 lbs the Molift Mover 300 is the lightest in its category. The unique construction and wheel positioning provides excellent maneuverability. Excellent hoisting range\ Molift Mover 300 lifts easily from the floor, reaching down to 14.6 inch at the lowest. Excellent maximum lifting height at 82.7 inch provides good free lifting space and possibility for gait training. The lift is also equipped with an environmentally friendly NiMh-battery.

Features

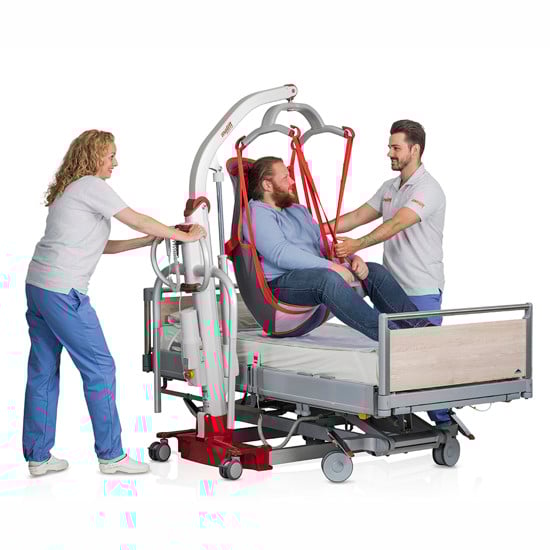

Ideal for patients of size

An ideal solution for hospitals and care facilities, when frequent, everyday moving and handling are needed.

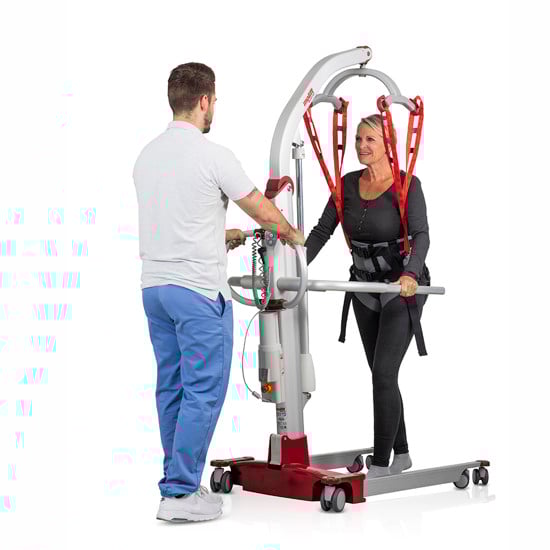

Excellent for gait training

Thanks to excellent lifting height, Mover 300 works optimally for gait training.

Unique quick-release function

The sling bars for Molift Mover 205/300 have a unique quick-release function. This makes it very easy to change to different sling bars in other sizes.

Several alternative sling bars

The hoist can be used with both a 2-point and a 4-point sling bar. The sling bars are available in many variants and can easily be replaced without tools.

Variants

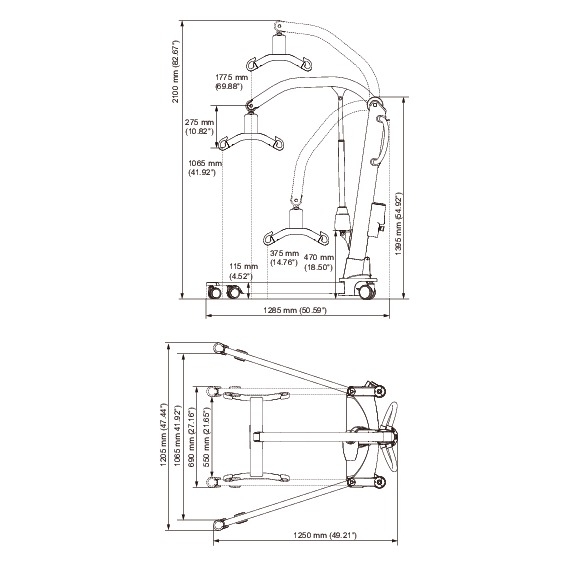

Specifications
Battery charge time (hours)	3	Rated performance	50 hoists at: 75 kg and 500 mm
Hoisting height max (mm)	1775	Safe working load (SWL) (kg)	300
Hoisting height min (mm)	375	Service software	Molift Service Tool
Hoisting interval (mm)	1420	Width chassis, legs inner (mm)	550
Hoisting speed 75 kg (mm/sec)	27	Width chassis, legs open inner (mm)	1065
Length (mm)	1285	Width chassis, outer (mm)	690
Material	Aluminium, steel

	Low base chassis, excl. sling bar	Standard excl. sling bar	Standard with support arms
Item number	M15051	M15050	M15150
Battery	NiMH 26.4 V-2.6 Ah	NiMh 26,4 V-2,6 Ah	NiMh 26,4 V-2,6 Ah
Leg height (mm)	105	115	115
Total weight (kg)	37.6	37.6	42

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
