Molift Quick Raiser 1
Compact design and excellent manoeuvrability even in narrow spaces
Compact and easy
By virtue of its compact design and low weight, Molift Quick Raiser 1 is stable and easy to manoeuvre. The unique wheel position and near perfect weight distribution of the base provides a small turning radius with easy manoeuvrability even in narrow spaces.
Natural pattern of movement
The inclined straight column imitates the natural pattern of movement and fulfils the hoisting needs of users with some degree of weight bearing capacity. Molift Quick Raiser 1 has a safe working load of 160 kg.
The extra low base, 7 cm, and narrow front, 34 cm, fits well around toilets and under most beds, chairs and wheelchairs.

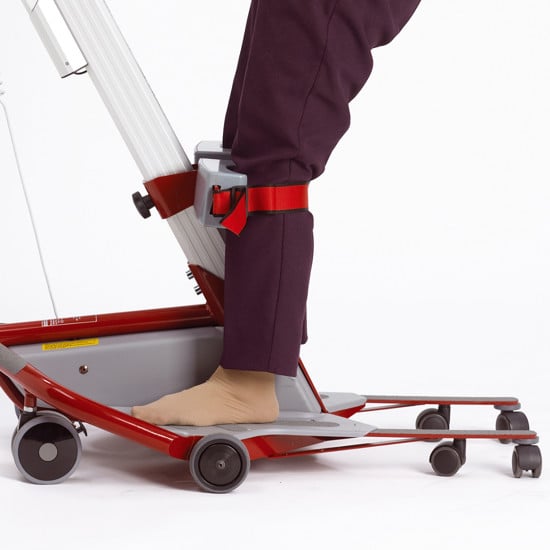

Extra low base
Multiple adjustable knee pads

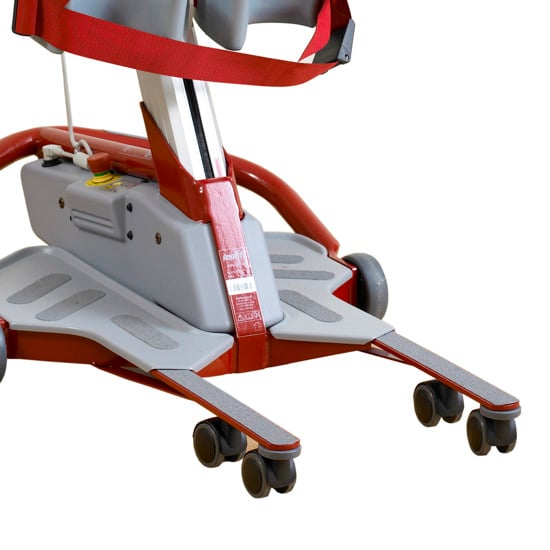

Unique wheel positioning
|Battery charge time (hours)||3||Maximum user weight (kg)||160|
|Battery||NiMH 14,4 V - 2,6 Ah||Product includes||Chassis, column, knee support and respective V- or U-shape Arm|
|Height (mm)||1280||Rated performance||40 hoists at: 75 kg and 500 mm|
|Hoisting speed 75 kg (mm/sec)||50||Service software||Included|
|Leg height (mm)||70||Weight (kg)||30|
|Length (mm)||955||Width chassis, outer (mm)||610|
|V-shape arm||U-shape arm|
|Etac item number||M04100||M04150|
