R82 Manatee

The Manatee is constructed to provide both the user and caregiver with a good bathing experience.

The bathing chair is designed to place the user in a sitting or supine position. The depth of the seat can be adjusted, allowing the bathing chair to "grow" with the child and provides many years of use. The adjustments and accessories are logically positioned, affording the carer better working conditions. The Manatee is very lightweight and can easily be folded for storage or transportation.

The Manatee is a bathing chair suitable for children from the age of 1 year. Not all children are alike - that is why it is important to use the measuring chart to find the correct size for your child.

Features

Depth adjustable seat

Depth adjustable seat

Provides depth adjustment for growth.
Adjustable back and leg rests

Adjustable back and leg rests

Allow adjustments of the back and of the lower leg support with a simple pull of a strap or push of a button.

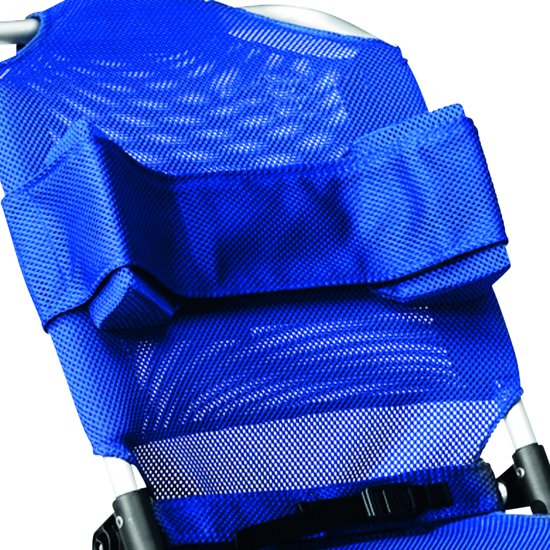

Head cushion/lateral support

Head cushion/lateral support

Provides support and comfort for bathing children. Cushions can be used for head or torso support.
Adjustable waist strap

Adjustable waist strap

Supports the child safely in the Manatee.

Variants and details

Size 0
Size 1
Size 2
Size 3
R82 item number 882005 88201x 88202x 88203x
Backrest height (mm) 430 430 580 640
Effective seat depth (mm) 220-250 300-370 390-460 400-470
Effective seat width (mm) 330 330 330 400
Folded height (mm) 130 130 130 130
Folded length (mm) 1030-1000 1100-1170 1360-1430 1440-1510
Lower leg length (mm) 280 280 350 350
Mass device (kg) 5.5 5.5 6 7
Maximum rated load (kg) 57.5 57.5 83 84
Maximum user mass (kg) 50 50 75 75
Overall width (mm) 420 420 420 490
Seat surface height at front edge (mm) 140-430 140-430 140-430 140-430

Options

The Manatee is available in two different colours. Size 0 is only available with blue cover

Red

Blue

The Manatee can be lowered to within 13 cm of bottom of the bath.

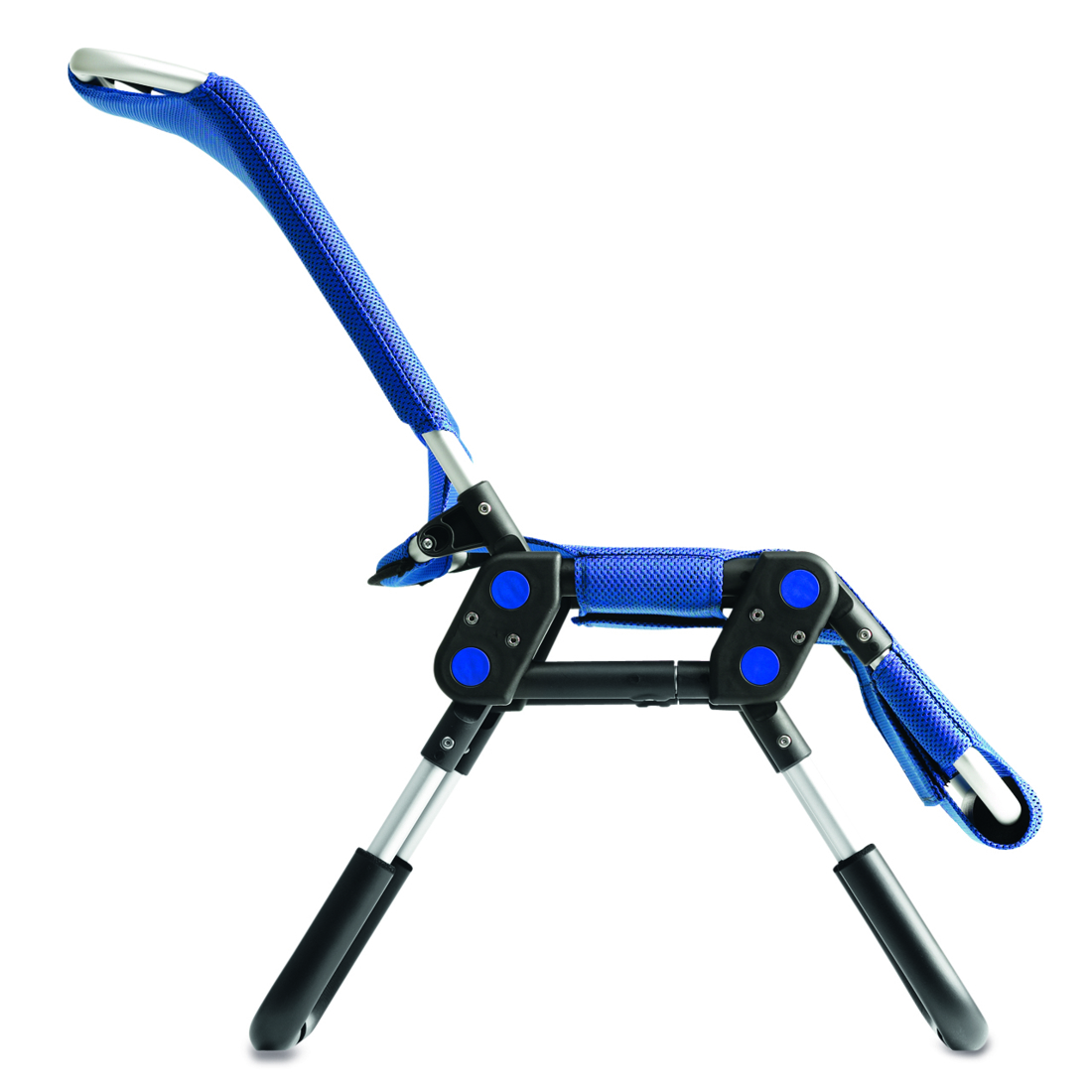

It is lightweight and it folds flat for storage. The seat can also be placed directly into an ordinary bath tub

The seat can be placed directly into an odinary bath tub

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
