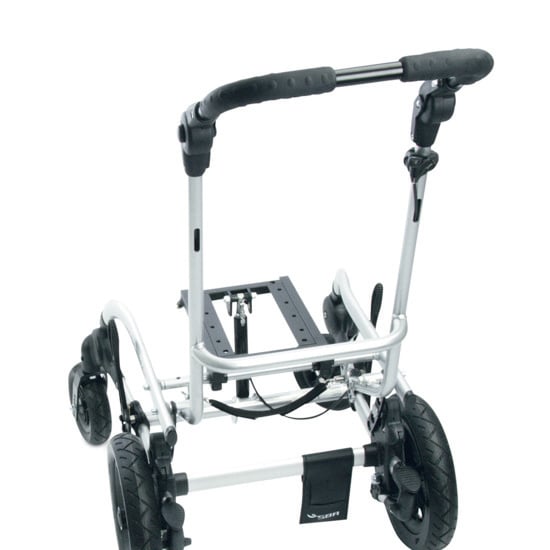

R82 Multi Frame

The Multi Frame is an innovative, lightweight and highly manoeuvrable wheelchair base

It is designed to accept both the Panda Futura and x:panda but also other manufacturers seating that is constructed in a similar fashion and meets the current standards. Simple to operate tilt in space with the minimum of moving parts make this frame an easy choice for users to select. The Multi Frame complies with ISO 7176-19, transporting users in motor vehicles.

Features

Tilt in space

Tilt in space

Simple to operate tilt in space with the minimum of moving parts
Seats

Seats

Mount a Panda Futura or x:panda seat on the Multi Frame
Prepared for other manufactures seats and backs

Prepared for seats and backs from other manufacturer

Mount a Panda Futura or x:panda seat on the Multi Frame
Safe transportation in vehicles

Safe transportation in vehicles

The Multi Frame complies with ISO 7176-19, transporting users in motor vehicles.The Multi Frame can be used with seat units that complies with ISO 16840-4

Variants and details

Size 1
Size 2
Size 3
R82 item number 9711xxxx0 9721xxxx0 9731xxxx0
Back width, inside (mm) 245 295 345
Folded height with 12 1/2" back wheels (mm) 470 470 470
Folded height with 22" back wheels (mm) 560 560 560
Folded height without back wheels - Mid position (mm) 400 400 400
Folded length with 12 1/2" back wheels (mm) 730 730 730
Folded length with 22" back wheels (mm) 850 850 850
Folded length with 22" wheels (mm) 850 850 850
Footrest to adaptor plate (mm) 50-340 50-340 50-340
Hand brace length (mm) 225 225 225
Handrim diameter (mm) 480 480 480
Inside width (mm) 340 390 440
Length - with 12½" wheels (mm) 640 640 690
Length - with 22" wheels (mm) 750 750 800
Mass device with 12.5" wheels and solid front wheels (kg) 13 13 13
Mass device with 22" air wheels and air front wheels (kg) 14 14 14
Max load at transportation (kg) 100 100 100
Max load (kg) 100 100 100
Maximum rated load (kg) 115 115 115
Overall height, push brace 15° (mm) 915 915 915
Overall height, push brace 30° (mm) 850 850 850
Overall width 22" wheels & drumbrake (mm) 430 480 530
Overall width with 12.5" wheels (mm) 590 640 690
Overall width with 22" wheels (mm) 590 640 690
Seat plane angle (°) 0 - 30, 35, 40 0 - 30, 35, 40 0 - 30, 35, 40
Seat surface height at front edge (mm) 395, 425, 455 395, 425, 455 395, 425, 455
Width between 22" wheels with drum brake (mm) 430 480 530
Width between 22" wheels without drum brake (mm) 440 490 540
Width inside (mm) 340 390 440

Options

Available in 1 colour

Silver

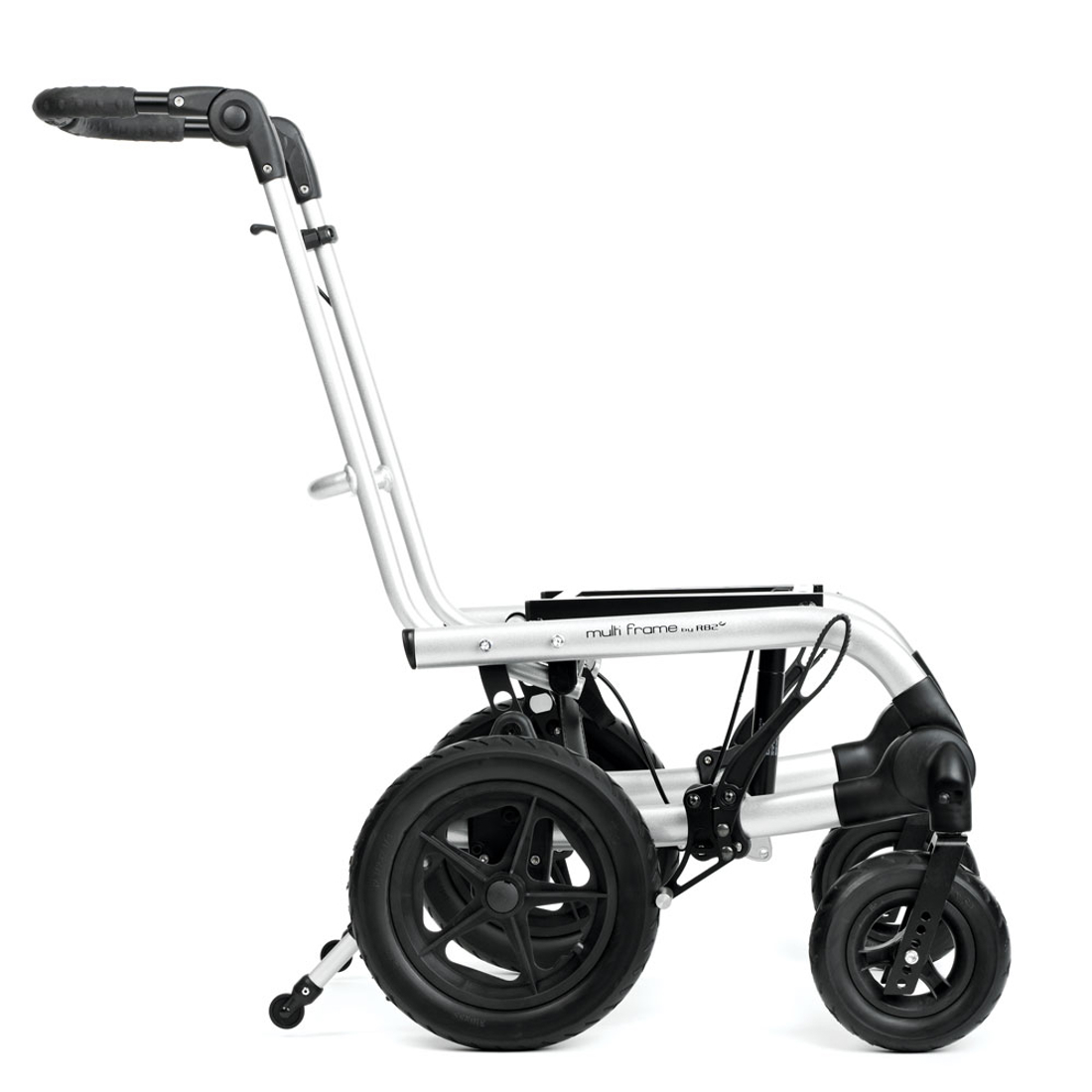

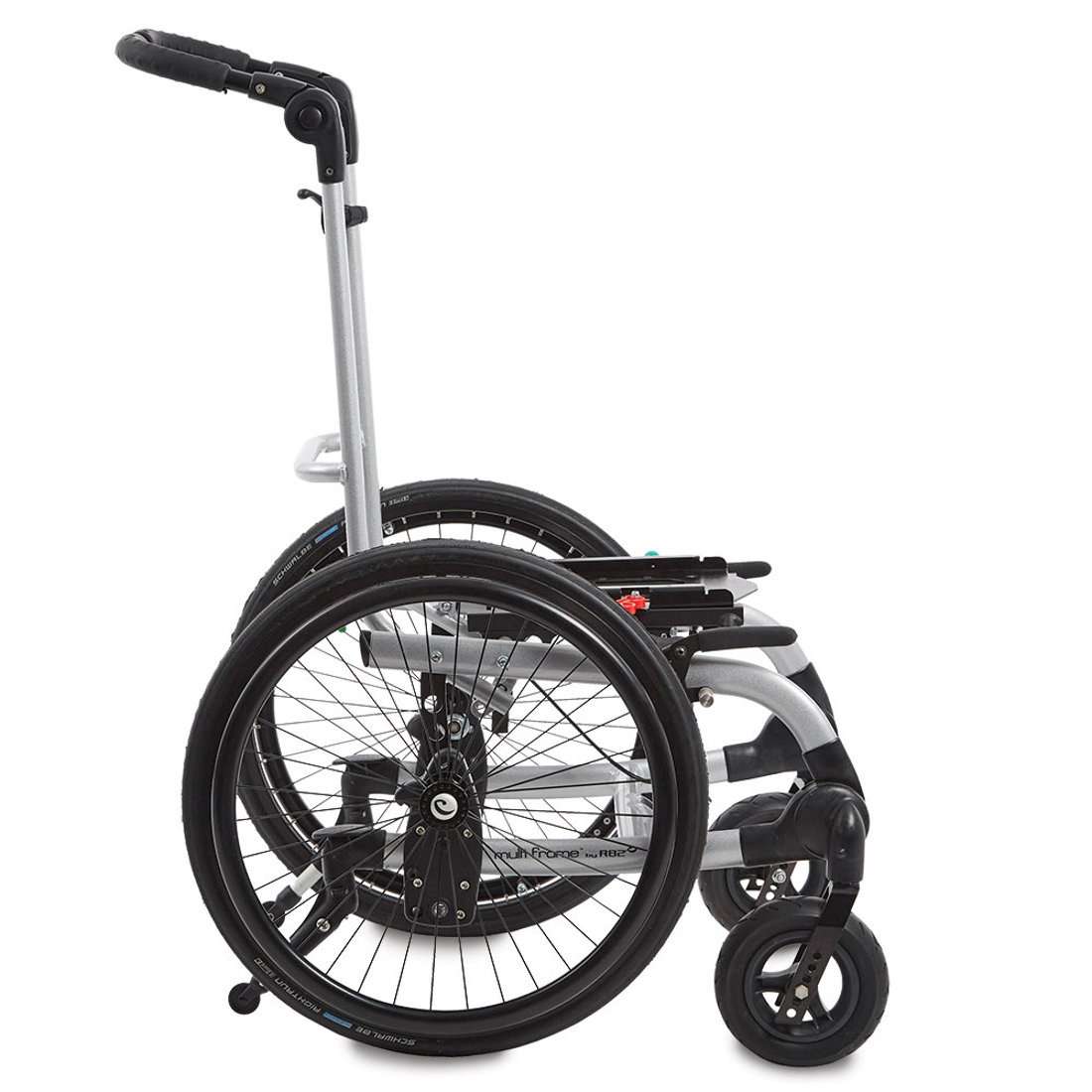

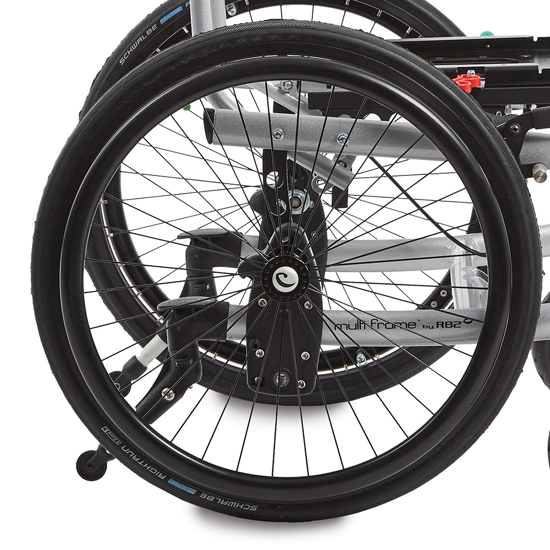

Available with different rear wheel sizes

12½” solid incl wheel brake

22” solid incl. wheel brake

12½” air incl. wheel brake

22” air incl. wheel brake

Choose from the different combinations of brakes

Wheel brake, standard

Drum brake for 12½"

Drum brake for 22"

Available with different front wheel options

7” air grey or black

7” solid grey or black

Gradual back angling

Gradual back angling, with additional depth

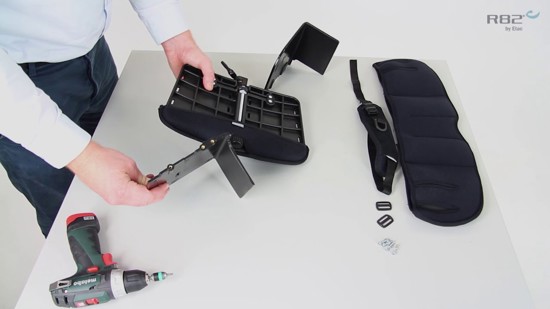

Different seats can be mounted on the Multi Frame. Use an interface to mount a x:panda seat size 1-4* or a Panda Futura seat size 1-5. You can also bolt the Panda 5 and x:panda 3+4 directly to the frame. * Size 4 only in small and medium

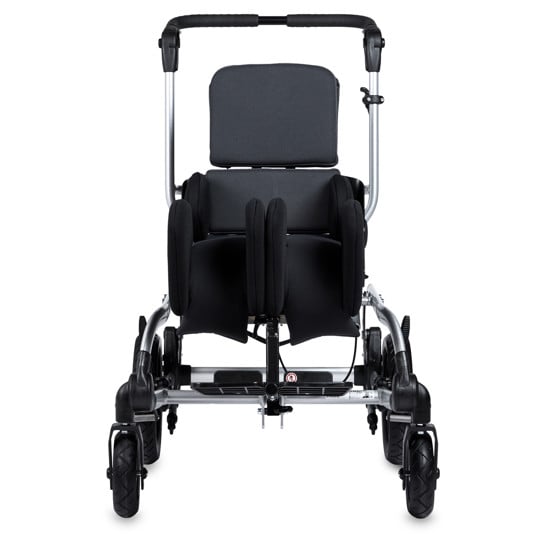

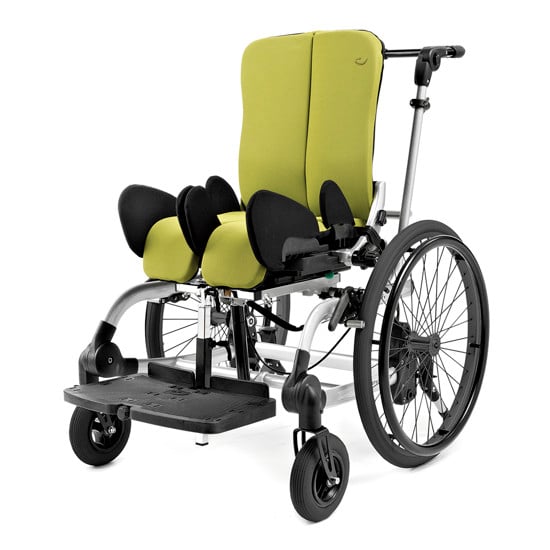

x:panda seat

Panda Futura seat

Multi frame for bolting x:panda seat 3 and 4 and Panda Futura 5

No interface is needed when the seat is bolted directly on the frame

Seat plate
