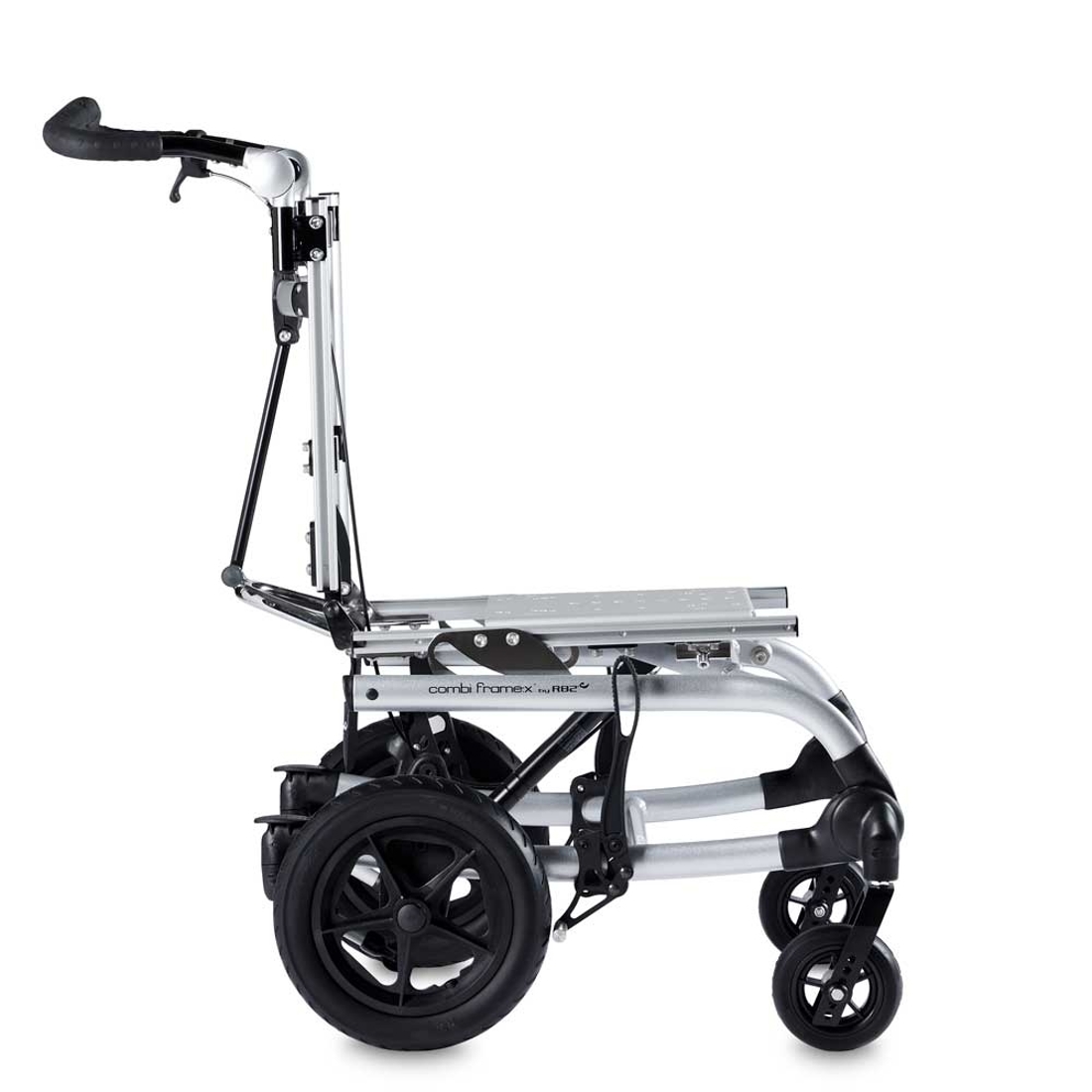

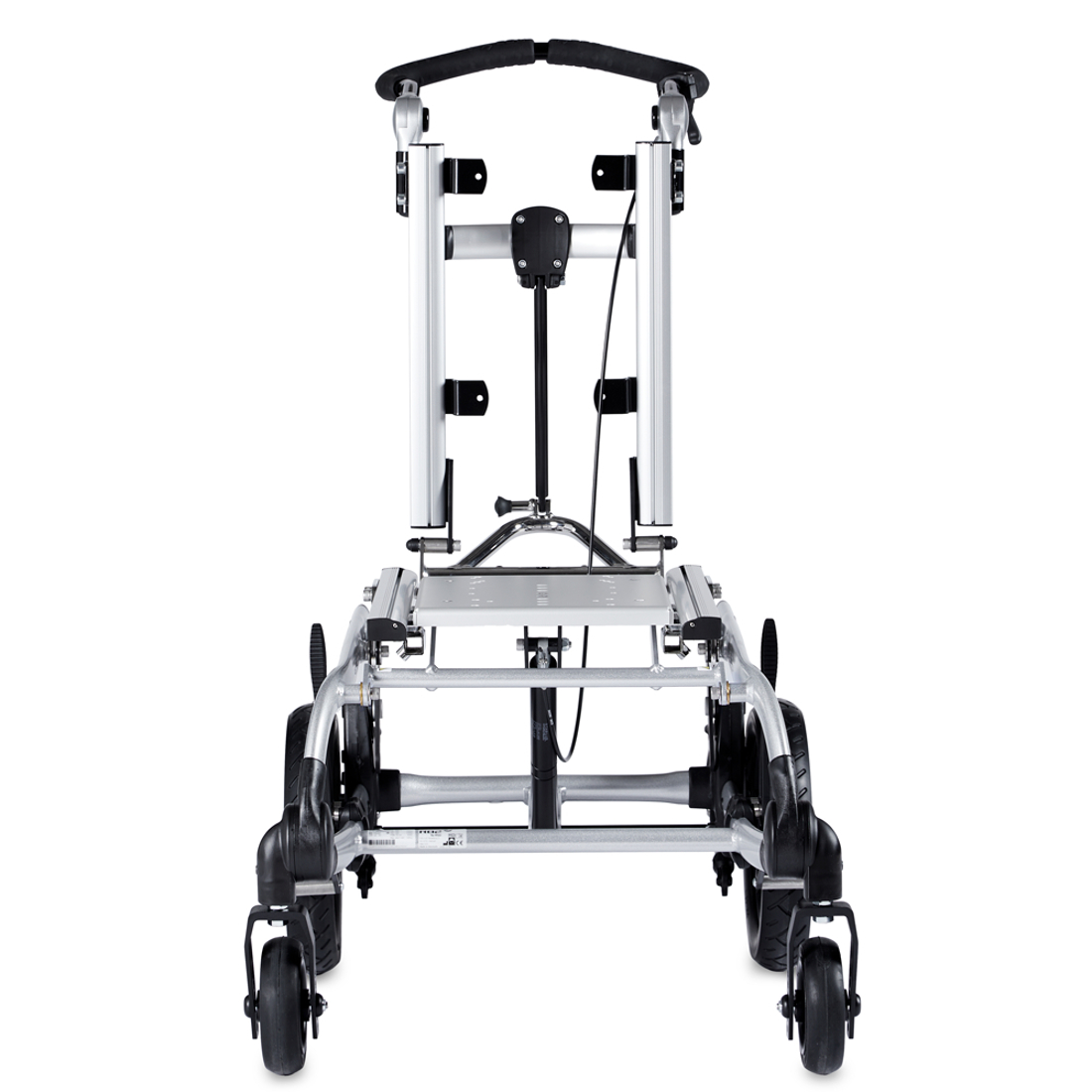

R82 Combi Frame:x
The Combi Frame:x is a unique wheelchair frame for customized seating systems.
The Combi Frame:x empowers daily participation by offering a versatile base that adapts to both indoor and outdoor environments. Designed to support individual seating needs, it accepts various seats to ensure optimal positioning. The frame's intuitive design benefits both the child and caregiver, featuring simple adjustments that make daily routines easier. By providing a stable yet flexible foundation, the frame enhances mobility and encourages active engagement in everyday life.
Features
-
Features

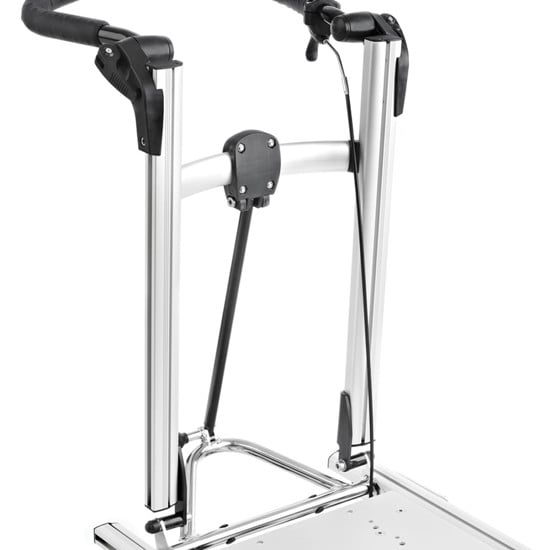

Compatible with different seat and back systems
The Combi Frame:x can be equipped with different back systems and cushions
-
Features

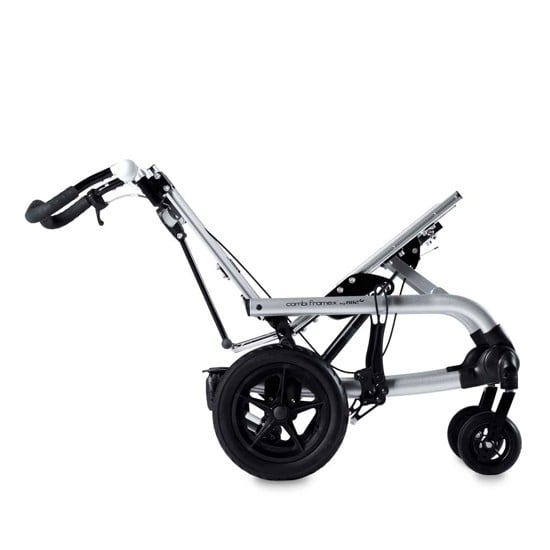

Centre of gravity and tilt in space
The Combi Frame:x centre of gravity is self-centring. The seating unit can be tilted from horizontal to 40 degrees
-
Features

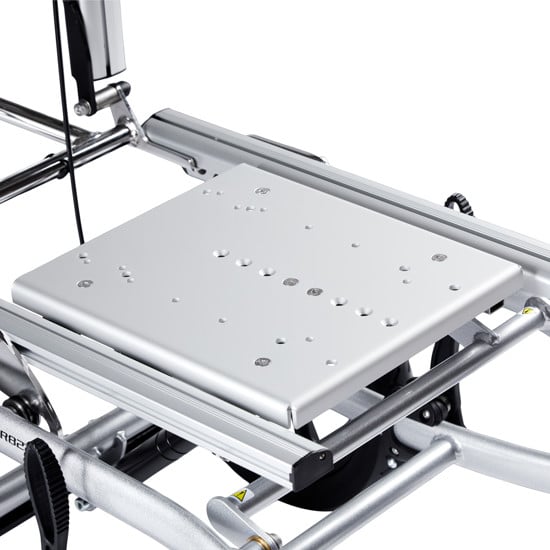

Fixed mounting or interface
Various seats can be mounted directly onto the Combi Frame:x. Alternatively the seats can be mounted into an interface. The frame is used for a variety of seating units like the Panda Futura and x:panda from R82
-
Features

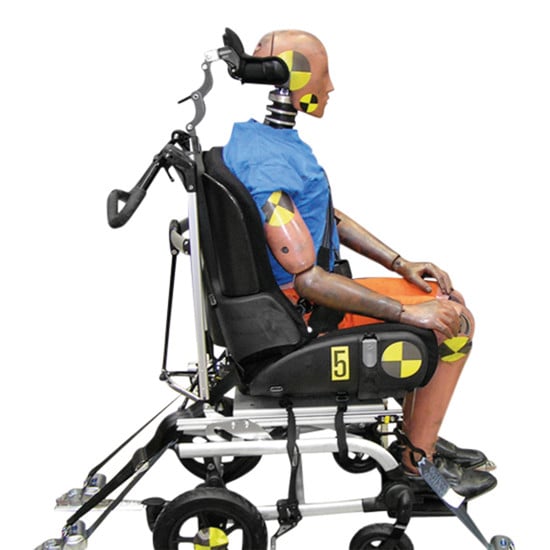

Safe transportation in vehicles
The Combi Frame:x complies with the international transit wheelchair standard ISO 7176-19. The Combi Frame:x can be used with seat units that comply with ISO 16840-4
Variants
| Size 1 | Size 2 | Size 3 | Size 4 | |
|---|---|---|---|---|
| Item number | 31981xxxx0xxx | 982xxxx0xxx | 983xxxx0xxx | 984xxxx0xxx |
| Back angle (°) | 0-30 | 0-30 | 0-30 | 0-30 |
| Back height (mm) | 430 | 470 | 570 | 670 |
| Base plate (width x depth) (mm) | 220x250 | 270x300 | 320x350 | 370x400 |
| Folded height (mm) | 550 | 550 | 550 | 550 |
| Folded length (mm) | 800 | 800 | 840 | 940 |
| Footrest to adaptor plate (mm) | 100-250 | 100-250 | 180-330 | 180-330 |
| Mass device (kg) | 22 | 23 | 24 | 27 |
| Mass device, without rear wheels (kg) | 19 | 20 | 21 | 24 |
| Max load (kg) | 100 | 100 | 100 | 100 |
| Max load at transportation (kg) | 100 | 100 | 100 | 100 |
| Maximum rated load (kg) | 124 | 125 | 126 | 129 |
| Minimum turning radius (mm) | 600 | 600 | 600 | 600 |
| Overall height (mm) | 900 | 940 | 1040 | 1140 |
| Overall length (mm) | 830 | 830 | 830 | 830 |
| Overall width (mm) | 580 | 630 | 680 | 730 |
| Seat plane angle (°) | 0-40 | 0-40 | 0-40 | 0-40 |
| Seat surface height at front edge (mm) | 430, 460, 490 | 430, 460, 490 | 430, 460, 490 | 430, 460, 490 |
| Static stability downhill (°) | 9 | 9 | 9 | 9 |
| Static stability sideways (°) | 9 | 9 | 9 | 9 |
| Static stability uphill (°) | 9 | 9 | 9 | 9 |
| Width between wheels (mm) | 440 | 490 | 540 | 610 |
| Width, base plate (mm) | 220 | 270 | 320 | 370 |
Washing instructions
The product is CE marked
Options

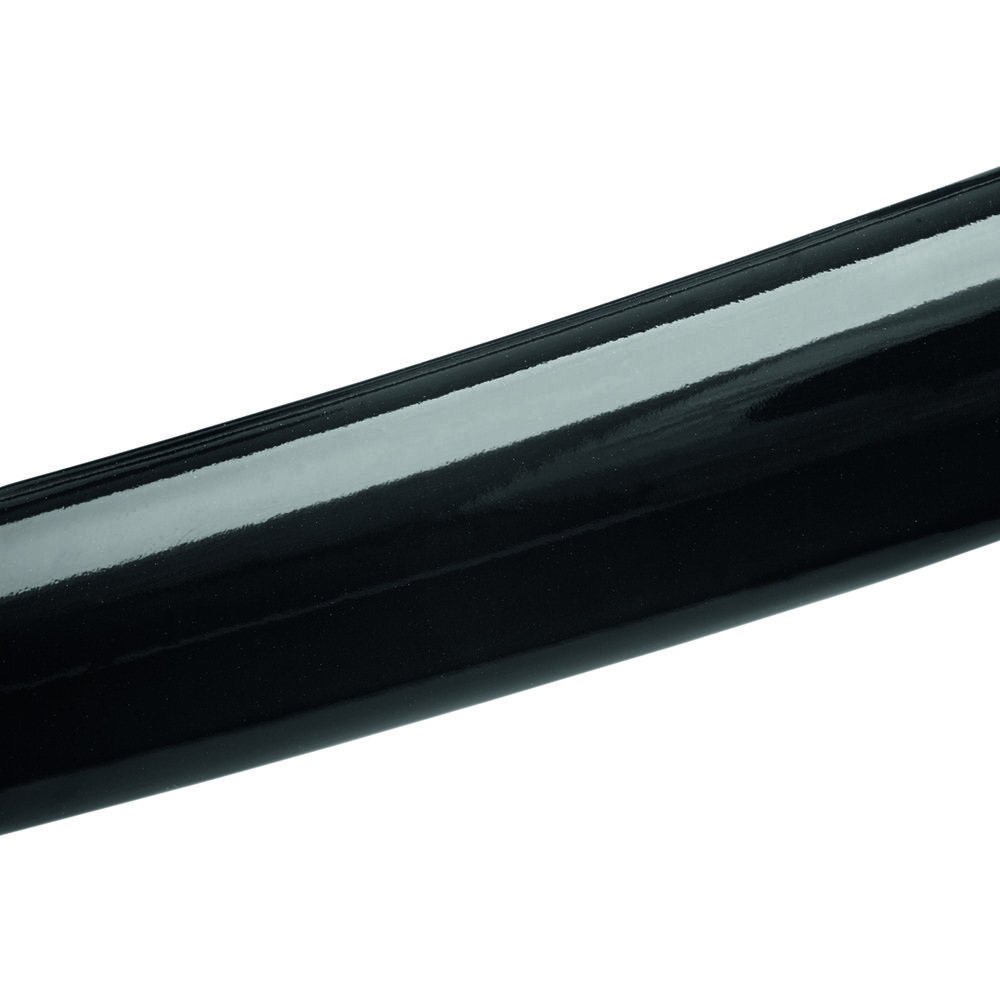

Frame colour
Silver

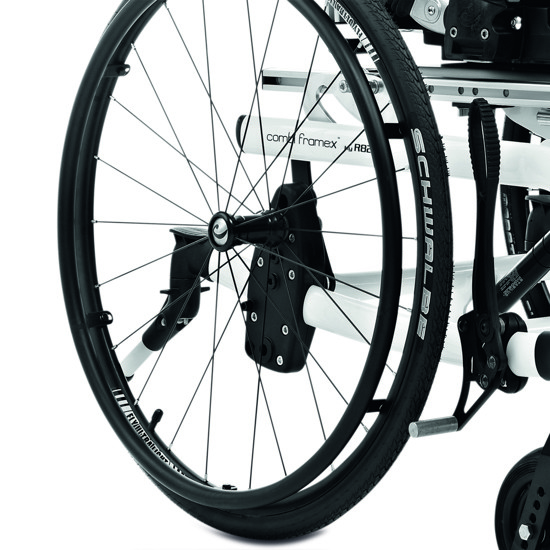

Rear wheels
Available with different rear wheel sizes
20” air
22” air
24” air
12½” solid
20” solid
22” solid
24” solid
Brakes
Choose from the different combinations of brakes

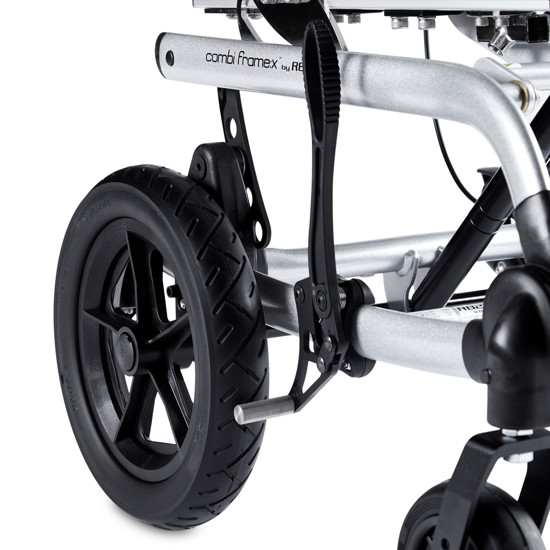

Wheel brake

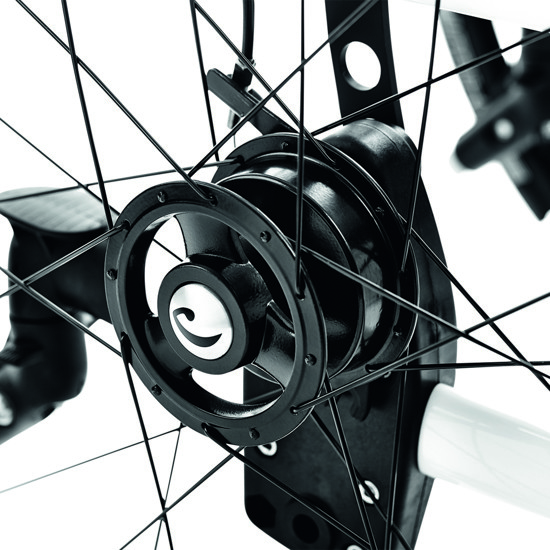

Drum brake

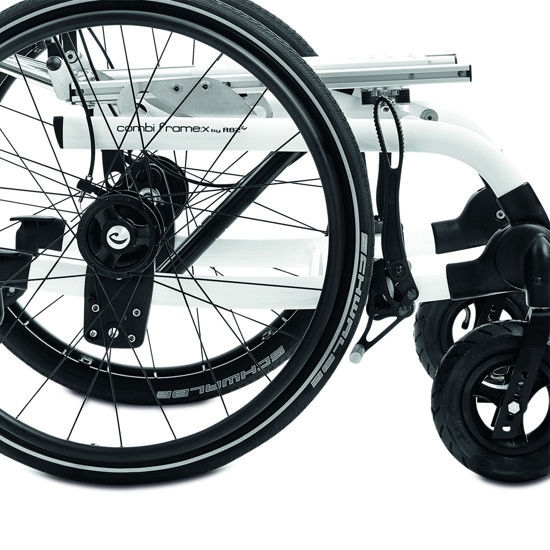

Wheel brake and drum brake

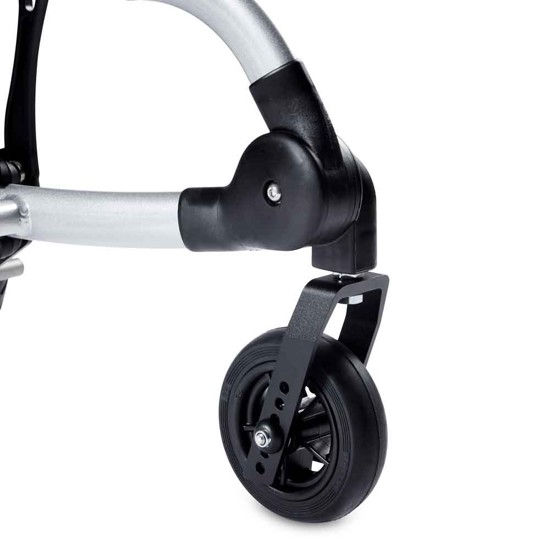

Front wheels
Available with different front wheel sizes
6" solid, 7” solid or air

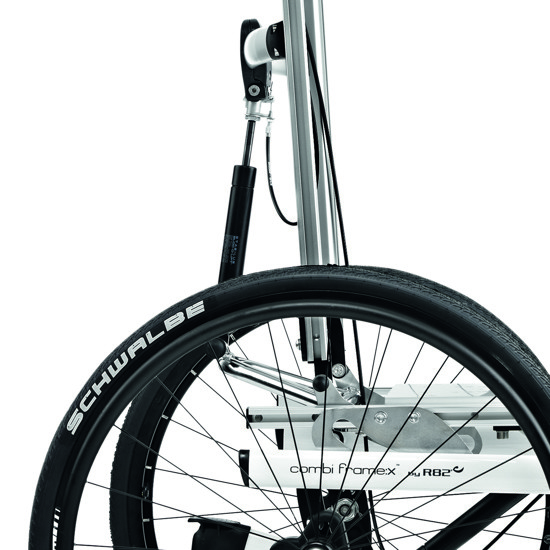

Back recline
Choose from the possibilities of reclining the back

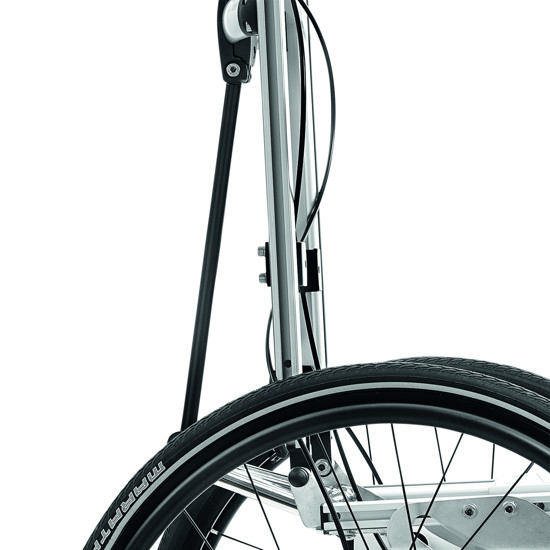

No recline
Recline
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos

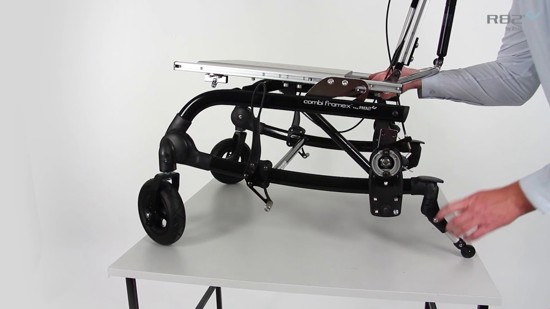

Changing seat plane height

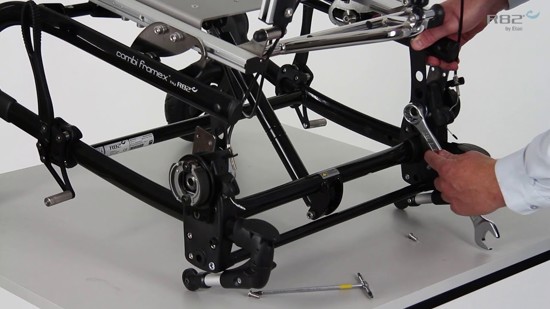

Drum brake adjustment

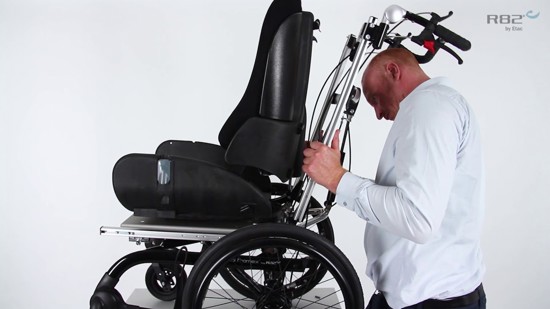

Seat Mounting and Back Adjustment
