R82 Addax
A versatile, multi-adjustable standing frame supporting prone and supine setups with effortless transfers, a variety of adjustments and accessories
The Addax is a versatile, multi-adjustable standing frame designed to support children in prone and supine setups; both setups support an upright position and offer a tilted range of up to 90°. The frame offers up to 30° of individual hip abduction for each leg, with a clear scale for precise adjustments. Standing and standing in abduction can have a wide range of physical, mental and social benefits.
The stander features a robust frame, castors, a centre column, a tilt mechanism and an abduction mechanism, all ensuring a tailored fit for every child.
A wide range of accessories enhances its adaptability, seamlessly functioning across prone and supine setups, while allowing for individual customisation. The three types of support belts provide wide adjustment options and can be mixed and matched at the hip and chest areas. The many accessories for Addax are designed for comfort, support and easy adjustment. Most daily adjustments can be made tool-free for added convenience for the caregiver.
The Addax is designed for effortless transfers, whether through standing transfers or with a hoist. Its open-ended frame design allows wheelchairs or seating systems to be positioned close to the stander without obstruction, ensuring smooth standing transfers. Additionally, the back of the frame accommodates mobile hoists, such as the Molift Smart 150, enabling seamless transfers with a mobile hoist.
-
Creating moments of inclusion
Watch the video of Charlie standing in his Addax stander while baking with his sister Hannah.
Features
-
Features

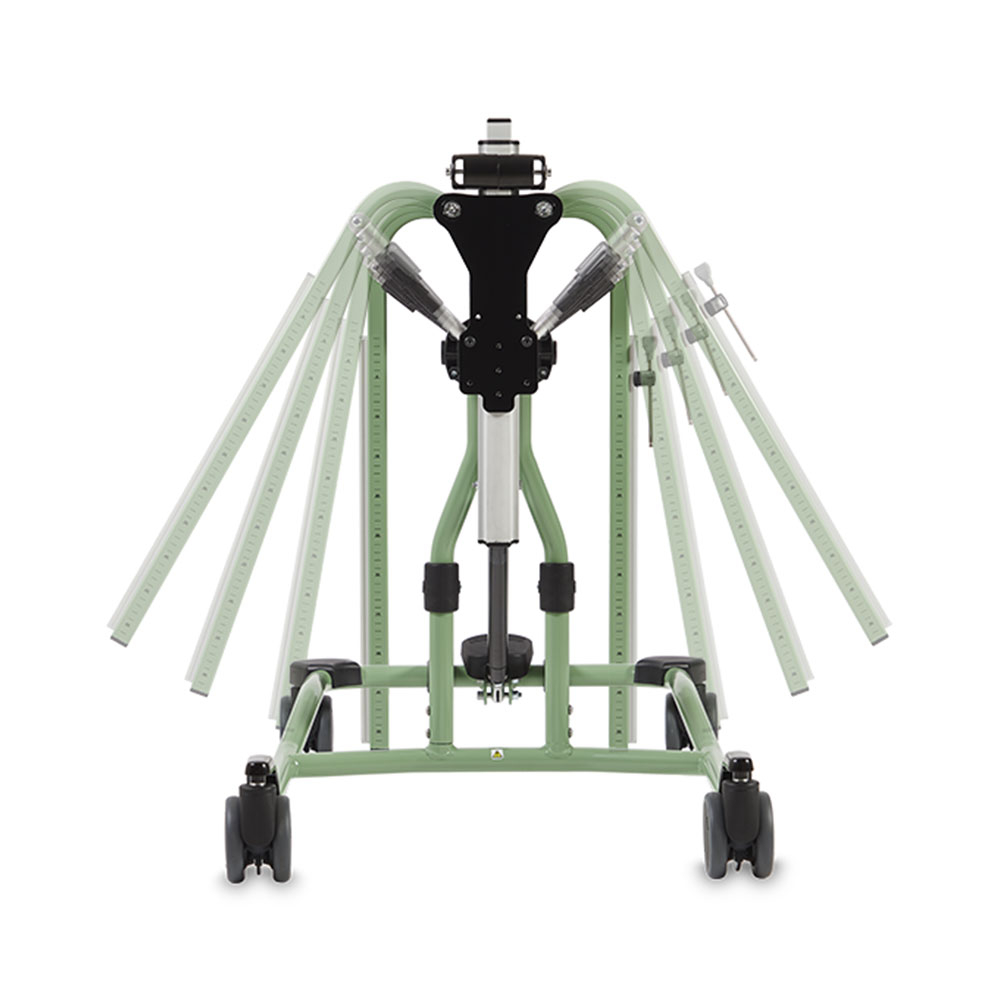

One stander, multiple possibilities
Built as both a prone and supine stander, Addax supports the child in an upright position, while also allowing a tilt range of up to 90°. Additionally, Addax supports abduction with up to 30° for each leg.
-
Features
Tailored to every child
Addax adapts seamlessly to the unique needs and growth of each child, with its wide range of adjustable supports and other accessories. Most accessories are compatible with both prone and supine setups, ensuring maximum flexibility and comfort for every stage of development.
-
Features

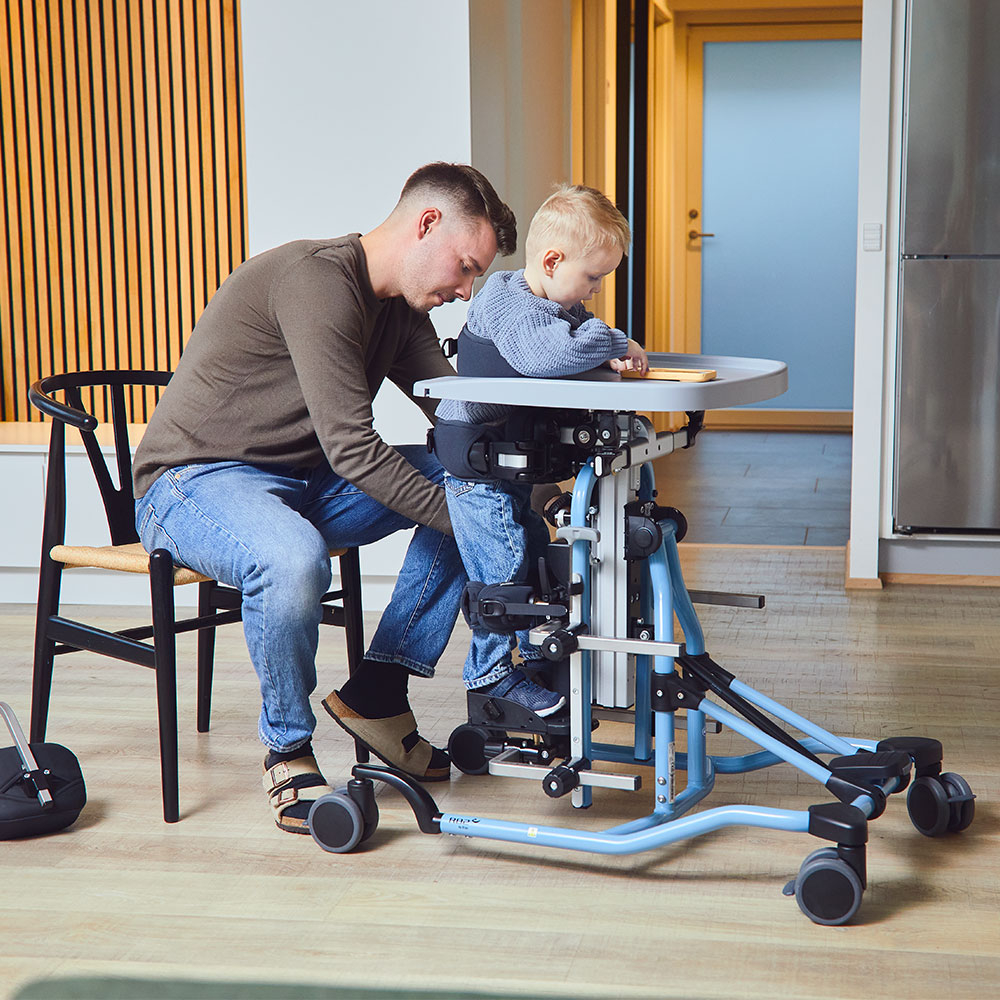

Designed for accessibility
The open-ended frame design simplifies standing transfers, allowing the child to approach the stander with ease in a wheelchair or another seating system. Addax is also compatible with mobile hoists, ensuring smooth and safe transfers.
-
Features

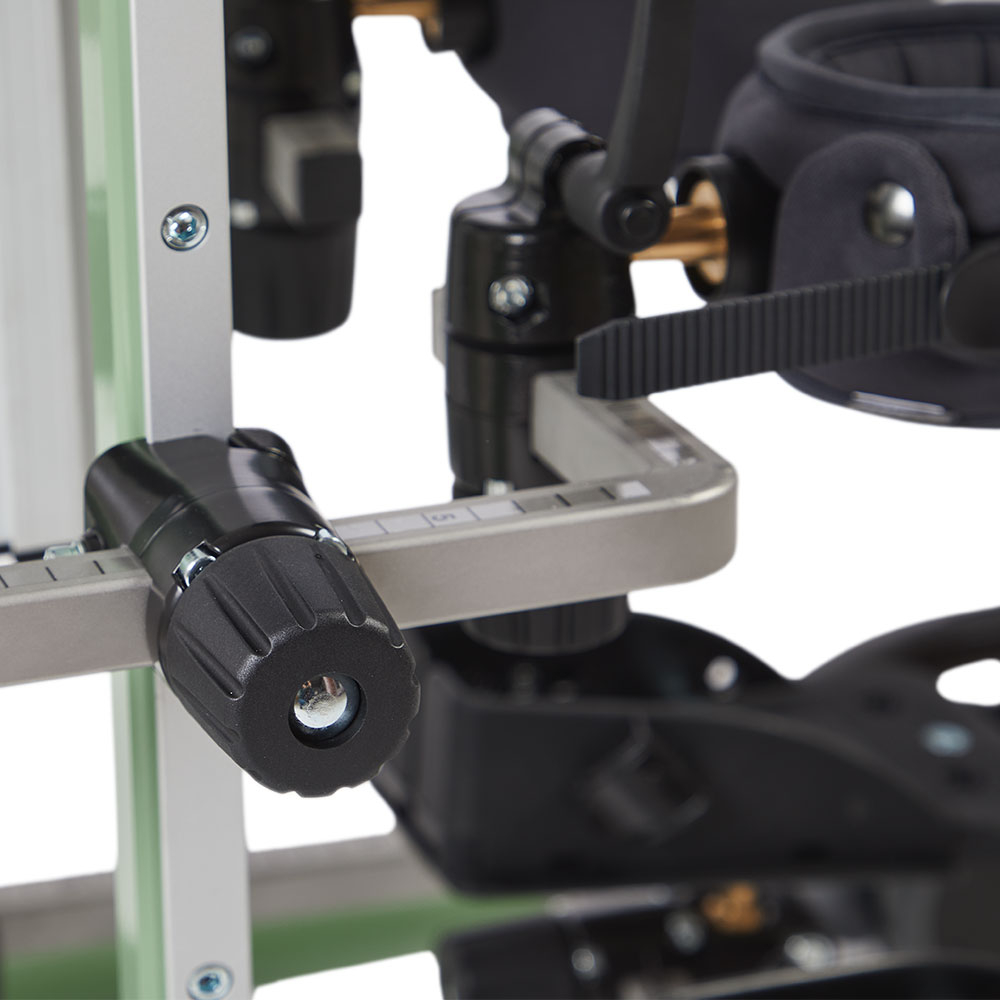

Growth made simple
Daily adjustments and most growth modifications can be made without tools, making Addax easy to use for caregivers. For added safety, critical weight-bearing parts are securely adjusted with tools, ensuring stability and peace of mind.
Variants
| Size 1 | Size 2 | |
|---|---|---|
| Item number | 912001000 | 912002000 |
| 3D adjustment angle, sandals (°) | 25° | 25° |
| Abduction angle, each leg (°) | 0-30° | 0-30° |
| Entrance height, lowest height, for foot supports, parted (mm) | 145 | 145 |
| Entrance height, lowest height, for sandals, 3D adjustable (mm) | 185 | 185 |
| Foot supports, parted angle (°) | (-30°) -30° | (-30°) -30° |
| Foot supports, parted to axil height (mm) | 370-800 | 370-1060 |
| Leg length from foot supports, parted to pivot point (mm) | 170-500 | 170-650 |
| Leg length from sandals, 3D adjustable to pivot point (mm) | 130-460 | 130-610 |
| Mass device (kg) | 21 | 23 |
| Maximum rated load (kg) | 53 | 70 |
| Maximum user mass (kg) | 30 | 45 |
| Overall height (mm) | 1100-1480 | 1230-1610 |
| Overall length (mm) | 1060-1490 | 1200-1620 |
| Overall width (mm) | 540-1030 | 620-1140 |
| Sandals, 3D adjustable, to axil height (mm) | 330-760 | 330-1020 |
| Static stability (°) | 10° | 10° |
| Support surface height, horizontal (mm) | 760 | 840 |
| Tilt (°) | 0-90° | 0-90° |
| Tray height from foot supports, parted, in prone (mm) | 290-800 | 290-1070 |
| Tray height from foot supports, parted, in supine (mm) | 170-720 | 170-980 |
| Tray height from sandals, 3D adjustable, in prone (mm) | 250-760 | 250-1030 |
| Tray height from sandals, 3D adjustable, in supine (mm) | 130-760 | 130-940 |
| User height (mm) | 700-1050 | 930-1280 |
Options
Sizes

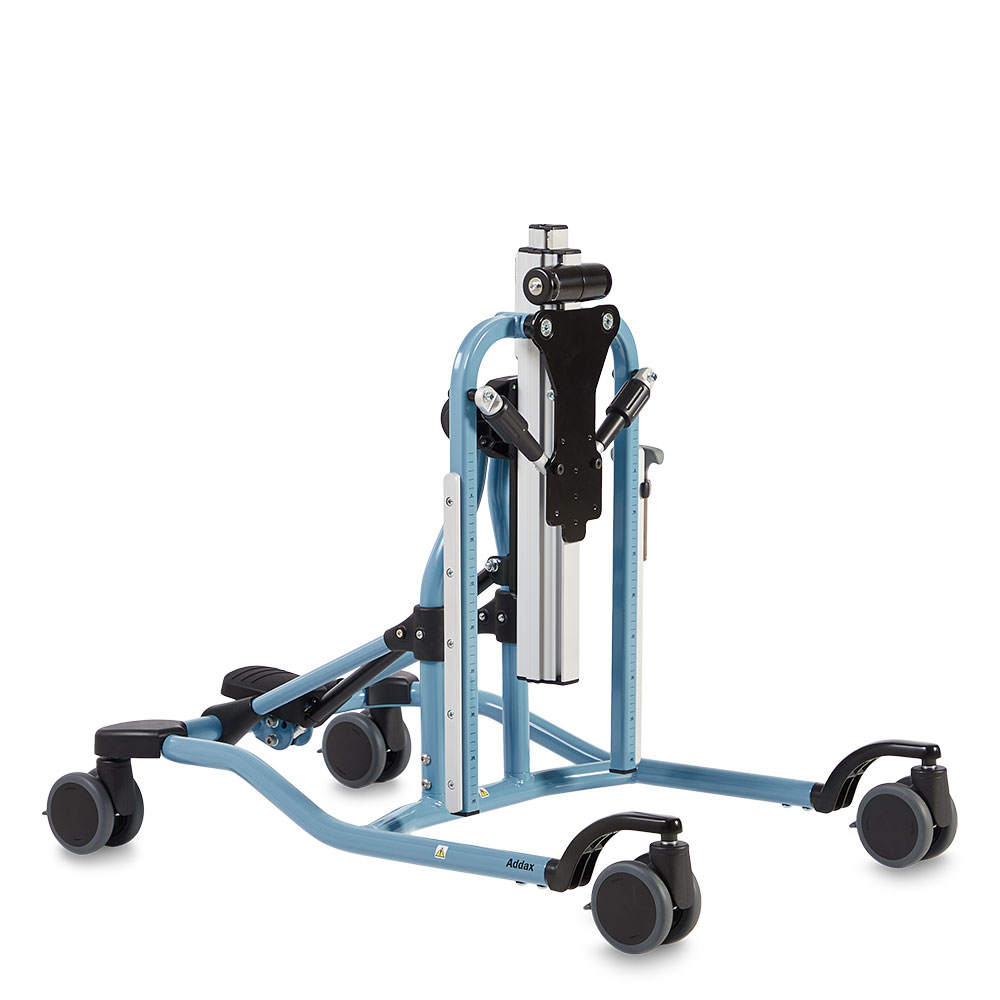

Size 1

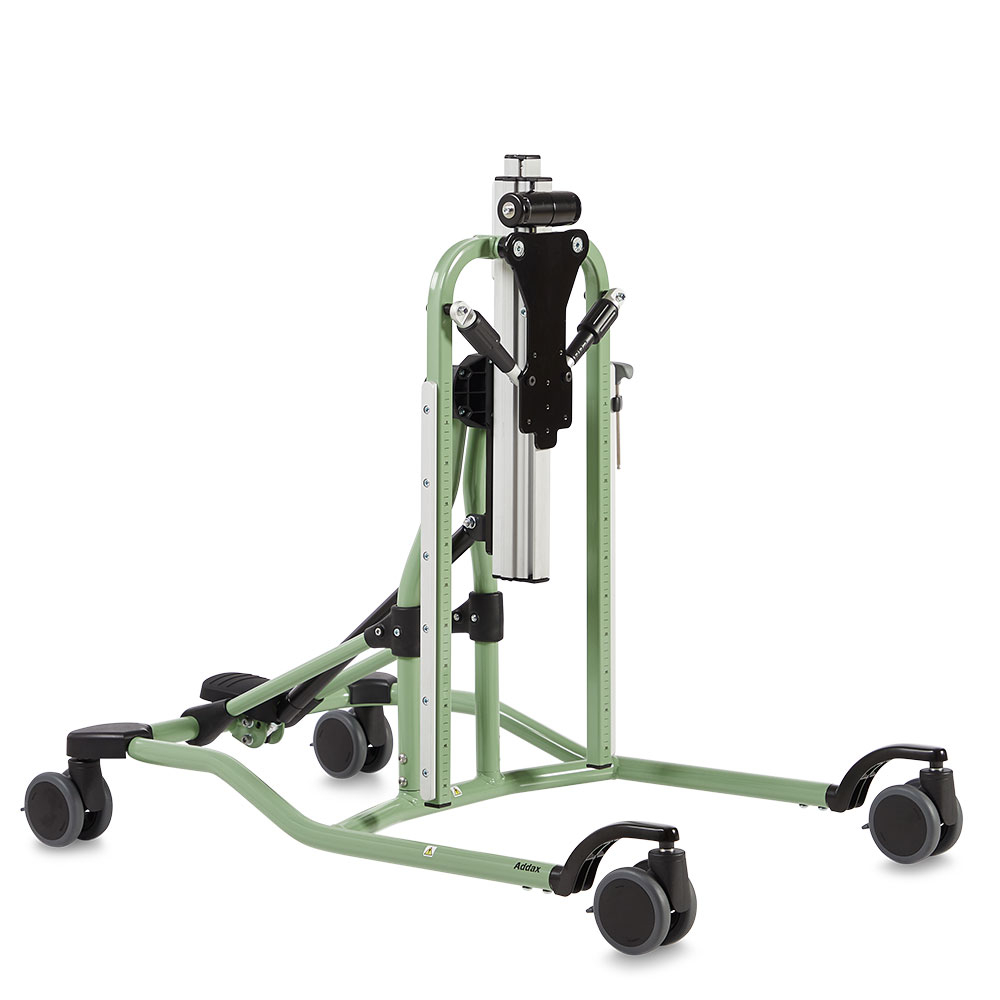

Size 2
Support belts

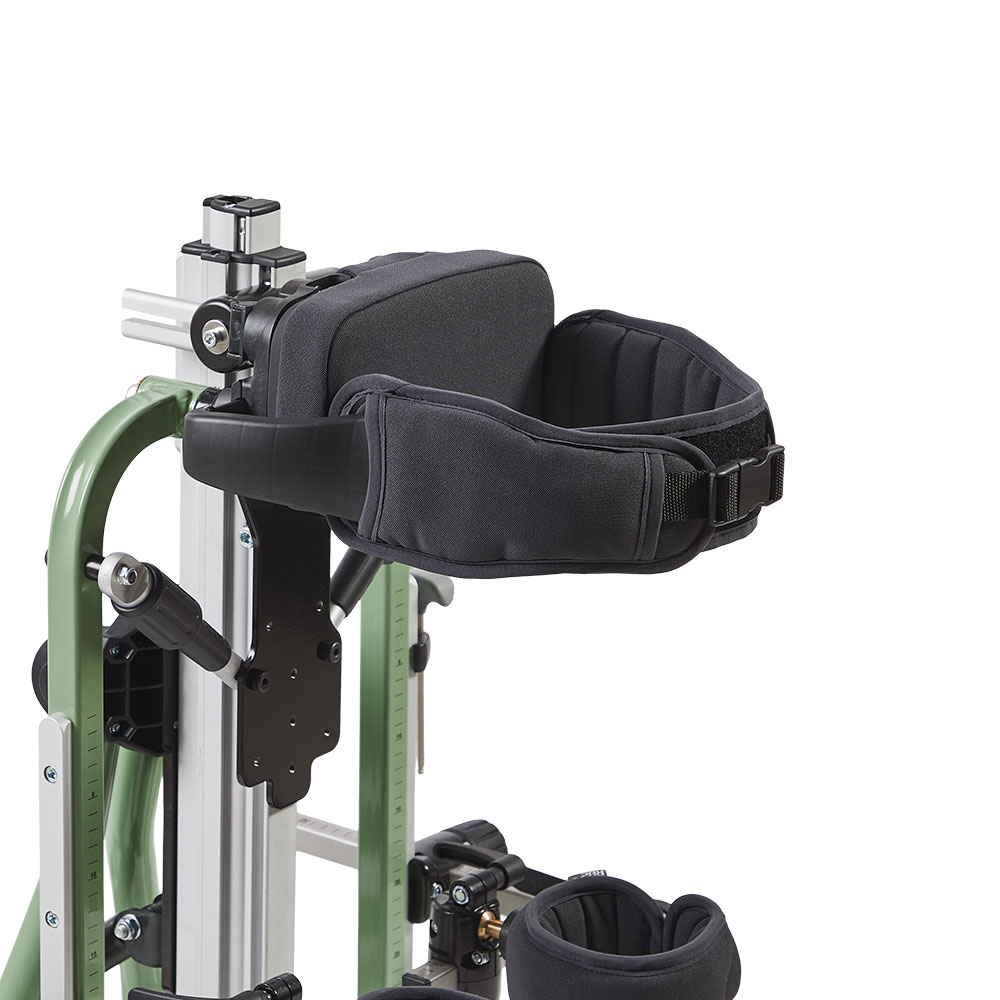

Fixed support belt

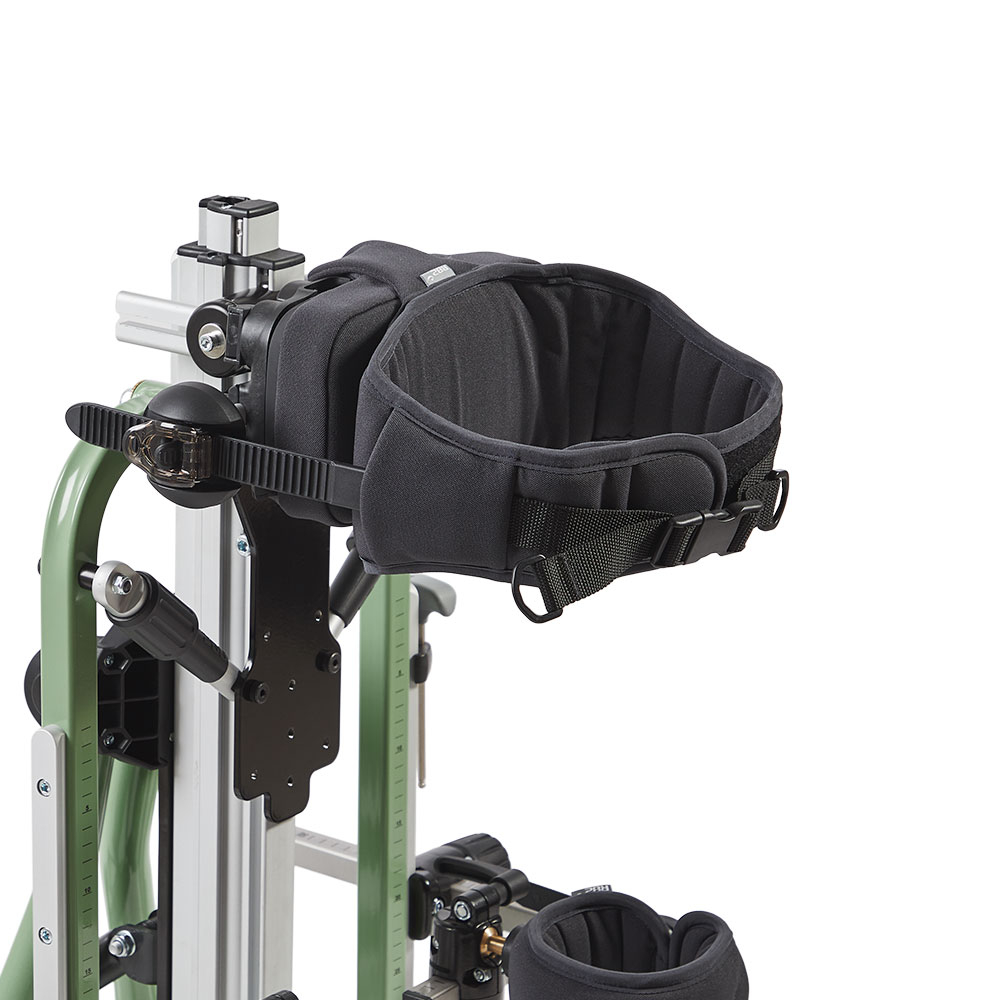

Ratchet support belt

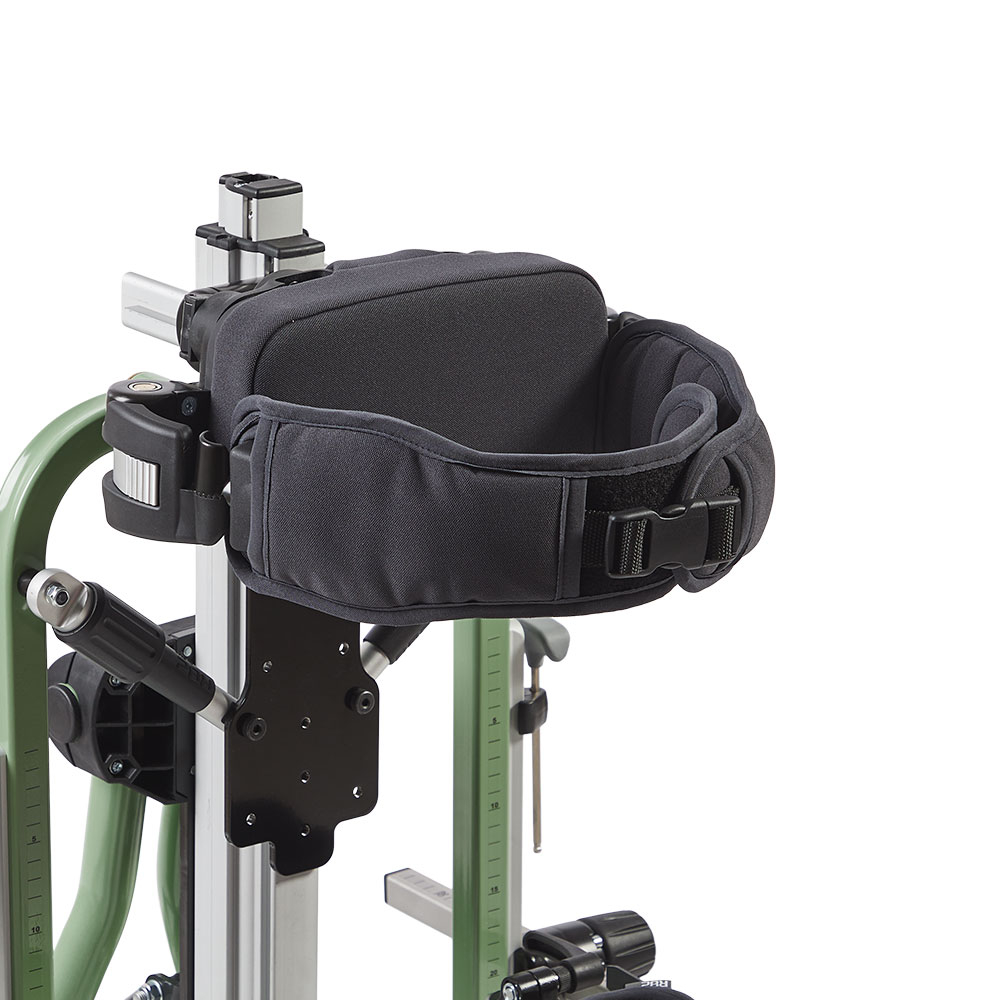

Swing-away support belt
Several functionalities

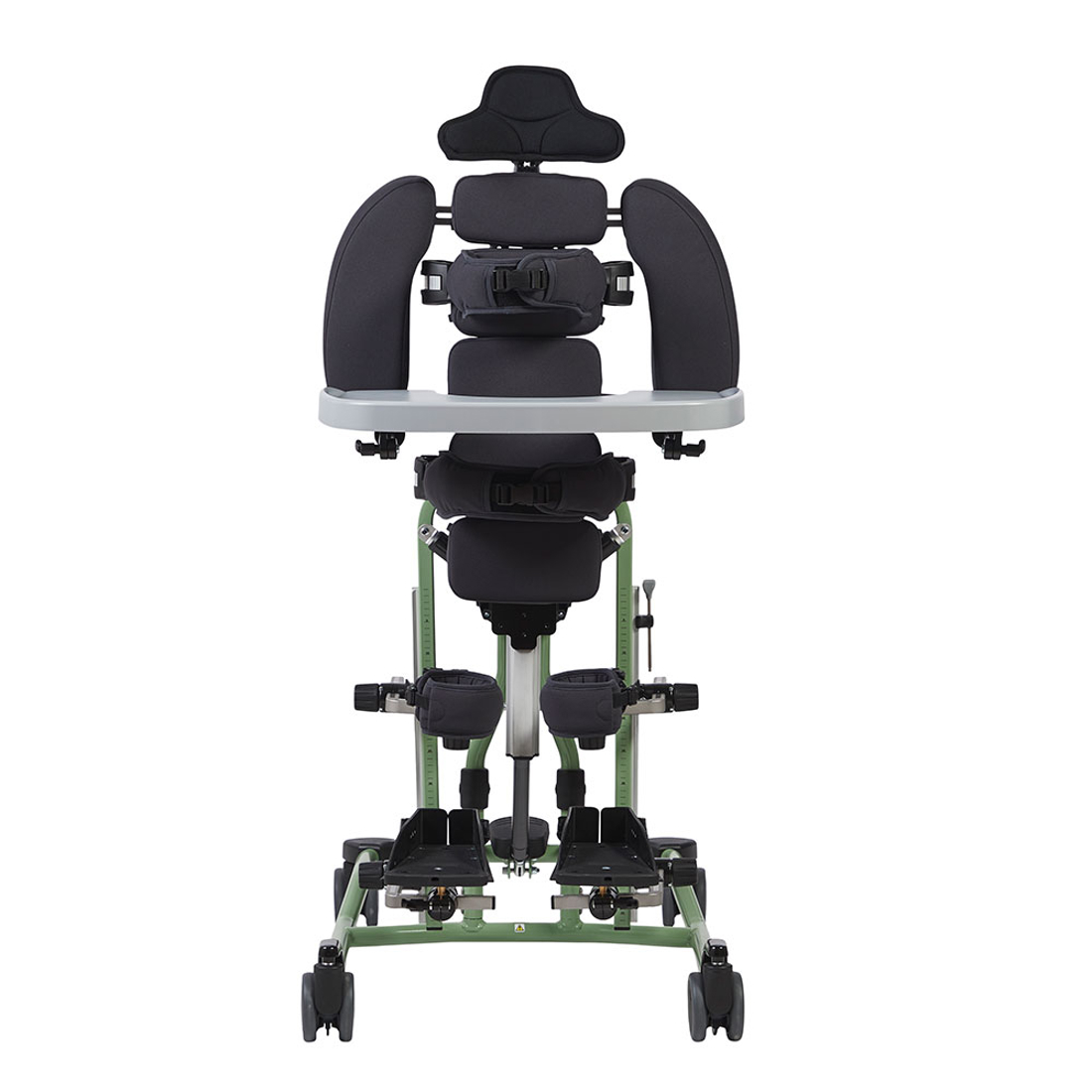

Supine

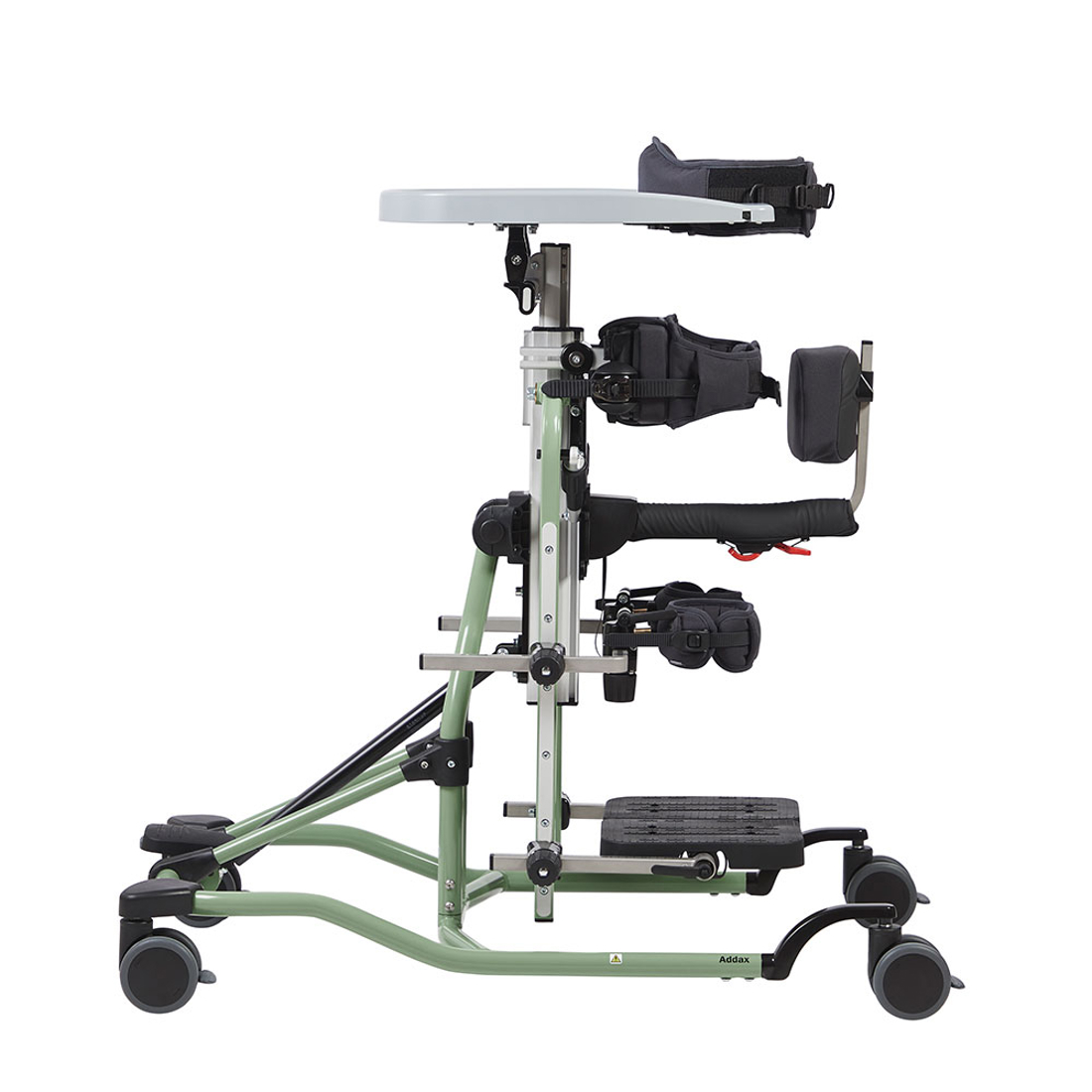

Prone

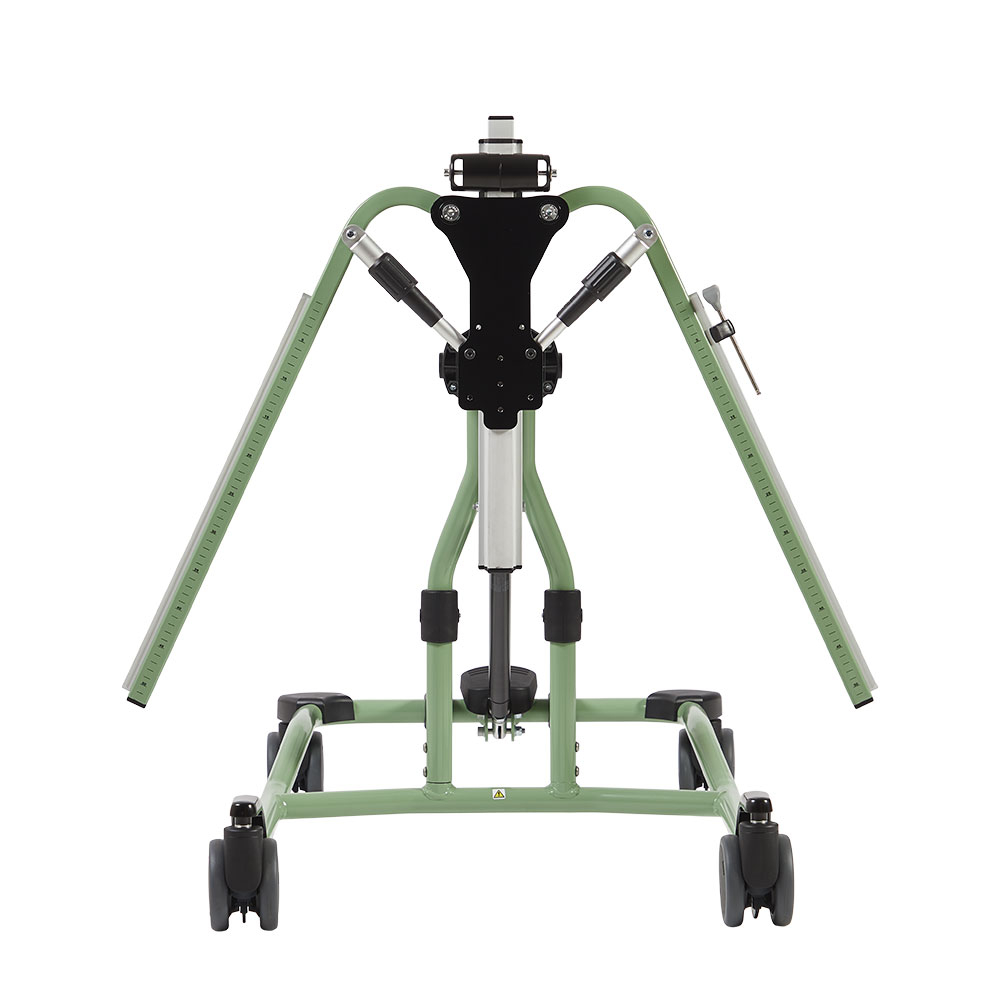

Abduction

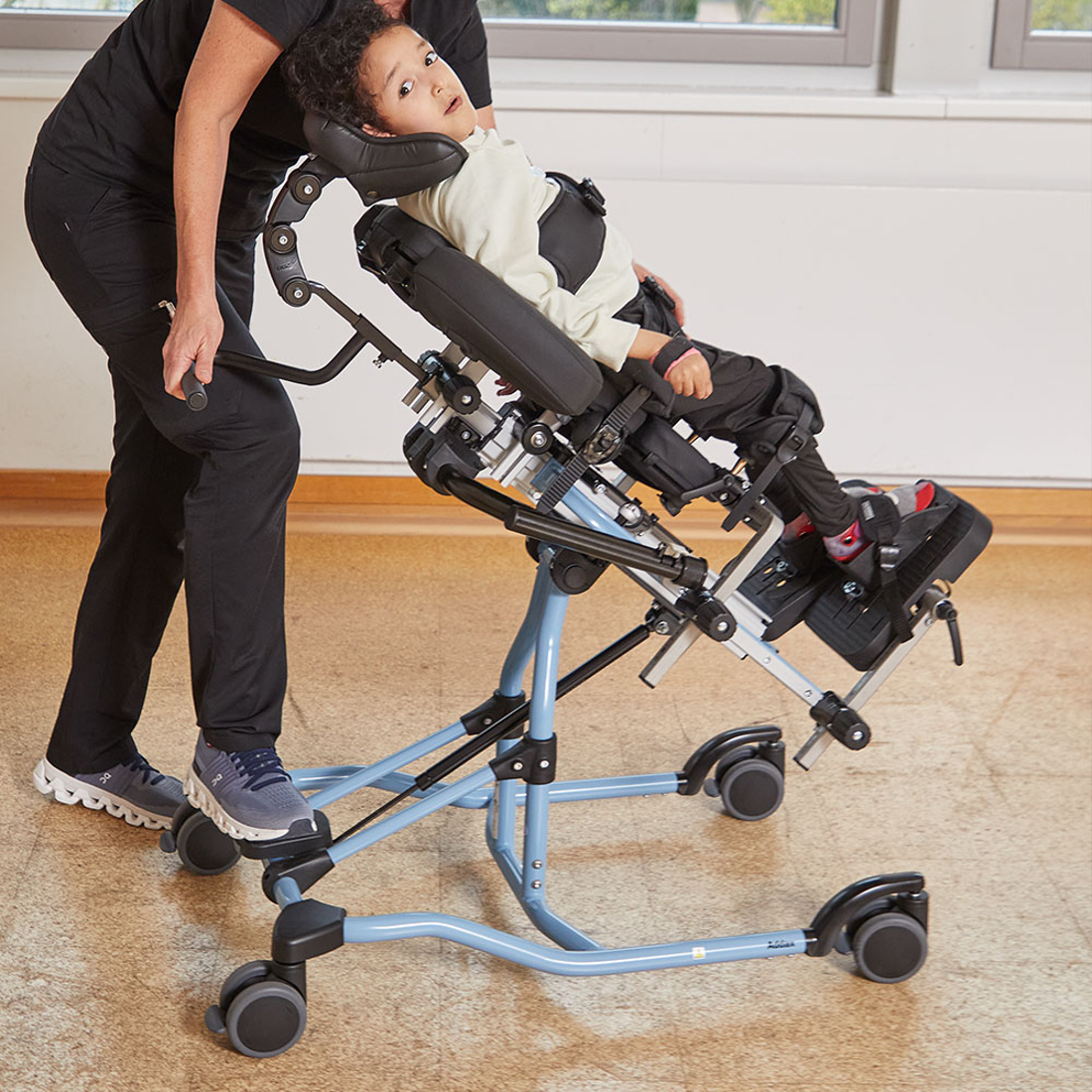

Tilt
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
