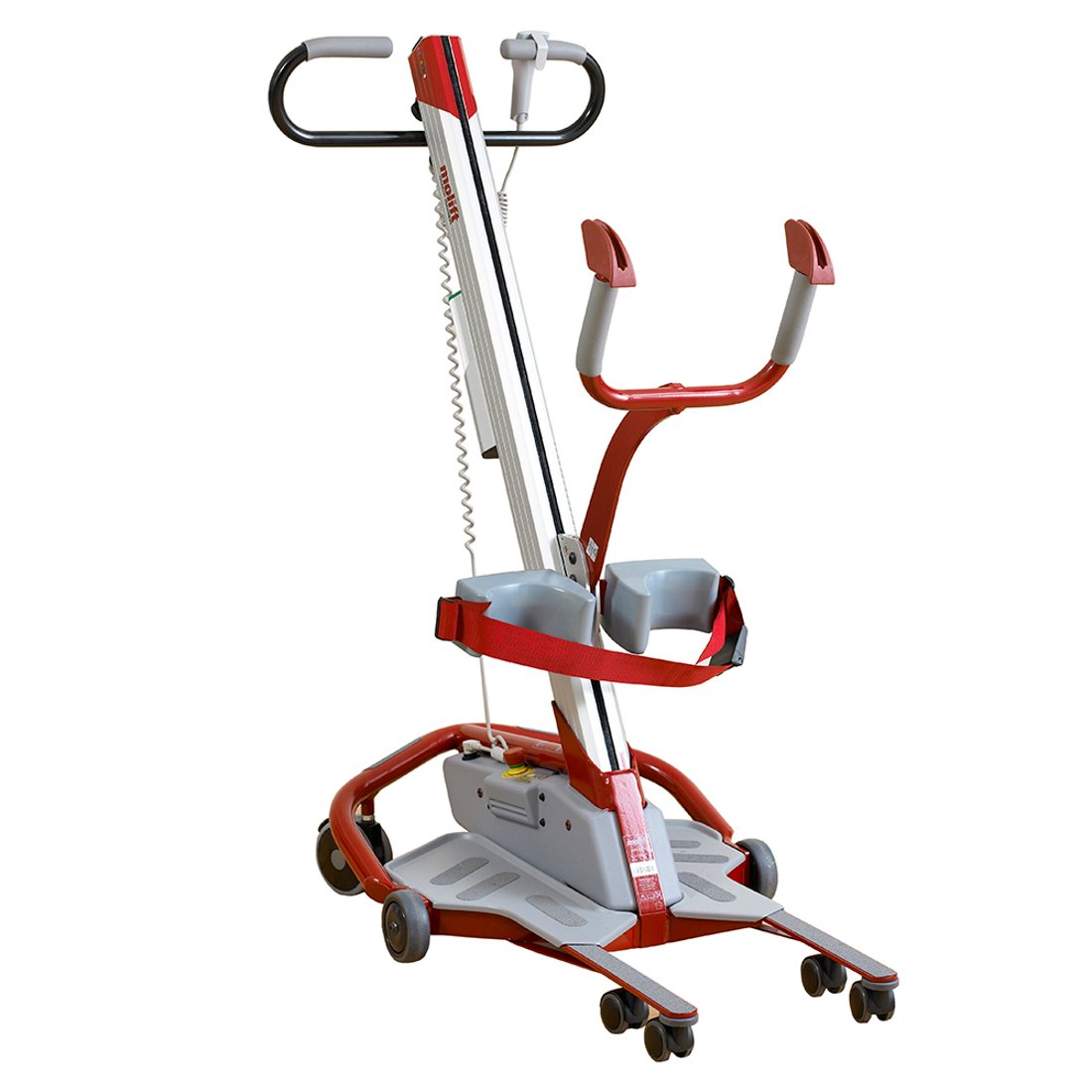

Molift Quick Raiser 1

Compact design and excellent manoeuvrability even in narrow spaces

Compact and easy By virtue of its compact design and low weight, Molift Quick Raiser 1 is stable and easy to manoeuvre. The unique wheel position and near perfect weight distribution of the base provides a small turning radius with easy manoeuvrability even in narrow spaces. Natural pattern of movement The inclined straight column imitates the natural pattern of movement and fulfils the hoisting needs of users with some degree of weight bearing capacity. Molift Quick Raiser 1 has a safe working load of 160 kg (352 lbs.) The extra low base, 7 cm (2.8”), and narrow front, 34 cm (13.5”), fits well around toilets and under most beds, chairs and wheelchairs.

Pick your country below to find the nearest Etac distributor.

Go to page

Pick your country below to find the nearest Etac distributor.

Go to page

Find your distributor

  • Features

  • Facts

  • Variants

  • Accessories

  • Documents

  • Illustration

Extra low base

Extra low base

Extra low base with narrow front for easy access.

Multiple adjustable knee pads

Multiple adjustable knee pads

The knee pads are height adjustable and can be turned around for better fitting and to give alternative support for the legs.

Battery indicator

Battery indicator

All Molift hoists have an integrated battery indicator that provides audio and visual notification. All Molift hoists are equipped with an environmentally friendly NiMH-battery.

Unique wheel positioning

Unique wheel positioning

The lightweight construction combined with the unique wheel positioning, provides exceptional maneuverability.


29 kg


95.5 cm

Chassis width

610 mm

Leg height

70 mm


NiMH 14.4 V - 2.6 Ah

Battery charge time, hours


Hoisting speed 75kg


Rated performance

40 hoists at: 75 kg and 50 cm

Service software



Chassis, column, knee support and respective V- or U-shape Arm

Maximum user weight

160 kg


Aluminium, steel

Washing instructions

Washing instructions

Can be wiped off.

Molift Quick Raiser 1 Item no.
- V-shape arm 04100
- U-shape arm 04150

Molift Quick Raiser adjustable footboard

Footboard for adjusting the height of Molift Quick Raiser foot base, ideal for users of smaller height or children. SWL: 75kg (165 lbs)

Description Item no.
Molift Quick Raiser adjustable footboard 0451000

Extra Soft Pads for knee support

For patients with extra sensitive legs

Description Item no.
S 0455111
L 0455114


Designed to ensure the feet are held in place during hoisting.

Description Item no.
S 0452100
M 0452200
L 0452300
