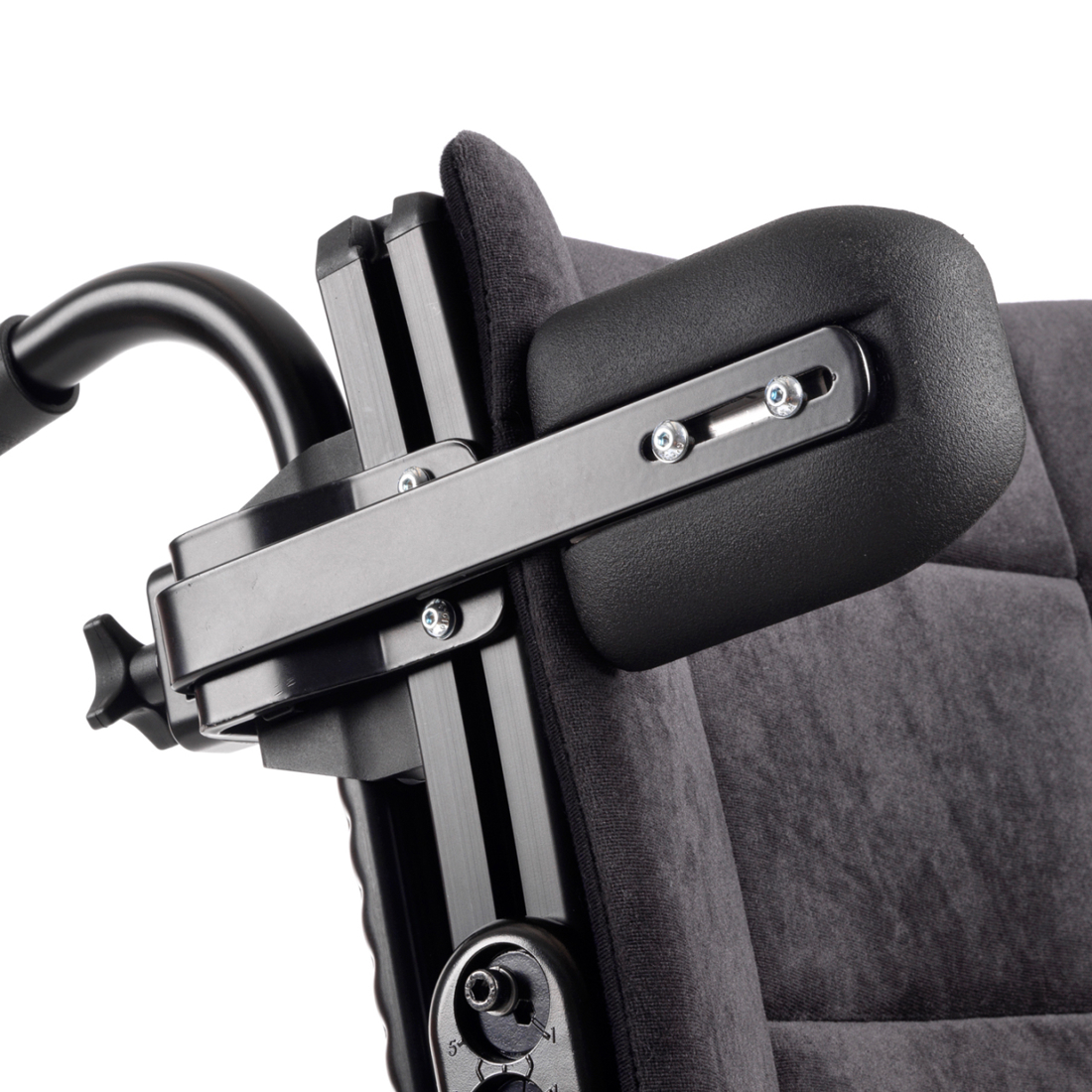

Trunk support 3A, adjustable

Adjustable in height and depth. For body close fitting and space for free arm movement, the rod that holds the pad is available in four versions. Detachable without tools. Sold per piece.

Cushion dimensions: 90 mm (height) × 150 mm (depth).

Variants

Item number
Compatible with
-15 mm 28144 Cross 5, Cross 5XL, Cross 6, Prio 3A, Xact
0 mm 28142 Cross 5, Cross 5XL, Cross 6, Prio 3A, Xact
+15 mm 28143 Cross 5, Cross 5XL, Cross 6, Prio 3A, Xact
-45 mm 28145 Cross 5, Cross 5XL, Cross 6, Prio 3A, Xact
Cover trunk support 28647 Trunk support with item no. 28019-1, 28019-2, 28020, 28142, 28143, 28144, 28415, 28181-1, 28181-2, 28180-1, 28180-2, 28141-1, 28141-2

Documents

  • Assembly instruction

    Trunk Support -0 mm / +15 mm / -15 mm / -45 mm
