One arm drive QR

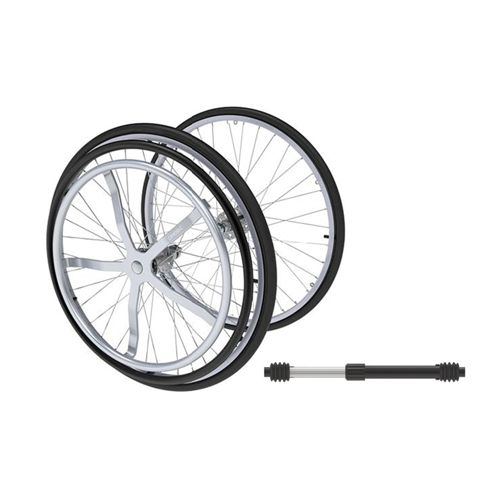

One arm drive units are available in 20”, 22” and 24” featuring quick release (QR) axle for easy removal of wheels when loading into a car etc. The drive unit can be mounted for right or left sided propelling. Tyres in black solid non-marking and handrims in aluminium as standard. For 20” and 24” wheels, the larger handrim can be replaced with available options (6 attachments). For 22”, replacement is not possible due to different ETRTO wheel sizes – 498 for the one arm drive and 501 for Maxx/C6.
Assembly kit is ordered separately, as well as telescopic shaft applicable to the intended seat width. When mounting on Xact the rear axle is replaced with a crossbar, ordered separately.
Note: Xact with one arm drive must not be used as a seat during transportation in motor vehicles.
One arm drive cannot be combined with attendant brake.
Features
-
Features

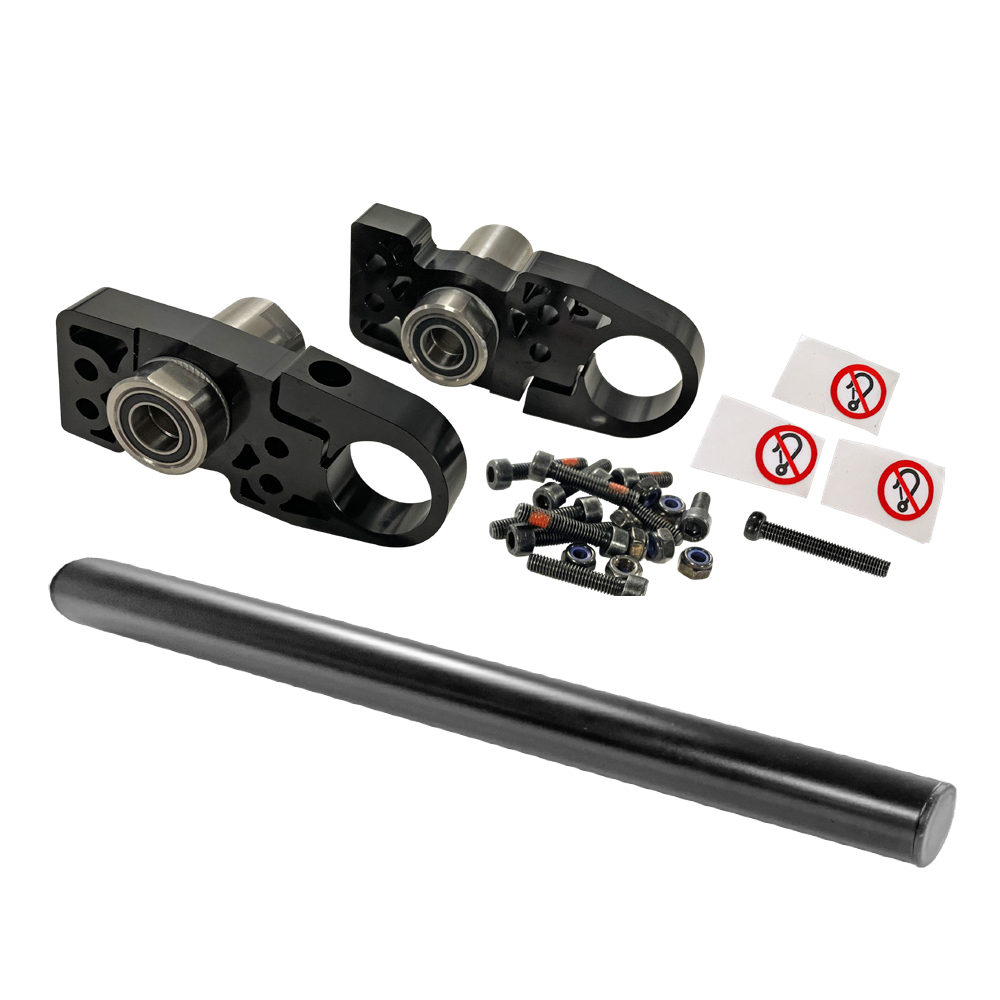

Assembly kit & crossbar for Xact
Variants
| Item number | Compatible with | |
|---|---|---|
| Drive unit one-arm drive QR 20” | 84101 | Xact |
| Drive unit one-arm drive QR 22” | 84102 | Xact |
| Drive unit one-arm drive QR 24” | 84103 | Xact |
| Assembly kit one arm drive QR | 24071 | Xact |
| Telescopic shaft one-arm drive 1 | 24171 | Xact sw35-37.5 |
| Telescopic shaft one-arm drive 2 | 24172 | Xact sw40-42.5 |
| Telescopic shaft one-arm drive 3 | 24173 | Xact sw45 |
| Telescopic shaft one-arm drive 4 | 24174 | Xact sw47.5-50 |
| Cross bar one arm drive W35cm (L 325mm) | 24072 | Xact |
| Cross bar one arm drive W37,5 (L 350mm) | 24073 | Xact |
| Cross bar one arm drive W40 (L 375mm) | 24074 | Xact |
| Cross bar one arm drive W42,5 (L 400mm) | 24075 | Xact |
| Cross bar one arm drive W45 (L 425mm) | 24076 | Xact |
| Cross bar one arm drive W47,5 (L 450mm) | 24077 | Xact |
| Cross bar one arm drive W50 (L 475mm) | 24078 | Xact |
