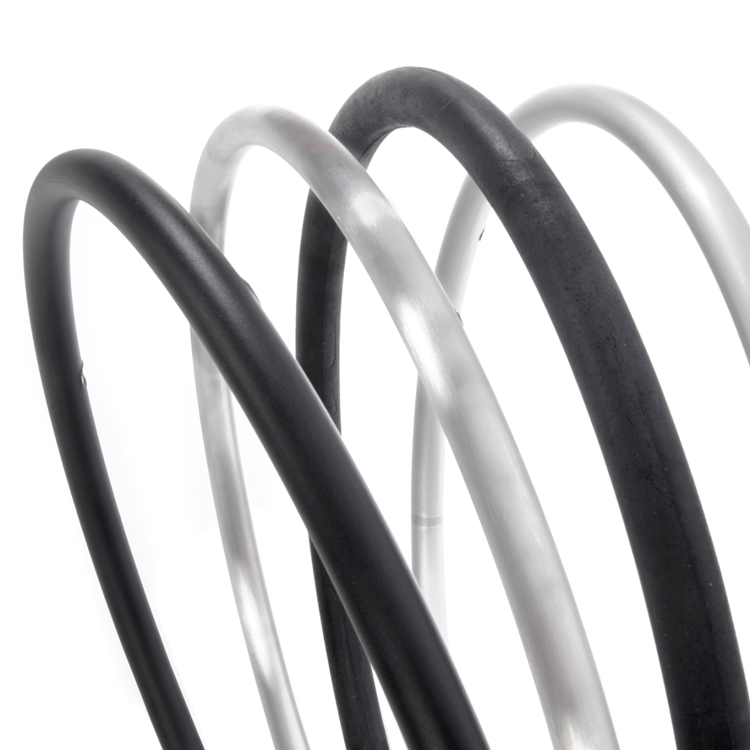

Handrims
Handrims
Available for wheels with 4 attachments.
The handrim spacer is split into two parts to allow for adjustable spacing between the rim and handrim. The shorter spacer measures 6 mm. See assembly instruction for more information.
Features

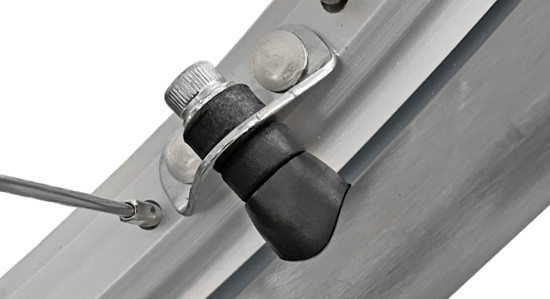

28113
The coned spacer is compatible with aluminium and stainless steel handrims.
24514
The straight spacer is intended for plastic and cellular handrims but is compatible with all variants.
Variants
| Item number | Compatible with | |
|---|---|---|
| 20" ALU | 81109 | Cross 5, Cross 5 XL, Prio |
| 22" ALU | 25636 | Cross 5, Cross 5 XL, Crissy, Prio |
| 24" ALU | 25181 | Cross 5, Cross 5 XL, Crissy, Prio |
| 20" stainless | 21034 | Cross 5, Cross 5 XL, Prio |
| 22" stainless | 24395 | Cross 5, Cross 5 XL, Crissy, Prio |
| 24" stainless | 24023 | Cross 5, Cross 5 XL, Crissy, Prio |
| 20" plastic-coated | 81229 | Cross 5, Cross 5 XL, Prio |
| 22" plastic-coated | 80895 | Cross 5, Cross 5 XL, Crissy, Prio |
| 24" plastic-coated | 82998 | Cross 5, Cross 5 XL, Crissy, Prio |
| 20" cellular | 24442 | Cross 5, Cross 5 XL, Prio |
| 22" cellular | 24551 | Cross 5, Cross 5 XL, Crissy, Prio |
| 24" cellular | 80800 | Cross 5, Cross 5 XL, Crissy, Prio |
| 24" titanium | 24540 | Cross 5, Cross 5 XL, Crissy, Prio |
| Attachment kit handrim 4 attachments for aluminium and stainless steel handrims | 28113 | Cross 5, Cross 5 XL, Crissy, Prio |
| Attachment kit handrim 4 attachments for plastic and cellular handrims | 24514 | Cross 5, Cross 5 XL, Crissy, Prio |
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
