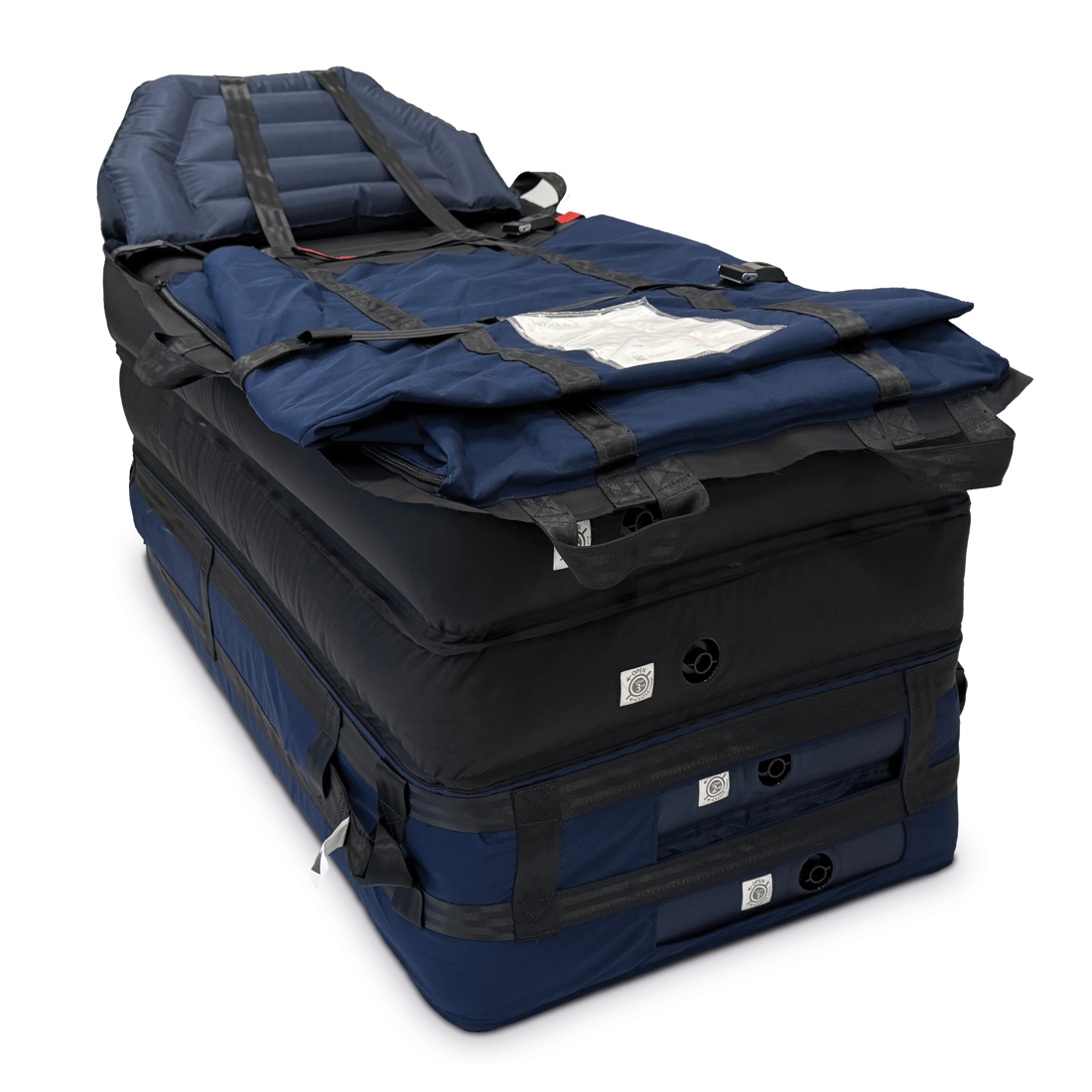

Evacuation EMS HoverJack -1st chamber inflated

Evacuation EMS HoverJack - 2nd chamber inflated

Evacuation EMS HoverJack_3rd chamber inflated

Evacuation EMS HoverJack - pouch folded up

EMS Evacuation HoverJack

For evacuation of patients in the most challenging environments

Promotes EMS safety to avoid injury
The EMS Evacuation HoverJack device allows EMS staff to lift and evacuate patients in the most challenging environments. Four air chambers are inflated to lift the patient from the floor in a supine position, maintaining patient dignity and minimizing the risk of injury to the crew by creating a no-lift environment. The tapered head-end improves manoeuvrability around corners and down stairwells and the fastening belts and foot pouch secure the patient during evacuation.

Seamless solution
When used in conjunction with the HoverMatt, a seamless solution is presented for lateral transfer from bed or floor to the EMS Evacuation HoverJack, and on to the ambulance stretcher in preparation for transport. When inflated, a cushion of air beneath the HoverMatt reduces the force needed to move the patient by 80-90%, while also reducing patient skin shear and bruising.

1.1 HoverMatt Air Assisted Tr.. - Card item block

Get to know the HoverMatt Air Transfer System

Improves patient comfort & safety
Reduces cost
Facilitates care throughout the facility
Minimizes infection control risk

1.2 Elevate your stand.. - Card item block

Elevate your standard of care

Elevate staff safety, patient care, and value with the HoverMatt Air Transfer System. Trusted for over two decades, the HoverMatt streamline patient handling, enhances care, and minimizes caregiver strain.

Features

Increased time efficiency

EMS Evacuation HoverJack contributes to more efficient working hours, which means that transport times during work shifts can be shortened.

Inflatable head-end wedge

The inflated head-end wedge facilitates an adjustable positioning to improve the patient’s breathing and comfort.

Replaceable Teflon coated bottom

The Teflon-coated bottom, which is replaceable, allows patients to be easily moved over most surfaces.

Dual purposes

The device can be used for both stairwell evacuations and for vertical lifts.

Variants

	Item number	Height (mm)	Length (mm)	Material	Maximum user weight (kg)	Pieces per pack	Width (mm)
EMS Evacuation HoverJack	HJ32EV-2	760	1980	Top: Nylon med polyurethane coating. Bottom: Teflon impregnated polyester. Latex-free.	544	1	812

In between patient use, the EMS Evacuation HoverJack should be wiped down with a cleaning solution used by your hospital for medical equipment disinfection. A 10:1 bleach solution (10 parts water: one part bleach) or disinfectant wipes can also be used. NOTE: Cleaning with a bleach solution may discolour fabric.
