R82 Quokka

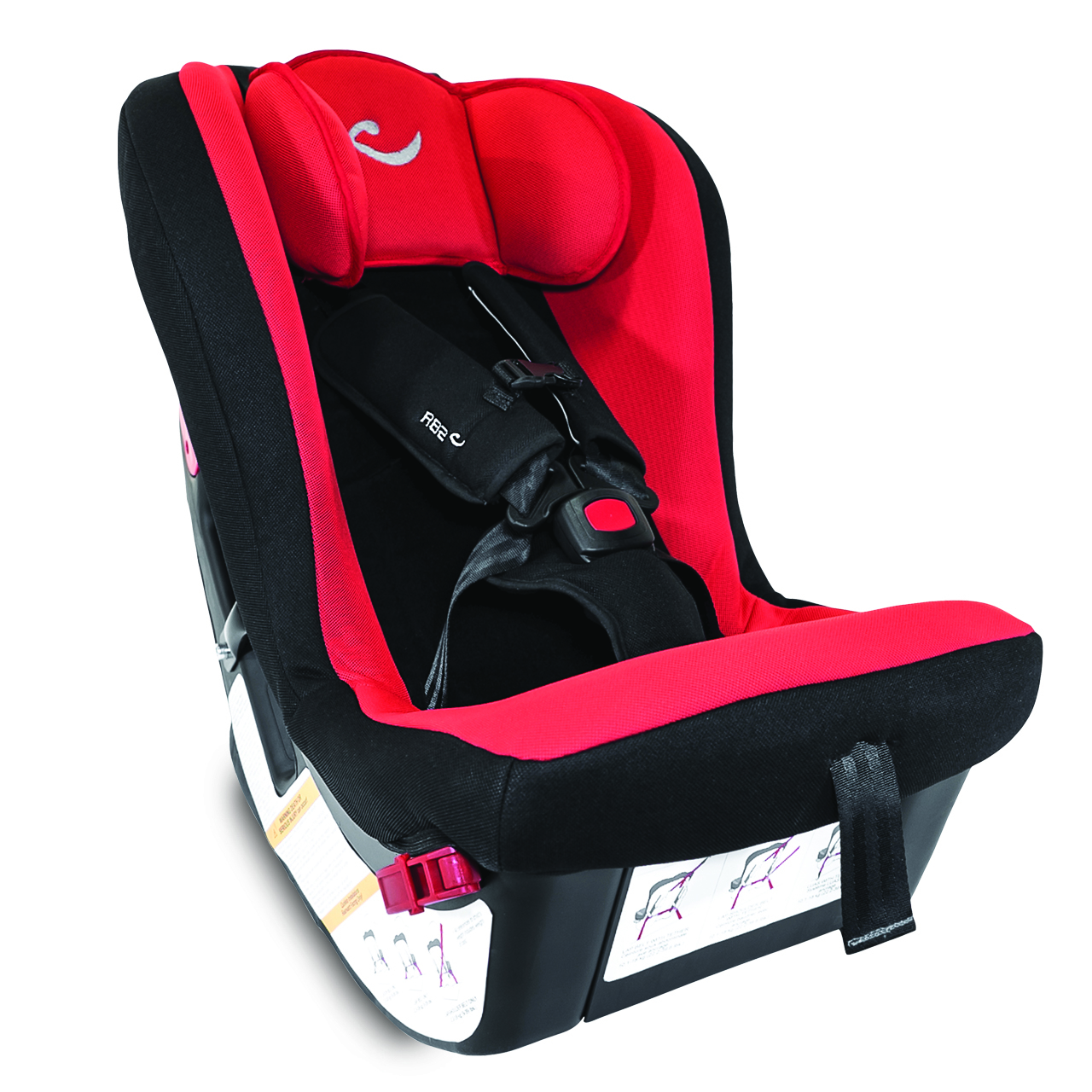

The Quokka is a highly functional convertible (rear and forward-facing) child restraint system.

The Quokka is a car seat that offers patients both comfort and maximum safety. It meets a range of postural requirements with an ergonomic design to accommodate a child that weighs from 2.3 kg.

The Quokka can be used in rear facing for a child that weighs from 2,3 kg and in the forward facing orientation for a child that weighs from 10 kg.

The Quokka’s exceptional Spica positioning wedge ensures a casted user is fully supported during transit, kept both upright and stable. The sides of the seat are specially formed to fit legs that are casted or in a brace, while the head and neck are held both secure and comfortable with the adjustable plush head support and multi positional padded 5-point safety harness. The LATCH System comes standard with each Quokka making each car ride a safe fun adventure for the entire family.

The maximum weight of a child including the weight of the cast or brace is 18 kg.

This product is only available in certain markets. Please contact your local R82 contact person or distributor for more information.

Discover

Features

51390 Quokka.jpg

Spica Positioning Wedge

Provides a casted user the ability to obtain an adequately supported fit during transit.

Configuration options

The ergonomic design supports the use in rear and forward configuration.

Growth

The harness is adjustable in height and length to accommodate the child as it grows.
51389 Quokka.jpg

LATCH system

Lower Anchors and Tethers for Children is a standard feature with each Quokka making installation quick and easy. Conforms to FMVSS 213.3 U.S. standards and CMVSS 213.3 Canadian standards

Variants

One size
R82 item number 905371-2
Approximate total user height (mm) 1041
Back height (mm) 533
Exterior shell depth (mm) 384
Exterior shell height (mm) 597
Exterior shell width (mm) 406
Head support height (mm) 165
Head support Height Range Max (mm) 495
Head support Height Range Min (mm) 343
Height of shoulder strap slots (mm) 190, 241, 292, 343
Interior shell depth (mm) 279
Interior shell height (mm) 533
Interior shell width (mm) 279
Max load (kg) 18
Minimum user weight - Forward facing (kg) 10
Minimum user weight - Rear facing (kg) 2.3
Seat depth (mm) 279
Seat width (mm) 279
Total weight (kg) 7.2

Options

Available in red/black

Red/Black

The unique Spica Positioning Wedge provides a casted user the ability to obtain an adequately supported fit during transit.

The 5-Point harness is easily adjustable in height and length to accommodate the child as it grows.

Padded harness strap cover for additional comfort and support.

Provides the child’s neck and head with support for safety and comfort.
