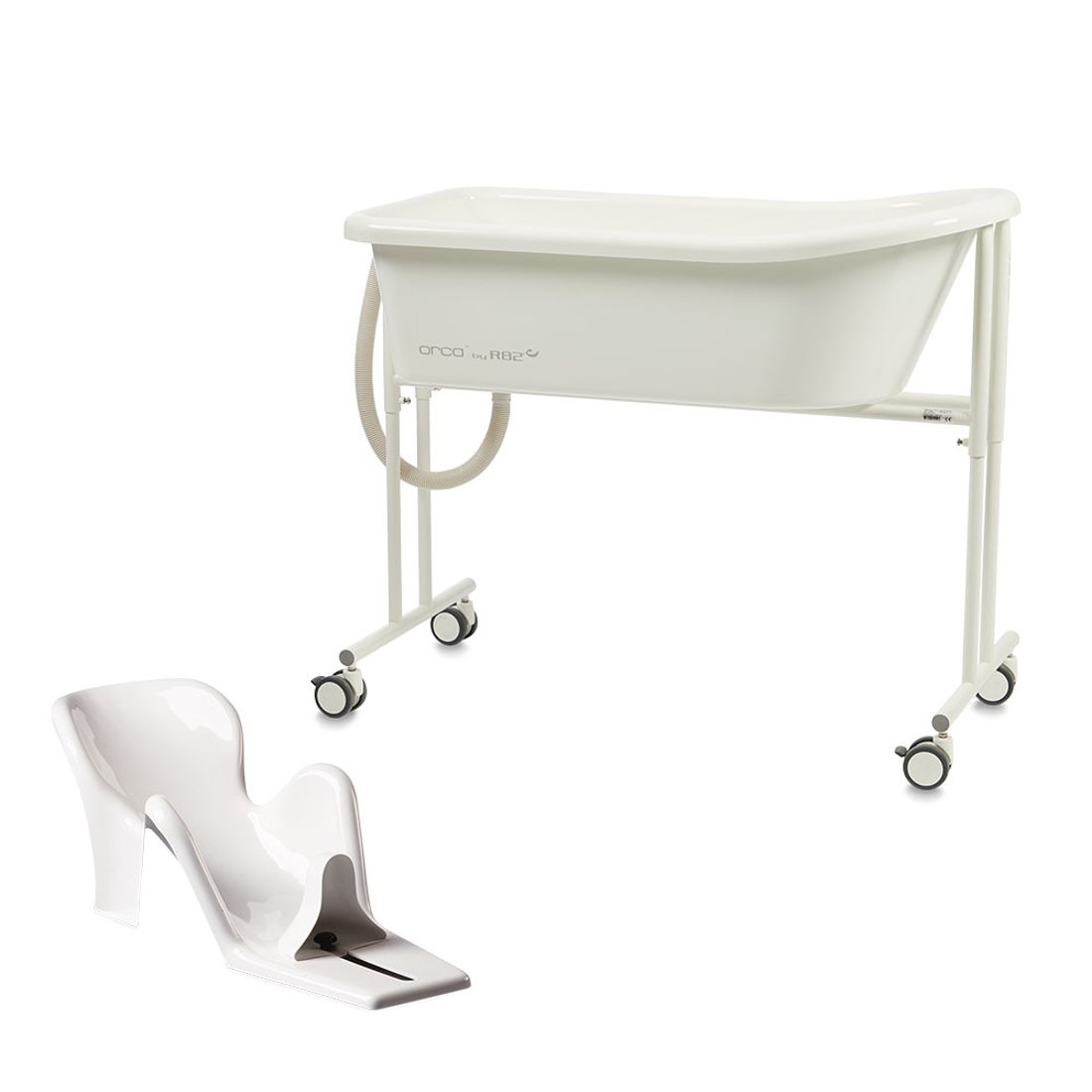

R82 Orca/Penguin

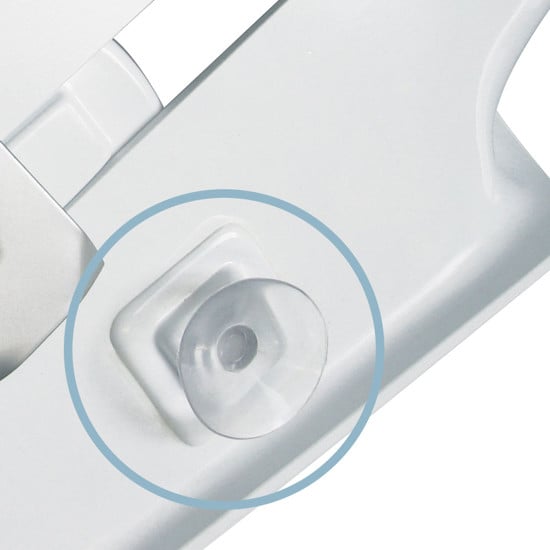

The Penguin can be used in the Orca bathtub, but fits ordinary bathtubs as well. With its suction cups, the Penguin sits firmly on most smooth surfaces.

The Orca is a spacious bathtub that provides comfort and freedom of movement for your child. Functionality is an integral feature in the design of the Orca bathtub. It has smooth round edges and a space saver within the area around and beneath the bathtub. The Orca has a hygienic and smooth surface bathtub making it easy to clean. The frame can be taken apart to minimise space for storage or transportation.

The Penguin makes bathing comfortable for the child. It provides support for head and trunk together with great freedom of movement for arms and legs so that the child can stay longer in the bath. With its adjustable abduction block it easily fits the individual child.

Features

Excellent working conditions

Excellent working conditions

The height adjustable frame allows for both standing and sitting care. Free space on the side makes it possible to get close to the child providing optimum comfort. Four smooth running wheels makes it easy to move the bathtub around – even with water in it.
Easy to handle

Easy to handle

The frame can be taken apart to minimise space for storage or transportation. The smooth and hygienic surface makes it very easy to clean.
Freedom of movement

Freedom of movement

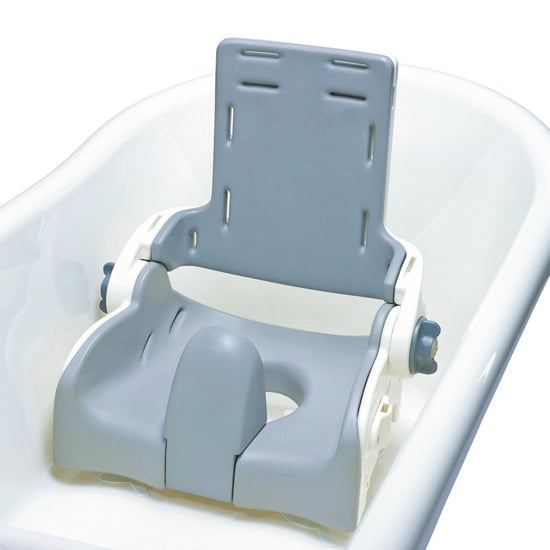

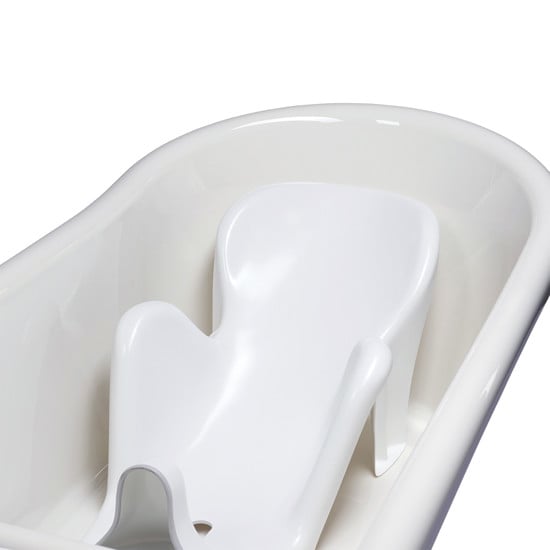

Mount a bathing seat in the Orca for added trunk support and freedom of movement. Both the small Flamingo and the Penguin bathing seat fits perfectly in the bathtub.

Variants

Orca
Penguin
Etac item number 3187550 3187702
R82 item number 87550 87702
Bathtub height, inside (mm) 290 -
Bathtub length, inside, bottom (mm) 860 -
Bathtub length, inside, top (mm) 1030 -
Bathtub width, inside, bottom (mm) 400 -
Bathtub width, inside, top (mm) 470 -
Frame height (mm) 940-1150 -
Height (mm) 260 -
Length (mm) 1110 800
Length, abduction block to top (mm) - 560-720
Mass device (kg) 16 1.35
Max load (kg) 120 -
Maximum rated load (kg) 138 23.35
Maximum user mass (kg) 50 20
Minimum turning diameter (mm) 675 -
Overall height (mm) 940-1150 260
Overall width (mm) 550 330
Required width of right angled corridor (mm) 1350 -
Total mass (kg) 16 -

Options

The Orca can be equipped with bathing seats from R82 making the bathing experience even more comfortable for the child.

Soap dish, plug and drain pipe (for fast and easy drainage) are standard equipment on the Orca.

Soap dish

Plug

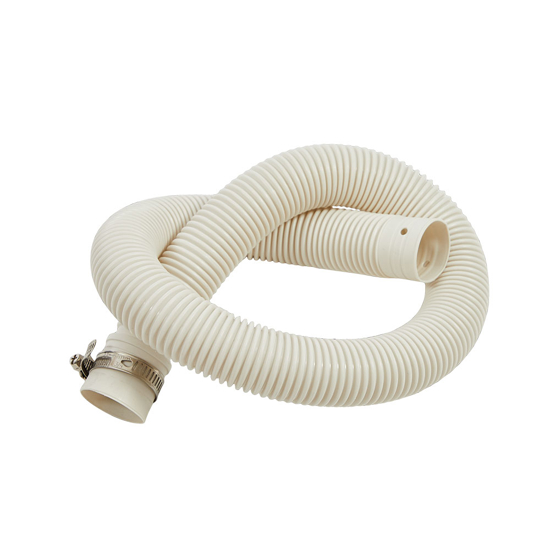

Drain pipe

Accessories

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
