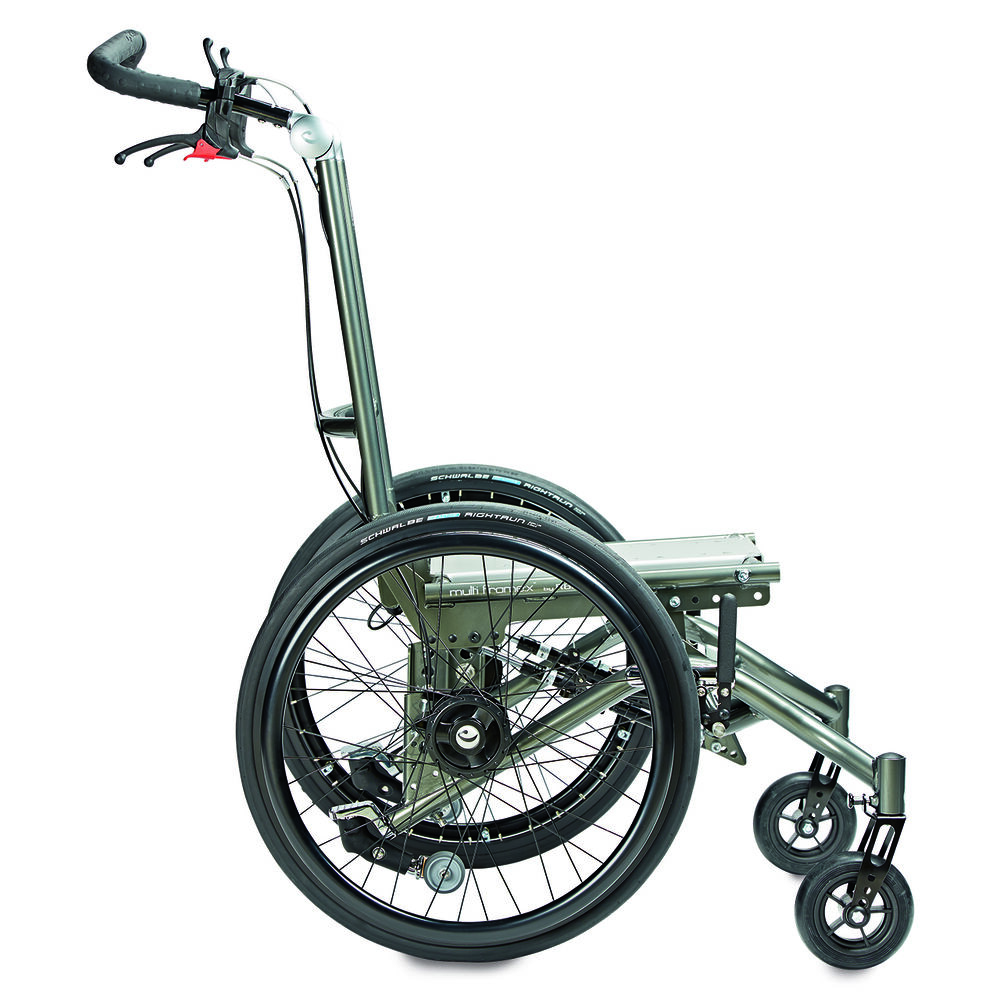

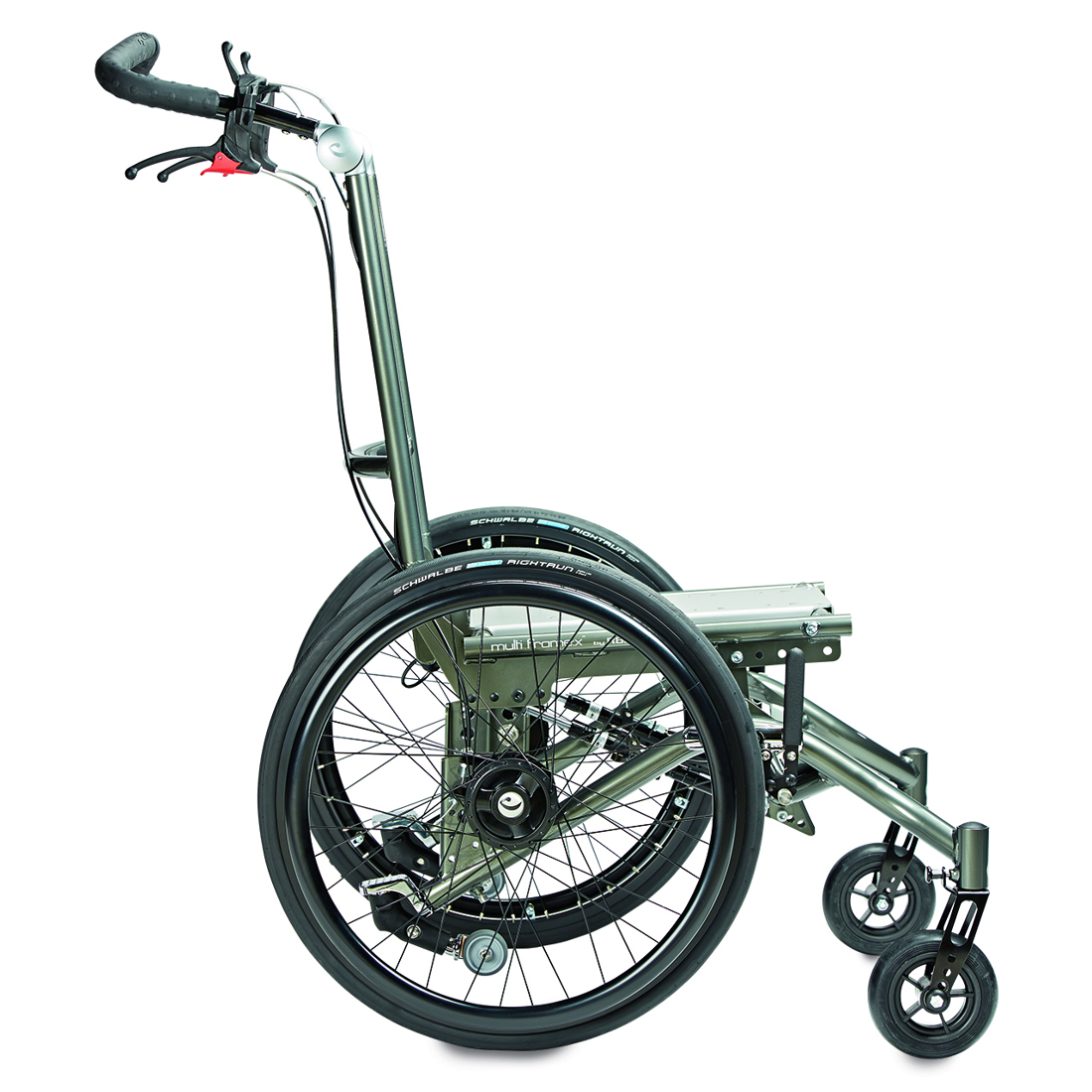

R82 Multi Frame:x

The Multi Frame:x is a strong, stable and highly manoeuvrable wheelchair base. A sturdy construction and a simple design makes it a delight to the eye.

Designed to provide extraordinary stability and safety, the Multi Frame:x is the perfect choice of wheelchair base for large seat units like the Panda Futura 5 and x:panda 4 from R82. Mount a seat unit from R82 or another manufacturer and it is easy to obtain optimum driveability. Different settings for the height and rear wheels ensure proper positioning and center of gravity. The angle adjustable push handle and the easily accessible handles for recline and tilt-in-space ensure ergonomically correct working conditions for carers.The Multi Frame:x is suitable for users needing an individual seating system and base, e.g. children with CP, GMFCS level 3-5. The Multi Frame:x comes in one size and is ideal for both indoor and outdoor use.

Discover

Features

R82 Multi Frame:x

Seats for Multi Frame:x

Multi Frame:x is the perfect choice of wheelchair base for large seat units like the Panda Futura 5 and x:panda 4 from R82
R82 Multi Frame:x

User-friendly adjustability

The tilt-in-space and back recline functions are operated from the push brace ensuring optimum working conditions. Stepless recline of the push handle makes it possible to adapt the height to any carer
R82 Multi Frame:x

Seat height adjustment

Positioning the user as close to the floor as possible ensures a much easier transfer
R82 Multi Frame:x

Tested and approved

The Multi Frame:x complies with ISO 7176-19, transporting users in motor vehicles. The Multi Frame:x can be used with seat units that comply with ISO 16840-4

Variants

Size 3
Item number 963xxxxxxx
Back angle (°) 0 - 30
Back height (mm) 570

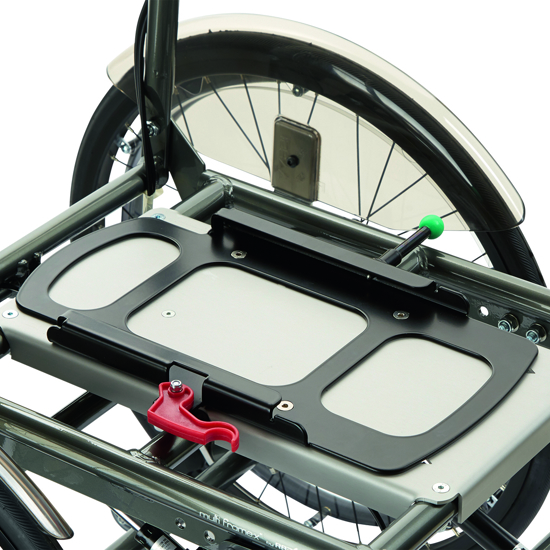

Base plate (width x depth) (mm) 215x405
Folded length (mm) 840
Footrest to adaptor plate (mm) 260-430
Handrim diameter (mm) 480
Length (mm) 840
Mass device (kg) 20
Max load (kg) 100
Max load at transportation (kg) 100
Maximum rated load (kg) 122
Overall height (mm) 980
Overall width (mm) 660
Seat plane angle (°) (-5) - 30
Seat surface height at front edge (mm) 410, 435, 460
Static stability downhill (°) 10
Static stability sideways (°) 10
Static stability uphill (°) 10
Width between wheels (mm) 535

Options

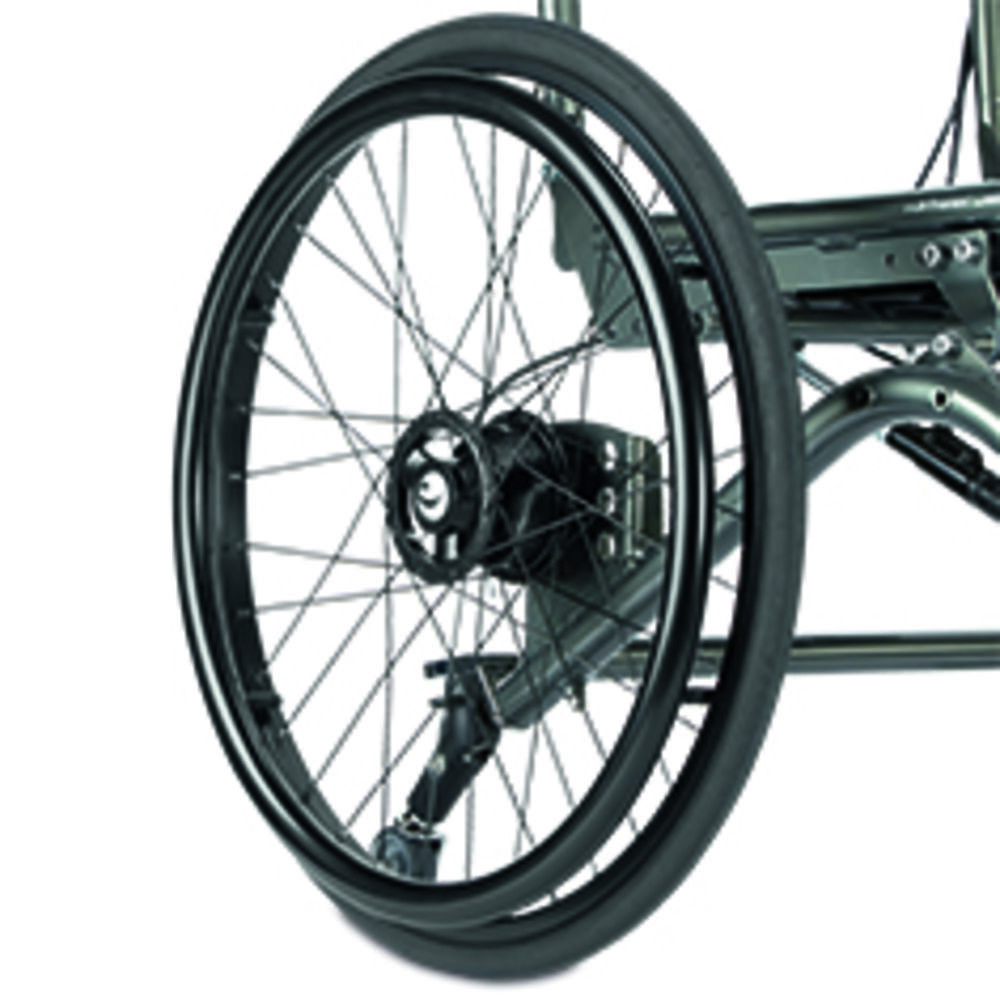

Available with different rear wheel sizes

12½” air

12½” air

20" air

20" air

22" air

22" air

24" air

24" air

12½” solid

12½” solid

20" solid

20" solid

22" solid

22" solid

24" solid

24" solid

Choose from the different combinations of brakes

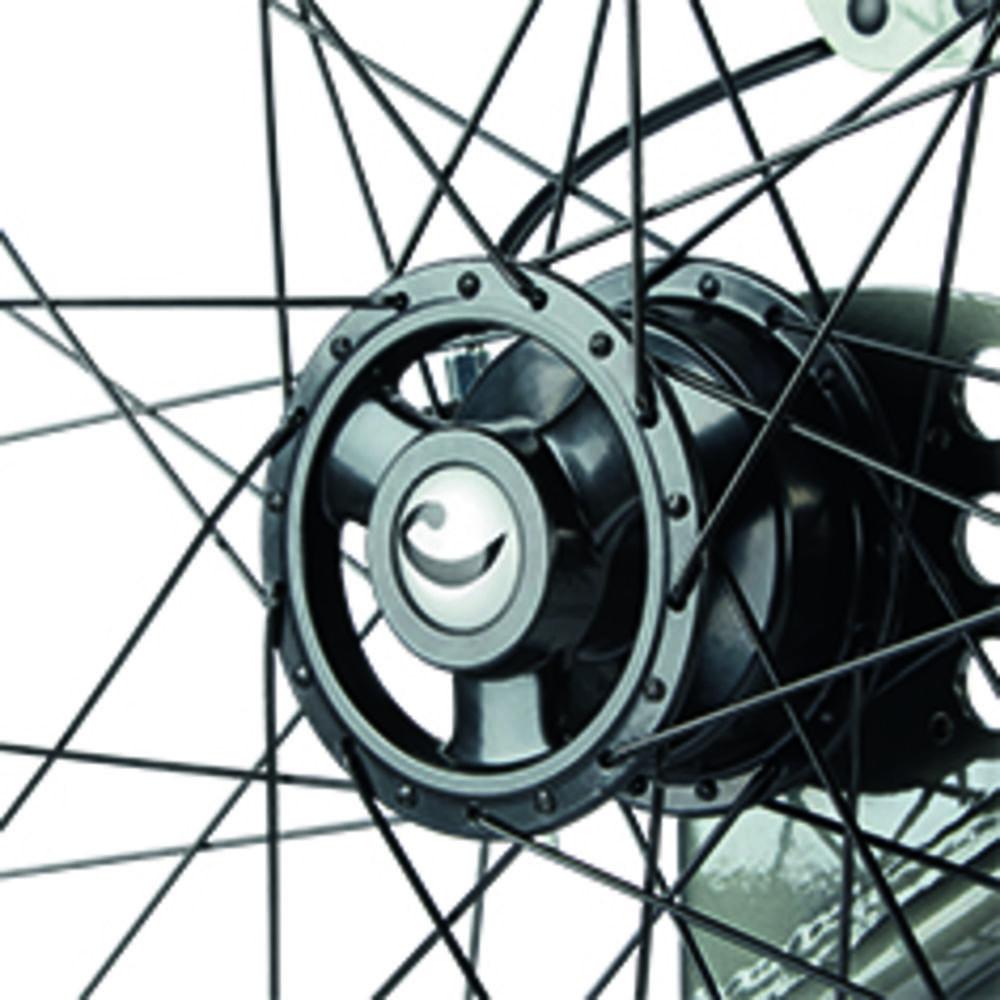

Drum brake

Drum brake

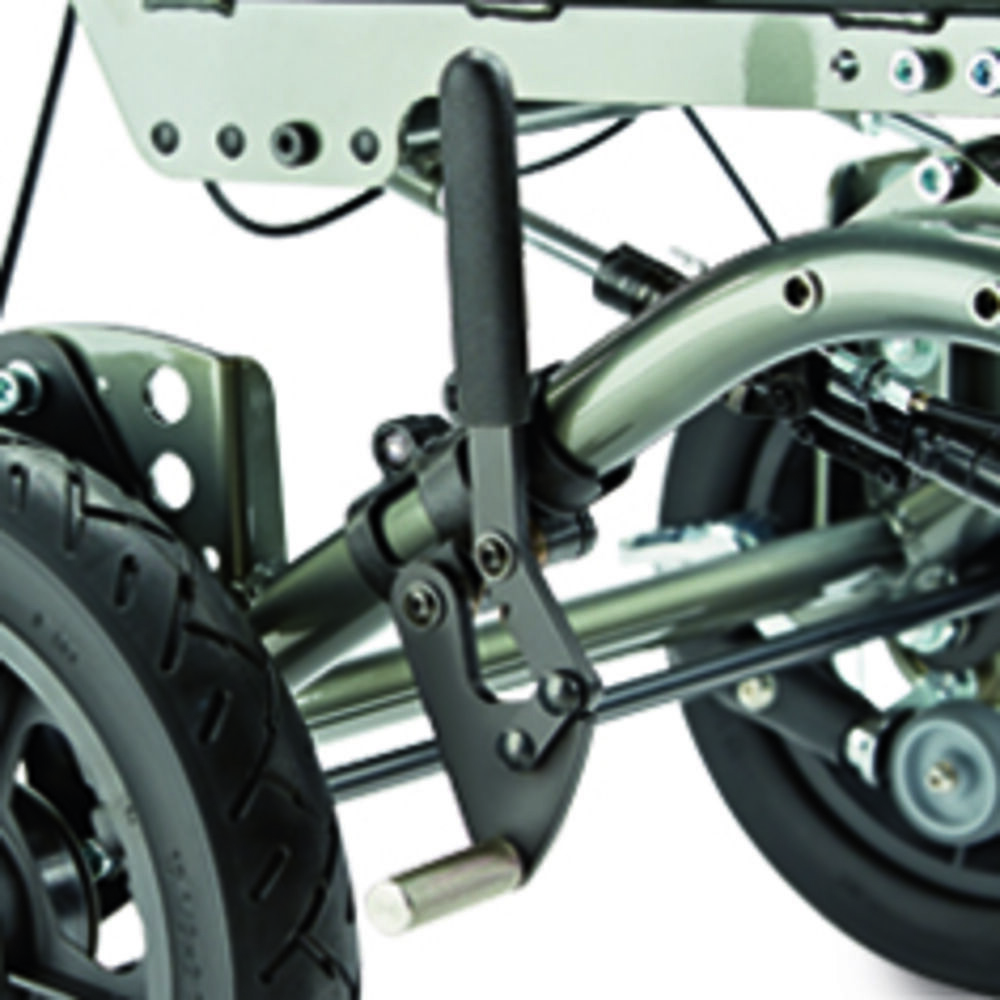

Wheel brake

Wheel brake

Available with different front wheel sizes

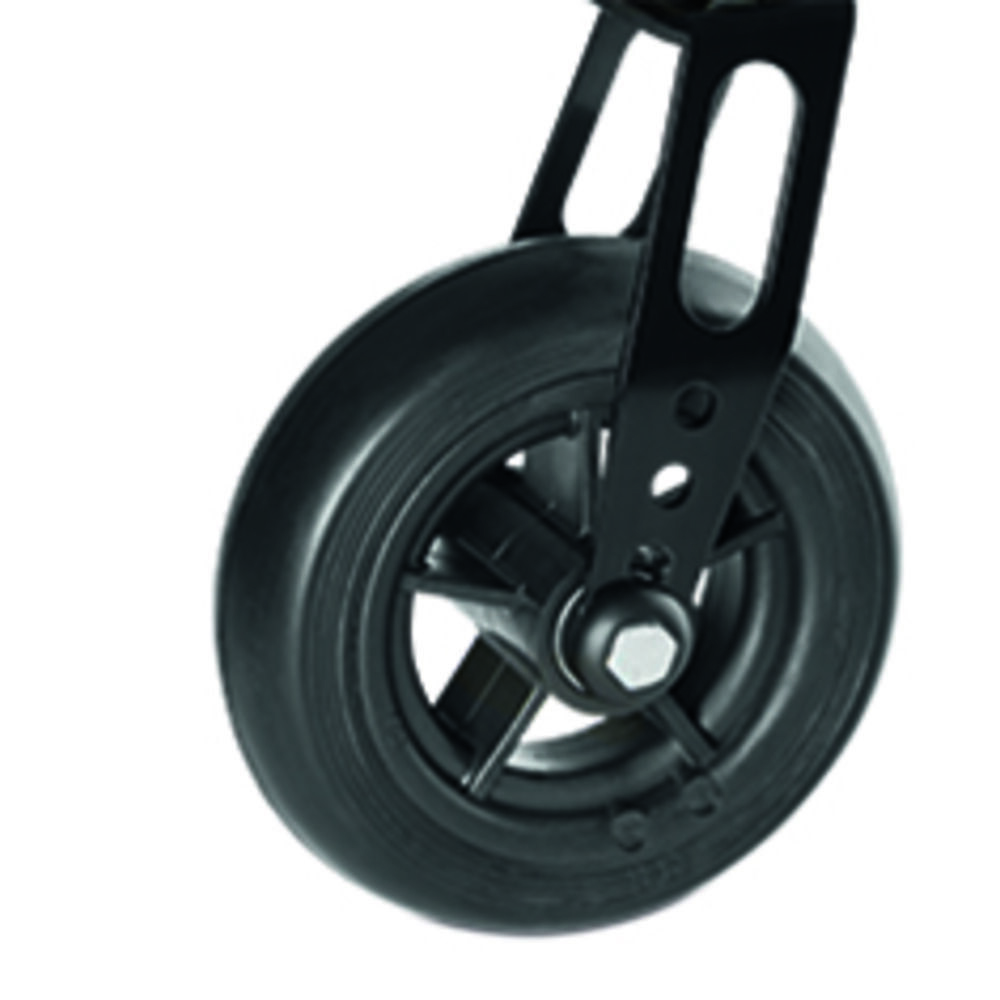

6” Solid

6” Solid

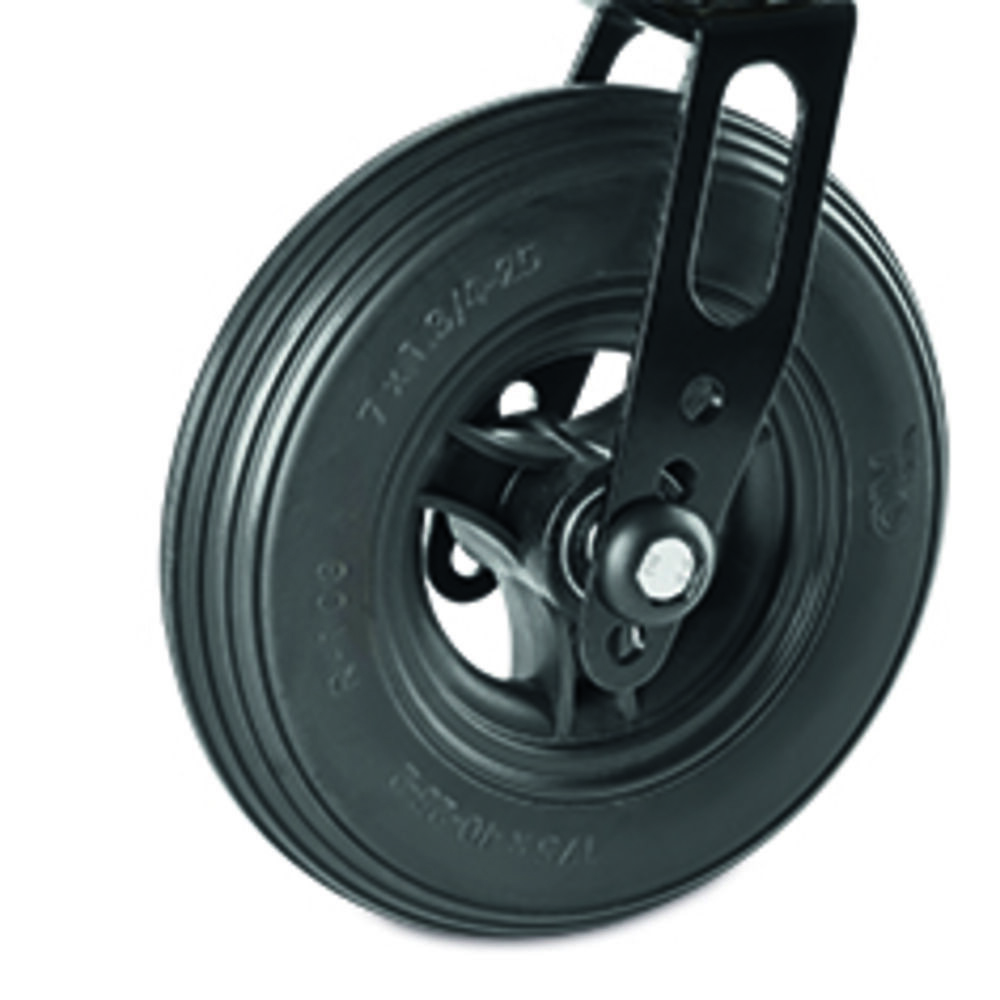

7” solid

7” solid

7” air

7” air

Operated from the push brace. 30° angle range

Multi Frame_x back angle_53629.jpg

Multi Frame_x back angle_01_53630.jpg

Multi Frame_x back recline

The Multi Frame:x can be ordered with three different seat height settings. Positioning the user as close to the floor as possible ensures a much easier transfer. With the low positioning there is no problem pushing the chair under e.g. the dining table, giving the user the opportunity to join in everyday activities

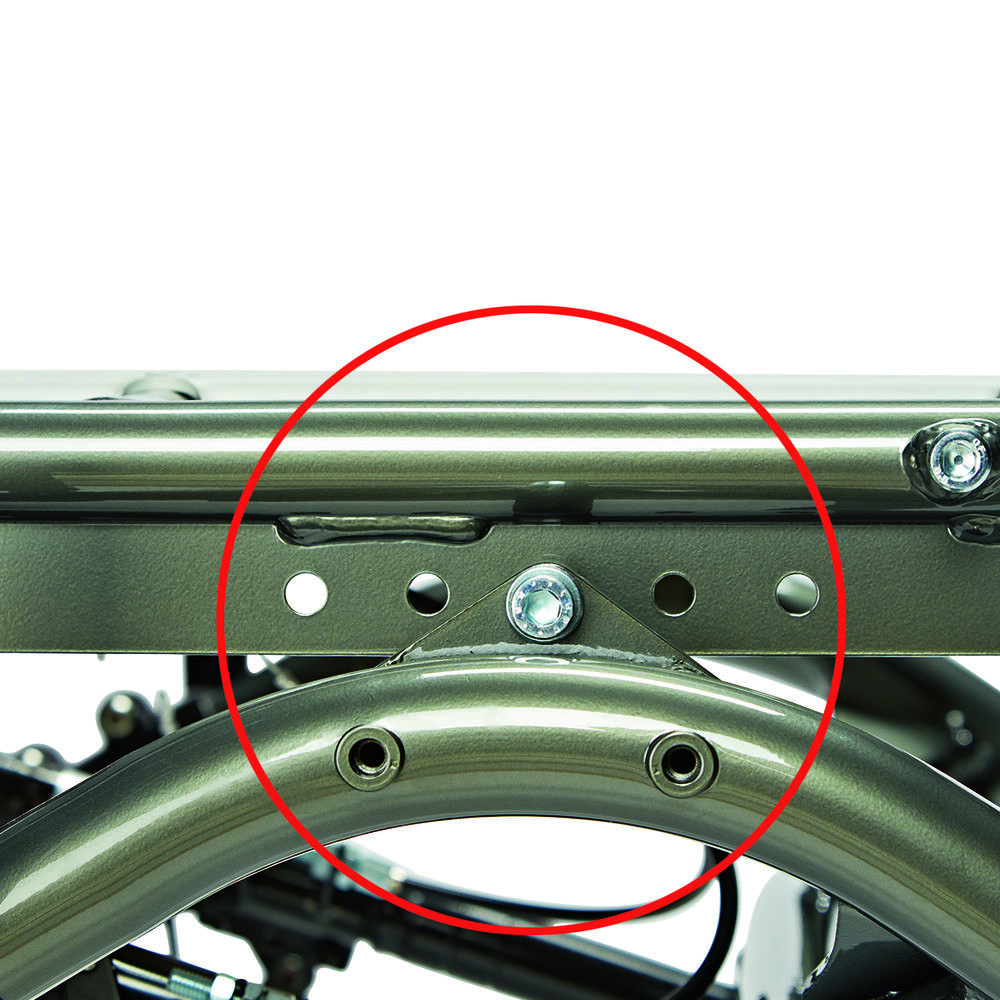

Height adjustment standard (410 mm above floor)

Height adjustment standard (410 mm above floor)

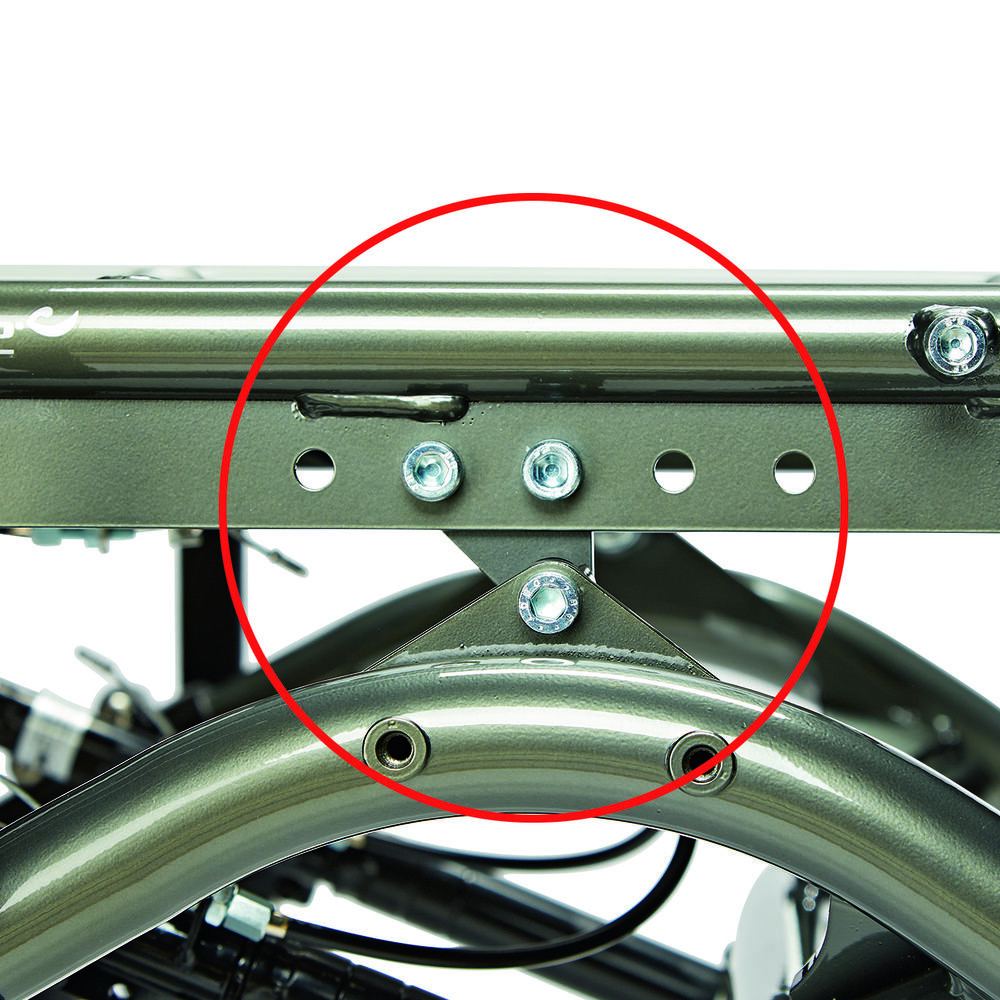

Height adjustment +25 mm (435 above floor)

Height adjustment +25 mm (435 above floor)

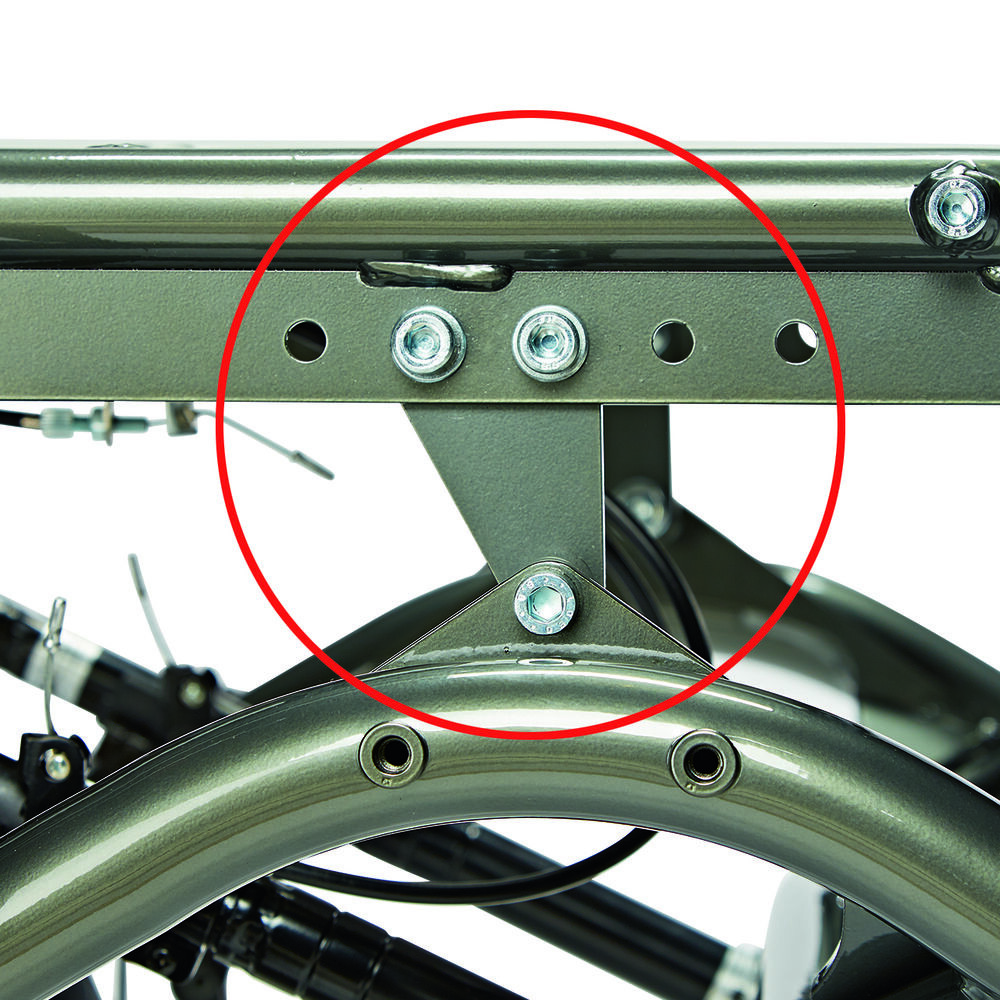

Height adjustment +50 mm (460 mm above floor)

Height adjustment +50 mm (460 mm above floor)

Operated from the push brace. Angels from 5° to 30°

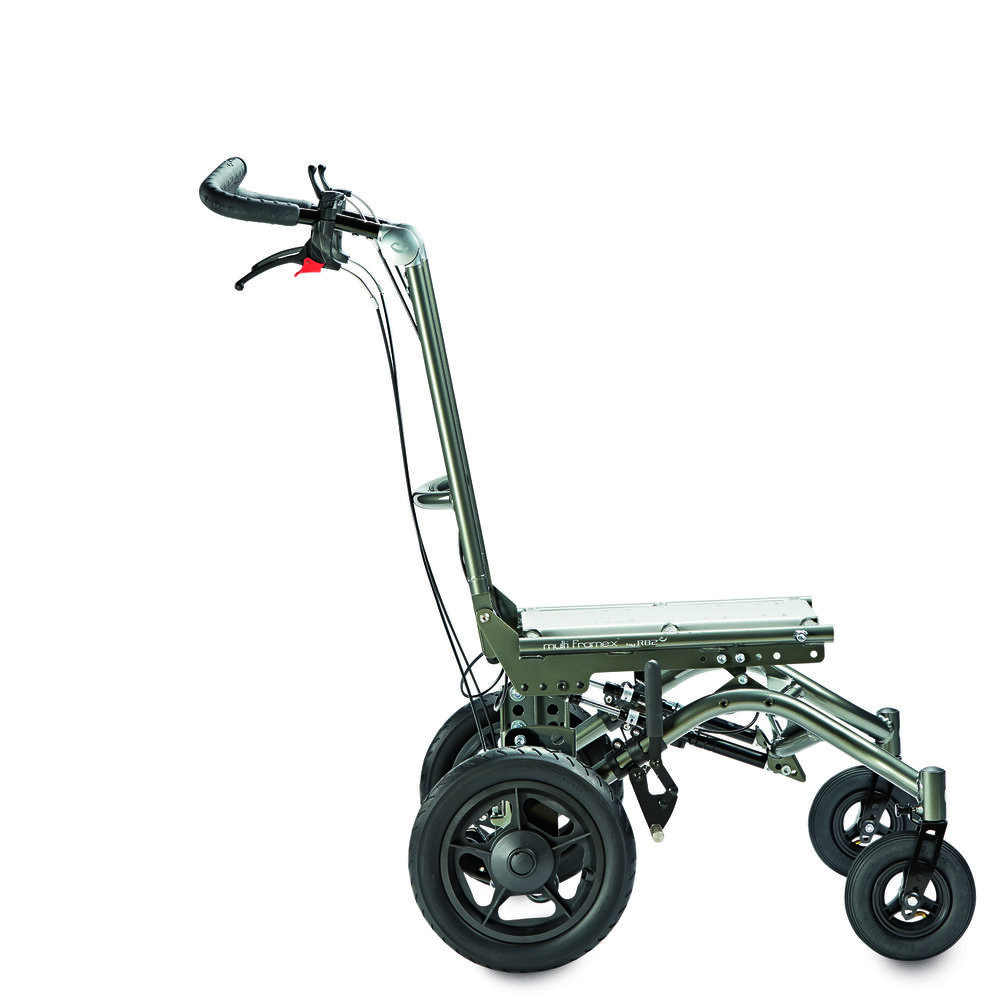

Multi Frame_x tilt-in-space 1

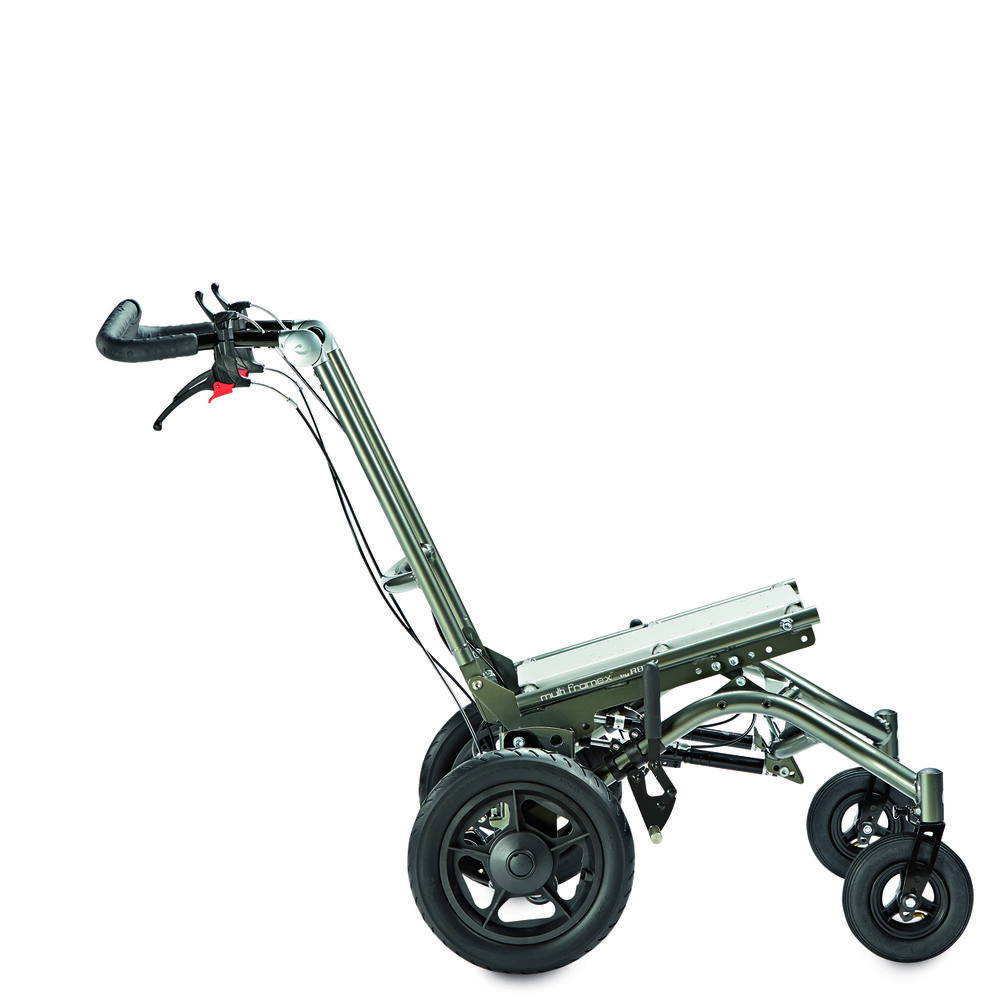

Multi Frame_x tilt-in-space_2

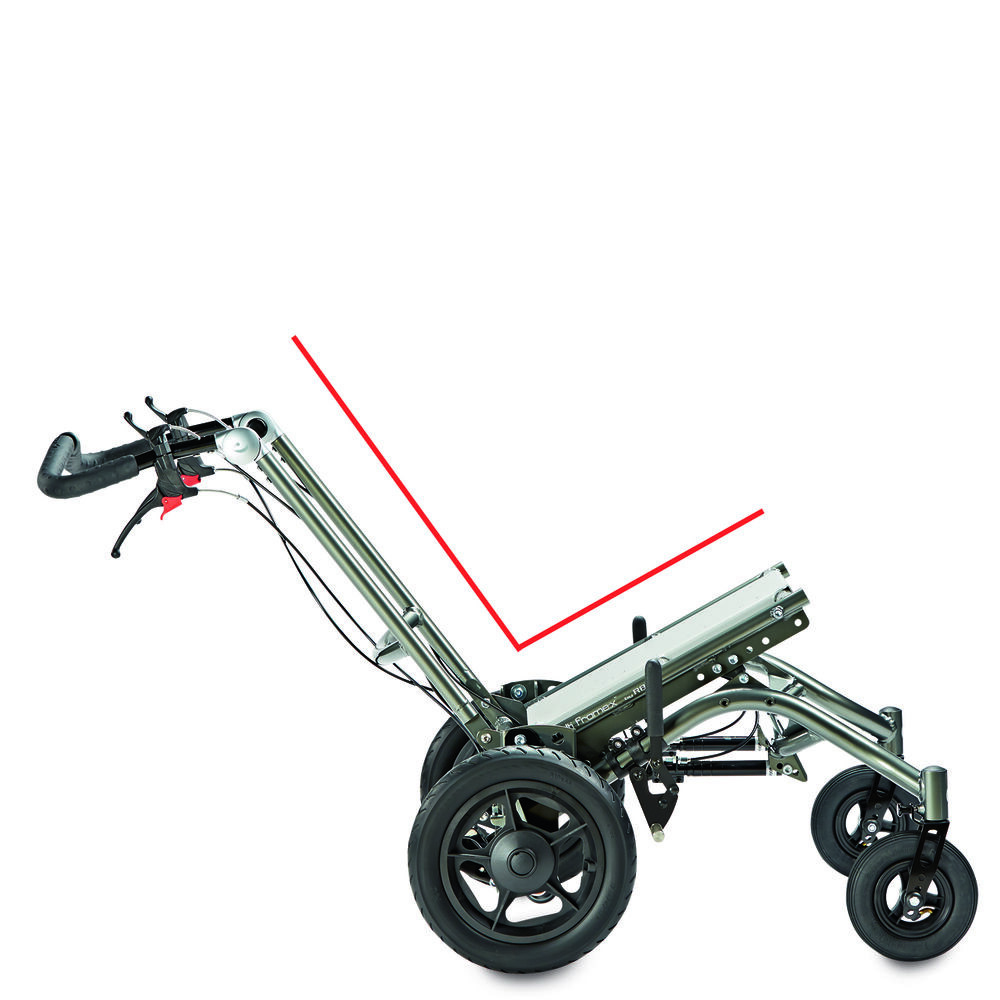

Multi Frame_x tilt-in-space_3
