R82 Orca/Penguin
A spacious bathtub and a supportive bathing seat designed to make bath time comfortable and enjoyable. The Orca provides space, while the Penguin offers support for the head and trunk, ensuring a safe and relaxing experience for children during bathing routines.
R82 Orca/Penguin
Making bath time calm, safe, and easy
The Orca bathtub offers a spacious design with smooth, round edges, providing freedom of movement while ensuring safety. When paired with the Penguin bathing seat, the child receives essential stability for the head and trunk, allowing for more snug and comfortable baths. Together, these products simplify hygiene routines, with easy-to-clean surfaces and a smart design that minimises caregiver effort while maximising the child's comfort and well-being.
Features
-
Features
Excellent working conditions
The height adjustable frame allows for both standing and sitting care. Free space on the side makes it possible to get close to the child providing optimum comfort. Four smooth running wheels makes it easy to move the bathtub around – even with water in it.
-
Features
Easy to handle
The frame can be taken apart to minimise space for storage or transportation. The smooth and hygienic surface makes it very easy to clean.
-
Features
Freedom of movement

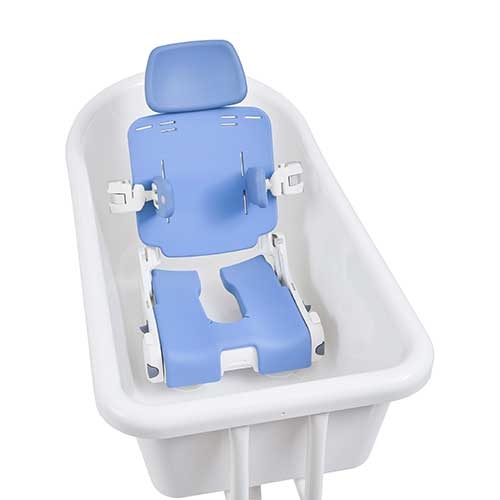

Mount a bathing seat in the Orca for added trunk support and freedom of movement. Both the small Flamingo and the Penguin bathing seat fits perfectly in the bathtub.
-
Features
Penguin - suction cups
Secures the Penguin in the bathtub.
Variants
| Orca | Penguin | |
|---|---|---|
| Item number | 87550 | 87702 |
| Bathtub height, inside (mm) | 290 | - |
| Bathtub length, inside, bottom (mm) | 860 | - |
| Bathtub length, inside, top (mm) | 1030 | - |
| Bathtub width, inside, bottom (mm) | 400 | - |
| Bathtub width, inside, top (mm) | 470 | - |
| Frame height (mm) | 940-1150 | - |
| Height (mm) | 260 | - |
| Length (mm) | 1110 | 800 |
| Length, abduction block to top (mm) | - | 560-720 |
| Mass device (kg) | 17 | 1.35 |
| Max load (kg) | 120 | - |
| Maximum rated load (kg) | 69 | 23.35 |
| Maximum user mass (kg) | 50 | 20 |
| Minimum turning diameter (mm) | 675 | - |
| Overall height (mm) | 940-1150 | 260 |
| Overall width (mm) | 550 | 330 |
| Required width of right angled corridor (mm) | 1350 | - |
| Total mass (kg) | 16 | - |
Options
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
