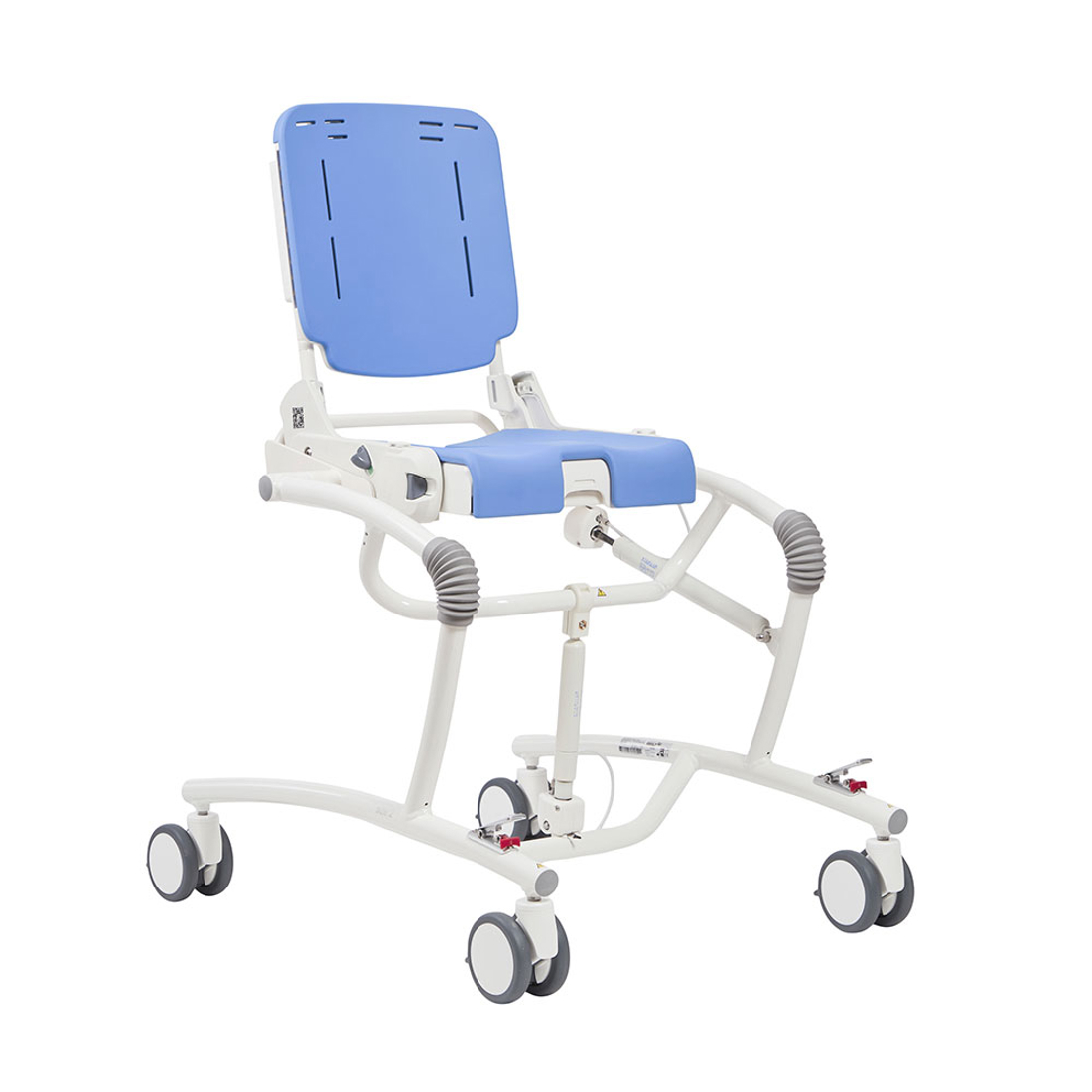

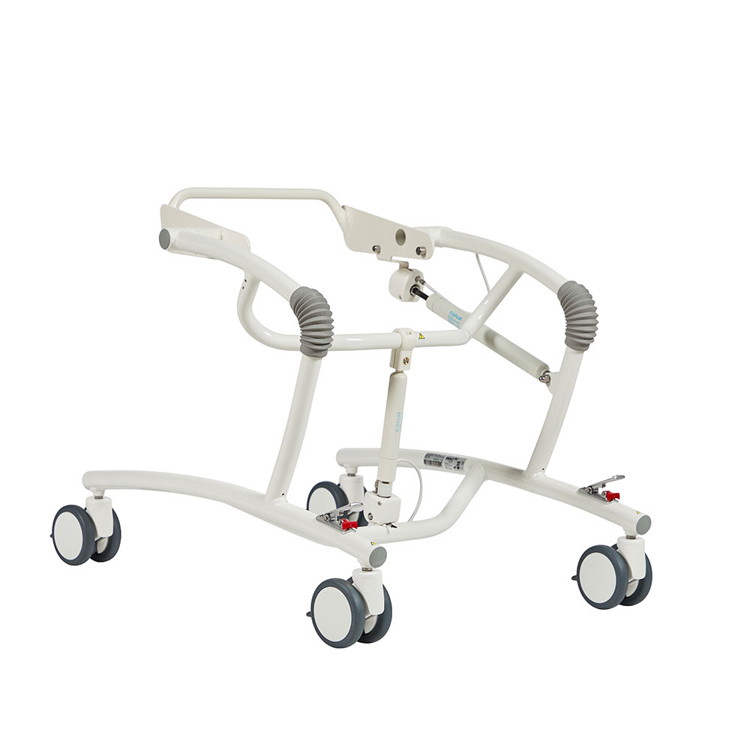

Flamingo High-low Frame

Flamingo High-low Frame offers height adjustment of the chair while the child is sitting in the seat. Two different pedals placed on the arms of the frame gives you easy control of the tilt-in-space or the height adjustment. Available with 75 or 100 mm castors.

Variants

Size 1, 75 mm castors
Size 2, 75 mm castors
Size 3, 75 mm castors
Size 1, 100 mm castors
Size 2, 100 mm castors
Size 3, 100 mm castors
Item number 882031 882032 882033 882041 882042 882043
Compatible with R82 Flamingo Curo size 1 R82 Flamingo Curo size 2 R82 Flamingo Curo size 3 R82 Flamingo Curo size 1 R82 Flamingo Curo size 2 R82 Flamingo Curo size 3
Mass device (kg) 9.6 10.9 10.6 9.6 10.9 10.6
Maximum load (kg) 40.2 61.1 77.5 40.2 61.1 77.5
Maximum rated load (kg) 51.8 74 90.1 51.8 74 90.1
Overall height (mm) 540-750 550-745 550-745 565-775 575-770 575-770
Overall length (mm) 660 805 805 685 830 830
Overall width (mm) 485 580 580 495 590 590
