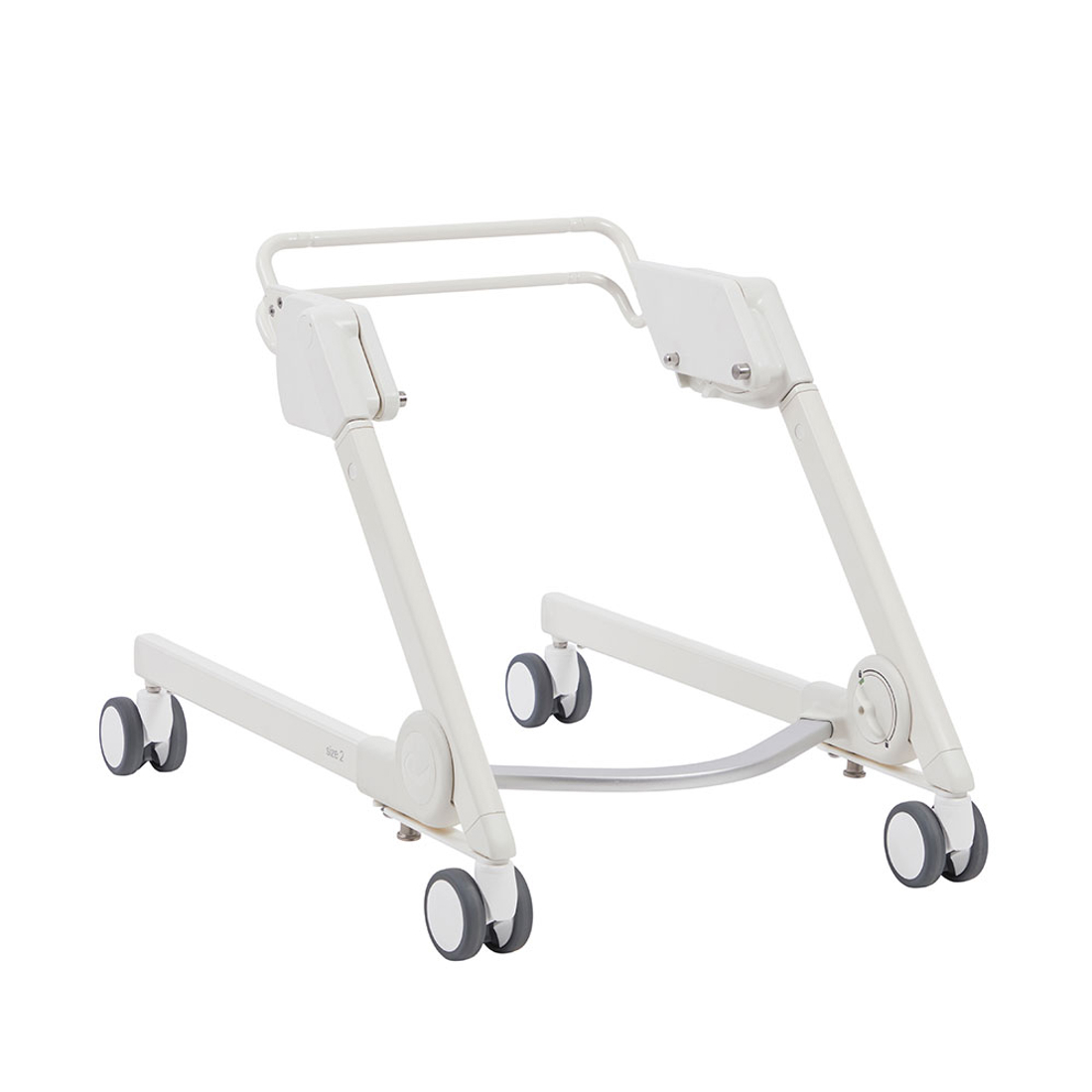

Flamingo Compact Frame

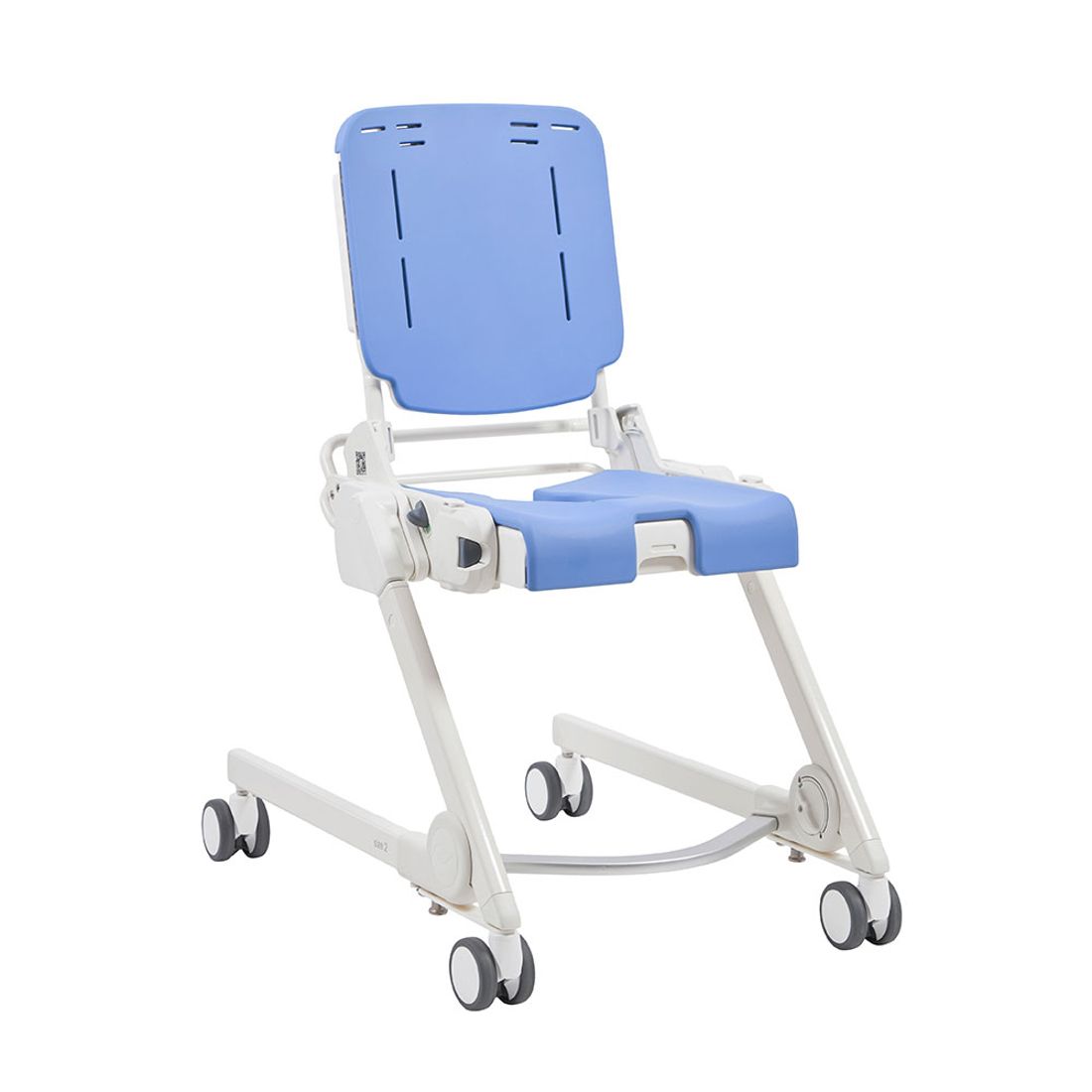

Flamingo Compact Frame offers a fit above most toilets as the frame design allows the chair to come close to the toilet. The frame has a one hand operated tilt that can be easily used while the child is sitting in the seat. The frame can be height adjusted with tools depending on the task and folded without use of tools for easy storage or transportation. Available with 75 or 100 mm castors.
Variants
| Size 1, 75 mm castors | Size 2, 75 mm castors | Size 3, 75 mm castors | Size 1, 100 mm castors | Size 2, 100 mm castors | Size 3, 100 mm castors | |
|---|---|---|---|---|---|---|
| Item number | 882011 | 882012 | 882013 | 882021 | 882022 | 882023 |
| Compatible with | R82 Flamingo Curo size 1 | R82 Flamingo Curo size 2 | R82 Flamingo Curo size 3 | R82 Flamingo Curo size 1 | R82 Flamingo Curo size 2 | R82 Flamingo Curo size 3 |
| Mass device (kg) | 7.2 | 7.3 | 7.4 | 7.2 | 7.3 | 7.4 |
| Maximum load (kg) | 40.2 | 61.1 | 77.5 | 40.2 | 61.1 | 77.5 |
| Maximum rated load (kg) | 49.4 | 70.4 | 86.9 | 49.4 | 70.4 | 86.9 |
| Overall folded height (mm) | 180 | 180 | 180 | 205 | 205 | 205 |
| Overall folded length (mm) | 750 | 750 | 750 | 775 | 775 | 775 |
| Overall folded width (mm) | 470 | 510 | 560 | 480 | 520 | 570 |
| Overall height (mm) | 525-650 | 525-650 | 525-650 | 550-675 | 550-675 | 550-675 |
| Overall length (mm) | 760 | 760 | 760 | 785 | 785 | 785 |
| Overall width (mm) | 470 | 510 | 560 | 480 | 520 | 570 |
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
