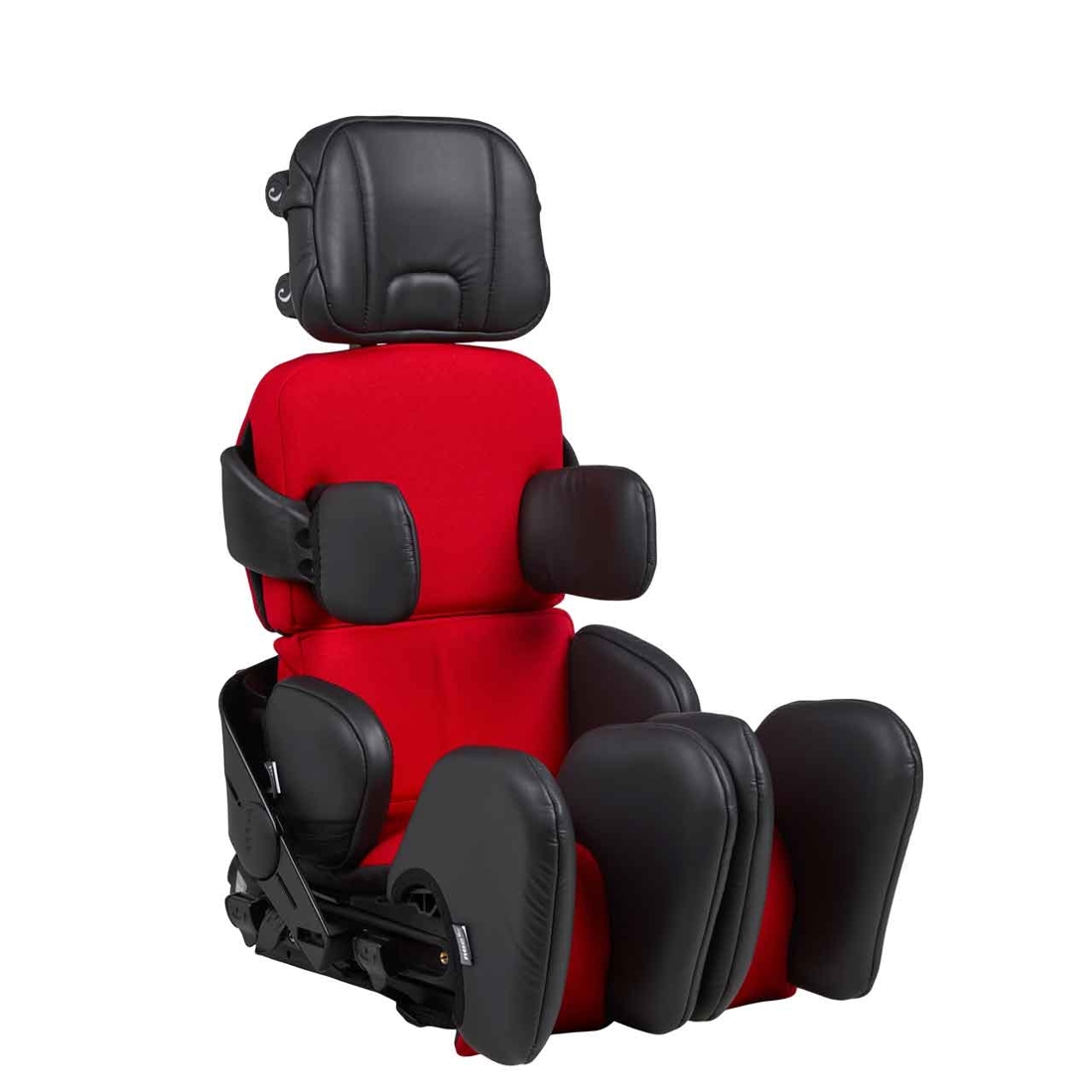

R82 x:panda shape
The x:panda shape provides the best seat for your child to live life to the fullest and can change shape to keep up with your child's development.
The x:panda shape is highly configurable and provides tailored support to fit the individual needs. Adjustable in seat width and depth, and back width and height ensures a tailored fit with a high level of comfort. The x:panda shape always creates a stable seat so the user can interact and participate in life as independently as possible. It accommodates very complex seating positions with a high level of advanced and adjustable supports combined with adjustable dynamic back support; it can be a simple activity seat and everything else in between.

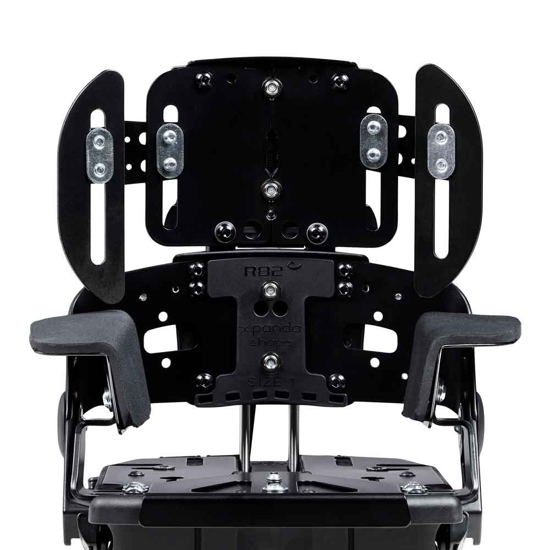

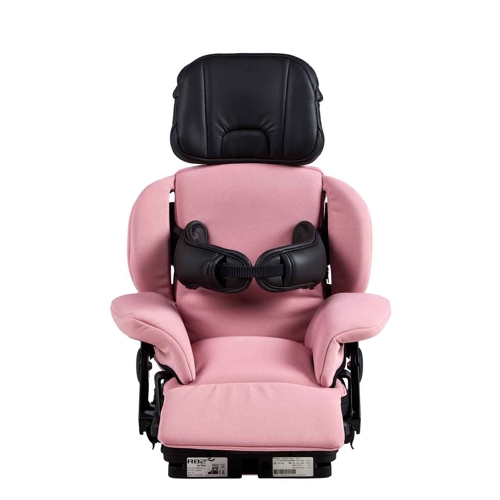

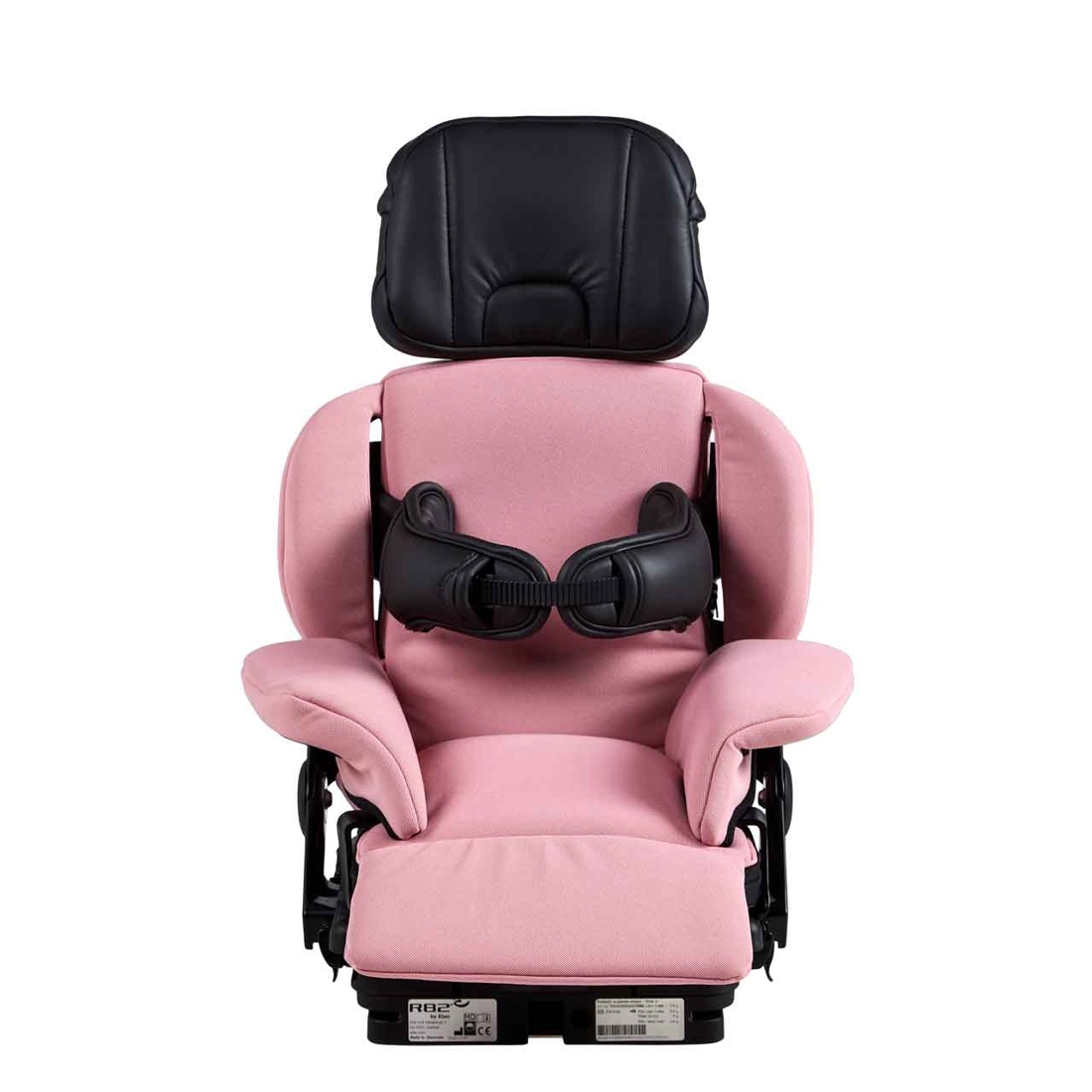

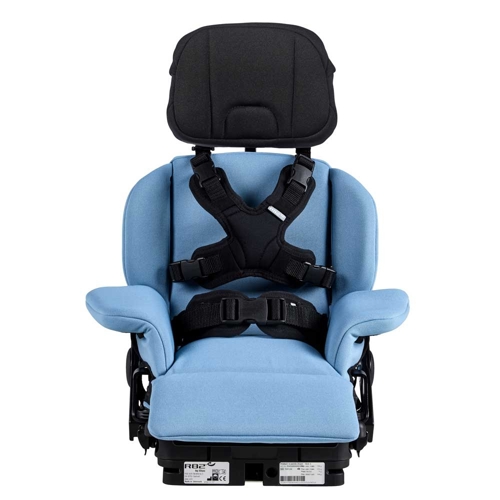

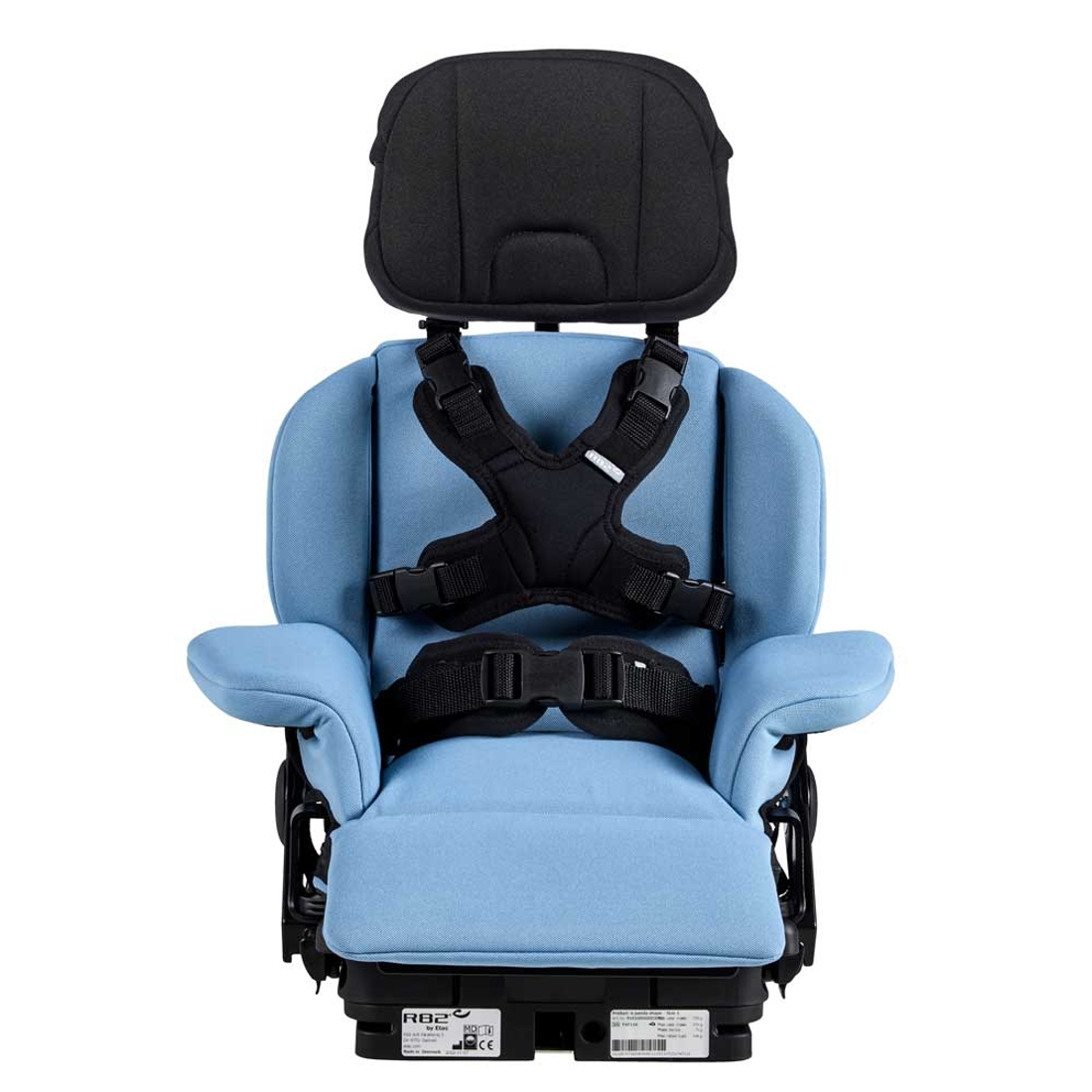

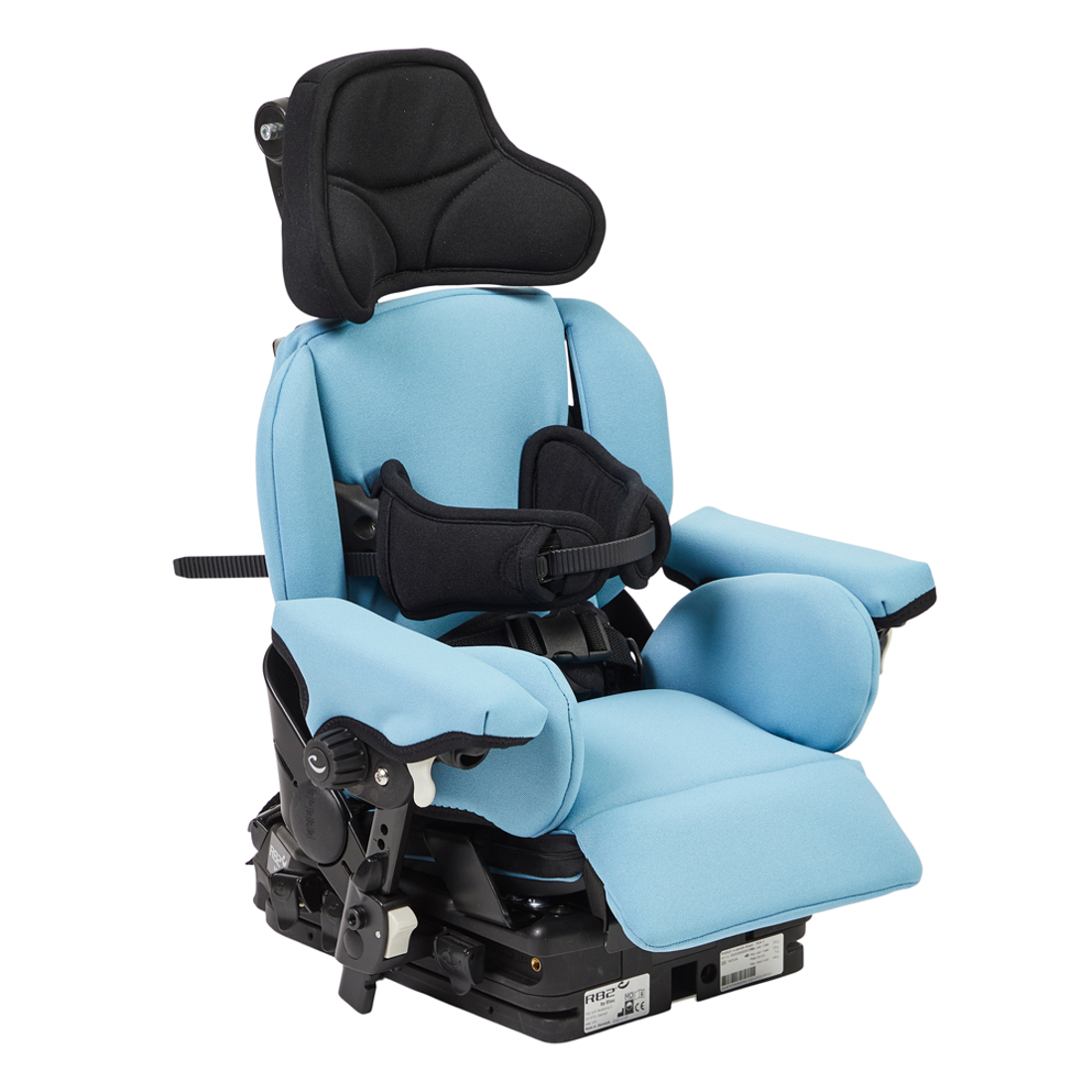

The infant seat provides supported seating for infants and presents the opportunity for early intervention and facilitation of the child's participation and social interaction with parents, caregivers, and the environment.
Discover
Features
Dynamic benefits
Early intervention
Built-in growth and adjustability
Tailored support and highly adaptable
Standard specifications
| Size 1, infant seating | Size 1 | Size 2 | |
|---|---|---|---|
| Abduction angle, each leg (°) | - | 10°/20-30° | 15°/30° |
| Adduction angle, each leg (°) | 10°/20°-30° | 10°/20°-30° | 15°/30° |
| Armrest to seat distance (inch) | 2.75-4 | 3.50-6.25 | 4-6.50/4-8.75 |
| Back width, top of backrest (inch) | 7.5 | 7/8.5/10.25/11.75/13.5 | 7/8.5/10.25/11.75/13.5/15 |
| Backrest height (inch) | 10.75-14.25 | 11-14.50/12.50-16.50/14.50-18.50 | 13.50-17.25/15-19.25/17-22 |
| Backrest recline angle (°) | (-10°)-(30°) | (-10°)-(30°) | (-10°)-(30°) |
| Effective seat depth (inch) | 4.75-6.25 | 6.25-12.50 | 9.50-16.50 |
| Effective seat width (without hip support) (inch) | 8.50 | 8.50/10.25/11.75 | 11/12.50/14.25/15.75 |
| Front location of arm rest structure (inch) | 6.25-7 | 9 | 11.50 |
| Mass device (lbs) | 13.2 | 14.3 | 24.3 |
| Maximum rated load (lbs) | 94.8 | 95.9 | 172 |
| Maximum user mass (lbs) | 77.2 | 77.2 | 134.3 |
| Maximum user mass in transportation (lbs) | 77.2 | 77.2 | 134.3 |
| Overall width, both legs in maximum abduction (inch) | 9.50 | 11.75/15.75/19.75 | 11.75/18/22/26 |
| Seat width, minimum/maximum (with hip supports) (inch) | 4.75-8.50 | 4.75-7/6.25-8.50/7.75-10.25 | 7-9.50/8.50-11/10.25-12.50/11.75-14.25 |
| Width thighs (inch) | - | 2.75/3.50/4.50 | 3.50/4.25/5/6 |
Options

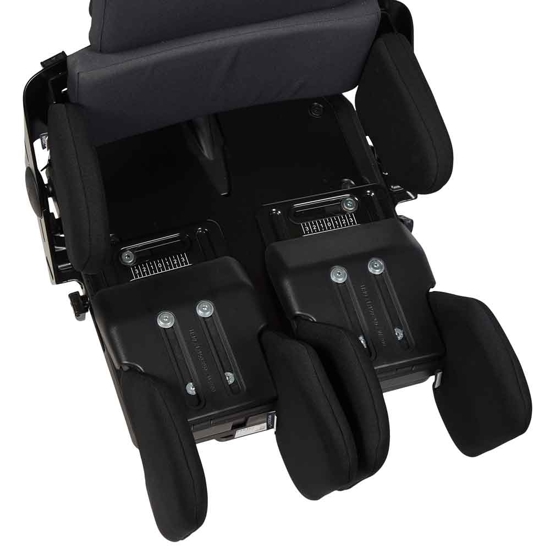

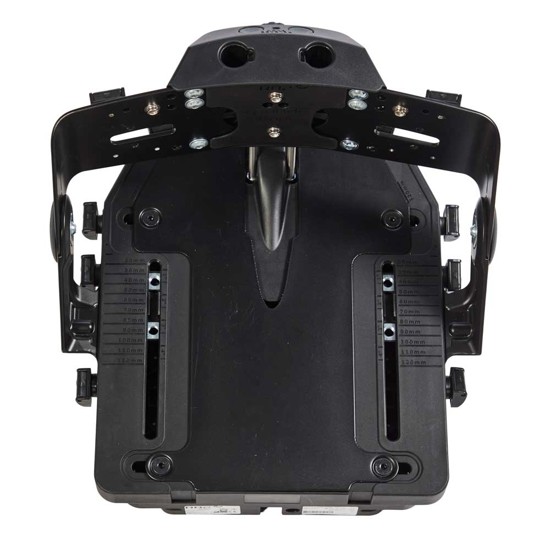

Seat base
The seat base is for attachment of simple or advanced seat plates. Allows for adjustments in seat width. The effective seat width will be reduced with the use of hip or pelvis supports.
Seat base

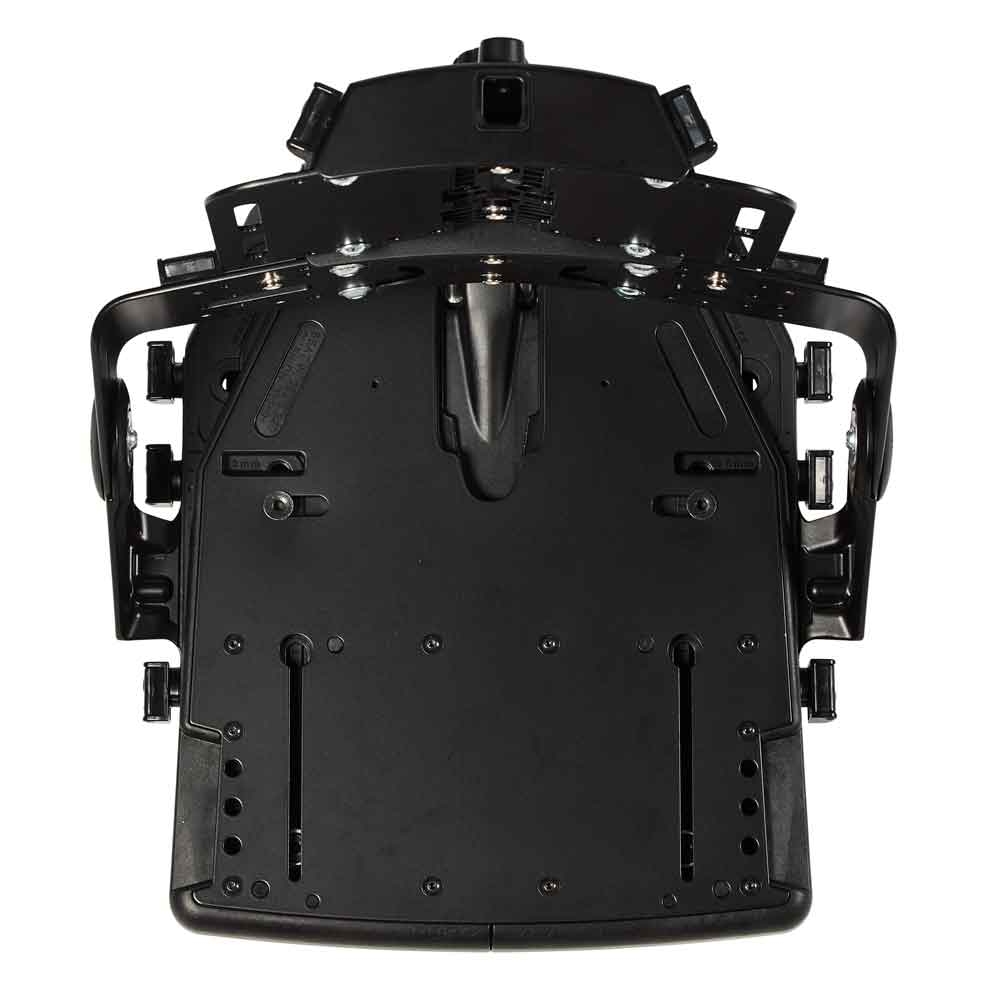

Seat plate
Excluding seat plates
Hip supports
When you choose hip or pelvis supports, the seat width is reduced with min. 1.6". Choose covers under accessory. Width adjustable pelvis supports, mounted from the back, are available as accessories.
Back recline
Stepless recline without dynamic

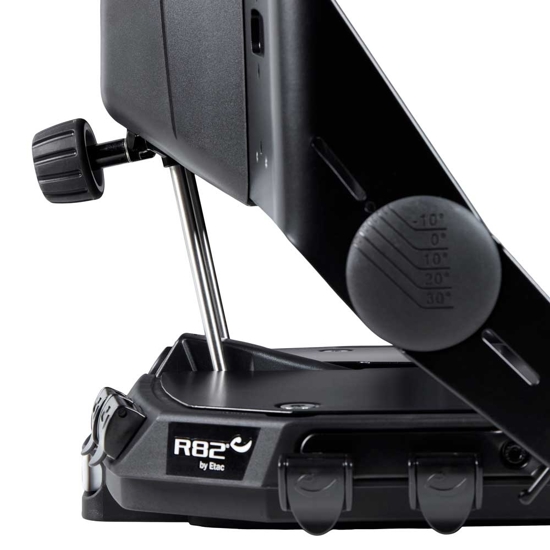

Stepless recline with adjustable dynamic
Recline in steps, 5° per step
Lock of dynamic
Upper back mounting
Enables quick and easy removal of the upper back. Removal of the upper back allows the opportunity to challenge the postural control and balance of the upper body (head, arms, and trunk) and thereby facilitates the activation of the trunk and back muscles. Can be used with therapy kit tubes for 60 mm extra back height (accessory).
No quick release
With quick release, detachment of upper back
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos

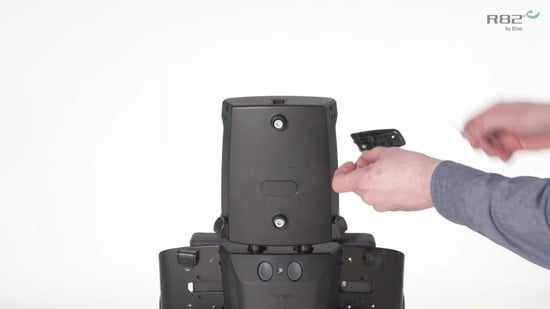

How to adjust the dynamic back on the x:panda shape

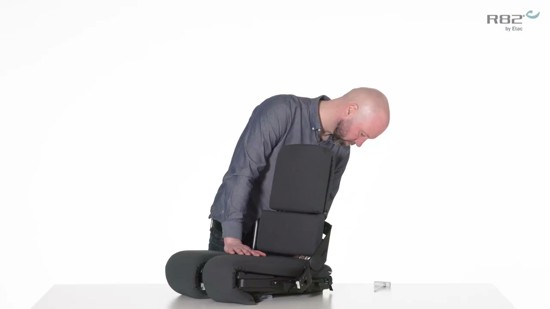

How to adjust seat width for simple seating on the x:panda shape

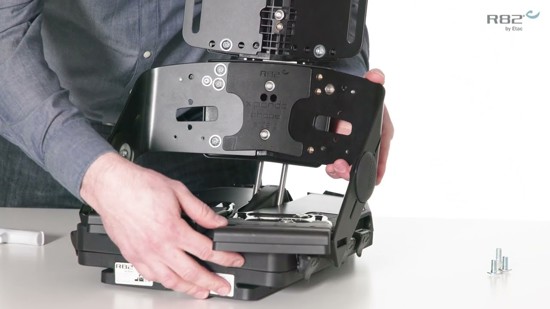

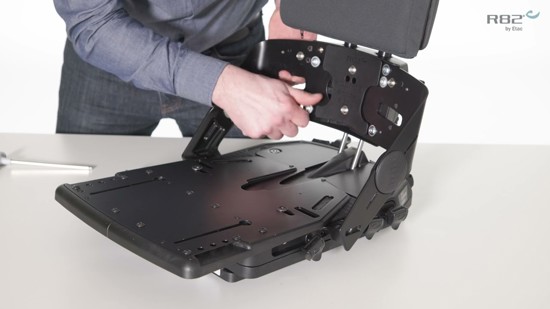

How to adjust seat width for advanced seating on the x:panda shape
