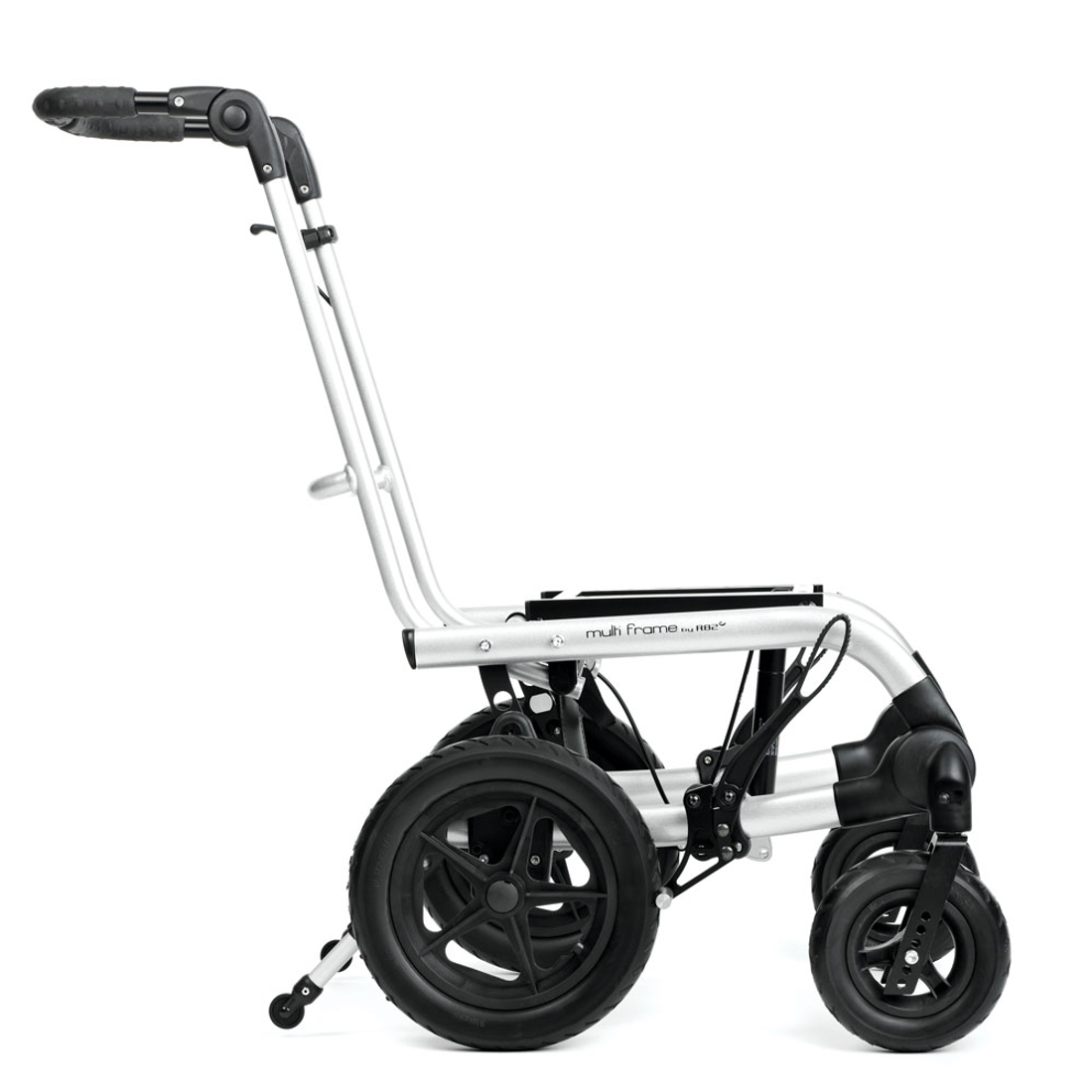

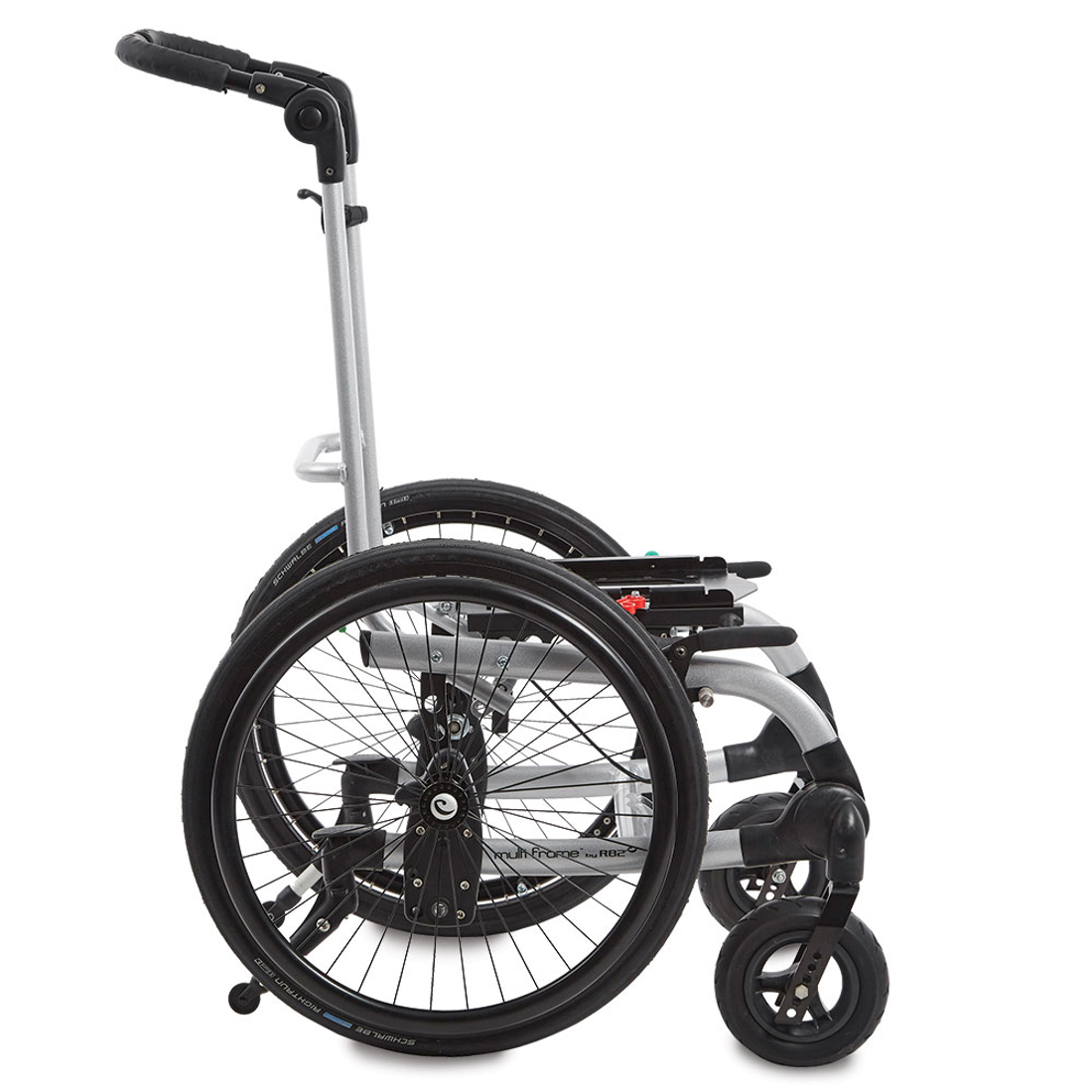

R82 Multi Frame
An innovative and lightweight wheelchair base designed for superior manoeuvrability and adaptability. It offers simple tilt-in-space functionality and compatibility with various seating systems, ensuring safe, comfortable mobility and easy participation in daily life.
R82 Multi Frame
Adaptive mobility for everyday living
The Multi Frame offers a simple, reliable base for everyday mobility and is compatible with a wide range of seating systems. Its easy-to-operate tilt-in-space function enhances comfort and support with minimal effort, making it a straightforward choice for childs and caregivers. Designed for durability and ease of use, this frame provides a stable foundation that adapts to various needs, ensuring the child is well-supported during daily activities at home or on the move. It is a practical solution for integrated, everyday mobility.
Features
-
Features
Tilt in space
Simple to operate tilt in space with the minimum of moving parts.
-
Features
Seats
Mount a x:panda shape or x:panda seat on the Multi Frame.
-
Features
Adapter
Prepared for seats and backs from other manufacturer.
-
Features
Safe transportation in vehicles
The Multi Frame complies with ISO 7176-19, transporting users in motor vehicles.The Multi Frame can be used with seat units that complies with ISO 16840-4.
Standard specifications
| Size 1 | Size 2 | Size 3 | |
|---|---|---|---|
| Item number | 9711xxxx0 | 9721xxxx0 | 9731xxxx0 |
| Back width, inside (inch) | 9.75 | 11.5 | 13.5 |
| Folded height with 12 1/2" back wheels (inch) | 18.5 | 18.5 | 18.5 |
| Folded height with 22" back wheels (inch) | 22 | 22 | 22 |
| Folded height without back wheels - Mid position (inch) | 15.75 | 15.75 | 15.75 |
| Folded length with 12 1/2" back wheels (inch) | 28.75 | 28.75 | 28.75 |
| Folded length with 22" back wheels (inch) | 33.5 | 33.5 | 33.5 |
| Folded length with 22" wheels (inch) | 33.5 | 33.5 | 33.5 |
| Footrest to adaptor plate (inch) | 2-13.5 | 2-13.5 | 2-13.5 |
| Hand brace length (inch) | 8.75 | 8.75 | 8.75 |
| Handrim diameter (inch) | 19 | 19 | 19 |
| Inside width (inch) | 13.5 | 15.25 | 17.25 |
| Length - with 12½" wheels (inch) | 25.25 | 25.25 | 27.25 |
| Length - with 22" wheels (inch) | 29.5 | 29.5 | 31.5 |
| Mass device with 12.5" wheels and solid front wheels (lbs) | 28.6 | 28.6 | 28.6 |
| Mass device with 22" air wheels and air front wheels (lbs) | 30.8 | 30.8 | 30.8 |
| Max load (lbs) | 220.4 | 220.4 | 220.4 |
| Max load at transportation (lbs) | 220.4 | 220.4 | 220.4 |
| Maximum rated load (lbs) | 253.5 | 253.5 | 253.5 |
| Overall height, push brace 15° (inch) | 36 | 36 | 36 |
| Overall height, push brace 30° (inch) | 33.5 | 33.5 | 33.5 |
| Overall width 22" wheels & drumbrake (inch) | 17 | 19 | 20.75 |
| Overall width with 12.5" wheels (inch) | 23.25 | 25.25 | 27.25 |
| Overall width with 22" wheels (inch) | 23.25 | 25.25 | 27.25 |
| Seat surface height at front edge (inch) | 15.5, 16.75, 18 | 15.5, 16.75, 18 | 15.5, 16.75, 18 |
| Width between 22" wheels with drum brake (inch) | 17 | 19 | 20.75 |
| Width between 22" wheels without drum brake (inch) | 17.25 | 19.25 | 21.25 |
| Width inside (inch) | 13,5 | 15,25 | 17,25 |

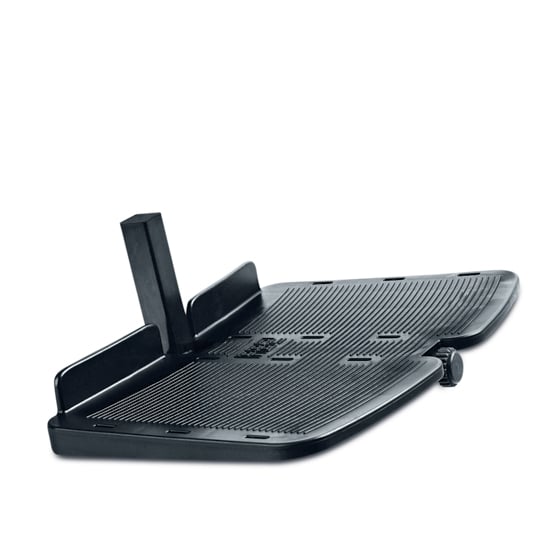

Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
Drum brake adjustment
